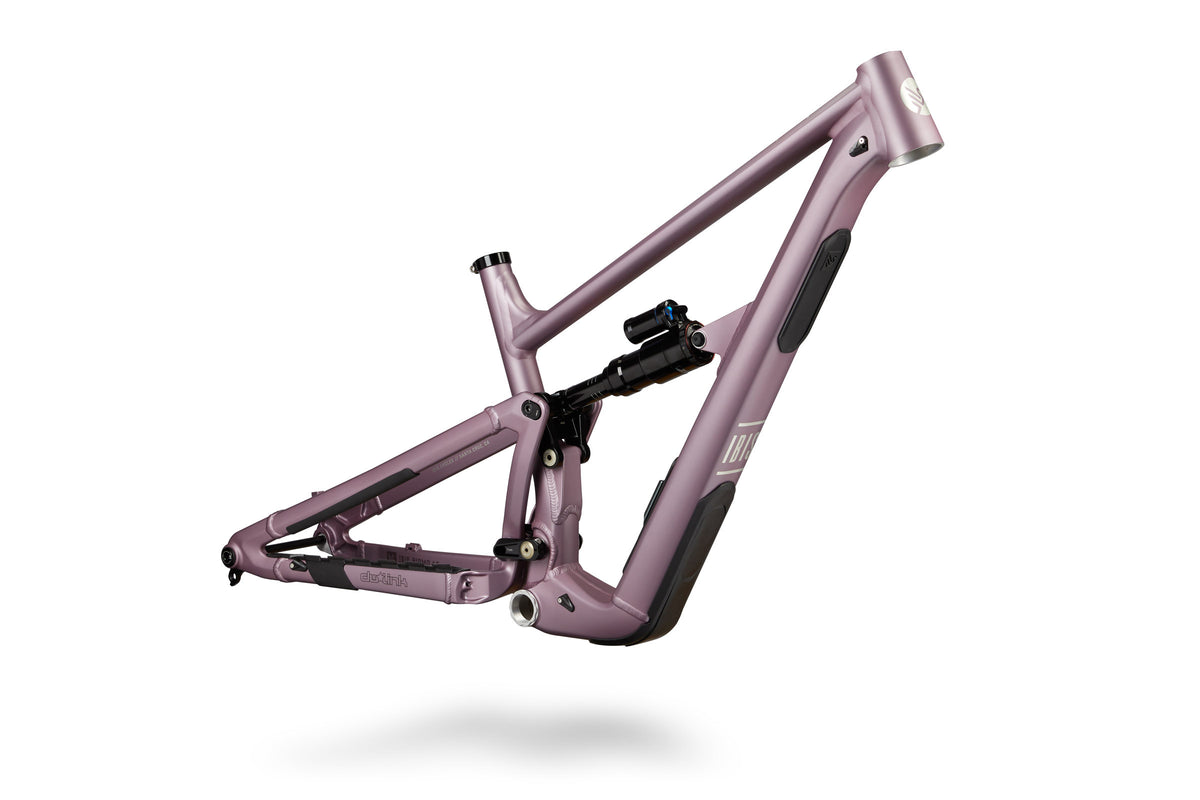

Rose Dust — Ibis Ripmo AF V2 Frameset 2027

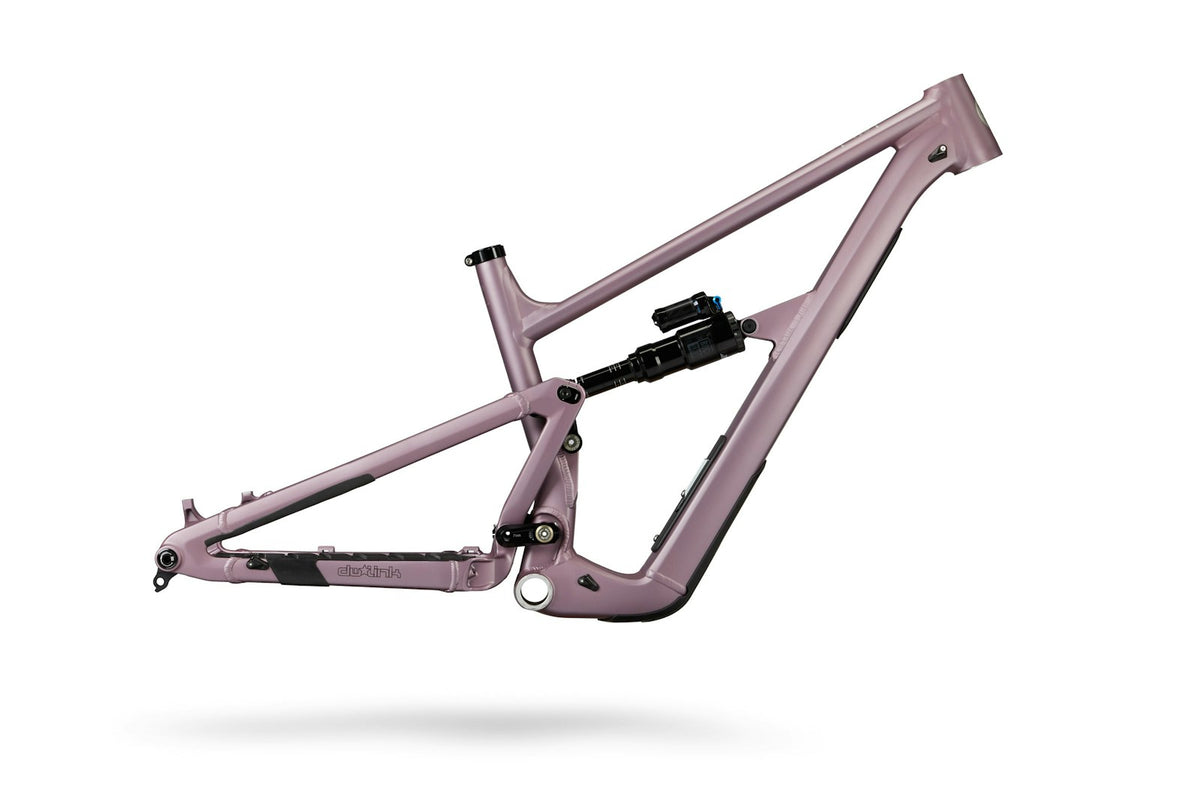

Ripmo AF V2 Desert Rose Frame Only Side

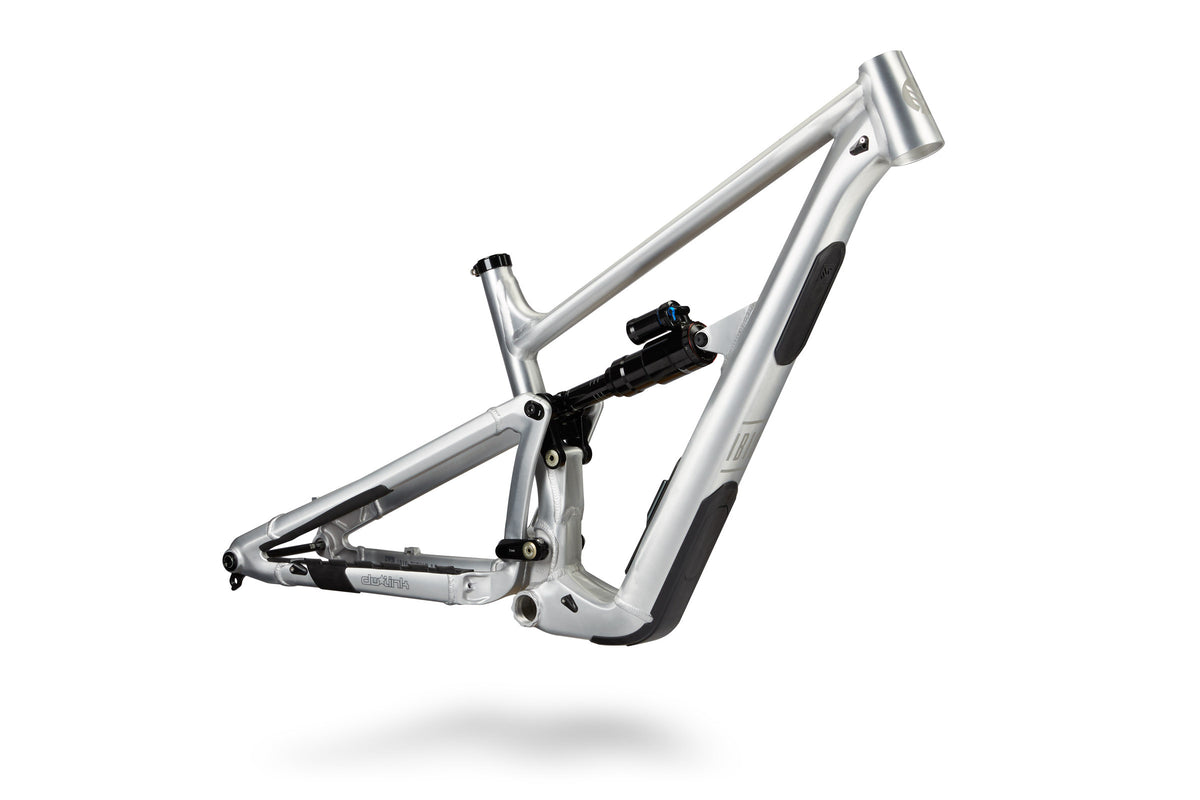

Metal AF — Ibis Ripmo AF V2 Frameset 2027

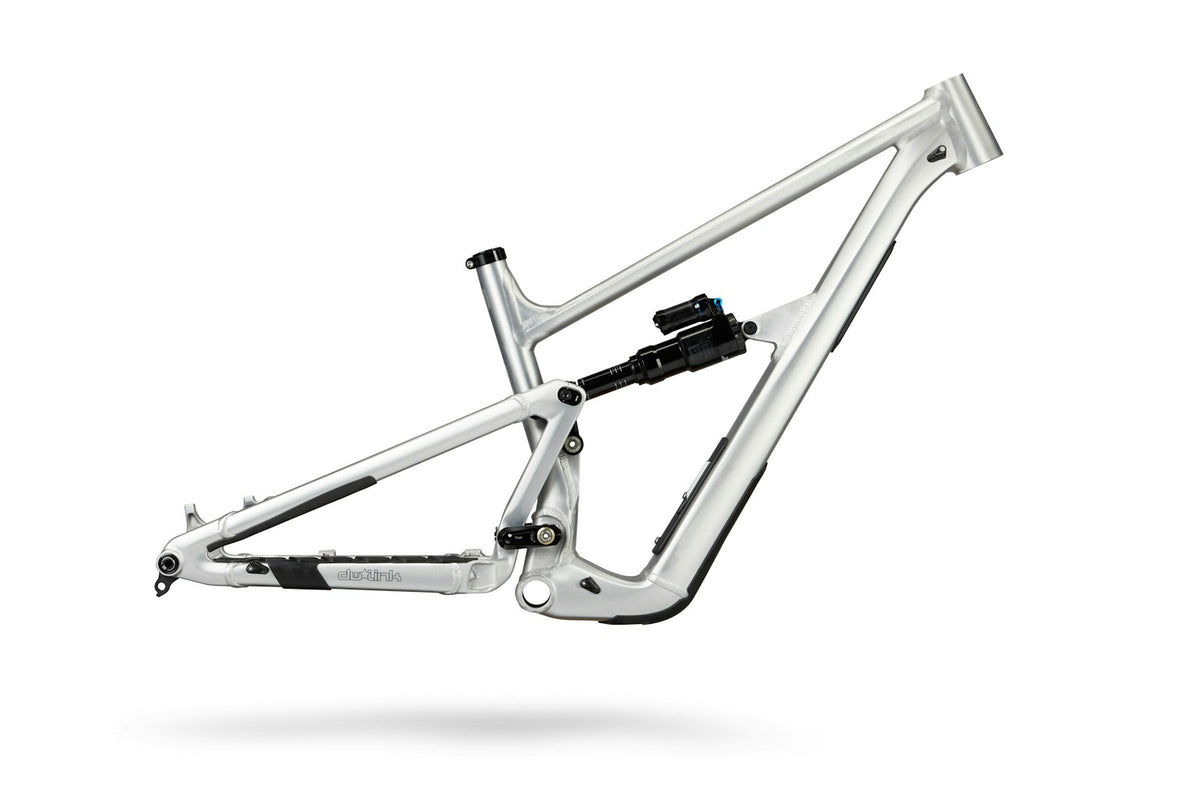

Ripmo AF V2 Raw Metal Frame Only Side
Rose Dust — Ibis Ripmo AF V2 Frameset 2027
Ripmo AF V2 Desert Rose Frame Only Side
Metal AF — Ibis Ripmo AF V2 Frameset 2027
Ripmo AF V2 Raw Metal Frame Only Side
Ibis Cycles

Ibis Ripmo AF V2 ramset 2027

(0)

Ramset i aluminium · 150 mm slaglängd bak

30,690.00 SEK inc. VAT
FÖRBESTÄLLNING

Beräknad leverans inom 4–5 veckor.

Ring före beställning för att bekräfta exakt leveranstid: +46 70 600 54 55.

FrameAluminum
Rear travel150mm
Included shockRockShox Super Deluxe Select 230mm x 60mm
Wheel compatibilitySize XM–XL: 29” wheels Size SM–MD: MX wheels (MX or 29” option in all sizes via flip chip)
Färg
Storlek

Ibis Ripmo AF V2 ramset 2027

Fullständiga specifikationer

Included with the frameset

Frame
Ripmo AF V2 frame in the selected colour and size
Shock
RockShox Super Deluxe Select 230mm x 60mm

Frame specifications & compatibility

Version
V2
Frame Material
Aluminum
Wheel Size
Size XM–XL: 29” wheels Size SM–MD: MX wheels (MX or 29” option in all sizes via flip chip)
Front Travel
160mm
Rear Travel
150mm
Shock Specs
230mm x 60mm (coil shock compatible)
Boost Axles
148mm rear / 110mm front
Seatpost Diameter
34.9mm
Rear Brake
180mm Post mount / 220mm max rotor
Bottom Bracket
Threaded (73mm English threaded)
Chainline
55mm chainline
Derailleur Hanger
SRAM UDH
ISCG 05 Compatible
ISCG 05 Tab Mount available separately
Headset
ZS44 upper / ZS56 lower
Bottle Mounts
26oz bottles fit inside the front triangle on all sizes
Frame Storage
Large Internal frame storage with easy access door
Frame Storage Bag
Ibis Stow bag
Colors
Metal AF or Rose Dust
Sizes
Small (S), Medium (M), Extra medium (XM), Large (L) and Extra Large (XL)
Warranty
Lifetime frame warranty
Bushings Warranty
Lifetime replacement on bushings

Specifikationer från Ibis Cycles. Komponenter kan ändras; bekräfta det slutliga utförandet före beställning.

Ibis Ripmo AF V2 ramset 2027

Storleksguide och geometri

Storleksguide

StorlekCyklistens längd
SM152–168 cm
MD165–175 cm
XM173–183 cm
LG180–191 cm
XL188–201 cm

Mellan två storlekar? Ring oss för hjälp att välja rätt.

Storleksguide och geometri – Manufacturer standard setup; dimensions in mm and angles in degrees. Geometry uses the recommended fork, which is only included on Hakka MX.

SMMDXMLGXL
Seat Tube395400415457477
Top Tube578605630655685
Head Tube8595110125140
Chainstay 29"435435436438440
Chainstay MX432432433435437
Seat Tube Angle77°76.5°76.5°77°77.5°
Saddle Height for Seat Tube Angle650700745790830
Head Tube Angle64.5°64.5°64.5°64.5°64.5°
Wheelbase11951219124912861329
Stack616622633643654
Reach436456478506540
BB Height*338341344349350
BB Drop 29"3633302724
Standover693734757772784
Recommended Seatpost Drop140170185213213
Crank Length165165170170170

Use the manufacturer wheel layout and setup for the selected frame size. Forks, wheels and other build parts must meet the frame compatibility specifications.

Ibis Ripmo AF V2 ramset 2027

Frameset contents

Included parts

ComponentSpecification
FrameRipmo AF V2 frame in selected colour and size
ShockRockShox Super Deluxe Select 230mm x 60mm

Official Ibis frame-only component list

Complete your build

This is a frameset. Wheels, tyres, drivetrain, brakes, cockpit and seatpost are not included. A fork is not included. Choose compatible parts using the specifications, geometry and manufacturer guides below.

Ibis Ripmo AF V2 ramset 2027

Features & frame technology

Frame construction

Aluminum. Frame size options: SM, MD, XM, LG, XL.

dw-link suspension

The Ripmo AF V2 uses dw-link suspension with 150mm rear travel. Frame geometry and the recommended suspension are detailed in the other drawers.

Internal storage

Large Internal frame storage with easy access door. Ibis Stow bag

Frame warranty

Ibis offers lifetime frame cover subject to eligibility and its warranty terms.

Ibis warranty terms

Ibis Ripmo AF V2 ramset 2027

FAQs & compatibility

Fork compatibility

The standard fork travel is 160mm. Ibis supports 150–170 mm forks; check axle-to-crown length and the intended setup before changing.

Shock and wheel compatibility

Shock size: 230mm x 60mm (coil shock compatible). Coil shocks of the specified size are supported. Use the correct flip-chip position for a 29-inch or 27.5-inch rear wheel, and retain the specified shock stroke.

Tyres and storage

Most 2.5-inch tyres fit; maintain 8 mm minimum frame clearance. The STOW tool bag accepts a pump up to 184 mm long.

Chainring clearance

Confirm clearance for round and oval rings. Round rings: 28–34T; maximum recommended oval: 32T.

Rear brake mounting

180mm Post mount / 220mm max rotor

Chainline

55mm chainline

Bottom bracket

Threaded (73mm English threaded)

Bottle capacity

26oz bottles fit inside the front triangle on all sizes

Paint and replacement parts

Consult the current Ibis support page for model and colour-specific paint codes, replacement components and all compatibility FAQs.

Complete manufacturer FAQs

Ibis Ripmo AF V2 technical page

Ibis Ripmo AF V2 ramset 2027

Setup guides & dropper fit

Official setup documents

Choose the guide matching the suspension selected for your frame. Component manufacturers’ specifications also apply.

Ripmo AF - Suspension Setup Guide .pdf

Ripmo AF - Cable Routing Guide .pdf

Frame insertion limits

Manufacturer reference chart in mm. Use only with the named seatpost and verify your selected post’s insertion depth and full-compression saddle clearance.

Frame measurementSMMDXMLGXL
Max Insertion270290295320330

Dropper Post Saddle Height Calculations

Manufacturer reference chart in mm. Use only with the named seatpost and verify your selected post’s insertion depth and full-compression saddle clearance.

DropMin/MaxSMMDXMLGXL
Revive v3 - 125Min552557572612632
Max670675690730750
Revive v3 - 160Min587592607647667
Max720725740780800
Revive v3 - 185Min612617632672692
Max740745760800820
Revive v3 - 213Min686671681700720
Max805810825865885

Dropper Post Saddle Height Calculations

Manufacturer reference chart in mm. Use only with the named seatpost and verify your selected post’s insertion depth and full-compression saddle clearance.

DropMin/MaxSMMDXMLGXL
140Min603588601641661
Max699704719759779
170Min663648658673691
Max749754769809829
210Min743728738753763
Max819824839879899

Ibis Ripmo AF V2 ramset 2027

Torque & maintenance

Official frame torque values

HardwareTorque Spec (Nm)Thread Treatment / Notes
Suspension
Forward Shock Mount Bolt10Loctite 243 on threads, grease on shaft
Rear Shock to Clevis Bolt20Loctite 243 on threads, Ti anti-seize on shaft and underside of bolt head
Linkage
Upper Link to Front Triangle20Loctite 243 on threads (if no green threadpatch), grease on shaft and under bolt head
Upper Link to Clevis20Loctite 243 on threads (if no green threadpatch), grease on shaft and under bolt head
Upper Link to Rear Triangle (Flip Chip)15Loctite 243 on threads (if no green threadpatch)
Lower Link 4mm Side Preload Bolts2Loctite 243 on threads (if no green threadpatch), grease under bolt head
Lower Link 5mm Pinch Bolts10Loctite 243 on threads
Misc
Cable Guides1.5Hand tight
Rear Brake Caliper6Loctite 243 (if no threadpatch)
Seat Binder6Grease
UDH25Dry (reverse thread!)
Rear Axle10Grease
Stow
Door Latch to Lever Bolt3Loctite 243 on threads (if no threadpatch)
Flip Chip Parts
Flip ChipGrease on inside surfaces of the Flip Chip
Flip Chip SpacerGrease on both sides of the Flip Chip Spacer
Bearing WasherGrease on the inner mating surfaces of the Bearing Washer

Current Ibis technical reference
