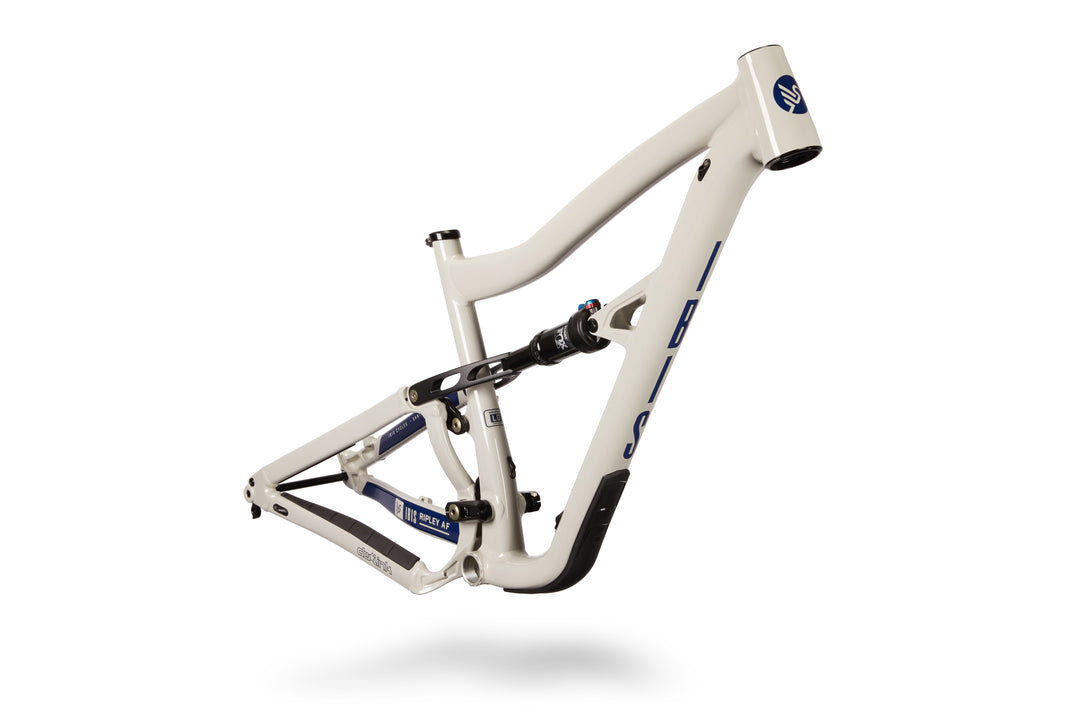

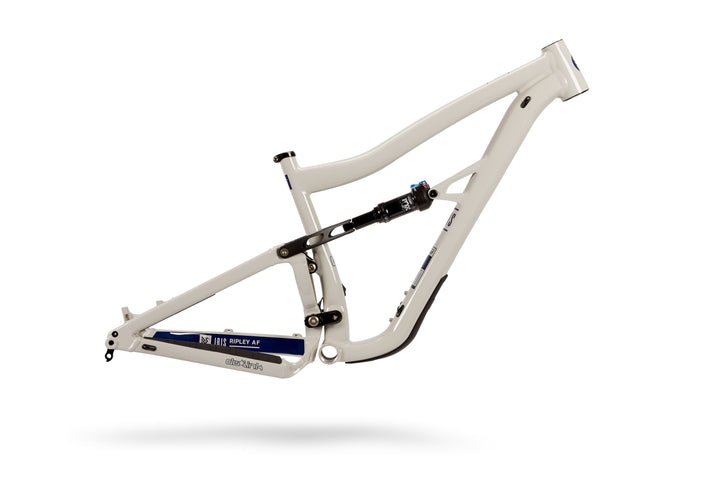

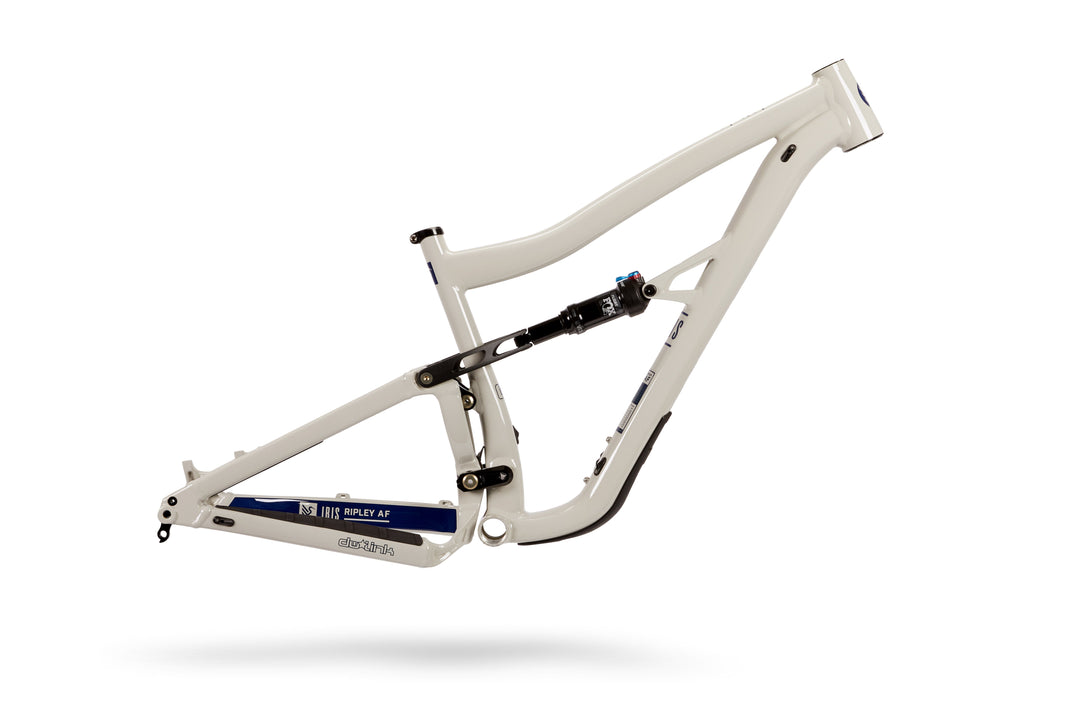

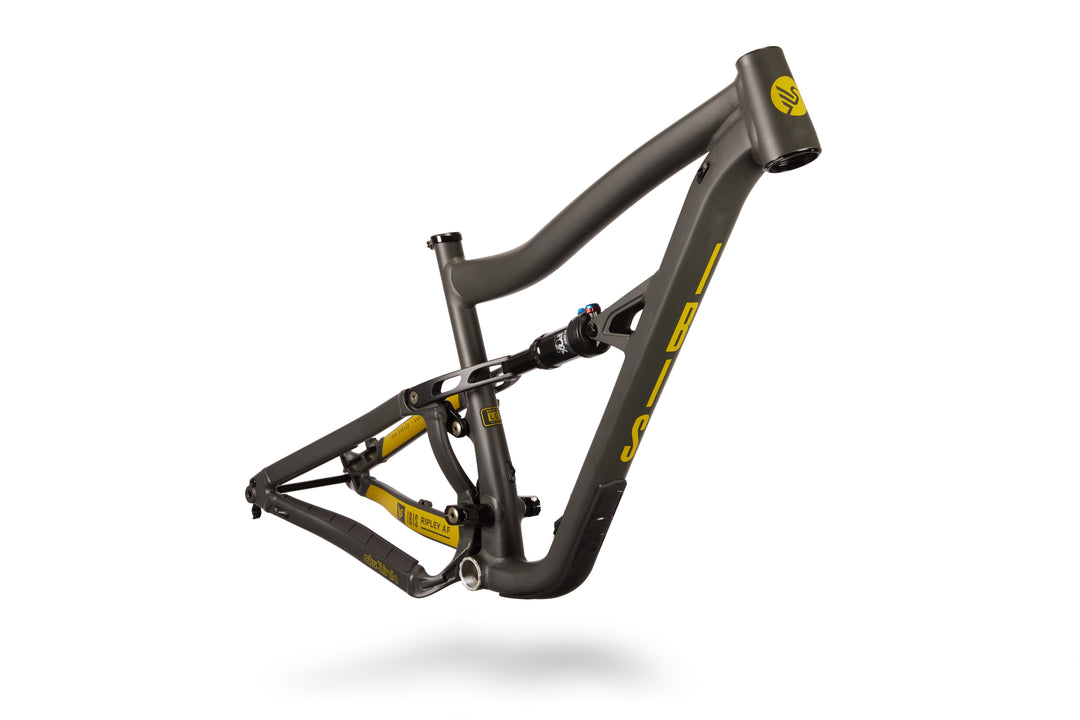

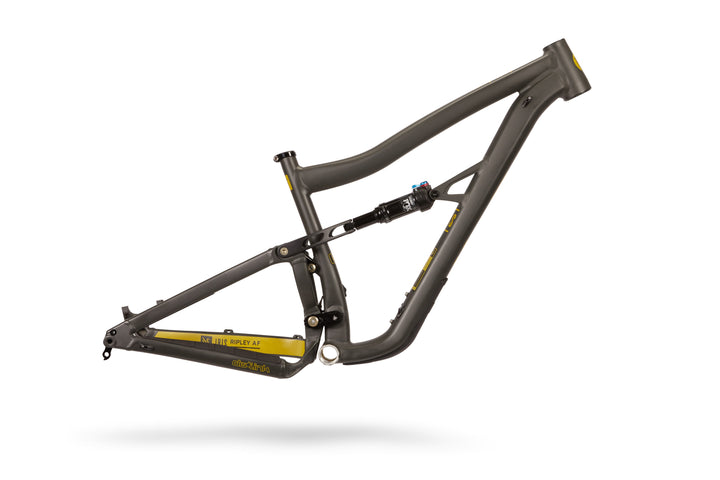

Ibis Ripley AF Frame

Regular price 30,599.00 kr Save 0%
/
Tax included. Shipping calculated at checkout.

Ibis Ripley AF Frame boutique-mtb
Ibis Ripley AF Frame boutique-mtb
Ibis Ripley AF Frame boutique-mtb
Ibis Ripley AF Frame boutique-mtb

RIPLEY AF

The Ripley AF is our beloved, category-defying, short-travel, singletrack-scorching Ripley - rendered in aluminum, with more aggressive geometry. All the sizzle and pop of the carbon Ripley, now available as a complete bike at a wallet friendly price

MODERN GEOMETRY, PRECISE HANDLING

A trail-friend­ly 65.5‑degree head angle and short (44mm) off­set 130mm fork com­bined with 29” wheels makes for a super plant­ed but still play­ful front end feel. A 76-degree seat angle puts your pow­er direct­ly to the ped­als, while the short chain­stays and ped­al-friend­ly dw-link kine­mat­ics deliv­er that pow­er with­out squan­der­ing a sin­gle watt.



DW LINK SUSPENSION

Our 15-year col­lab­o­ra­tion with Dave Wea­gle has yield­ed yet anoth­er bike with unpar­al­leled climb­ing effi­cien­cy and tractabil­i­ty. Incred­i­ble snap and respon­sive­ness are its trade­marks, and a whole mess of plush, chun­der-eat­ing, down­hill-crush­ing good­ness gets thrown in for good mea­sure. Wrap that togeth­er and you get the best sus­pen­sion you’ll find any­where. It’s that good.



LONG DROPPER POST

The Rip­ley AF frame is designed with clear­ance for long drop­pers in mind. Check out the Drop­per Insert’ tab in the Specs & FAQs sec­tion below to find out which length of seat­post will fit your frame.



PICK YOUR SIZE

We use words like small, medi­um, and large to describe our siz­ing because it’s easy to under­stand, but our ultra low stan­dovers give you the abil­i­ty to size your frame based on reach and preference.



2.6” TIRE CLEARANCE

We pio­neered the wide rim rev­o­lu­tion a few years ago and inspired a new crop of wider 2.4” — 2.6” tires. When paired togeth­er, this com­bo can be run at ultra-low pres­sures that pro­duce elbow-drag­ging cor­ner­ing trac­tion with­out sac­ri­fic­ing speed.



REMOVABLE ISCG-05 MOUNT.

There if you want it, remov­able if you don’t.



SEVEN YEAR WARRANTY

We stand behind our prod­ucts. If it’s our fault, we’ll fix it. Our alu­minum frames are backed by the same 7 year war­ran­ty and excel­lent cus­tomer ser­vice as our car­bon products.





RIPLEY AF GEOMETRY

Contemporary Geometry, Precise Handling.

    • 65.5°Head Tube Angle

    • 76°Seat Tube Angle

  • 17" / 432mmChainstays
Geo rip AF

130MM FORK (544MM AXLE TO CROWN)

NOMINAL SIZE   SMALL MEDIUM LARGE X-LARGE
Seat Tube Length A 368 381 418 482
Top Tube Length B 574 603 630 658
Head Tube Length (4mm stack of lower cup not included) C 90 105 115 125
Chainstay Length D 432 432 432 432
Seat Tube Angle E 76° 76° 76° 76°
Head Tube Angle F 65.5° 65.5° 65.5° 65.5°
Wheelbase G 1157 1188 1217 1246
BB Height (with 2.5 Maxxis Minons) 335 335 335 335
Stack 599 613 622 631
Reach 425 450 475 500
Standover 676 703 722 759
Trail 114 114 114 114
Saddle height for seat tube angle 620 700 750 807


SIZING GUIDE (RIDER HEIGHT)

S
152–165CM
M
163–175CM
L
173–185CM
XL
183–198CM

SPECS

Frame Material Aluminum
Frame Weight 7.45 lbs with shock
Wheel Size 29"
Front Travel 130mm
Rear Travel 120mm
Shock Specs 190 x 45mm
Boost Axles 148mm rear / 110mm front
Seatpost Diameter 31.6mm
Rear Brake 160mm post mount / 203mm max rotor
Chainstay Length 432mm (17 inches)
Bottom Bracket Threaded BB (73mm BSA)
ISCG 05 Compatible ISCG 05 Tab Mount available separately
Headset ZS44 upper / ZS56 lower
Colors Monolith Silver or Pond Scum Green
Sizes S / M / L / XL
Warranty 7 years
