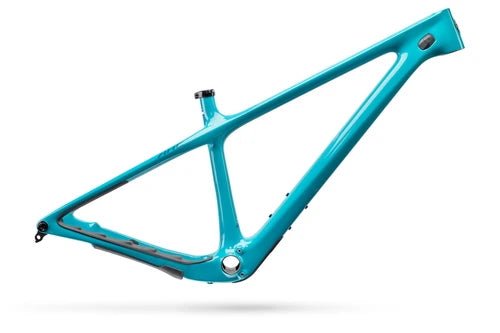

Yeti ARC Frame T-Series 2027 Turquoise
Yeti ARC Frame T-Series 2027 Turquoise

Yeti ARC Frame T-Series 2027

(0)

Carbon frame kit · HT mm rear

21,290.00 SEK inc. VAT
Bestillingsvare

Leverandørens tilgængelighed er endnu ikke bekræftet for denne farve og størrelse. Kontakt os for det seneste estimat.

Bikes currently in stock at Yeti: delivery in 10–15 working days from payment. For incoming bikes, this period starts once the bike is available at Yeti and payment is received.

FrameTURQ SERIES
Wheels29
Rear travelHT mm
Weight2.96 lb (1.34 kg) (claimed)
Colour
Size

Yeti ARC Frame T-Series 2027

Full specifications

Frame

Frame
TURQ series carbon fiber frame, Pressfit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, Universal derailleur hanger (UDH), and axle.
Material
TURQ SERIES
Weight
2.96 lb (1.34 kg)
Rear travel
HT mm
Wheel size
29

Specifications as published by Yeti Cycles. Yeti may change components during the model year without notice.

Yeti ARC Frame T-Series 2027

Size guide & geometry

Fit guide

SizeRider height
SM155–170 cm
MD165–180 cm
LG178–191 cm
XL185–201 cm

Between two sizes? Give us a call – we will help you choose based on your reach, riding style and terrain.

Geometry – ARC (mm / degrees)

SMMDLGXL
SEAT TUBE LENGTH380410450495
EFFECTIVE TOP TUBE LENGTH579606627655
EFF. SEAT TUBE ANGLE75.5°75.5°75.5°75.5°
REAR CENTER433433433433
WHEELBASE1147117511981227
ESTIMATED BB HEIGHT313313313313
STANDOVER727726724724
HEADTUBE LENGTH95103110120
AXLE TO CROWN556556556556
OFFSET44444444
Stack635642649658
REACH415440460485
FRONT CENTER714742765794
WHEEL SIZE737737737737
VERTICAL FORK TRAVEL128128128128

Spørg en ekspert

E-mail +46 70 600 54 55

The Yeti ARC frame kit uses TURQ SERIES carbon construction and HT mm of rear travel. The hardtail layout gives a direct pedalling response for trail riding.

Teknologi //

Funktioner

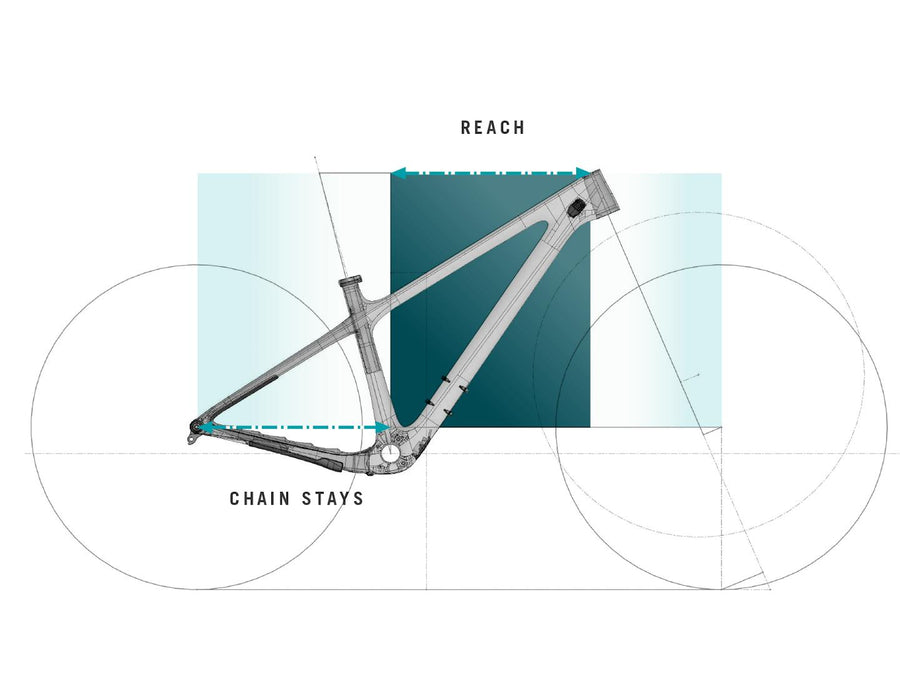

SUMMIT PEAKS. MAKE SHAPES

01

SUMMIT PEAKS. MAKE SHAPES

The frame geometry balances rider room with stability. Consult the geometry table for the measurements in each frame size.

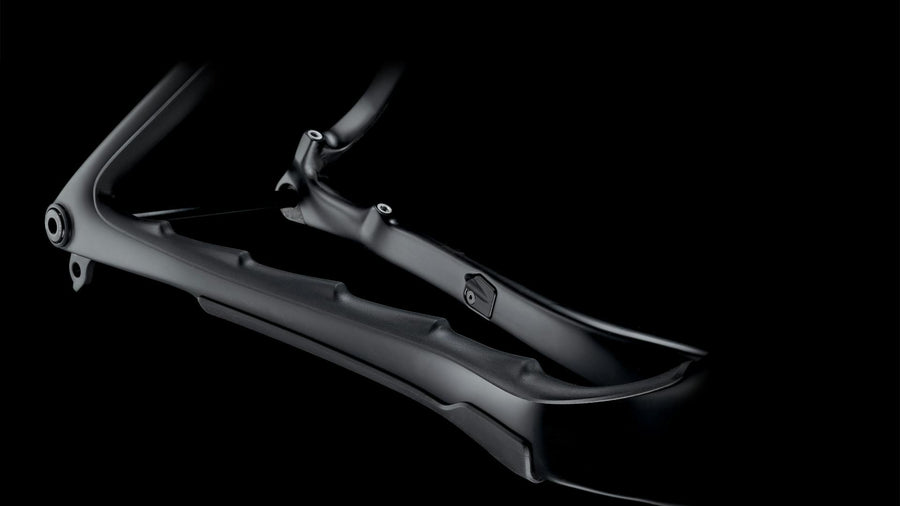

The Sounds of Silence

02

The Sounds of Silence

Internal cable guides and secured entry points help keep routing tidy and reduce rattles.

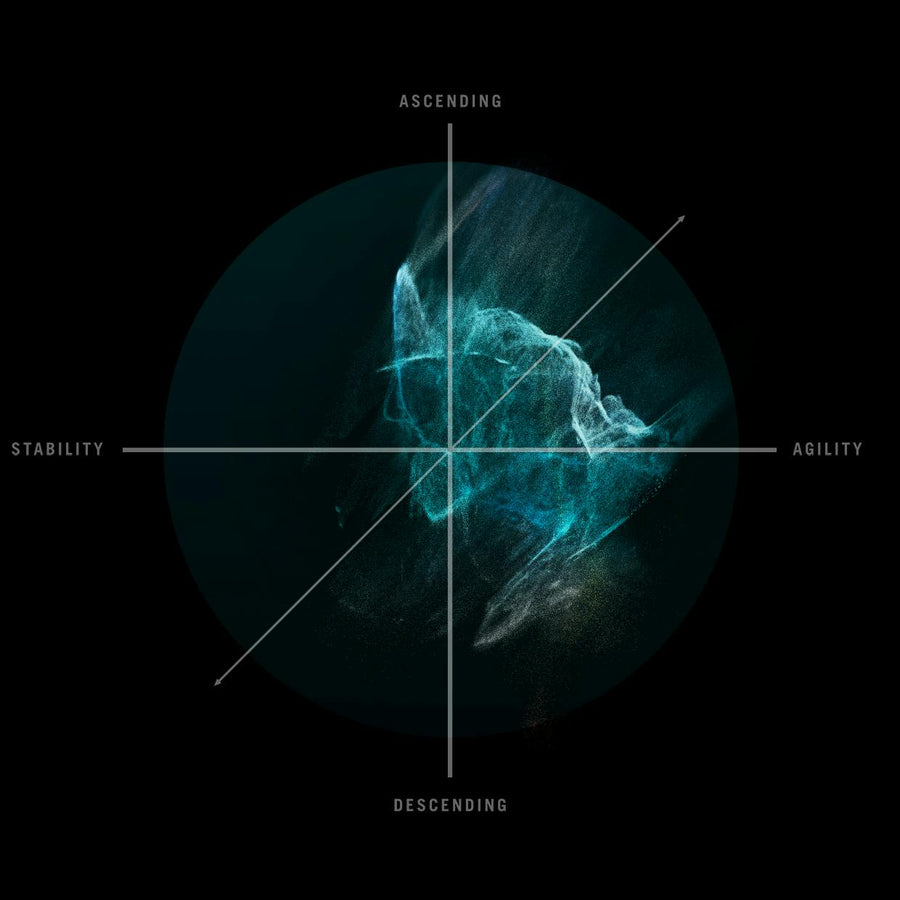

Ride feel chart

03

Ride feel chart

Yeti’s manufacturer chart describes the intended ride character of the ARC.

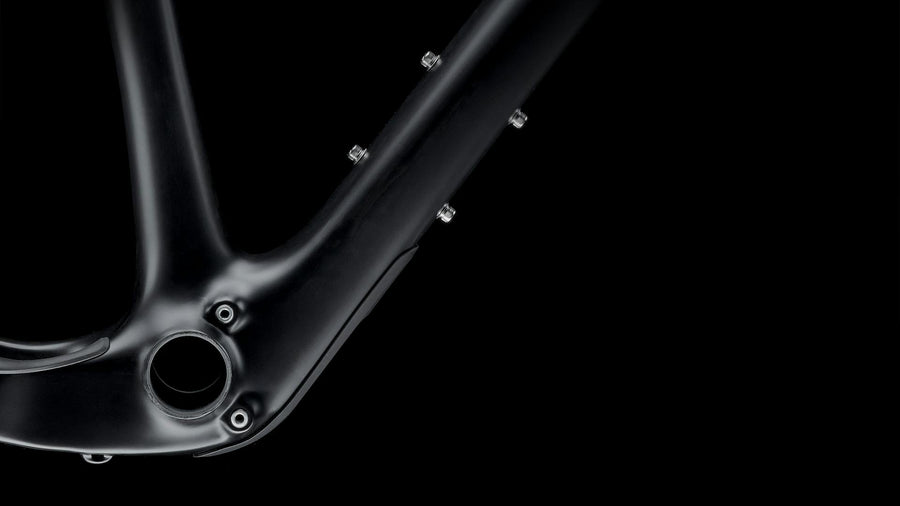

DUAL SIDED DOWNTUBE MOUNTS

04

DUAL SIDED DOWNTUBE MOUNTS

Frame mounting points let you carry accessories without wrapping straps around the frame.

FULL-STROKE DROPPERS ENCOURAGED

05

FULL-STROKE DROPPERS ENCOURAGED

The seat-tube layout gives modern dropper posts room for insertion. Check the build specifications for the supplied post travel in each size.

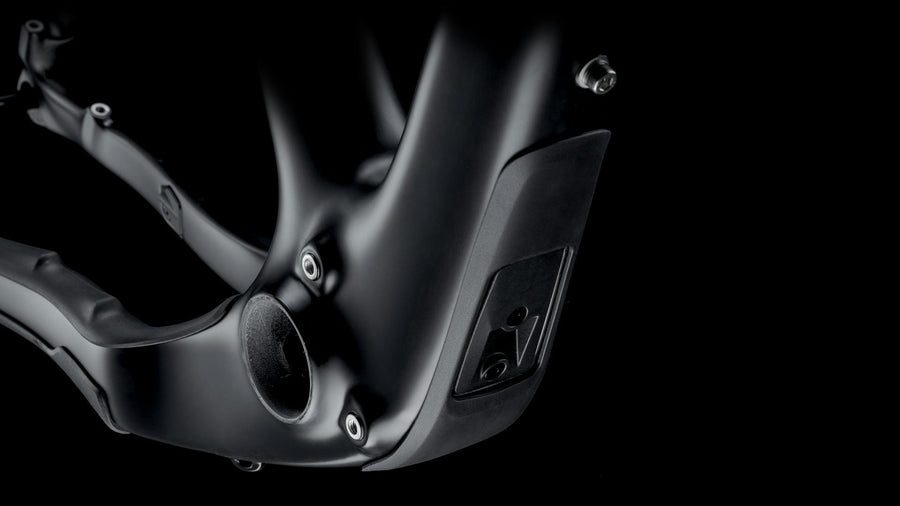

PUT THE POWER DOWN

06

PUT THE POWER DOWN

The connected downtube, seat tube and chainstays give the hardtail frame a direct response to pedalling.

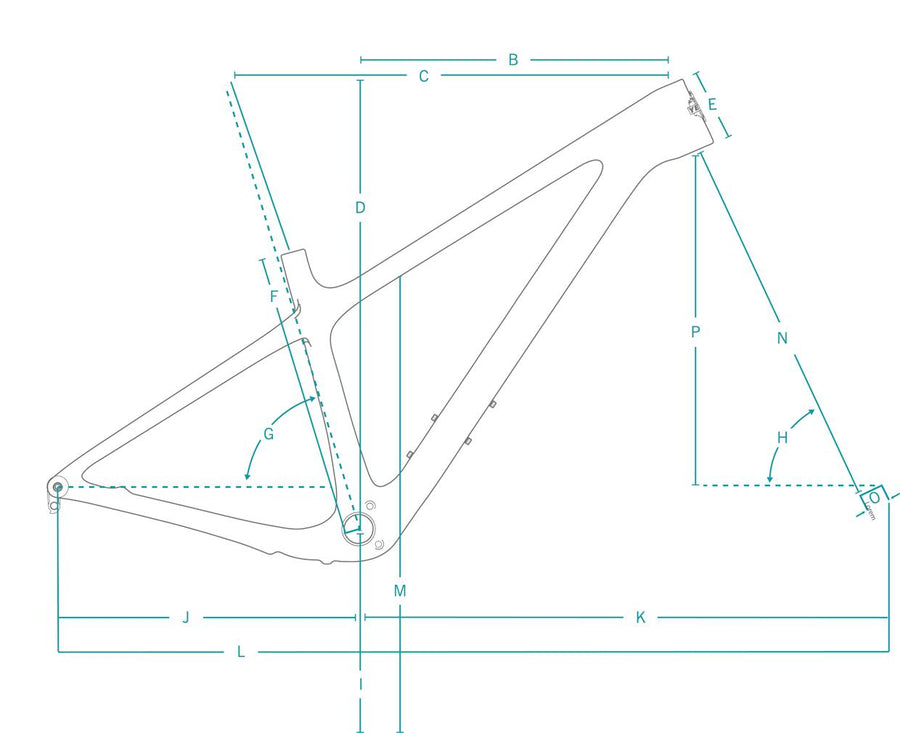

Geometry diagram

07

Geometry diagram

Use this manufacturer diagram alongside the geometry table to identify each measurement.
