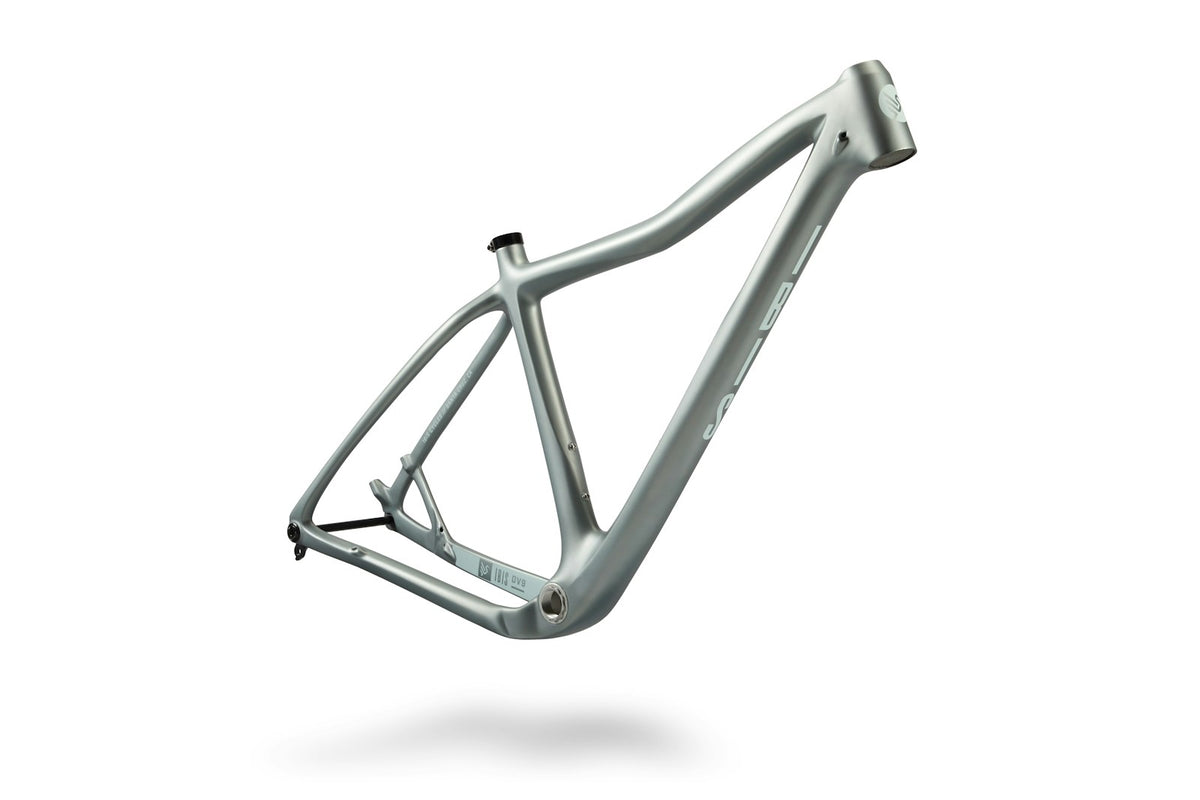

Silver Lining — Ibis DV9 V2 Frameset 2027
Ibis Cycles DV9 Silver Lining Frame Only Side

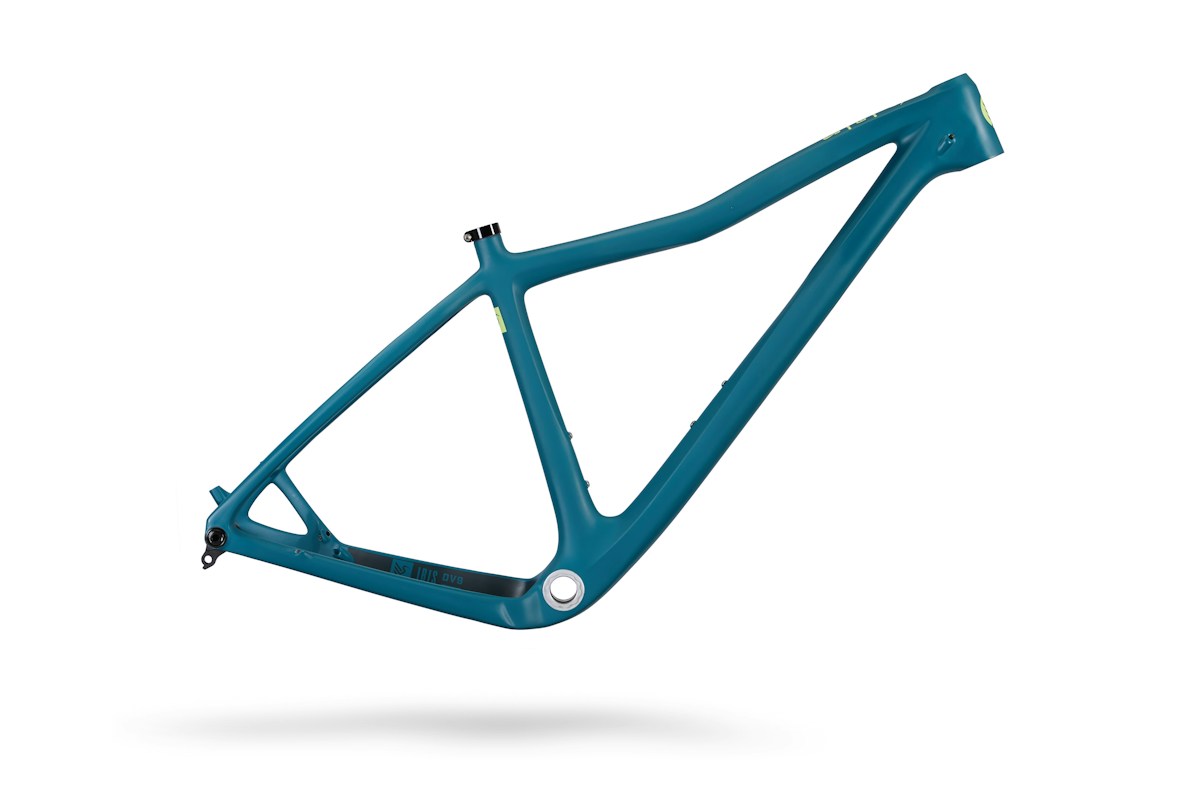

Electric Teal — Ibis DV9 V2 Frameset 2027
Ibis Cycles DV9 Electric Teal Frame Only Front

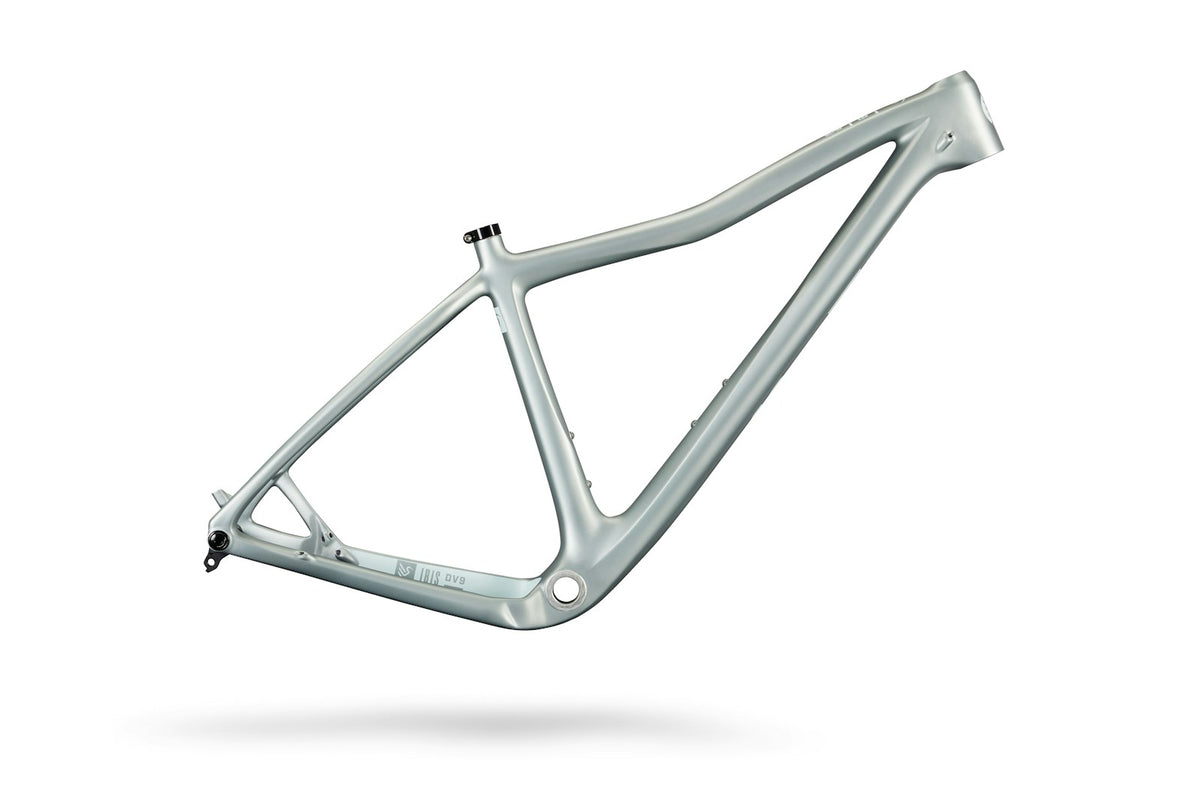

Silver Lining — Ibis DV9 V2 Frameset 2027
Ibis Cycles DV9 Silver Lining Frame Only Side
Electric Teal — Ibis DV9 V2 Frameset 2027

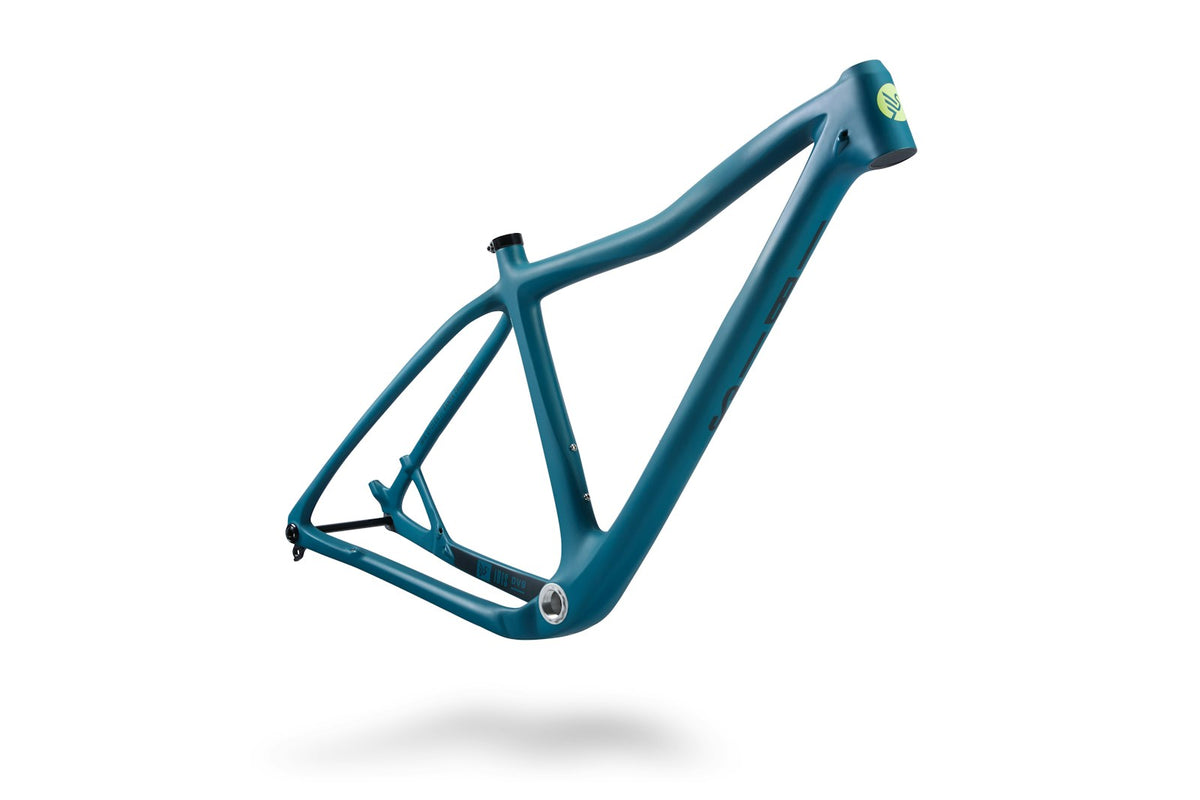

Ibis Cycles DV9 Electric Teal Frame Only Front
Ibis Cycles

Ibis DV9 V2 Frameset 2027

(0)

Carbon hardtail frameset · rock guard included

18,790.00 SEK inc. VAT
PRE ORDER

Estimated delivery in 4–5 weeks.

Call before ordering to confirm the exact ETA: +46 70 600 54 55.

FrameCarbon Fiber
Rear travelHardtail / rigid
Wheel compatibility29" (up to 2.6" tires)
Colour
Size

Ibis DV9 V2 Frameset 2027

Full specifications

Included with the frameset

Frame
DV9 V2 frame in the selected colour and size
Rock guard
Included with the frame

Frame specifications & compatibility

Version
V2
Frame Material
Carbon Fiber
Frame Weight
1305g, 2.9 lbs (size large)
Wheel Size
29" (up to 2.6" tires)
Front Travel
120mm (compatible with 100mm–140mm)
Axle Width
148mm rear / 110mm front
Seatpost Diameter
31.6mm
Rear Brake
160mm Post mount / 203mm max
BB
73mm English threaded
Chainline
55mm chainline
Chainring Clearance
Up to 34T (round)
Derailleur Hanger
Universal Derailleur Hanger (UDH)
Tapered Headtube
IS 41/28.6 upper, IS 52/40 lower
Colors
Silver Lining, Electric Teal
Sizes
S, M, L, XL
Frame Warranty
Lifetime

Specifications published by Ibis Cycles. Components may change; confirm the final build before ordering.

Ibis DV9 V2 Frameset 2027

Size guide & geometry

Fit guide

SizeRider height
SM152–163 cm
MD160–173 cm
LG170–185 cm
XL183–196 cm

Between two sizes? Call us for help choosing the right fit.

Size guide & geometry – Manufacturer standard setup; dimensions in mm and angles in degrees. Geometry uses the recommended fork, which is only included on Hakka MX.

SMMDLGXL
Seat Tube Length356406457508
Top Tube Length580608640675
Head Tube Length8595110135
Chainstay Length425425425425
Seat Tube Angle74°74.5°75°76°
Saddle Height for Seat Tube Angle650700750820
Head Tube Angle66.5°66.5°66.5°66.5°
Wheelbase1100114511861237
Stack615622635658
Reach404435470511
BB Drop65656565
BB Height (with Rekon 2.6" Tires)308308308308
Standover693714762776
Trail114114114114

Use the manufacturer wheel layout and setup for the selected frame size. Forks, wheels and other build parts must meet the frame compatibility specifications.

Ibis DV9 V2 Frameset 2027

Frameset contents

Included parts

ComponentSpecification
FrameDV9 V2 frame in selected colour and size
Rock guardIncluded with the frame

Official Ibis frame-only component list

Complete your build

This is a frameset. Wheels, tyres, drivetrain, brakes, cockpit and seatpost are not included. A fork is not included. Choose compatible parts using the specifications, geometry and manufacturer guides below.

Ibis DV9 V2 Frameset 2027

Features & frame technology

Frame construction

Carbon Fiber. Frame size options: SM, MD, LG, XL.

Frame warranty

Ibis offers lifetime frame cover subject to eligibility and its warranty terms.

Ibis warranty terms

Ibis DV9 V2 Frameset 2027

FAQs & compatibility

Fork compatibility

The standard geometry uses a 120 mm fork; a fork is not included. The frame supports suitable 100–140 mm forks, but Ibis excludes the Fox 36. Recommended offset: 44 mm.

Tyre and wheel clearance

29-inch wheels; most 2.6-inch tyres fit. Keep at least 8 mm tyre-to-frame clearance. 27.5-plus wheels are not supported.

Chainrings and guides

Maximum round ring: 34T; maximum recommended oval: 32T, subject to clearance. An upper guide is supported. The frame does not support the standard Ibis ISCG tab and bashguard assembly.

Rear brake mounting

160mm Post mount / 203mm max

Chainline

55mm chainline

Paint and replacement parts

Consult the current Ibis support page for model and colour-specific paint codes, replacement components and all compatibility FAQs.

Complete manufacturer FAQs

Ibis DV9 V2 technical page

Ibis DV9 V2 Frameset 2027

Setup guides & dropper fit

Official setup documents

Choose the guide matching the suspension selected for your frame. Component manufacturers’ specifications also apply.

DV9 Suspension Set-up Guide .pdf

Bottom Bracket Info .pdf

Frame insertion limits

Manufacturer reference chart in mm. Use only with the named seatpost and verify your selected post’s insertion depth and full-compression saddle clearance.

Frame measurementSMMDLGXL
Center-to-Top (mm)356406457508
Max Insertion (mm)180250250270

Dropper Post Saddle Height Calculations

Manufacturer reference chart in mm. Use only with the named seatpost and verify your selected post’s insertion depth and full-compression saddle clearance.

DropMin/MaxSMMDLGXL
125Min541573624675
Max641691742793
160Min611608659710
Max691741792843
185Min661641692735
Max711761812863
213Min726706757788
Max776826877928

Dropper Post Saddle Height Calculations

Manufacturer reference chart in mm. Use only with the named seatpost and verify your selected post’s insertion depth and full-compression saddle clearance.

DropMin/MaxSMMDLGXL
100Min512562613664
Max594644695746
125Min544587638689
Max634684735786
150Min594612663714
Max674724775826
170Min647633684735
Max707757808859
190Min687667781755
Max737787838889

Dropper Post Saddle Height Calculations

Manufacturer reference chart in mm. Use only with the named seatpost and verify your selected post’s insertion depth and full-compression saddle clearance.

DropMin/MaxSMMDLGXL
100Min521571622673
Max616666717768
125Min566596647698
Max666716767818
150Min616621672723
Max716766817868
170Min656641692743
Max756806857908

Ibis DV9 V2 Frameset 2027

Torque & maintenance

Official frame torque values

HardwareTorque Spec (Nm)Thread Treatment / Notes
Rear Brake Caliper6Loctite 243
Seat Binder6Grease
Derailleur Hanger Bolt25Dry (reverse thread!)
Rear Axle10Grease

Current Ibis technical reference

Ask an expert

Email +46 70 600 54 55

Carbon hardtail frameset · rock guard included. Select colour and size.

Frameset includes the frame and rock guard. Fork not included. Other complete-bike components are not included.

Warehouse availability: estimated delivery in 10–15 working days. Other configurations: PRE ORDER, estimated delivery in 4–5 weeks. Call Boutique MTB on +46 70 600 54 55 before ordering to confirm the exact ETA.
