Ibis DV9 V2 Deore 2027

Frame & compatibility

Version

V2

Frame Material

Carbon Fiber

Frame Weight

1305g, 2.9 lbs (size large)

Wheel Size

29" (up to 2.6" tires)

Front Travel

120mm (compatible with 100mm–140mm)

Axle Width

148mm rear / 110mm front

Seatpost Diameter

31.6mm

Rear Brake

160mm Post mount / 203mm max

BB

73mm English threaded

Chainline

55mm chainline

Chainring Clearance

Up to 34T (round)

Derailleur Hanger

Universal Derailleur Hanger (UDH)

Tapered Headtube

IS 41/28.6 upper, IS 52/40 lower

Colors

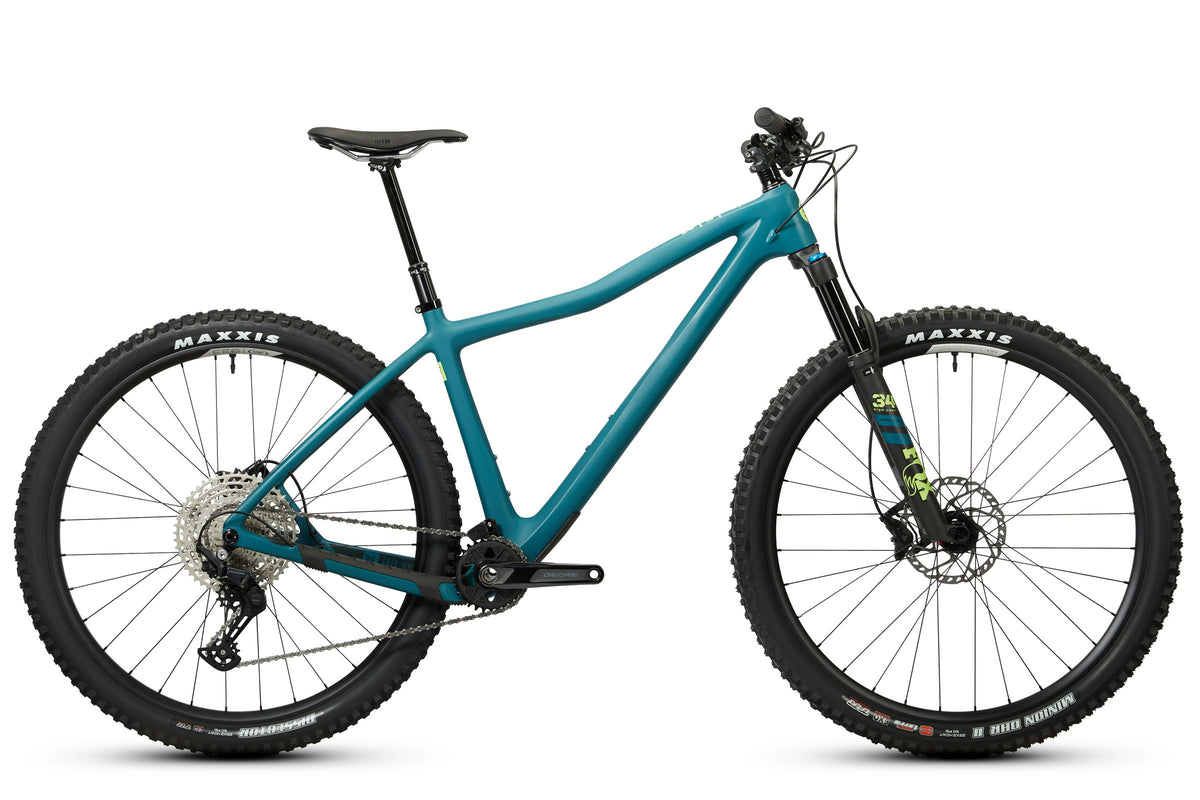

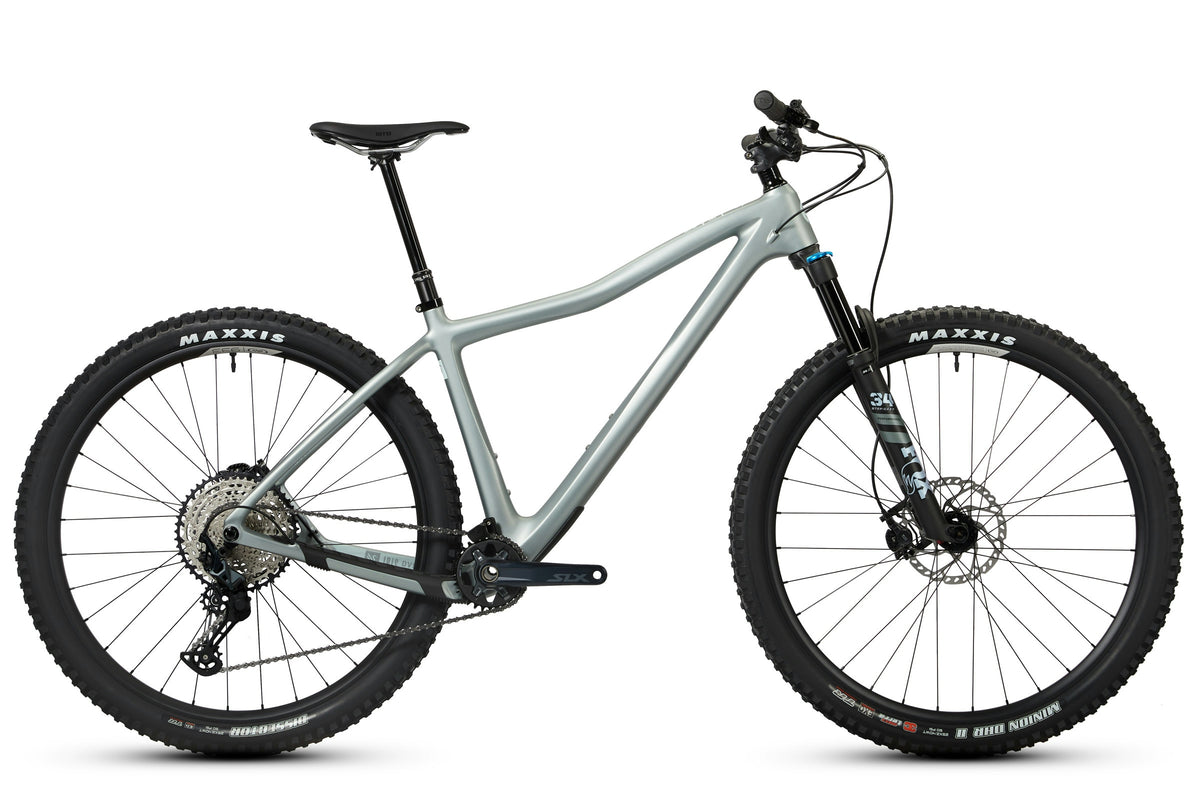

Silver Lining, Electric Teal

Sizes

S, M, L, XL

Frame Warranty

Lifetime

Suspension

Fork

Fox Float 34 Performance Series, Step-Cast, Grip, 120mm, 29’, 110x15

Wheels & tyres

Wheels

Ibis 933 Aluminum Rims, Blackbird Hubs

Tires (F/R)

Maxxis Rekon Race 29" x 2.4" Exo/TR WT

Brakes

Brakes

Shimano Deore, 2 Piston

Rotors (F/R)

Shimano SM-RT66, F/R: 180mm

Drivetrain

Crankset

Shimano Deore M6120 24mm spindle, 30t Alloy Ring

Bottom Bracket

Shimano SM BB52

Rear Derailleur

Shimano Deore, M6100, Shadow Plus

Shifter

Shimano Deore, M6100

Cassette

Shimano Deore, M6100, 10-51T

Chain

KMC X12

Chain Guide

Ibis Top Guide

Cockpit & contact points

Headset

Cane Creek 40: IS 41/28.6 upper, IS 52/40 lower

Grips

Lizard Skins Strata Single Clamp

Handlebar

Ibis Alloy MTB Bars 800 wide SP Ano Black w/ Ibis Logo

Stem

Ibis 31.8mm; S–M: 40mm, L–XL: 50mm

Seatpost

KS Vantage Dropper 31.6mm; S: 110-140mm, M-XM:140-170mm, L-XL: 180-210mm

Saddle

WTB Silverado Fusion CrMo 142

Storleksguide

Mellan två storlekar? Ring oss för hjälp att välja rätt.

Storleksguide och geometri – Manufacturer standard setup; dimensions in mm and angles in degrees

Geometry follows the current Ibis size-specific table. Wheel layout, rear-centre and bottom-bracket height may differ by frame size; use the configuration shown for your size.

Frame construction

Carbon Fiber. Frame size options: SM, MD, LG, XL.

Frame warranty

Ibis offers lifetime frame cover subject to eligibility and its warranty terms.

Ibis warranty terms

Fork compatibility

Use a 120 mm fork as supplied. The frame supports suitable 100–140 mm forks, but Ibis excludes the Fox 36. Recommended offset: 44 mm.

Tyre and wheel clearance

29-inch wheels; most 2.6-inch tyres fit. Keep at least 8 mm tyre-to-frame clearance. 27.5-plus wheels are not supported.

Chainrings and guides

Maximum round ring: 34T; maximum recommended oval: 32T, subject to clearance. An upper guide is supported. The frame does not support the standard Ibis ISCG tab and bashguard assembly.

Rear brake mounting

160mm Post mount / 203mm max

Chainline

55mm chainline

Paint and replacement parts

Consult the current Ibis support page for model and colour-specific paint codes, replacement components and all compatibility FAQs.

Complete manufacturer FAQs

Ibis DV9 V2 technical page

Official setup documents

Choose the guide matching the suspension fitted to this build. Component manufacturers’ specifications also apply.

DV9 Suspension Set-up Guide .pdf

Bottom Bracket Info .pdf

Frame insertion limits

Manufacturer reference chart in mm. Use only with the named seatpost and verify the supplied post’s insertion depth and full-compression saddle clearance.

Dropper Post Saddle Height Calculations

Manufacturer reference chart in mm. Use only with the named seatpost and verify the supplied post’s insertion depth and full-compression saddle clearance.

Dropper Post Saddle Height Calculations

Manufacturer reference chart in mm. Use only with the named seatpost and verify the supplied post’s insertion depth and full-compression saddle clearance.

Dropper Post Saddle Height Calculations

Manufacturer reference chart in mm. Use only with the named seatpost and verify the supplied post’s insertion depth and full-compression saddle clearance.

Official frame torque values

Current Ibis technical reference

Wheel specification

Standard wheelset: Ibis 933 Aluminum Rims, Blackbird Hubs. Ibis lists no priced wheel upgrade for this build. Contact Boutique MTB for a custom specification and quote.

Official Deore component list
