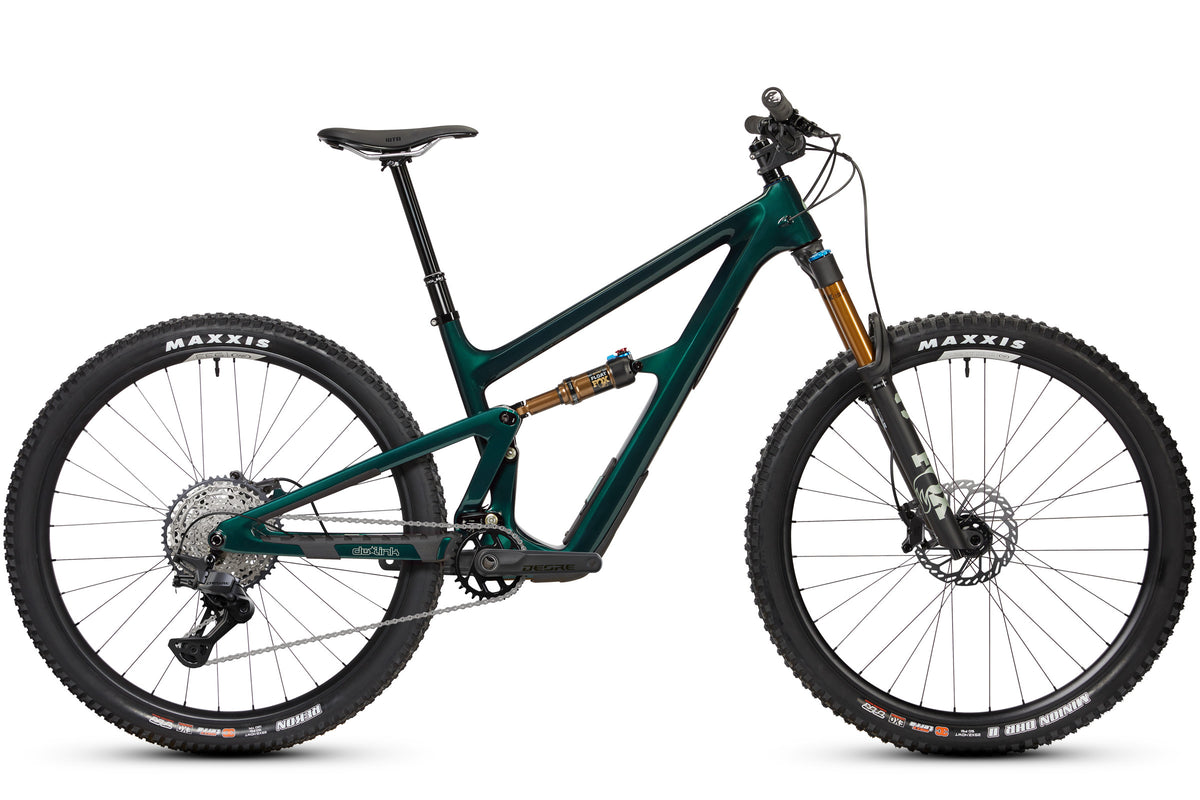

Green Flash — Ibis Ripley V5 Deore 2027
Blue Hour — Ibis Ripley V5 Deore 2027
Green Flash — Ibis Ripley V5 Deore 2027
Ibis Cycles

Ibis Ripley V5 Deore 2027

(0)

130mm rear · 140mm front · Shimano Deore M7200 SGS

69,990.00 SEK inc. VAT
FÖRBESTÄLLNING

Beräknad leverans inom 4–5 veckor.

Ring före beställning för att bekräfta exakt leveranstid: +46 70 600 54 55.

FrameCarbon Fiber Monocoque
Rear travel130mm
ForkFox Float SL 36, Factory Series, Grip X, 140mm, 29", 110mm x 15mm
DrivetrainShimano Deore M7200 SGS
Wheel size29” (MX optional via Flip Chip)
StorageLarge Internal frame storage with easy access door
Colour
Size

Ibis Ripley V5 Deore 2027

Fullständiga specifikationer

Frame & compatibility

Version
V5
Frame Material
Carbon Fiber Monocoque
Frame Weight
7.3 lbs XM frame w/ Fox Float
Wheel Size
29” (MX optional via Flip Chip)
Front Travel
140mm
Rear Travel
130mm
Shock Specs
210mm x 52.5mm
Boost Axles
148mm rear / 110mm front
Seatpost Diameter
34.9mm
Rear Brake
180mm Post mount / 220mm max rotor
Bottom Bracket
Threaded BB (73mm BSA)
Chainline
55mm chainline
Derailleur Hanger
SRAM UDH
ISCG 05 Compatible
ISCG 05 Tab Mount available separately
Headset
ZS44 upper / ZS56 lower
Bottle Mounts
22oz bottle on size small, 26oz on all other sizes
Frame Storage
Large Internal frame storage with easy access door
Colors
Blue Hour or Green Flash
Frame Storage Bag
Sustainably sourced internal frame bags produced in partnership with Cotopaxi
Sizes
Small (S), Medium (M), Extra medium (XM), Large (L) and Extra Large (XL)
Frame & Wheels Warranty
Lifetime Warranty
Bushings Warranty
Lifetime replacement on bushings

Suspension

Fork
Fox Float SL 36, Factory Series, Grip X, 140mm, 29", 110mm x 15mm
Shock
Fox Float, Factory Series, Float w/EVOL, 210mm x 52.5mm

Wheels & tyres

Wheels
Ibis 933 Aluminum Rims, Blackbird Hubs
Front Tire
Maxxis DHR2, 29" x 2.4", Exo, TR - OR - Maxxis Forekaster, 29" x 2.4", Exo, TR
Rear Tire
Maxxis Rekon, 29" x 2.4", Exo, TR

Brakes

Brakes
Shimano Deore 6200 4P
Rotors (F/R)
Shimano SM-RT66, 180F/180R

Drivetrain

Crankset
Shimano Deore M6200
Bottom Bracket
Shimano MT501
Rear Derailleur
Shimano Deore M7200 SGS
Shifter
Shimano Deore M6200 Bland Clamp
Cassette
Shimano Deore M6200
Chain
KMC X12

Cockpit & contact points

Headset
Cane Creek 50: ZS44/ZS56
Grips
Lizard Skins Strata Single Clamp
Handlebar
Ibis Alloy MTB Bars 800 wide SP Ano Black w/ Ibis Logo
Stem
BLKBRD Stem; S–M: 35mm, XM–XL: 50mm
Seatpost
KS Vantage Dropper, 34.9mm; S: 110-140mm, M-XM:140-170mm, L-XL: 180-210mm
Saddle
WTB Silverado Fusion CrMo 142

Specifikationer från Ibis Cycles. Komponenter kan ändras; bekräfta det slutliga utförandet före beställning.

Ibis Ripley V5 Deore 2027

Storleksguide och geometri

Storleksguide

StorlekCyklistens längd
SM152–168 cm
MD165–175 cm
XM173–183 cm
LG180–191 cm
XL188–201 cm

Mellan två storlekar? Ring oss för hjälp att välja rätt.

Storleksguide och geometri – Manufacturer standard setup; dimensions in mm and angles in degrees

SMMDXMLGXL
Seat Tube395400415457477
Top Tube577604629654684
Head Tube8595110125140
Chainstay 29"436436437440442
Seat Tube Angle77.4°76.9°76.9°77.4°77.9°
Saddle Height for Seat Tube Angle650700745790830
Head Tube Angle64.9°64.9°64.9°64.9°64.9°
Wheelbase11871211124112791321
Stack613619629640650
Reach440460483511545
BB Height*326329332335338
BB Drop4845423936
Standover680721744759772
Recommended Seatpost Drop140170185213213
Crank Length165165170170170

Geometry follows the current Ibis size-specific table. Wheel layout, rear-centre and bottom-bracket height may differ by frame size; use the configuration shown for your size.

Ibis Ripley V5 Deore 2027

Features & frame technology

Frame construction

Carbon Fiber Monocoque. Frame size options: SM, MD, XM, LG, XL.

dw-link suspension

The Ripley V5 uses dw-link suspension with 130mm rear travel. Frame geometry and the supplied suspension are detailed in the other drawers.

Internal storage

Large Internal frame storage with easy access door. Sustainably sourced internal frame bags produced in partnership with Cotopaxi

Frame warranty

Ibis offers lifetime frame cover subject to eligibility and its warranty terms.

Ibis warranty terms

Ibis Ripley V5 Deore 2027

FAQs & compatibility

Fork compatibility

The standard fork travel is 140mm. Ibis supports 130–150 mm forks; check axle-to-crown length and the intended setup before changing.

Shock and wheel compatibility

Shock size: 210mm x 52.5mm. Coil shocks of the specified size are supported. Use the correct flip-chip position for a 29-inch or 27.5-inch rear wheel, and retain the specified shock stroke.

Tyres and storage

Most 2.5-inch tyres fit; maintain 8 mm minimum frame clearance. The STOW tool bag accepts a pump up to 184 mm long.

Chainring clearance

Confirm clearance for round and oval rings. Round rings: 30–34T; maximum recommended oval: 32T.

Rear brake mounting

180mm Post mount / 220mm max rotor

Chainline

55mm chainline

Bottom bracket

Threaded BB (73mm BSA)

Bottle capacity

22oz bottle on size small, 26oz on all other sizes

Paint and replacement parts

Consult the current Ibis support page for model and colour-specific paint codes, replacement components and all compatibility FAQs.

Complete manufacturer FAQs

Ibis Ripley V5 technical page

Ibis Ripley V5 Deore 2027

Setup guides & dropper fit

Official setup documents

Choose the guide matching the suspension fitted to this build. Component manufacturers’ specifications also apply.

Ripley Setup Guide - Fox Performance Suspension .pdf

Ripley Setup Guide - Fox Factory Suspension .pdf

Ripley Setup Guide MY25 .pdf

Bottom Bracket Info .pdf

Frame insertion limits

Manufacturer reference chart in mm. Use only with the named seatpost and verify the supplied post’s insertion depth and full-compression saddle clearance.

Frame measurementSMMDXMLGXL
Max Insertion300310310320385

Dropper Post Saddle Height Calculations

Manufacturer reference chart in mm. Use only with the named seatpost and verify the supplied post’s insertion depth and full-compression saddle clearance.

DropMin/MaxSMMDXMLGXL
Revive v3 - 125Min552557572612632
Max670675690730750
Revive v3 - 160Min587592607647667
Max720725740780800
Revive v3 - 185Min612617632672692
Max740745760800820
Revive v3 - 213Min656651666700720
Max805810825865885

Dropper Post Saddle Height Calculations

Manufacturer reference chart in mm. Use only with the named seatpost and verify the supplied post’s insertion depth and full-compression saddle clearance.

DropMin/MaxSMMDXMLGXL
140Min581586601641661
Max699704719759779
170Min633628643671691
Max749754769809829
210Min713708723711731
Max819824839879899

Ibis Ripley V5 Deore 2027

Torque & maintenance

Official frame torque values

HardwareTorque Spec (Nm)Thread Treatment / Notes
Suspension
Forward Shock Mount Bolts10Loctite 243 on threads, grease on the shaft
Rear Shock to Clevis Bolt20Titanium Bolts: Loctite 243 on threads, Ti anti-seize on the shaft and underside of the bolt head
Linkage
Upper link to Front Triangle20Loctite 243 on threads (if no green threadpatch), grease on shaft and under bolt head
Upper Link to Clevis20Loctite 243 on threads (if no green threadpatch), grease on shaft and under bolt head
Upper Link to Rear Triangle (Flip Chip)15Loctite 243 on threads (if no green threadpatch)
Lower Link 4mm Side Preload Bolts2Loctite 243 on threads, grease under bolt head
Lower Link 5mm Pinch Bolts10Loctite 243
Misc
Rear Brake Caliper6Loctite 243
Seat Binder6Grease
Derailleur Hanger Bolt25Dry (reverse thread!)
Rear Axle10Grease
STOW
Flange Bolts1.5 (hand tight)Loctite 222 on threads (if no threadpatch)
STOW Door Latch to Lever Bolt3Loctite 243 on threads (if no threadpatch)
Flip Chip Parts
Flip ChipGrease on inside surfaces of Flip Chip
Flip Chip SpacerGrease on both sides of the Flip Chip Spacer
Bearing WasherGrease on the inner mating surfaces of the Bearing Washer

Current Ibis technical reference

Ibis Ripley V5 Deore 2027

Wheels & factory upgrades

Wheel specification

Standard wheelset: Ibis 933 Aluminum Rims, Blackbird Hubs. Ibis lists no priced wheel upgrade for this build. Contact Boutique MTB for a custom specification and quote.

Official Deore component list

Ask an expert

E-postadress +46 70 600 54 55

130mm rear · 140mm front · Shimano Deore M7200 SGS. Select colour, size.

Warehouse availability: delivery in 10–15 working days. Other configurations: PRE ORDER, estimated delivery in 4–5 weeks. Call Boutique MTB before ordering to confirm the exact ETA.

Photos illustrate the frame colour and build; component specification and wheel size depend on the selected configuration. Refer to the full specifications and manufacturer guides.
