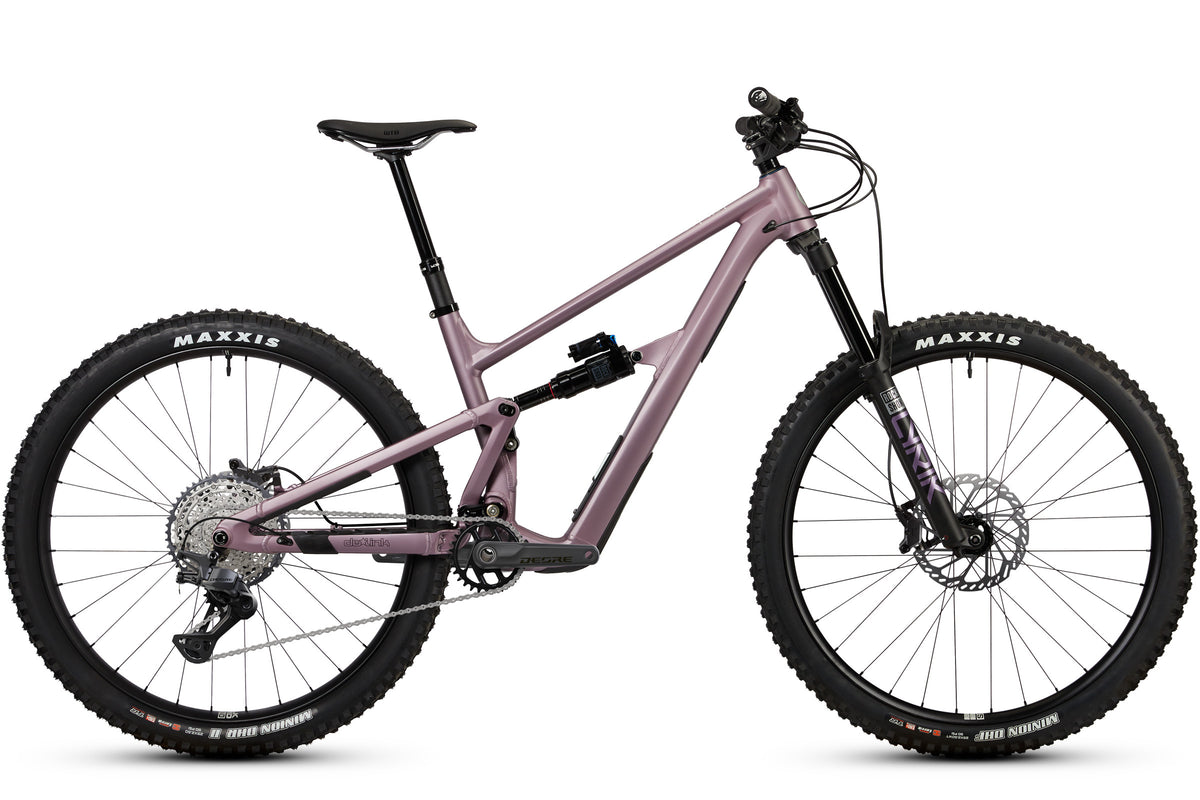

Rose Dust — Ibis Ripmo AF V2 Deore 2027

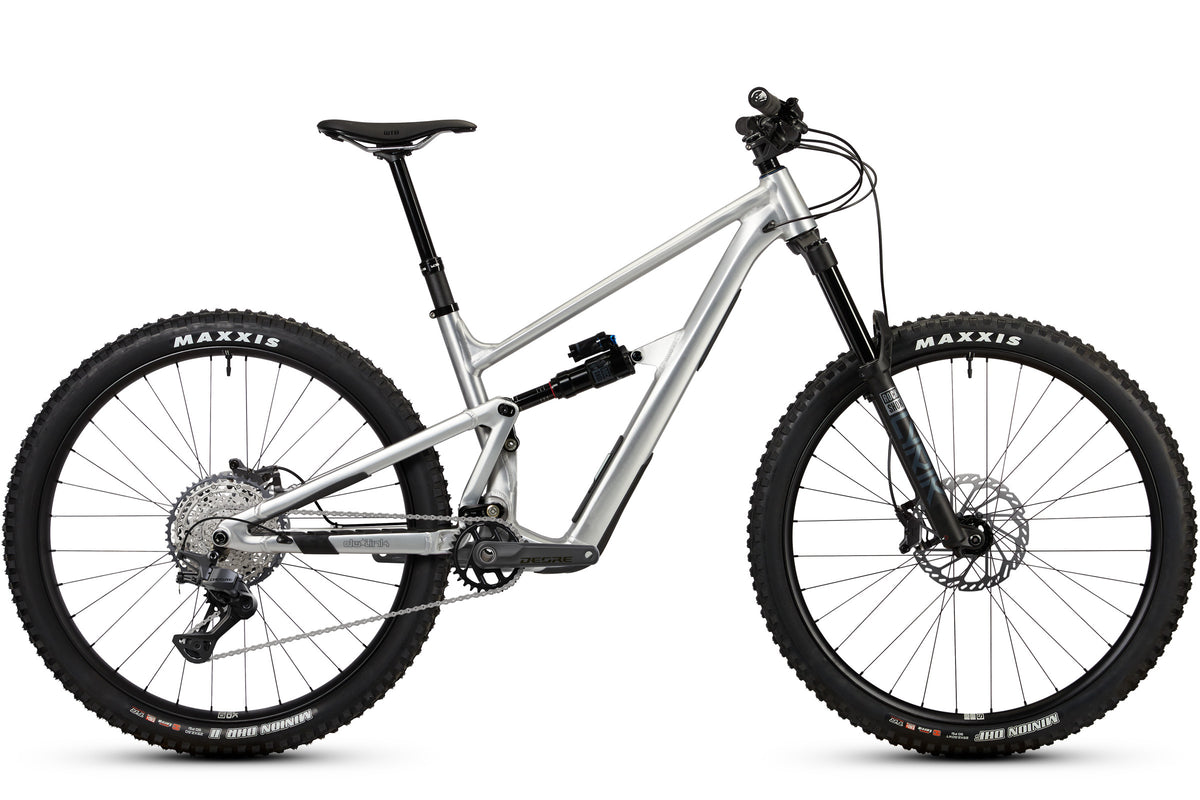

Metal AF — Ibis Ripmo AF V2 Deore 2027
Rose Dust — Ibis Ripmo AF V2 Deore 2027
Metal AF — Ibis Ripmo AF V2 Deore 2027
Ibis Cycles

Ibis Ripmo AF V2 Deore 2027

(0)

150mm rear · 160mm front · Shimano Deore M7200 SGS

51,290.00 SEK inc. VAT
BESTÄLLNINGSVARA FRÅN IBIS LAGER

Leverans inom 10–15 arbetsdagar.

Ring före beställning för att bekräfta exakt leveranstid: +46 70 600 54 55.

FrameAluminum
Rear travel150mm
ForkRockShox Lyrik, 15QRx110, 160mm
DrivetrainShimano Deore M7200 SGS
Wheel sizeSize XM–XL: 29” wheels Size SM–MD: MX wheels (MX or 29” option in all sizes via flip chip)
StorageLarge Internal frame storage with easy access door
Colour
Size

Ibis Ripmo AF V2 Deore 2027

Fullständiga specifikationer

Frame & compatibility

Version
V2
Frame Material
Aluminum
Wheel Size
Size XM–XL: 29” wheels Size SM–MD: MX wheels (MX or 29” option in all sizes via flip chip)
Front Travel
160mm
Rear Travel
150mm
Shock Specs
230mm x 60mm (coil shock compatible)
Boost Axles
148mm rear / 110mm front
Seatpost Diameter
34.9mm
Rear Brake
180mm Post mount / 220mm max rotor
Bottom Bracket
Threaded (73mm English threaded)
Chainline
55mm chainline
Derailleur Hanger
SRAM UDH
ISCG 05 Compatible
ISCG 05 Tab Mount available separately
Headset
ZS44 upper / ZS56 lower
Bottle Mounts
26oz bottles fit inside the front triangle on all sizes
Frame Storage
Large Internal frame storage with easy access door
Frame Storage Bag
Ibis Stow bag
Colors
Metal AF or Rose Dust
Sizes
Small (S), Medium (M), Extra medium (XM), Large (L) and Extra Large (XL)
Warranty
Lifetime frame warranty
Bushings Warranty
Lifetime replacement on bushings

Suspension

Fork
RockShox Lyrik, 15QRx110, 160mm
Shock
RockShox Super Deluxe Select 230mm x 60mm

Wheels & tyres

Wheels
Blackbird Send Alloy (Send I front, Send II rear)S–M, F: Send I 29" R: Send II 27.5" XM–XL, F: Send I 29" R: Send II 29"
Front Tire
Maxxis Assegai 29x2.5 EXO+
Rear Tire
Maxxis DHR2, EXO+S–M: 27.5" x 2.5", XM–XL: 29" x 2.5"

Brakes

Brakes
Shimano Deore 6200 4P
Rotors (F/R)
Shimano RT-66 6-Bolt 200F/200R

Drivetrain

Crankset
Shimano Deore M6200
Bottom Bracket
Shimano MT501
Rear Derailleur
Shimano Deore M7200 SGS
Shifter
Shimano Deore M6200 Bland Clamp
Cassette
Shimano Deore M6200
Chain
KMC X12

Cockpit & contact points

Headset
Cane Creek 50: ZS44/ZS56
Grips
Lizard Skins Strata Single Clamp
Handlebar
Ibis Alloy MTB Bars 800 wide SP Ano Black w/ Ibis Logo
Stem
BLKBRD Stem; S–M: 35mm, XM–XL: 50mm
Seatpost
KS Vantage Dropper, 34.9mm; S: 110-140mm, M-XM:140-170mm, L-XL: 180-210mm
Saddle
WTB Silverado Fusion CrMo 142

Specifikationer från Ibis Cycles. Komponenter kan ändras; bekräfta det slutliga utförandet före beställning.

Ibis Ripmo AF V2 Deore 2027

Storleksguide och geometri

Storleksguide

StorlekCyklistens längd
SM152–168 cm
MD165–175 cm
XM173–183 cm
LG180–191 cm
XL188–201 cm

Mellan två storlekar? Ring oss för hjälp att välja rätt.

Storleksguide och geometri – Manufacturer standard setup; dimensions in mm and angles in degrees

SMMDXMLGXL
Seat Tube395400415457477
Top Tube578605630655685
Head Tube8595110125140
Chainstay 29"435435436438440
Chainstay MX432432433435437
Seat Tube Angle77°76.5°76.5°77°77.5°
Saddle Height for Seat Tube Angle650700745790830
Head Tube Angle64.5°64.5°64.5°64.5°64.5°
Wheelbase11951219124912861329
Stack616622633643654
Reach436456478506540
BB Height*338341344349350
BB Drop 29"3633302724
Standover693734757772784
Recommended Seatpost Drop140170185213213
Crank Length165165170170170

Geometry follows the current Ibis size-specific table. Wheel layout, rear-centre and bottom-bracket height may differ by frame size; use the configuration shown for your size.

Ibis Ripmo AF V2 Deore 2027

Features & frame technology

Frame construction

Aluminum. Frame size options: SM, MD, XM, LG, XL.

dw-link suspension

The Ripmo AF V2 uses dw-link suspension with 150mm rear travel. Frame geometry and the supplied suspension are detailed in the other drawers.

Internal storage

Large Internal frame storage with easy access door. Ibis Stow bag

Frame warranty

Ibis offers lifetime frame cover subject to eligibility and its warranty terms.

Ibis warranty terms

Ibis Ripmo AF V2 Deore 2027

FAQs & compatibility

Fork compatibility

The standard fork travel is 160mm. Ibis supports 150–170 mm forks; check axle-to-crown length and the intended setup before changing.

Shock and wheel compatibility

Shock size: 230mm x 60mm (coil shock compatible). Coil shocks of the specified size are supported. Use the correct flip-chip position for a 29-inch or 27.5-inch rear wheel, and retain the specified shock stroke.

Tyres and storage

Most 2.5-inch tyres fit; maintain 8 mm minimum frame clearance. The STOW tool bag accepts a pump up to 184 mm long.

Chainring clearance

Confirm clearance for round and oval rings. Round rings: 28–34T; maximum recommended oval: 32T.

Rear brake mounting

180mm Post mount / 220mm max rotor

Chainline

55mm chainline

Bottom bracket

Threaded (73mm English threaded)

Bottle capacity

26oz bottles fit inside the front triangle on all sizes

Paint and replacement parts

Consult the current Ibis support page for model and colour-specific paint codes, replacement components and all compatibility FAQs.

Complete manufacturer FAQs

Ibis Ripmo AF V2 technical page

Ibis Ripmo AF V2 Deore 2027

Setup guides & dropper fit

Official setup documents

Choose the guide matching the suspension fitted to this build. Component manufacturers’ specifications also apply.

Ripmo AF - Suspension Setup Guide .pdf

Ripmo AF - Cable Routing Guide .pdf

Frame insertion limits

Manufacturer reference chart in mm. Use only with the named seatpost and verify the supplied post’s insertion depth and full-compression saddle clearance.

Frame measurementSMMDXMLGXL
Max Insertion270290295320330

Dropper Post Saddle Height Calculations

Manufacturer reference chart in mm. Use only with the named seatpost and verify the supplied post’s insertion depth and full-compression saddle clearance.

DropMin/MaxSMMDXMLGXL
Revive v3 - 125Min552557572612632
Max670675690730750
Revive v3 - 160Min587592607647667
Max720725740780800
Revive v3 - 185Min612617632672692
Max740745760800820
Revive v3 - 213Min686671681700720
Max805810825865885

Dropper Post Saddle Height Calculations

Manufacturer reference chart in mm. Use only with the named seatpost and verify the supplied post’s insertion depth and full-compression saddle clearance.

DropMin/MaxSMMDXMLGXL
140Min603588601641661
Max699704719759779
170Min663648658673691
Max749754769809829
210Min743728738753763
Max819824839879899

Ibis Ripmo AF V2 Deore 2027

Torque & maintenance

Official frame torque values

HardwareTorque Spec (Nm)Thread Treatment / Notes
Suspension
Forward Shock Mount Bolt10Loctite 243 on threads, grease on shaft
Rear Shock to Clevis Bolt20Loctite 243 on threads, Ti anti-seize on shaft and underside of bolt head
Linkage
Upper Link to Front Triangle20Loctite 243 on threads (if no green threadpatch), grease on shaft and under bolt head
Upper Link to Clevis20Loctite 243 on threads (if no green threadpatch), grease on shaft and under bolt head
Upper Link to Rear Triangle (Flip Chip)15Loctite 243 on threads (if no green threadpatch)
Lower Link 4mm Side Preload Bolts2Loctite 243 on threads (if no green threadpatch), grease under bolt head
Lower Link 5mm Pinch Bolts10Loctite 243 on threads
Misc
Cable Guides1.5Hand tight
Rear Brake Caliper6Loctite 243 (if no threadpatch)
Seat Binder6Grease
UDH25Dry (reverse thread!)
Rear Axle10Grease
Stow
Door Latch to Lever Bolt3Loctite 243 on threads (if no threadpatch)
Flip Chip Parts
Flip ChipGrease on inside surfaces of the Flip Chip
Flip Chip SpacerGrease on both sides of the Flip Chip Spacer
Bearing WasherGrease on the inner mating surfaces of the Bearing Washer

Current Ibis technical reference

Ibis Ripmo AF V2 Deore 2027

Wheels & factory upgrades

Wheel specification

Standard wheelset: Blackbird Send Alloy (Send I front, Send II rear)S–M, F: Send I 29" R: Send II 27.5" XM–XL, F: Send I 29" R: Send II 29". Ibis lists no priced wheel upgrade for this build. Contact Boutique MTB for a custom specification and quote.

Official Deore component list

Ask an expert

E-postadress +46 70 600 54 55

150mm rear · 160mm front · Shimano Deore M7200 SGS. Select colour, size.

Warehouse availability: delivery in 10–15 working days. Other configurations: PRE ORDER, estimated delivery in 4–5 weeks. Call Boutique MTB before ordering to confirm the exact ETA.

Photos illustrate the frame colour and build; component specification and wheel size depend on the selected configuration. Refer to the full specifications and manufacturer guides.
