Hem » Yeti ASR LR C2 90 C-Series 2027
Yeti ASR LR C2 90 C-Series 2027 boutique-mtb
Yeti ASR LR C2 90 C-Series 2027 boutique-mtb

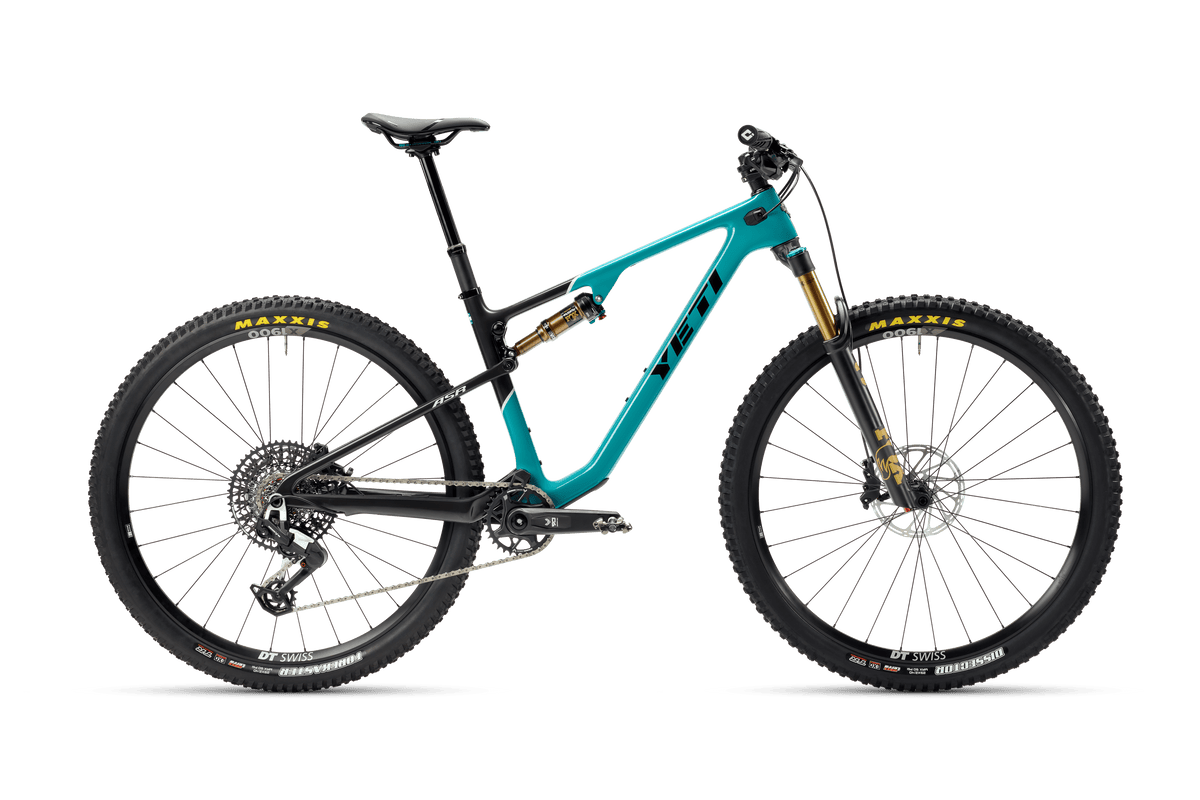

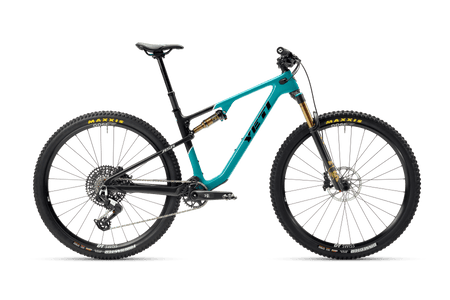

Yeti ASR LR C2 90 C-Series 2027

(0)

XC mountain bike · 115 mm rear · SRAM 90

82,590.00 SEK inc. VAT
Beställningsvara

Beräknad tillgänglighet hos Yeti:

Leverans: 10–15 arbetsdagar efter att cykeln finns tillgänglig hos Yeti och betalningen har mottagits. Leverantörens datum är preliminärt.

Denna inkommande cykel kan ännu inte beställas.

Cyklar som finns i lager hos Yeti: leverans inom 10–15 arbetsdagar från betalning. För inkommande cyklar börjar leveranstiden när cykeln finns tillgänglig hos Yeti och betalningen har mottagits.

FrameC/SERIES
Wheels29
Rear travel115 mm
ForkFOX FACTORY 34 SL GRIP X/130MM
DrivetrainSRAM 90
Weight26.12 lb (11.85 kg) (claimed)
Colour
Size

Yeti ASR LR C2 90 C-Series 2027

Full specifications

Frame

Frame
C/Series carbon fiber frame, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Material
C/SERIES
Weight
26.12 lb (11.85 kg)
Rear travel
115 mm
Wheel size
29

Suspension

Fork
FOX FACTORY 34 SL GRIP X/130MM
Rear shock
FOX FACTORY FLOAT SL

Drivetrain

Rear derailleur
SRAM 90
Shifter
SRAM 90
Crankset
SRAM 90 32T 170MM
Bottom bracket
SRAM DUB BSA 73
Cassette
SRAM GX 10-52
Chain
SRAM GX

Brakes

Brakes
SRAM MOTIVE BRONZE
Rotors
SRAM CENTERLINE 180/180

Wheels & tyres

Wheelset
DT SWISS X1900 LN
Front tyre
MAXXIS DISSECTOR 2.4 EXO
Rear tyre
MAXXIS FORKASTER 2.4 EXO

Cockpit & contact points

Headset
CANE CREEK 40 INTEGRATED
Handlebar
BURGTEC RIDE WIDE ALLOY ENDURO 35X760MM
Stem
BURGTEC ENDURO MK3 35X50MM
Grips
ODI REFLEX
Saddle
WTB SOLANO CHROMOLY
Seatpost
CRANK BROTHERS HIGHLINE/XS: 100MM, SM: 125MM, MD: 150MM, LG-XL: 170MM

Specifications as published by Yeti Cycles. Yeti may change components during the model year without notice.

Yeti ASR LR C2 90 C-Series 2027

Size guide & geometry

Fit guide

SizeRider height
XS145–160 cm
SM155–170 cm
MD165–180 cm
LG178–191 cm
XL185–201 cm

Between two sizes? Give us a call – we will help you choose based on your reach, riding style and terrain.

Geometry – ASR LR (mm / degrees)

XSSMMDLGXL
SEAT TUBE LENGTH400410430470495
EFFECTIVE TOPTUBE LENGTH556575602625655
HEADTUBE ANGLE66.0°66.0°66.1°66.1°66.1°
EFF. SEAT TUBE ANGLE74.9°75.0°75.0°75.0°75.0°
ACTUAL SEAT TUBE ANGLE69.9°70.3°70.7°71.2°72.7°
REAR CENTER433435437439441
WHEELBASE11261148117912051241
ESTIMATED BB HEIGHT339338338338338
STANDOVER773773775775780
HEADTUBE LENGTH9292101111133
AXLE TO CROWN541541541541541
OFFSET4444444444
STACK595596603614634
REACH395415440460485
FRONT CENTER693713741766799
Vertical Fork Travel119119119119119

Fråga en expert

E-postadress +46 70 600 54 55

The Yeti ASR LR C2 90 build uses C/SERIES carbon construction and 115 mm of rear travel. The flex-stay suspension layout is designed for cross-country riding.

This build pairs FOX FACTORY 34 SL GRIP X/130MM with a FOX FACTORY FLOAT SL rear shock. It uses SRAM 90 shifting, SRAM MOTIVE BRONZE brakes and DT SWISS X1900 LN wheels.

Teknik //

Funktioner

ZERO REDUNDANT CARBON

01

ZERO REDUNDANT CARBON

The carbon construction uses an engineered ply layout to balance stiffness, strength and weight.

DUAL DUTY CARBON

02

DUAL DUTY CARBON

The carbon construction uses an engineered ply layout to balance stiffness, strength and weight.

CABLE MANAGEMENT

03

CABLE MANAGEMENT

Internal cable guides and secured entry points help keep routing tidy and reduce rattles.

INTEGRATED FRAME FENDER

04

INTEGRATED FRAME FENDER

Integrated frame protection helps shield the frame and suspension area from debris and impacts.

HANGERLESS INTERFACE

05

HANGERLESS INTERFACE

The derailleur interface supports SRAM UDH and compatible direct-mount Transmission systems.

SL ROCKER LINK

06

SL ROCKER LINK

A compact linkage connects the frame and shock while controlling the suspension leverage through the travel.

MORE DROP FOR MORE X

07

MORE DROP FOR MORE X

The seat-tube layout gives modern dropper posts room for insertion. Check the build specifications for the supplied post travel in each size.

Geometry diagram

08

Geometry diagram

Use this manufacturer diagram alongside the geometry table to identify each measurement.
