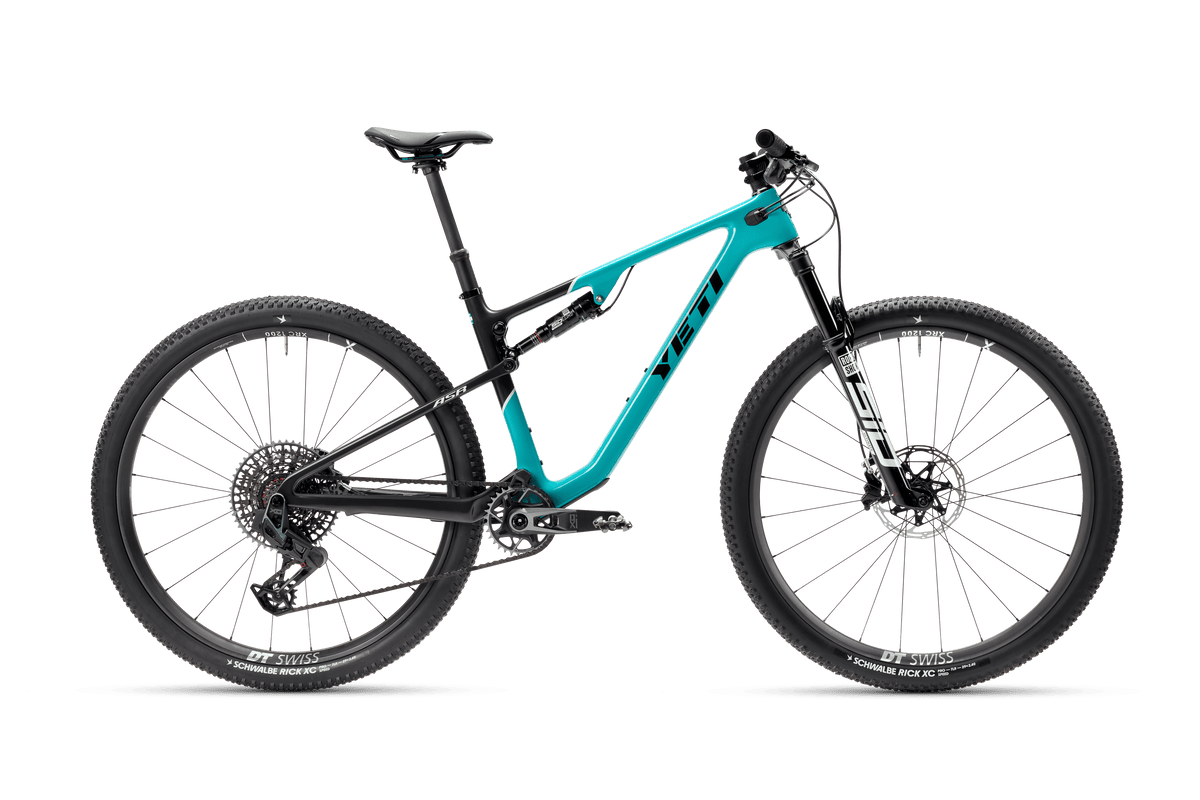

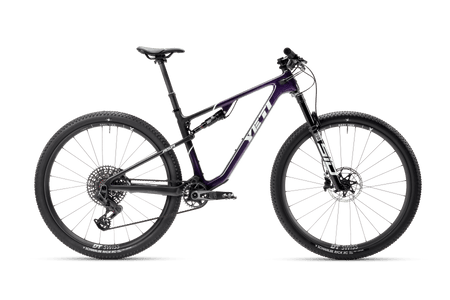

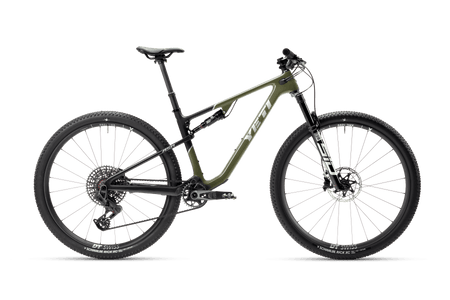

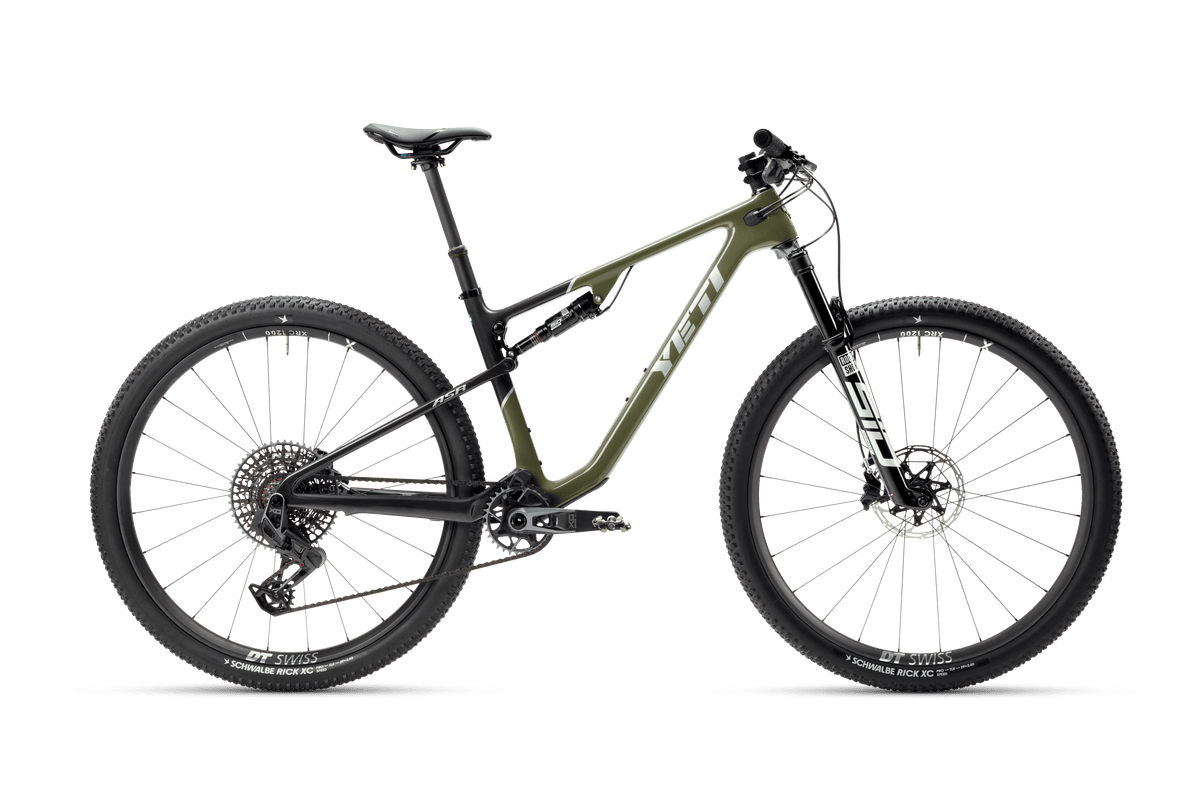

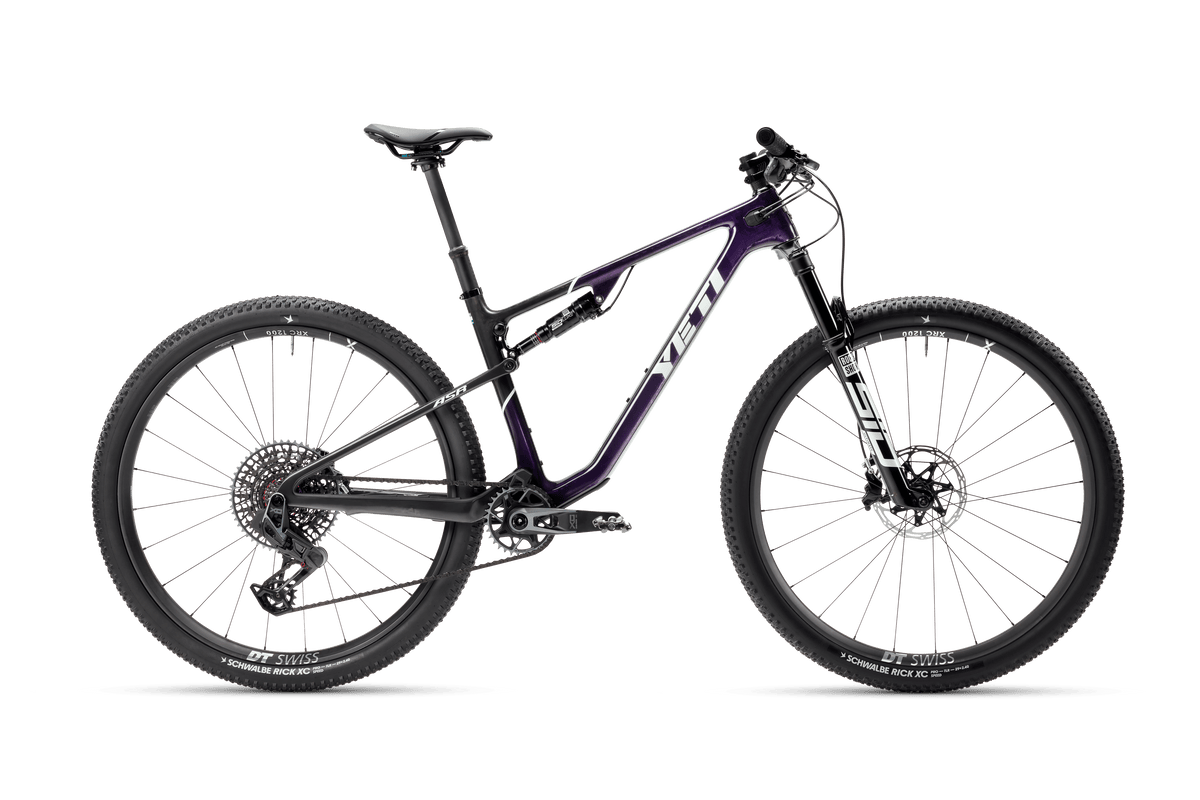

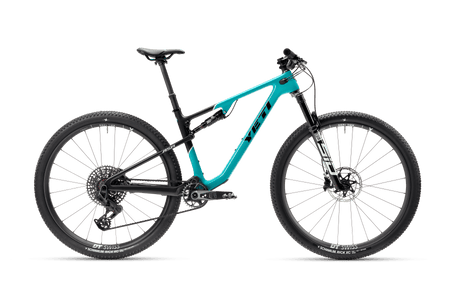

Yeti ASR X0 AXS T-Series 2027

(0)

XC mountain bike · 115 mm rear · SRAM X0 AXS

108,790.00 SEK inc. VAT
Beställningsvara

Beräknad tillgänglighet hos Yeti:

Leverans: 10–15 arbetsdagar efter att cykeln finns tillgänglig hos Yeti och betalningen har mottagits. Leverantörens datum är preliminärt.

Denna inkommande cykel kan ännu inte beställas.

Cyklar som finns i lager hos Yeti: leverans inom 10–15 arbetsdagar från betalning. För inkommande cyklar börjar leveranstiden när cykeln finns tillgänglig hos Yeti och betalningen har mottagits.

FrameTURQ SERIES
Wheels29
Rear travel115 mm
ForkROCKSHOX SID ULTIMATE 3P REMOTE 120MM
DrivetrainSRAM X0 AXS
Weight23.21 lb (10.53 kg) (claimed)
Colour
Size

Yeti ASR X0 AXS T-Series 2027

Full specifications

Frame

Frame
TURQ Series carbon fiber frame, threaded bottom bracket, configurable cable ports, 148mm x 12mm BOOST dropouts, integrated derailleur hanger and axle
Material
TURQ SERIES
Weight
23.21 lb (10.53 kg)
Rear travel
115 mm
Wheel size
29

Suspension

Fork
ROCKSHOX SID ULTIMATE 3P REMOTE 120MM
Rear shock
ROCKSHOX SIDLUXE ULTIMATE 3P REMOTE

Drivetrain

Rear derailleur
SRAM X0 AXS
Shifter
SRAM AXS POD CONTROLLER
Crankset
SRAM X0 32T 170MM
Bottom bracket
SRAM DUB BSA 73
Cassette
SRAM X0 10-52
Chain
SRAM X0

Brakes

Brakes
SRAM MOTIVE SILVER
Rotors
SRAM CENTERLINE X 180/160

Wheels & tyres

Wheelset
DT SWISS XRC1700 EVO CARBON
Front tyre
SCHWALBE RICK XC PRO 2.4
Rear tyre
SCHWALBE RICK XC PRO 2.4

Cockpit & contact points

Headset
CANE CREEK 70 HELLBENDER LITE
Handlebar
RACE FACE ERA SL 35X760
Stem
BIKE YOKE BARKEEPER 55MM
Grips
SRAM TWISTLOC ULTIMATE 3P TEXTURED
Saddle
WTB SOLANO CHROMOLY
Seatpost
CRANK BROTHERS HIGHLINE 11/XS-SM: 100MM, MD: 125MM, LG-XL: 150MM

Specifications as published by Yeti Cycles. Yeti may change components during the model year without notice.

Yeti ASR X0 AXS T-Series 2027

Size guide & geometry

Fit guide

SizeRider height
XS145–160 cm
SM155–170 cm
MD165–180 cm
LG178–191 cm
XL185–201 cm

Between two sizes? Give us a call – we will help you choose based on your reach, riding style and terrain.

Geometry – ASR (mm / degrees)

XSSMMDLGXL
SEAT TUBE LENGTH400410430470495
EFFECTIVE TOPTUBE LENGTH554574600610630
HEADTUBE ANGLE66.5°66.5°66.5°66.5°66.5°
EFF. SEAT TUBE ANGLE75.5°75.5°75.5°75.5°75.5°
ACTUAL SEAT TUBE ANGLE70.4°70.8°71.2°71.6°72.1°
REAR CENTER433435437439441
WHEELBASE11221144117412011236
ESTIMATED BB HEIGHT335335335335335
STANDOVER768768771771776
HEADTUBE LENGTH9292101111133
AXLE TO CROWN531531531531531
OFFSET4444444444
STACK592592600610630
REACH400420445465490
FRONT CENTER689709737762795
Vertical Fork Travel110110110110110

Fråga en expert

E-postadress +46 70 600 54 55

The Yeti ASR X0 AXS build uses TURQ SERIES carbon construction and 115 mm of rear travel. The flex-stay suspension layout is designed for cross-country riding.

This build pairs ROCKSHOX SID ULTIMATE 3P REMOTE 120MM with a ROCKSHOX SIDLUXE ULTIMATE 3P REMOTE rear shock. It uses SRAM X0 AXS shifting, SRAM MOTIVE SILVER brakes and DT SWISS XRC1700 EVO CARBON wheels.

Teknik //

Funktioner

ZERO REDUNDANT CARBON

01

ZERO REDUNDANT CARBON

The carbon construction uses an engineered ply layout to balance stiffness, strength and weight.

DUAL DUTY CARBON

02

DUAL DUTY CARBON

The carbon construction uses an engineered ply layout to balance stiffness, strength and weight.

CABLE MANAGEMENT

03

CABLE MANAGEMENT

Internal cable guides and secured entry points help keep routing tidy and reduce rattles.

INTEGRATED FRAME FENDER

04

INTEGRATED FRAME FENDER

Integrated frame protection helps shield the frame and suspension area from debris and impacts.

HANGERLESS INTERFACE

05

HANGERLESS INTERFACE

The derailleur interface supports SRAM UDH and compatible direct-mount Transmission systems.

SL ROCKER LINK

06

SL ROCKER LINK

A compact linkage connects the frame and shock while controlling the suspension leverage through the travel.

MORE DROP FOR MORE X

07

MORE DROP FOR MORE X

The seat-tube layout gives modern dropper posts room for insertion. Check the build specifications for the supplied post travel in each size.

Geometry diagram

08

Geometry diagram

Use this manufacturer diagram alongside the geometry table to identify each measurement.
