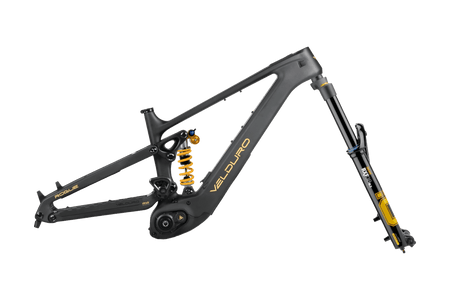

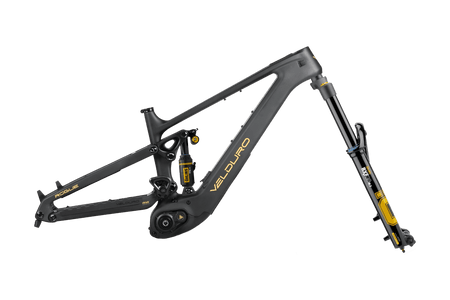

Velduro Rogue Frameset & Frameset + Fork

Pre-order Manufacturer recommended price 59,990.00 SEK inc. VAT
Coming soon
contact us for first available delivery date Starting June 2026 - 2 to 12 weeks from order depending on size and configuration
Size
Suspension Options
Fully assembled delivery

Your bike will arrive fully assembled and ready to ride.

A multitools and a shock pump is all you will need and no extra setup required!

All are bikes are built tubeless and tested before shipping.

Bike Build

  • Carbon fiber enduro-category frame
  • Mid-pivot suspension layout
  • Rear travel 165 mm, up to 172 mm with 29-inch rear wheel and flip-chip setup
  • Boost 12x148 mm thru axle
  • FSA No.57 Alloy MTB headset, ZS44/56

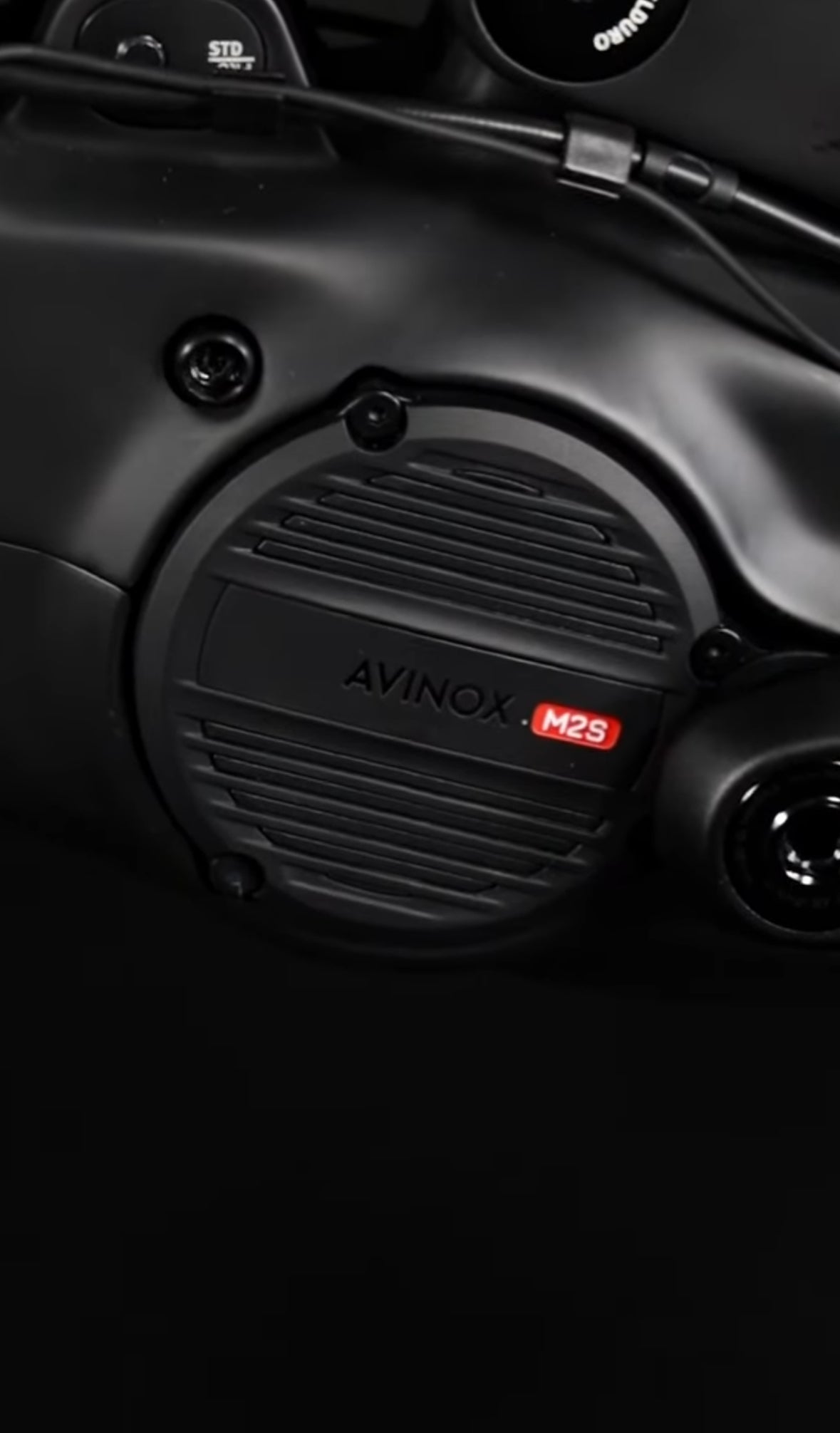

  • DJI Avinox M2S drive system
  • Avinox 800 Wh integrated battery

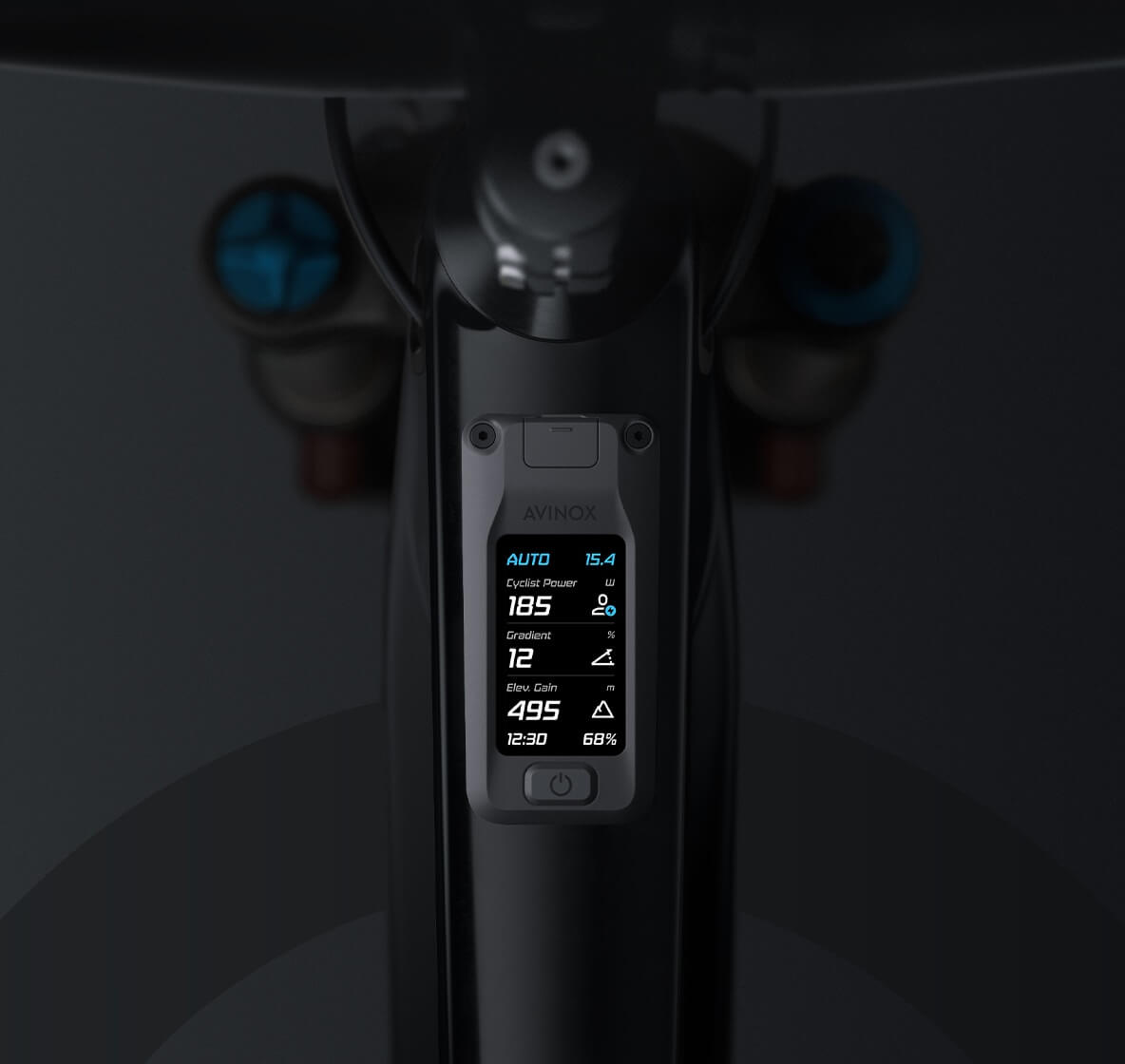

  • Avinox DP100 integrated 2-inch display
  • Avinox BC100 wireless controls, left and right
  • Avinox 4A charger
  • Customized waterproof wiring
  • UDH hanger, seatpost clamp and cable lugs
  • Avinox SL 155 mm cranks
  • Avinox 104 BCD spider and Velduro 34T chainwheel

get in touch if you have any questions about this product

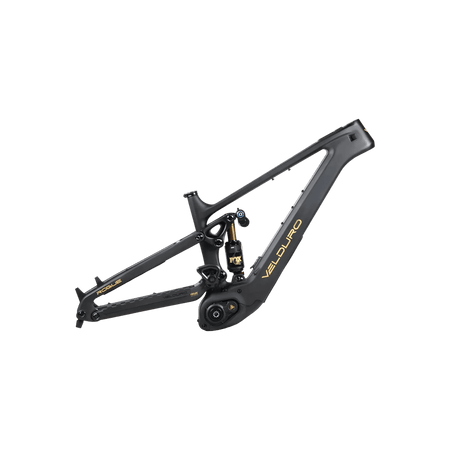

Velduro Rogue Frame Only

Build your dream Avinox-powered eMTB with Velduro. The Rogue frame platform is designed around a modular concept that lets you fine-tune travel, geometry and wheel format so the bike can be shaped around your riding style.

In its standard setup the Rogue runs as a trail-taming weapon, while alternate flip-chip configurations open the door to a more all-mountain feel or a more aggressive enduro-focused personality. The platform supports mixed-wheel or full 29-inch compatibility, and it is built around Velduro's carbon monocoque frame architecture and I-Track suspension concept.

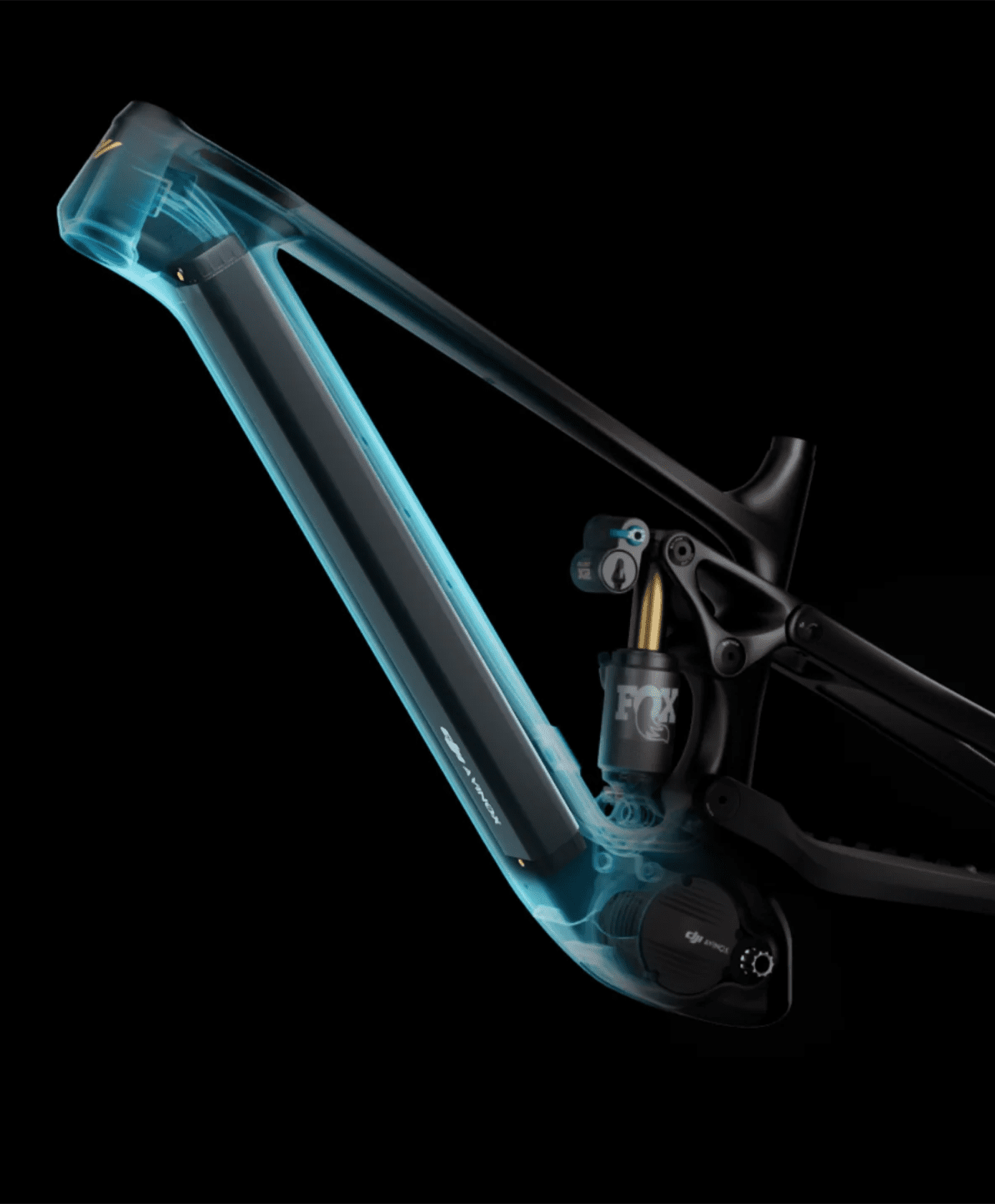

At the core is the DJI Avinox M2S drive system paired with an integrated 800 Wh battery, giving the frame-only buyer a premium starting point for a high-end custom build.

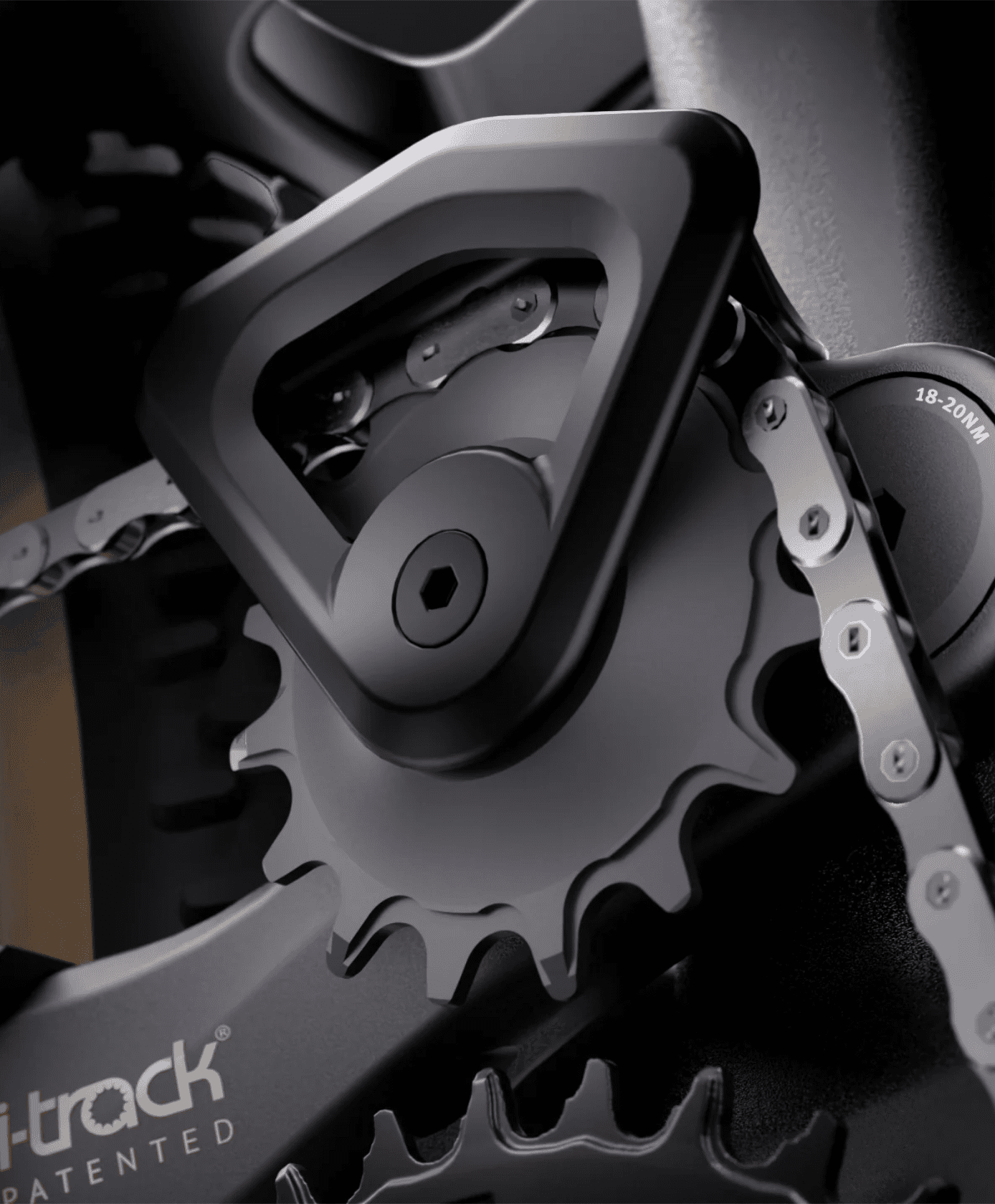

  • I-Track patented suspension system
  • Carbon fibre monocoque frame

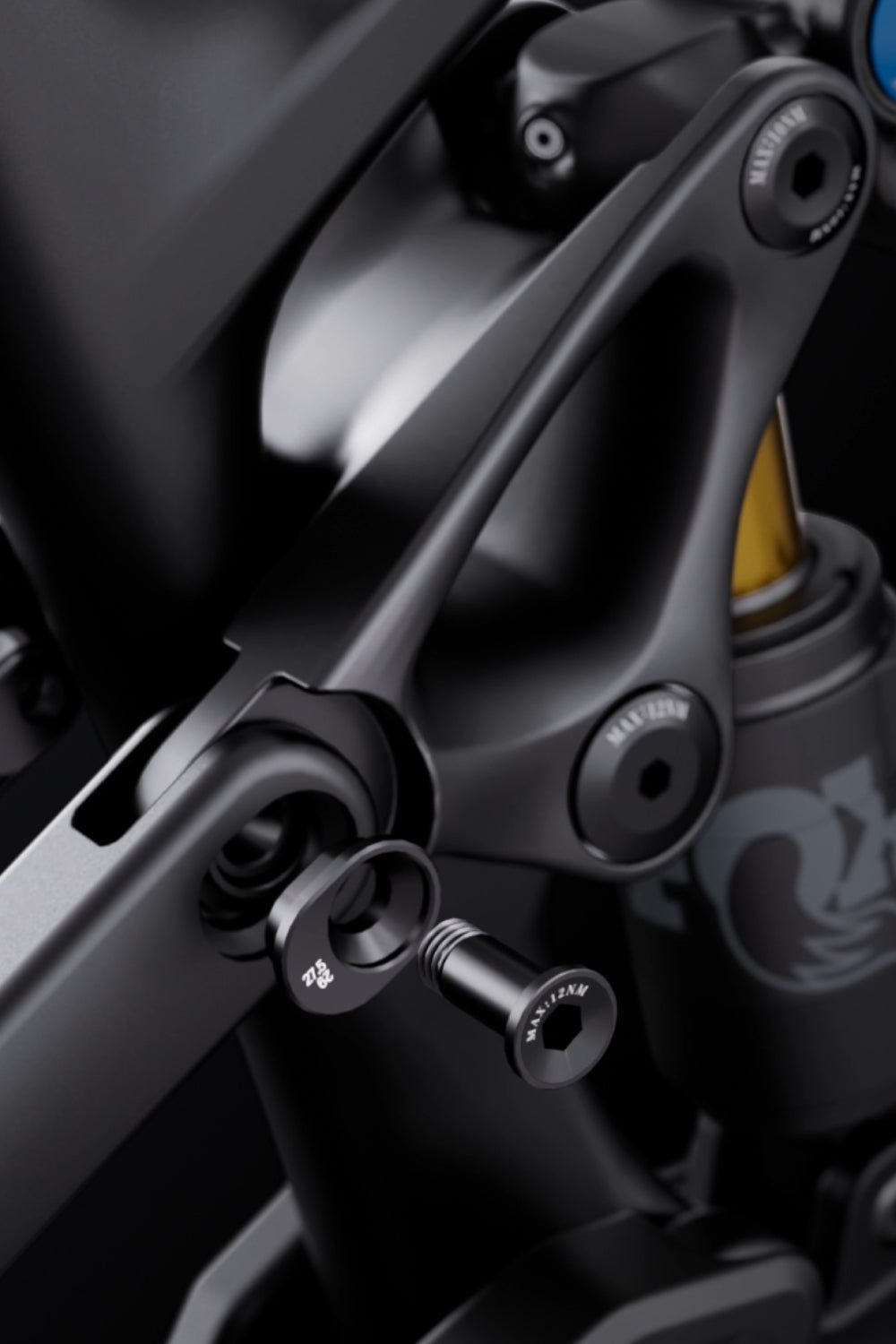

  • Shock flip chip unlocks extra rear travel
  • Mullet or full 29 inch compatibility
  • Avinox M2S motor system
  • Integrated 800 Wh battery
  • 5-year frame warranty
  • Custom build friendly platform

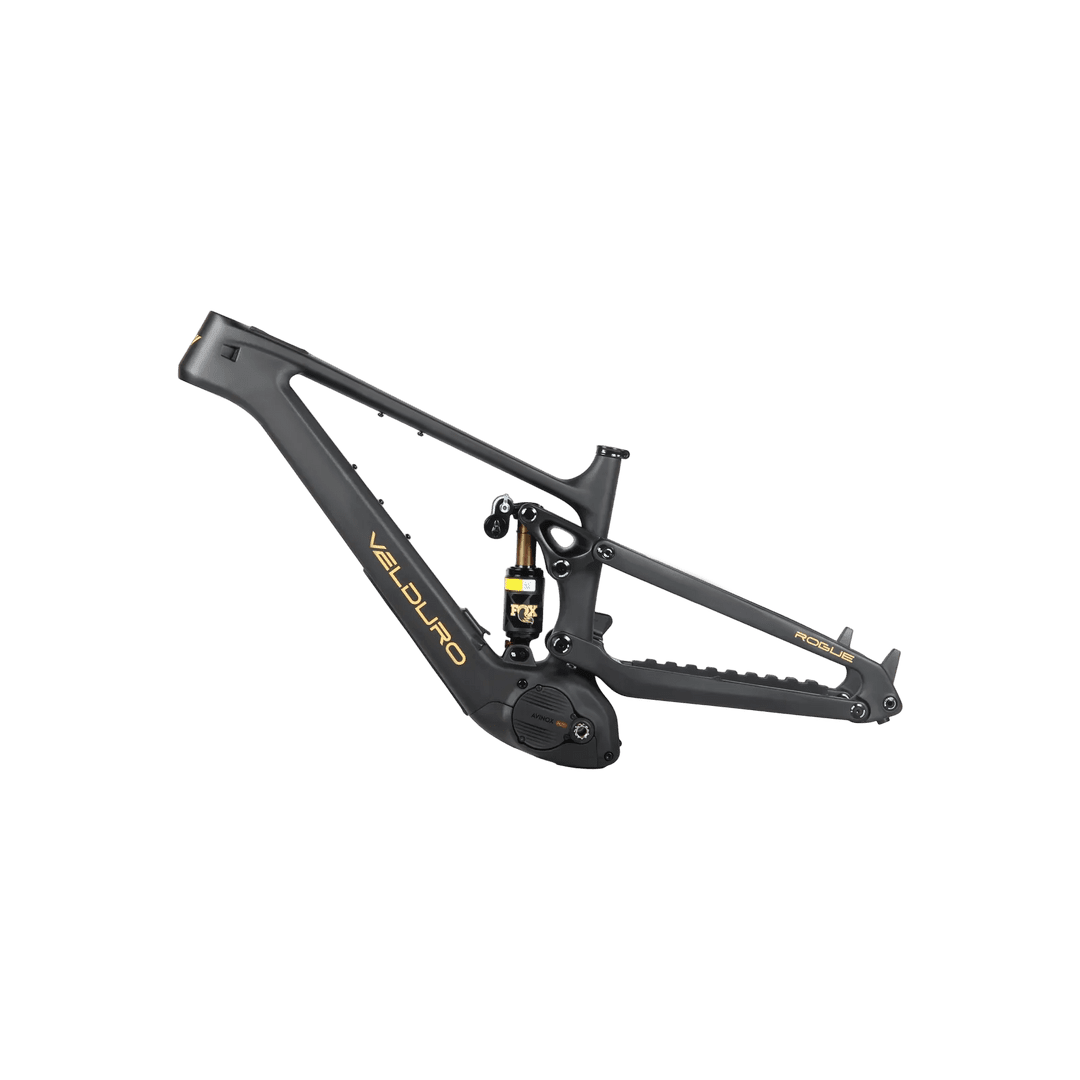

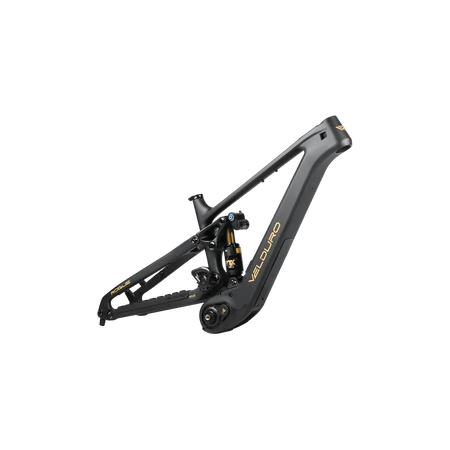

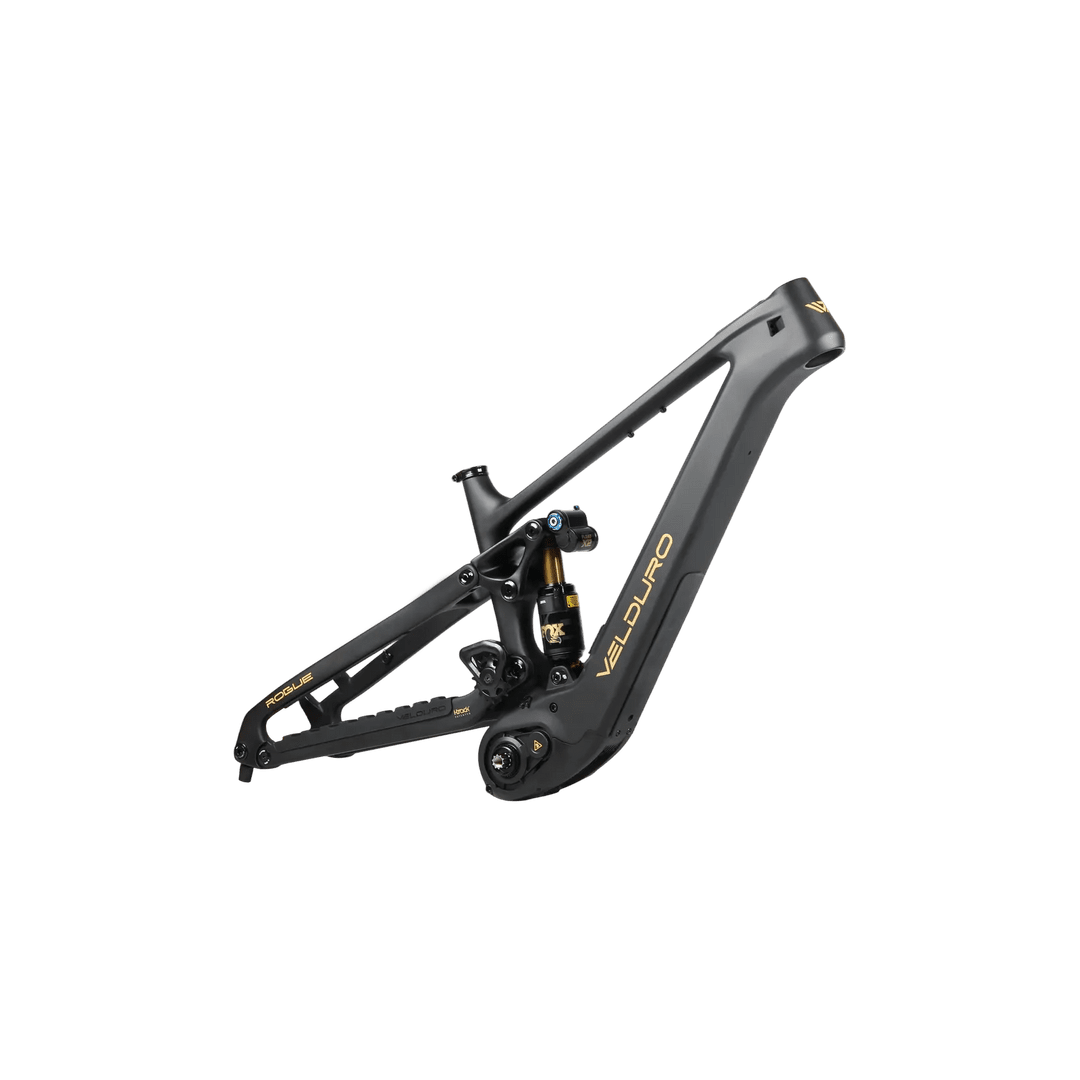

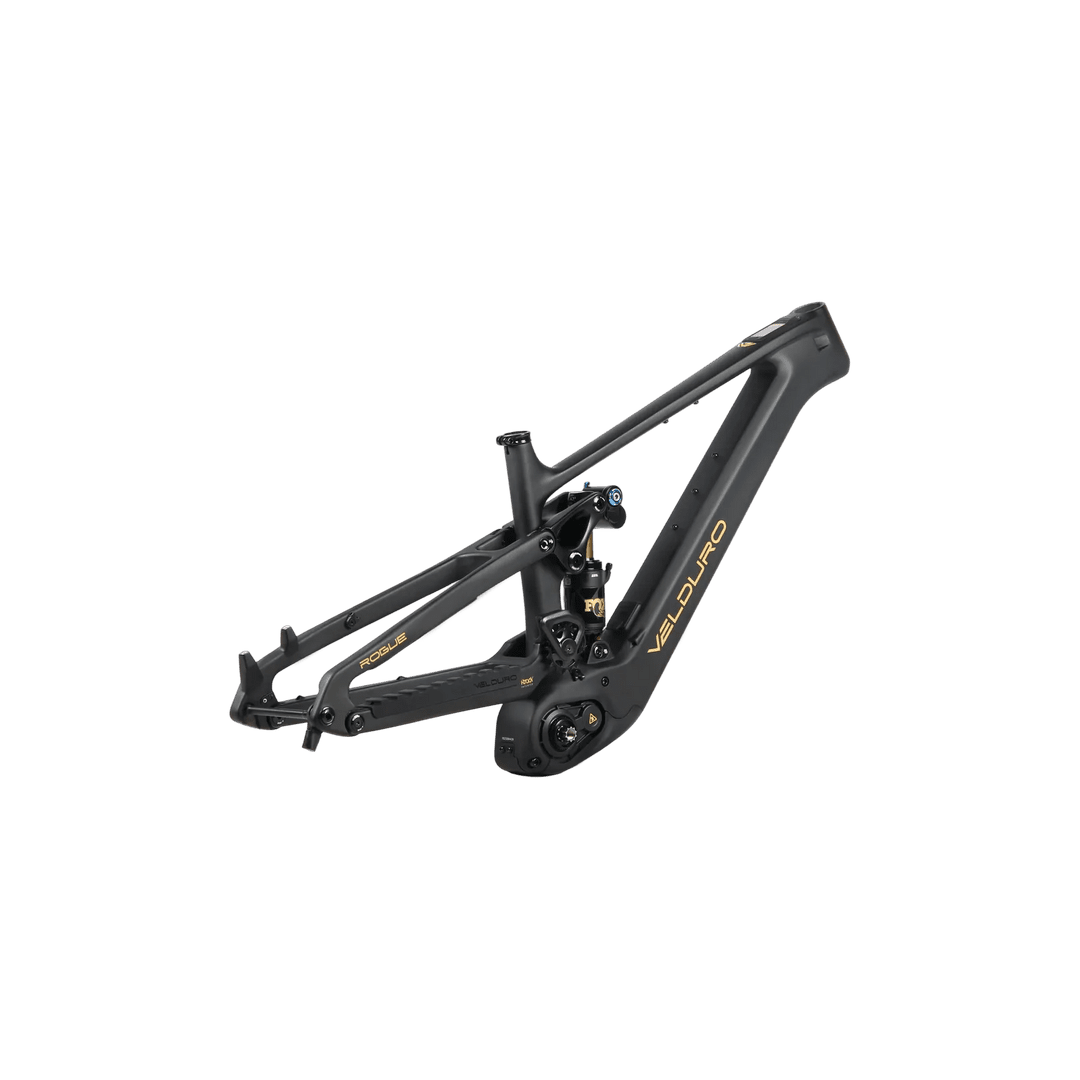

Velduro Rogue frame only with FOX shock and DJI Avinox M2S motor - hero image

Frame-only highlights

The Rogue Frame Only package is built for riders who want a no-compromise foundation for a dream eMTB build. The modular chassis allows travel and wheel-size adaptation, while the Avinox-powered platform brings top-tier integration from motor, battery and display through to controls, charger and internal wiring. It is a strong option for riders who want complete control over suspension, wheelset and finishing kit decisions.

Included specification expandable sections

Headset specs
  • External wired headset, ZS44/56 mm
Suspension measurements
  • Fork: 1.5T single crown, 160–180 mm travel compatible, 170 mm recommended, axle-to-crown under 585 mm, double crown not suitable

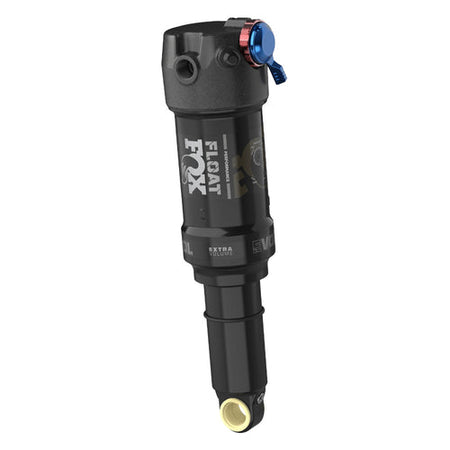

  • Shock: Trunnion only, eye-to-eye 205 mm, lower bushing M8x30 mm
  • 65 mm stroke recommended for 165/172 mm rear travel
  • 62.5 mm stroke for 160/165 mm rear travel
Seatpost measurement
  • Seatpost diameter: 31.6 mm
  • Insert depth: S 260 mm, M 280 mm, L 300 mm, XL 325 mm
  • Recommended dropper travel: S 180 mm, M/L 210 mm, XL 240 mm
  • Dropper cable length: 1200 mm
  • Seat clamp diameter: 35 mm
Brake system specifications
  • Rear brake post mount: 203 mm direct
  • Front brake mount depends on fork
  • Front brake cable: 950 mm
  • Rear brake cable: 1700 mm
Drive system specs
  • Chainwheel: 104 BCD, maximum 34T
  • Crank length up to 165 mm, minimum offset 25 mm
  • Full-mount derailleur suitable
  • 1x shifting only
  • Shimano and SRAM compatible
  • E-shift and manual shift compatible
  • Manual shift cable length: 2000 mm
Wheel set compatibility
  • Front hub depends on fork, normally 15x110 mm
  • Rear hub: 12x148 Boost
  • Front rim: 29 inch
  • Rear rim: 29 inch or 27.5 inch
  • Front tire: 29x2.5 recommended, max 2.6
  • Rear tire: 29x2.4 or 27.5x2.4 recommended
Shock requirements
  • See linked Rogue Shock Guide PDF for fitment and compatibility template

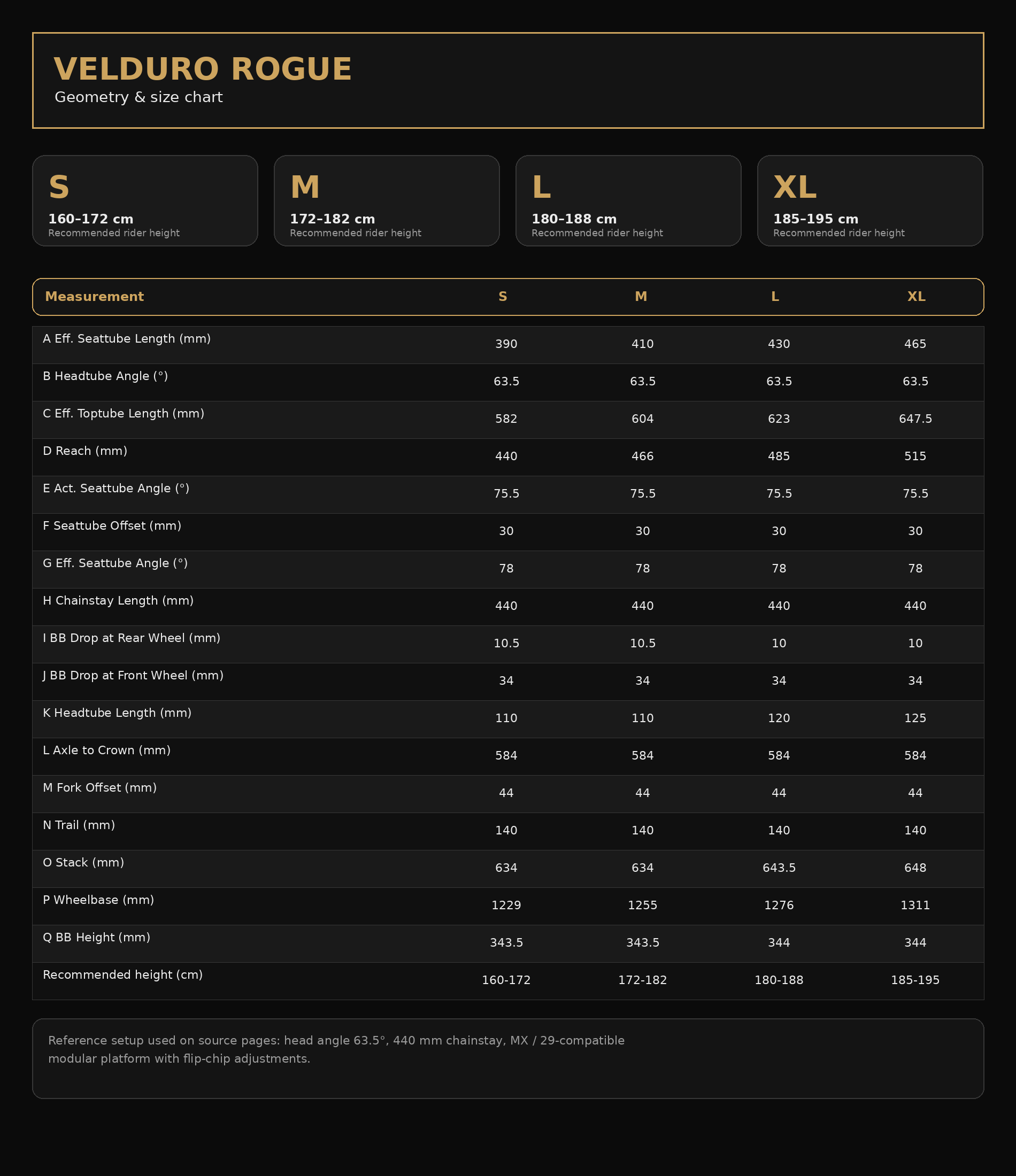

Geometry & size chart

The downloadable geo / size chart image is included with this package.
Download geo & size chart image
Measurement S M L XL
A Eff. Seattube Length (mm) 390 410 430 465
B Headtube Angle (°) 63.5 63.5 63.5 63.5
C Eff. Toptube Length (mm) 582 604 623 647.5
D Reach (mm) 440 466 485 515
E Act. Seattube Angle (°) 75.5 75.5 75.5 75.5
F Seattube Offset (mm) 30 30 30 30
G Eff. Seattube Angle (°) 78 78 78 78
H Chainstay Length (mm) 440 440 440 440
I BB Drop at Rear Wheel (mm) 10.5 10.5 10 10
J BB Drop at Front Wheel (mm) 34 34 34 34
K Headtube Length (mm) 110 110 120 125
L Axle to Crown (mm) 584 584 584 584
M Fork Offset (mm) 44 44 44 44
N Trail (mm) 140 140 140 140
O Stack (mm) 634 634 643.5 648
P Wheelbase (mm) 1229 1255 1276 1311
Q BB Height (mm) 343.5 343.5 344 344
Recommended height (cm) 160-172 172-182 180-188 185-195

frame details & included hardware / accessories

  • Carbon fiber enduro-category frame
  • Mid-pivot suspension layout
  • Rear travel 165 mm, up to 172 mm with 29-inch rear wheel and flip-chip setup
  • Boost 12x148 mm thru axle
  • FSA No.57 Alloy MTB headset, ZS44/56
  • DJI Avinox M2S drive system
  • Avinox 800 Wh integrated battery
  • Avinox DP100 integrated 2-inch display
  • Avinox BC100 wireless controls, left and right
  • Avinox 4A charger
  • Customized waterproof wiring
  • UDH hanger, seatpost clamp and cable lugs
  • Avinox SL 155 mm cranks
  • Avinox 104 BCD spider and Velduro 34T chainwheel
Included with fully build bikes under 50,000 SEK

Boutique MTB Starter Package

When you buy a bike under 50,000 SEK, our Boutique MTB Start Package is included, which includes:

  • Free inspection service (value 499 SEK)
  • Personal bike setup
  • Personal damper setup (when relevant)

Inspection service (within 6 months)

The inspection service is carried out within 6 months (best after the first few rides) of purchase and aims to triple check that the bike is correctly assembled, that nothing is getting loose, safe and in good condition after running-in. It includes, among other things:

  • Checking wearing parts
  • Re checking all screws torque setting as per manufacturers' specifications
  • Checking tubeless tires seals
  • Checking brakes function for any sign that they may need bleeding from the manufacturer.

Personal bike setup

We adapt dropper post hight, handlebars, brake and gear levers to your measurements and riding position, which makes a big difference to both comfort, control and performance.

Personal shock setup

We adjust the shocks and fork to your weight and riding style through external settings, without dismantling or modifying the components.

Extra

In addition to this, a 20% discount on your first regular service is also included, valid within 12 months of purchase.

Included fully build bikes over 50,000 SEK

Boutique MTB Pro Package

Bikes with a sales price over SEK 50,000 include our most comprehensive package – the Boutique MTB Pro Package. This package includes everything included in the Start Package, plus several additional benefits:

  • Free inspection service (value 499 SEK)
  • Personal bike setup
  • Personal fork and shock setup (including on trail setup session if requested)
  • Free standard service (value 999 SEK)
  • 50% discount on the first fork lower legs service (value up to SEK 999)
  • An 1-2-1 MTB course with Stockholm Bike Skills (value up to 1,250 SEK)

Standard service (valid 12 months)

Includes:

  • Overhaul of wearing parts
  • Torque setting check of all screws
  • Checking tire pressure and condition
  • Checking of chain wear and lubrication
  • Gear and brake adjustment
  • Basic safety and function check

Shock service discount

The discount on shock service applies to outer leg service for front shocks , which is recommended after approximately 50 hours of riding. It does not include full shock service.

MTB course

The MTB course is included because we know, after training hundreds of cyclists, that technical knowledge often provides greater development and riding pleasure than expensive component upgrades.
