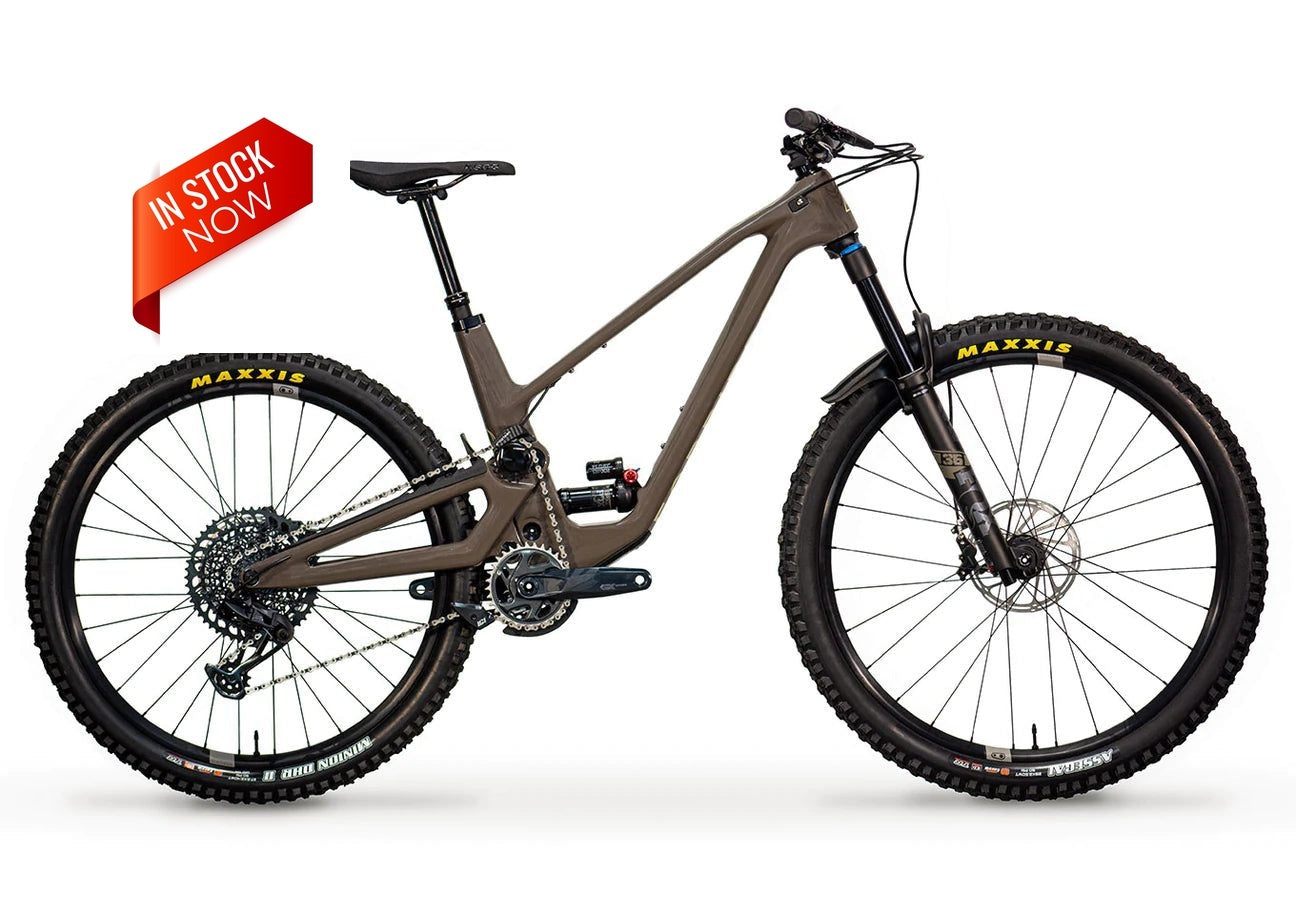

GX
The Ziggy Link-equipped Druid GX, Fporbidden first out-of-the-box, ready-to-rip, mixed wheel size hell-raiser, takes the corner slaying abilities of the full-29er Druid and turns them up to 11. Featuring their signature ‘One Ride’ proportional geometry not only ensures a consistent ride experience, regardless of size or stature but also amplifies what the Druid GX can do on the trail. Separated by more than just a 27.5in rear wheel, the Druid GX goes further, knocking 0.5 degrees off the head angle and dropping the bottom bracket by 4mm compared to its full 29er siblings. If the intentions of the Druid GX were in any doubt, the Crankbrothers front and rear tuned Synthesis wheels, full SRAM GX 12-speed transmission and G2 four-piston anchors should go some way to establish that it’s here to party.
DRUID ZIGGY LINK GEOMETRY
150mm Fork | S | M | L | XL | |
---|---|---|---|---|---|
A | Reach | 420 | 440 | 460 | 480 |
B | Stack | 610 | 624 | 638 | 651 |
C | Hori. Top Tube Length | 580 | 604 | 627 | 651 |
D | Seat Tube Length | 400 | 420 | 450 | 490 |
E | Seat Tube Angle (Effective) | 75.1 | 75.1 | 75.1 | 75.1 |
F | Seat Tube Angle (Actual) | 71.2 | 72.8 | 74.1 | 75.1 |
G | Head Tube Length | 90 | 105 | 120 | 135 |
H | Head Tube Angle | 65.1 | 65.1 | 65.1 | 65.1 |
I | Front Center | 734 | 760 | 787 | 813 |
J | Rear Center | 415 | 427 | 439 | 451 |
K | Wheel base | 1150 | 1188 | 1226 | 1264 |
L | BB Drop | -27.1 | -27.1 | -27.1 | -27.1 |
M | BB Height | 334 | 334 | 334 | 334 |
N | Stand Over | 724 | 724 | 730 | 736 |
O | Fork Length | 557.1 | 557.1 | 557.1 | 557.1 |
P | Fork Offset | 44 | 44 | 44 | 44 |
SIZING GUIDE
FRAME | ||
FORK | ||
REAR SHOCK | ||
HEADSET | ||
GRIPS | ||
HANDLE BARS | ||
STEM | ||
SEAT POST | ||
SEAT POST REMOTE | ||
SEAT POST CLAMP | ||
SADDLE | ||
FRONT BRAKE | ||
REAR BRAKE | ||
FRONT BRAKE ROTOR | ||
REAR BRAKE ROTOR | ||
REAR SHIFTER | ||
REAR DERAILLEUR | ||
CASSETTE | ||
CHAIN | ||
CRANKSET | ||
PEDALS | ||
CHAIN TENSIONER | ||
BOTTOM BRACKET | ||
FRONT HUB | ||
REAR HUB | ||
SPOKES | ||
RIMS | ||
FRONT TIRE | ||
REAR TIRE | ||
TUBELESS Setup |
