OneUp Components EDC Lite Tool

Regular price 429.00 kr Save 0.00 kr
/
Tax included. Shipping calculated at checkout.

Only 10 items in stock!

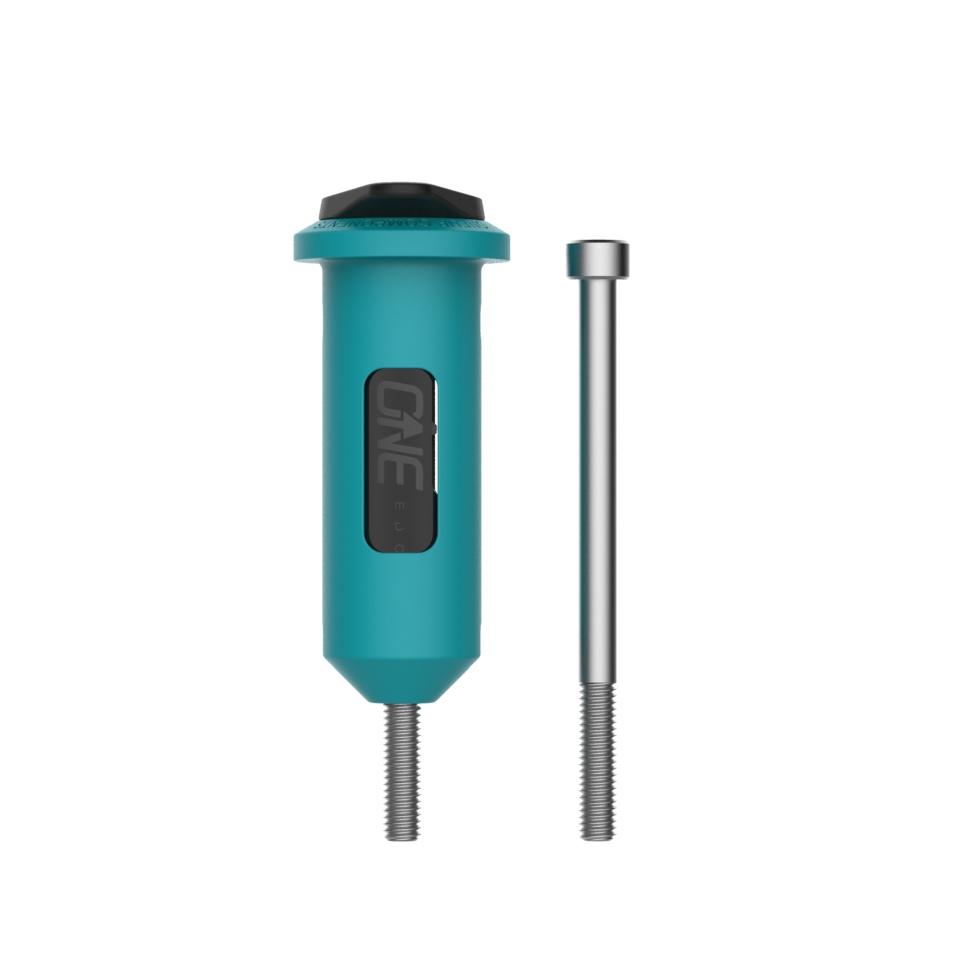

OneUp Components EDC Lite Tool-Accessories-OneUP Components-Turkos-Boutiquemtb
OneUp Components EDC Lite Tool-Accessories-OneUP Components-Röd-Boutiquemtb

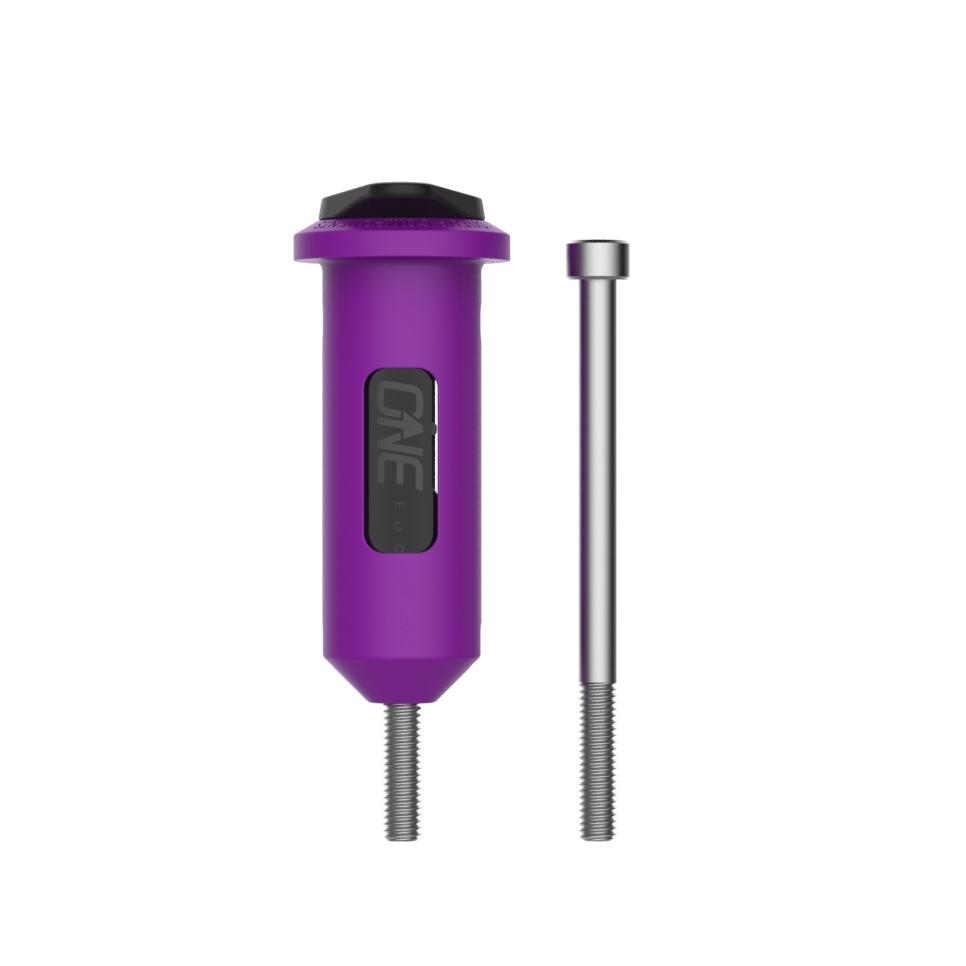

OneUp Components EDC Lite Tool-Accessories-OneUP Components-Lila-Boutiquemtb

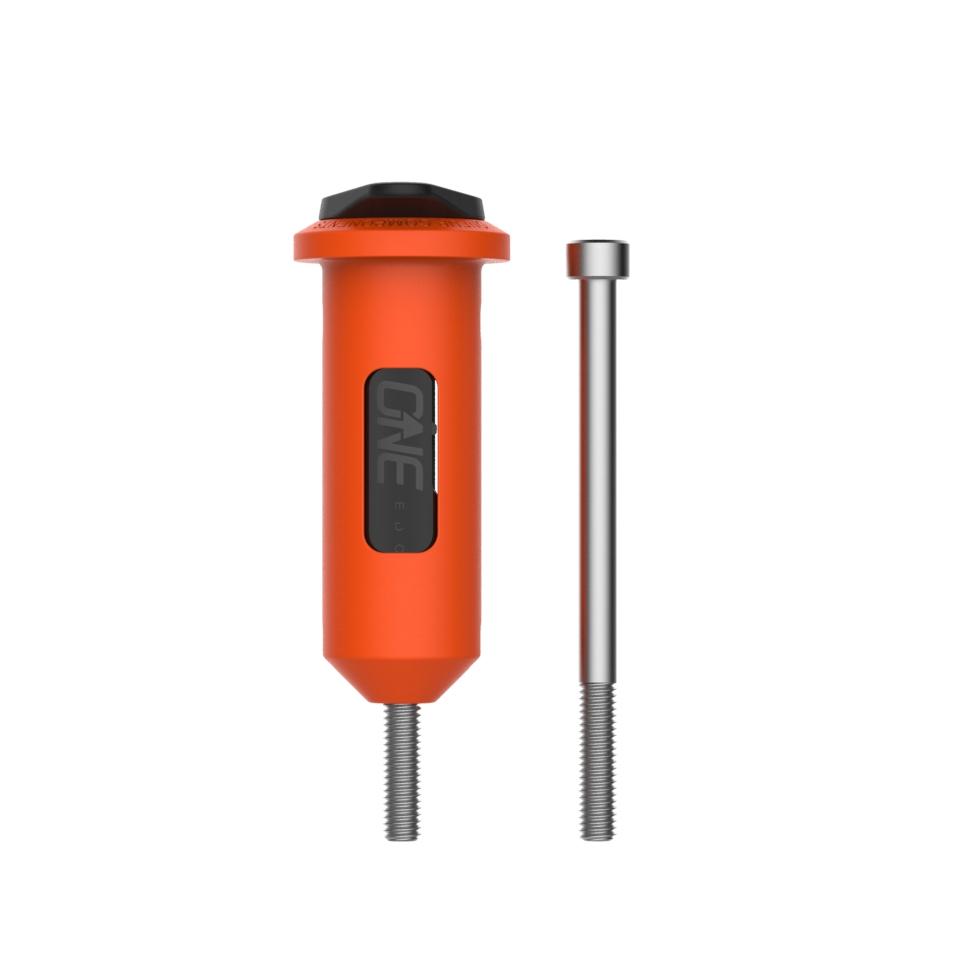

OneUp Components EDC Lite Tool-Accessories-OneUP Components-Orange-Boutiquemtb
OneUp Components EDC Lite Tool-Accessories-OneUP Components-Blå-Boutiquemtb
OneUp Components EDC Lite Tool-Accessories-OneUP Components-Grön-Boutiquemtb
OneUp Components EDC Lite Tool-Accessories-OneUP Components-Svart-Boutiquemtb

Important Check Fork Compatibility before purchasing



The included 9 function Multi Tool contains your most used tools and
is designed to live inside your stem/steerer tube.

Never get stuck without a Multi Tool on a ride ever again.


⬢  2, 2.5, 3, 4, 5, 6, 8mm
   T25 Torx
▬   Flat Head Screwdriver



  • Light weight (Adds just 75g to your bike)
  • VERY easy to install in less than 5 mins.
  • Available in  6 colours (Black, Red, Blue, Green, Orange, Purple, Turq)
  • No need to remove your star nut or thread your steerer tube.
  • Colour matched to our Composite Pedals, Grips and Handlebar Decals.
  • Run a single Multi Tool on all your bikes (extra carriers are $15 each)




ENSURE YOUR FORK IS COMPATIBLE -VERY IMPORTANT

Incompatible forks: Giant Overdrive 2 Forks. Rock Shock 35 Gold Forks, Cannondale Lefty Forks. Carbon Steerers

STEERER TUBE INNER DIAMETER

The inner diameter of your steerer tube must be at least 24.1mm. OneUp is not currently aware of any tapered steerer tubes that do not meet this requirement. If fitting unsure, you can check this by inserting the tip of the EDC Lite into the steerer tube above the star nut BEFORE lowering the star nut position.

STEERER TUBE LENGTH

Most forks are compatible, except for a small number of forks with very short steerer tubes. For the following cases your fork steerer tube length must meet the minimum length requirement.

  • Fox except Fox 38 = 190mm min
  • Fox 38 = 210mm min
  • RockShox Forks  = 210mm min

    Measure from the underside of your fork crown to the top of your spacer stack, or top of your stem if you are not running any spacers above your stem.



    EDC LITE INSTALL INSTRUCTIONS

    Assembly time, approximately 10-15 minutes. Difficulty: Easy.

    Things You Will Need

    1. OneUp EDC Lite Kit
    2. 4mm Hex (Long Handle Required)
    3. 5mm Hex
    4. Mallet or Hammer
    5. Ruler or Tape Measure

    OneUp Components EDC Lite Things you will need to install

    The EDC Lite Kit contains the following pieces:

    1. OneUp EDC Multi-Tool
    2. OneUp EDC Lite Carrier
    3. OneUp EDC Lite Tool Clip
    4. Star Nut Setter Bolt
    5. EDC Lite Bolt

    OneUp Components EDC Lite Kit Numbered Pieces

    INSTALL INSTRUCTIONS

    STEP 1: ENSURE YOUR FORK IS COMPATIBLE - VERY IMPORTANT

    Incompatible forks: Giant Overdrive 2 Forks. Rock Shock 35 Gold Forks, Cannondale Lefty Forks. Carbon Steerers

    STEERER TUBE INNER DIAMETER

    The inner diameter of your steerer tube must be at least 24.1mm. OneUp is not currently aware of any tapered steerer tubes that do not meet this requirement. If fitting unsure, you can check this by inserting the tip of the EDC Lite into the steerer tube above the star nut BEFORE lowering the star nut position.

    STEERER TUBE LENGTH

    Most forks are compatible, except for a small number of forks with very short steerer tubes. For the following cases your fork steerer tube length must meet the minimum length requirement.

    • Fox except Fox 38 = 190mm min
    • Fox 38 = 210mm min
    • RockShox Forks  = 210mm min

    Measure from the underside of your fork crown to the top of your spacer stack, or top of your stem if you are not running any spacers above your stem.

    STEP 2 :  REMOVE YOUR TOP CAP BOLT, LEAVE YOUR TOP CAP IN PLACE

    oneup-edc-lite-install-how-to-040820-03537

    STEP 3 :  SCREW IN THE STAR NUT SETTER BOLT (LONG BOLT) 10 FULL TURNS.

    Do not screw in the Setter Bolt until it bottoms out, as this will lead to your Star nut not being set deep enough to install EDC Lite

    oneup-edc-lite-install-how-to-040820-03538

    oneup-edc-lite-install-how-to-040820-03551

    STEP 4:  HAMMER THE STAR NUT SETTER BOLT DOWN, UNTIL THE TOP OF THE BOLT IS FLUSH WITH YOUR TOP CAP COUNTERBORE.

    Be careful to ensure that the bolt stays straight (vertical) as you hammer it down. Tap the side of the bolt if you need to straighten it.

    oneup-edc-lite-install-how-to-040820-03555

    STEP 5:  REMOVE YOUR STAR NUT SETTER BOLT AND TOP CAP


    STEP 6:  INSERT THE EDC LITE TOP CAP INTO YOUR STEERER TUBE AND ALIGN THE TOOL SLOT TO YOUR PREFERRED DIRECTION

    The EDC Carrier should easily insert into your steerer tube by hand. If a tight fit, DO NOT hammer the carrier in.

    Ensure your steerer tube is burr free.

    If the carrier has a tight fit, first try loosening your stem pinch bolts and reassembling. Be sure to retighten your stem bolts after installing.

    The tool slot is the rectangular hole in the EDC Lite Carrier which the EDC Multi-Tool fits into. The OneUp logo on the Tool Clip is horizontal when the teardrop is pointing to the driveside.

    oneup-edc-lite-install-how-to-040820-03561

    oneup-edc-lite-install-how-to-040820-03565

    STEP 7:  INSTALL THE EDC LITE BOLT & TIGHTEN USING A LONG HANDLE 4mm HEX (max 2Nm)

    If your headset is already installed and tight you do not need to adjust it.

    If/when you need to tighten your headset use the same process as you would for a regular star nut installation. Loosen your stem steerer tube bolts then tighten the EDC Lite Bolt until you have the correct headset preload. Then retighten your stem steerer tube bolts.

    oneup-edc-lite-install-how-to-040820-03596

    TRAIL SIDE HEADSET TIGHTENING

    If you need to tighten your headset when you are out riding, use the 4mm Hex on your EDC Tool. Tightening on trail will rotate the tool slot, as the plastic carrier will rotate with your EDC Tool. Extend the 4mm Hex on one side of the Multi Tool. On the other side of the tool extend all of the tools and fold them down so that they are 90 degrees to the tool body to create a handle.

    OneUp-Components-EDC-Lite-Trailside-Tighten

    When you get home from a ride retighten with a long handled 4mm Hex so that you can correctly align the tool slot.

    STEP 8:  INSERT YOUR EDC TOOL AND EDC LITE TOOL CLIP.

    oneup-edc-lite-install-how-to-040820-03594

    HOW TO INSTALL THE EDC CLIP

    The EDC Lite Tool Clip MUST be installed on to the Multi-Tool with the debossed arrow pointing towards the tooth on the side of the Flathead screwdriver. See picture below.

    To easily remove your tool from the clip wiggle the tool as you pull the pieces apart.

    Congratulations, you have now successfully installed your EDC LITE.

    NOW GO RIDE!

    If you are having any problems please first double-check you have correctly completed each of the steps above.

    If you are still having trouble please email Oneup Support at support@oneupcomponents.com for help. Please include a detailed description of your issue, photos are often helpful.

    Thanks

    OneUp
