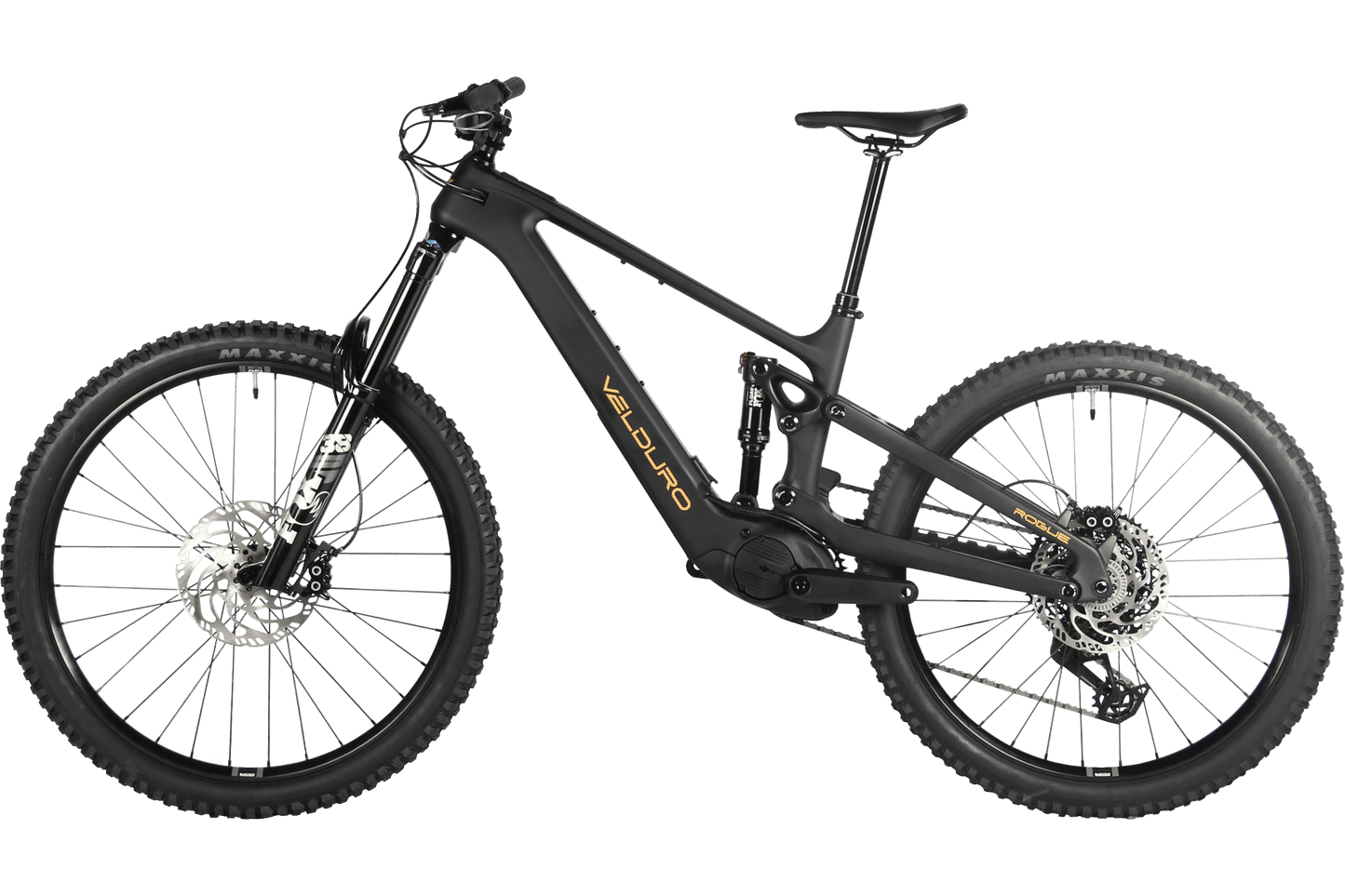

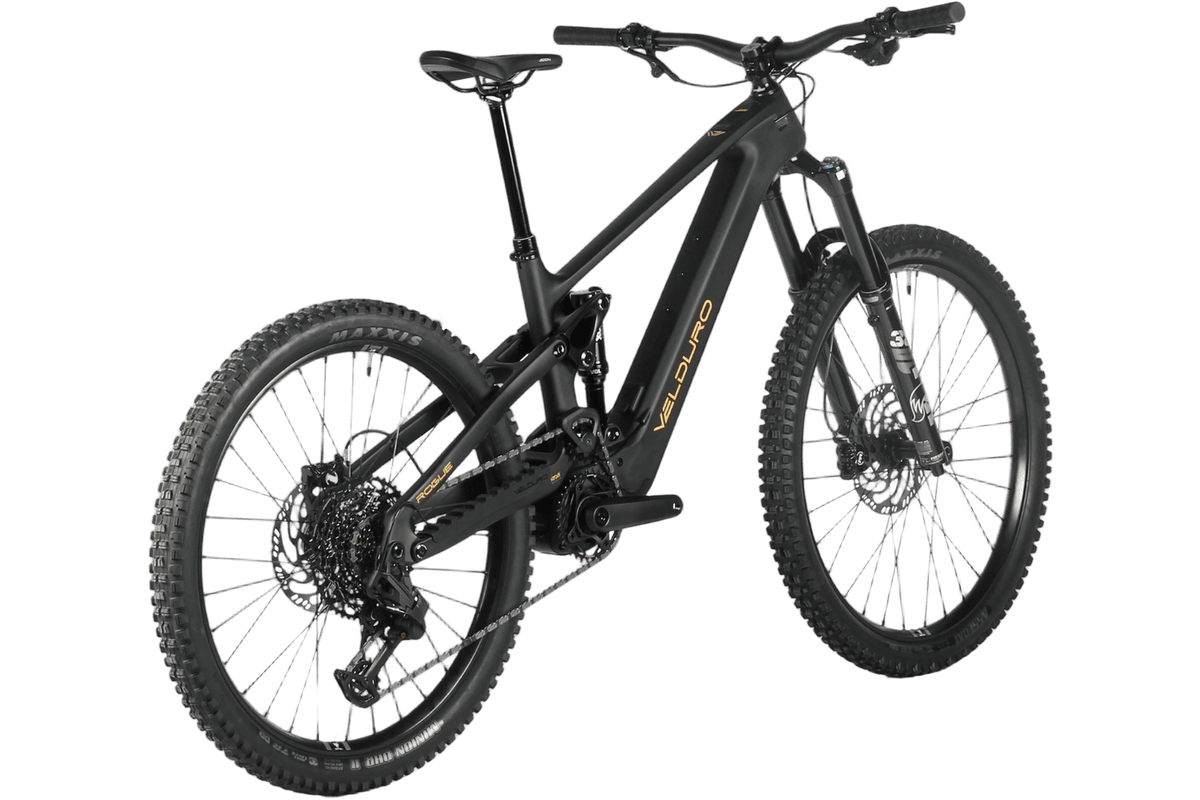

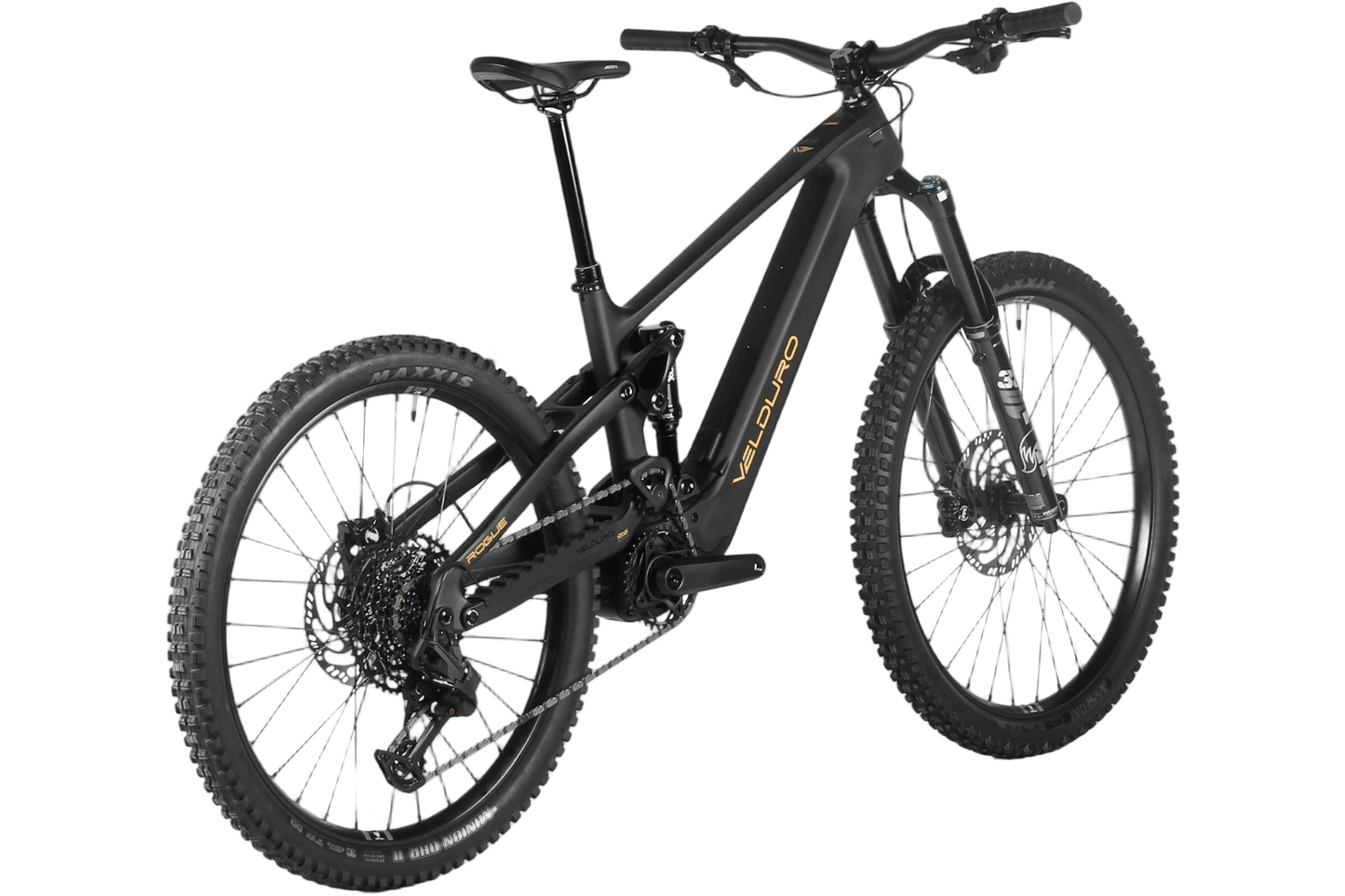

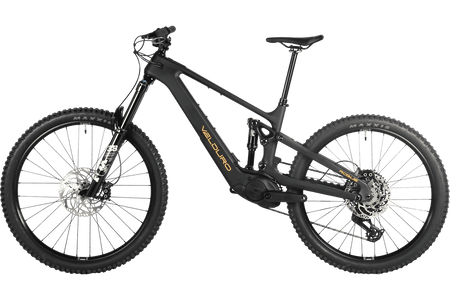

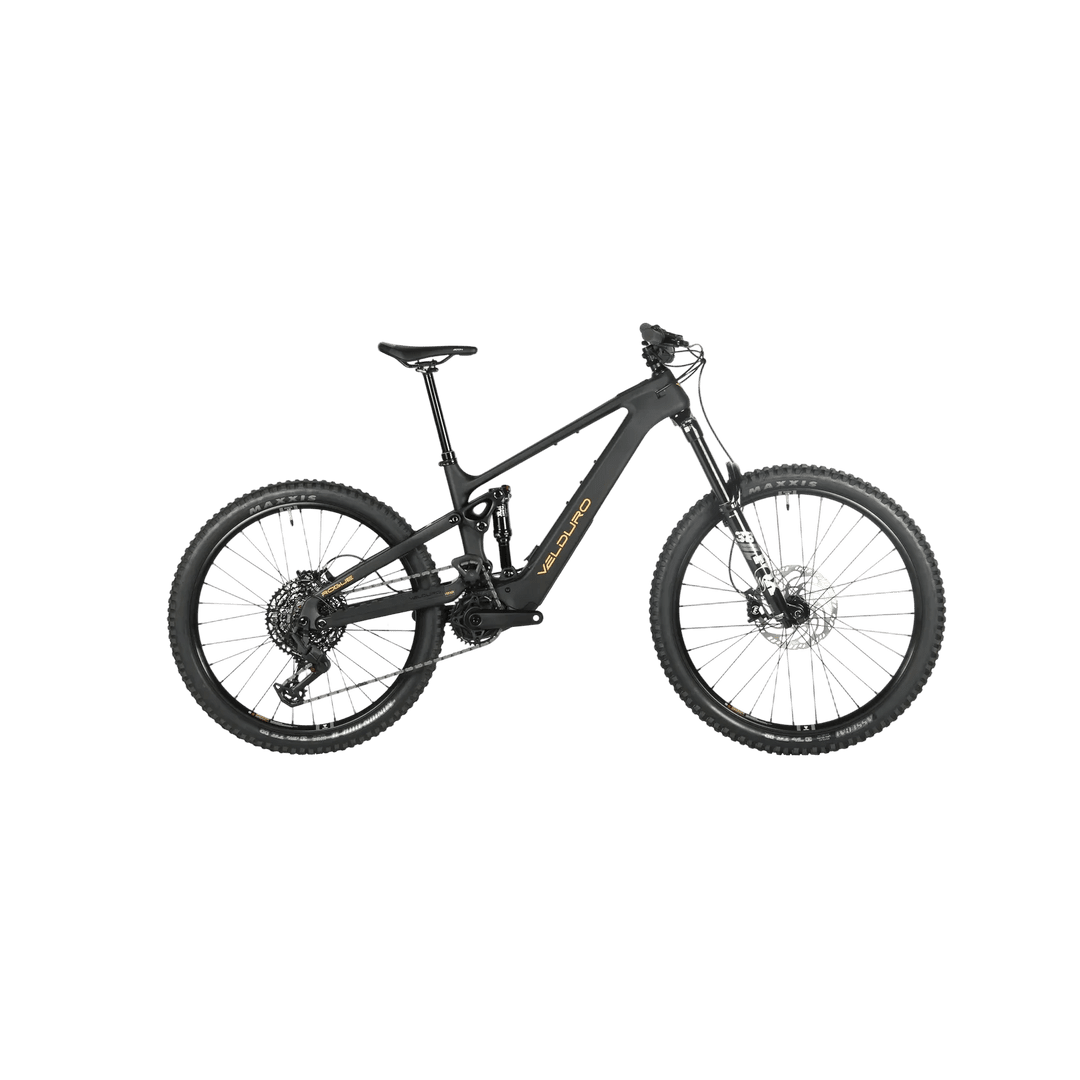

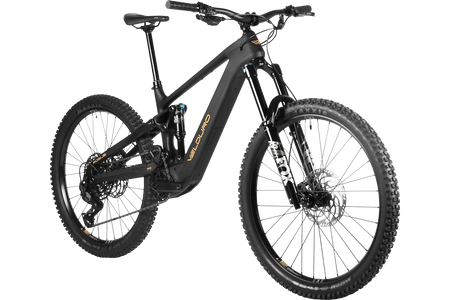

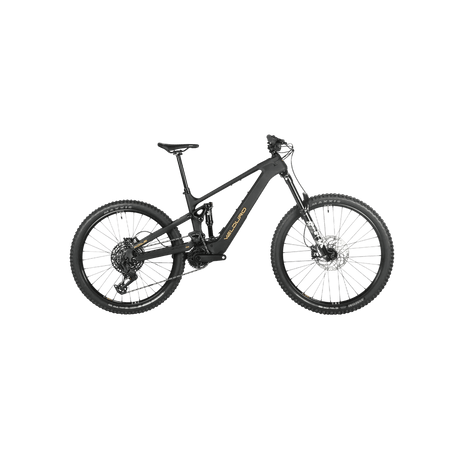

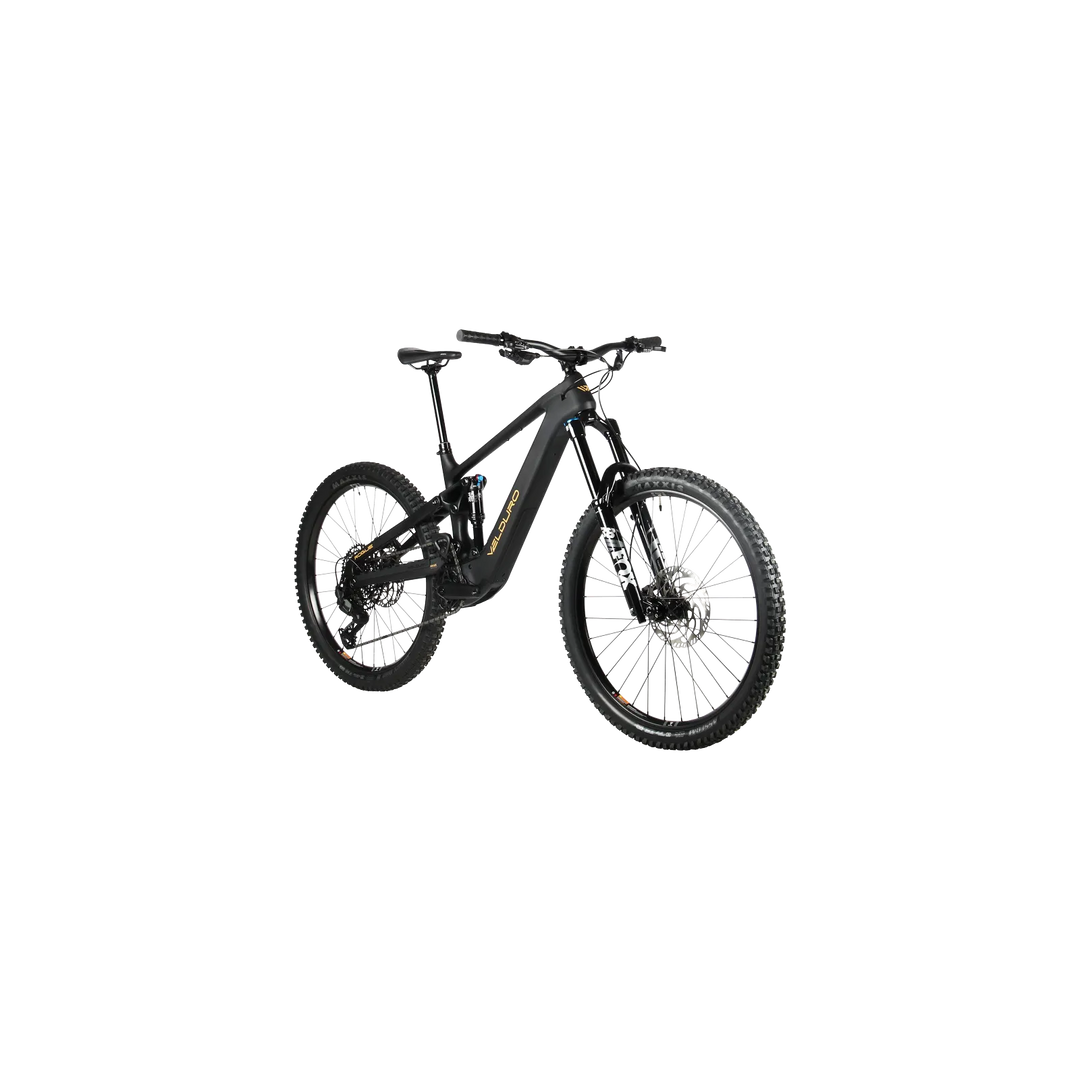

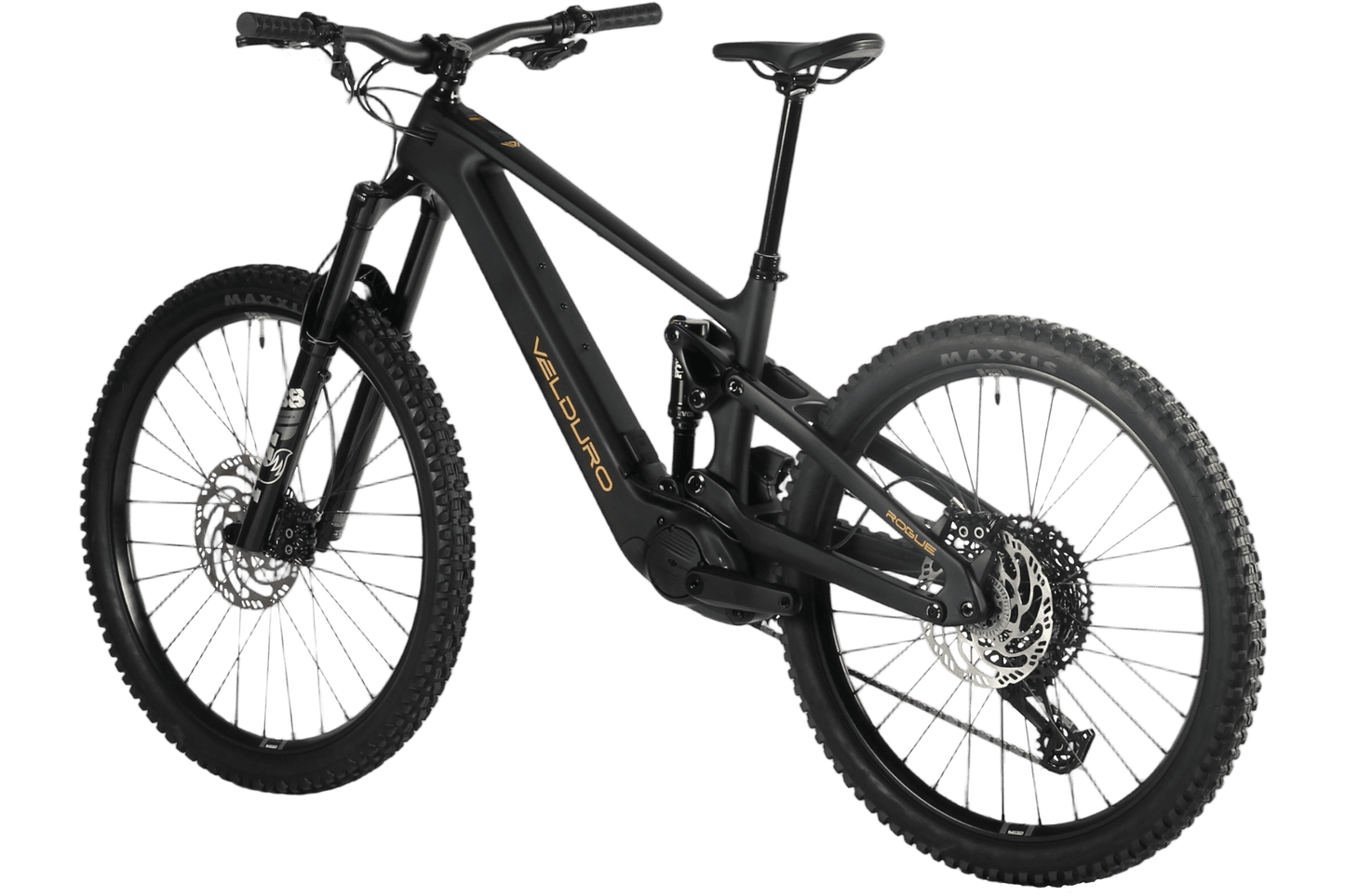

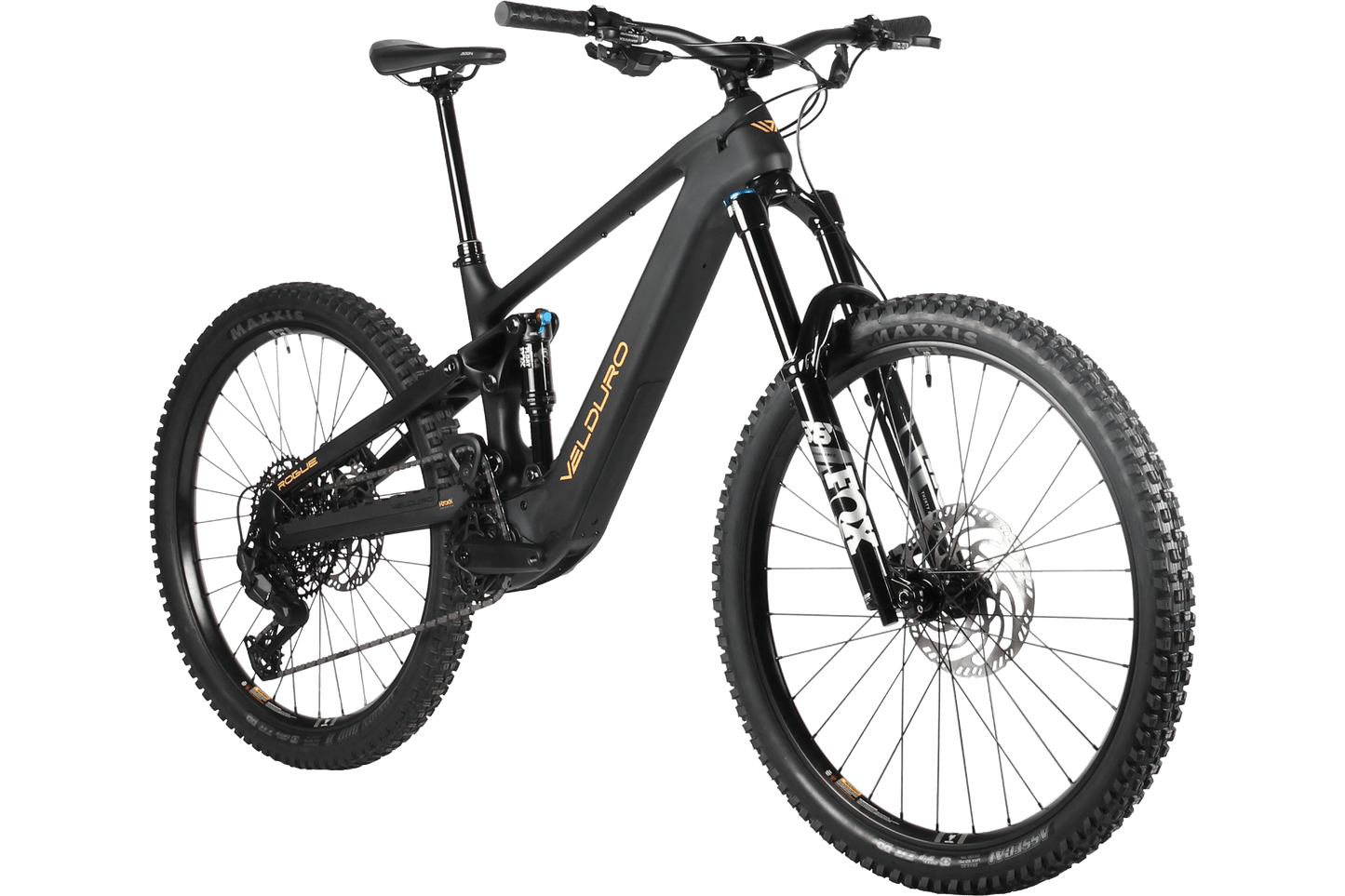

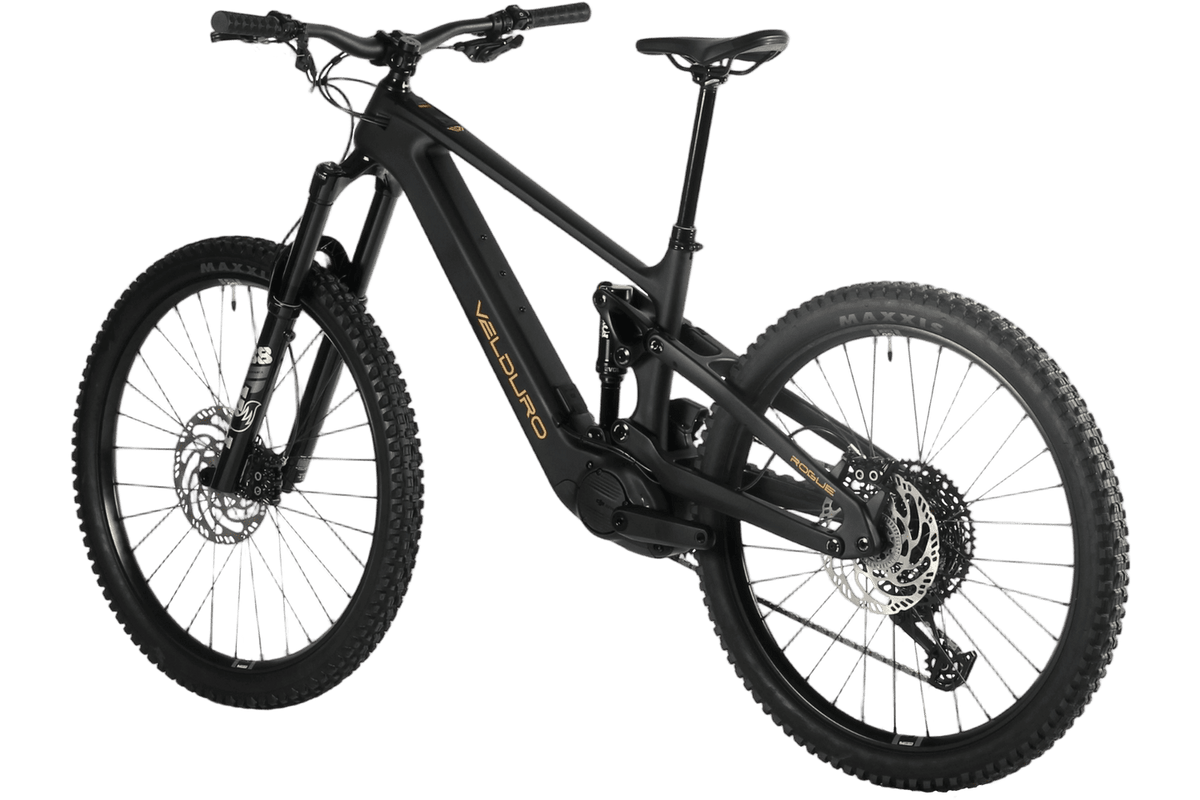

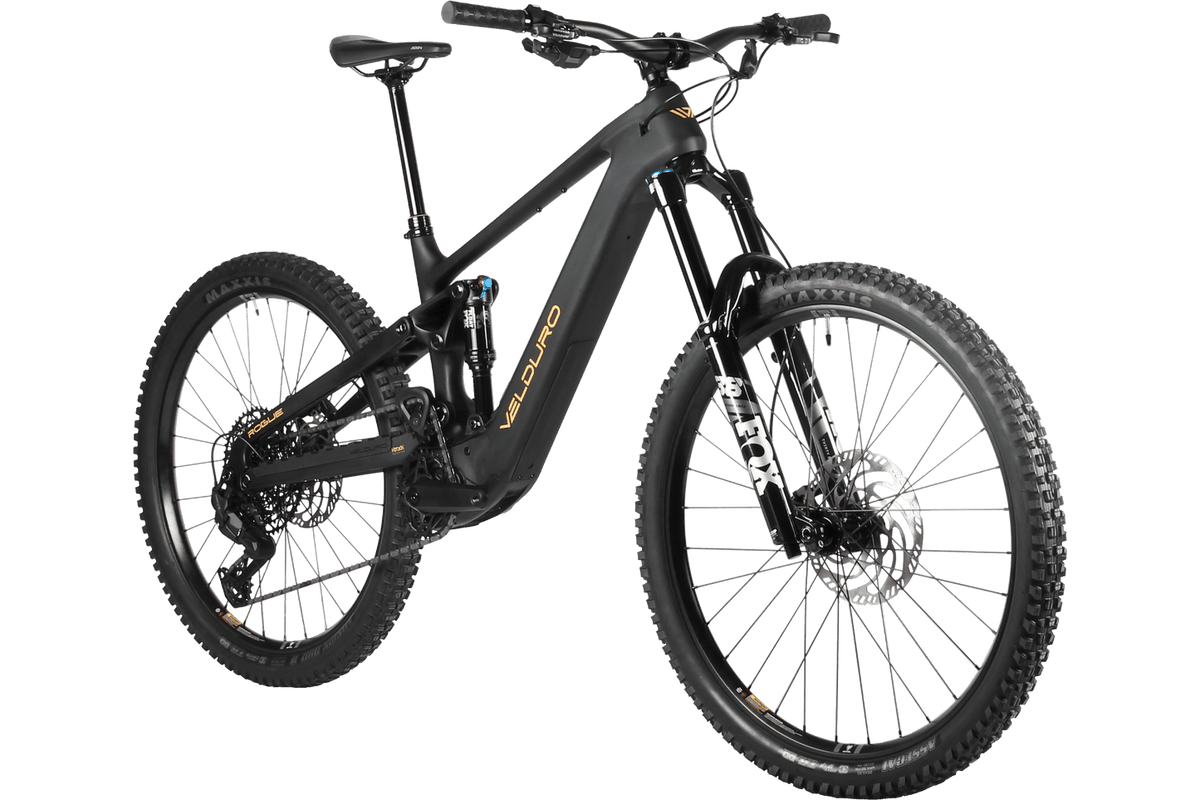

Velduro Rogue X — Build Specification
Frame & Platform

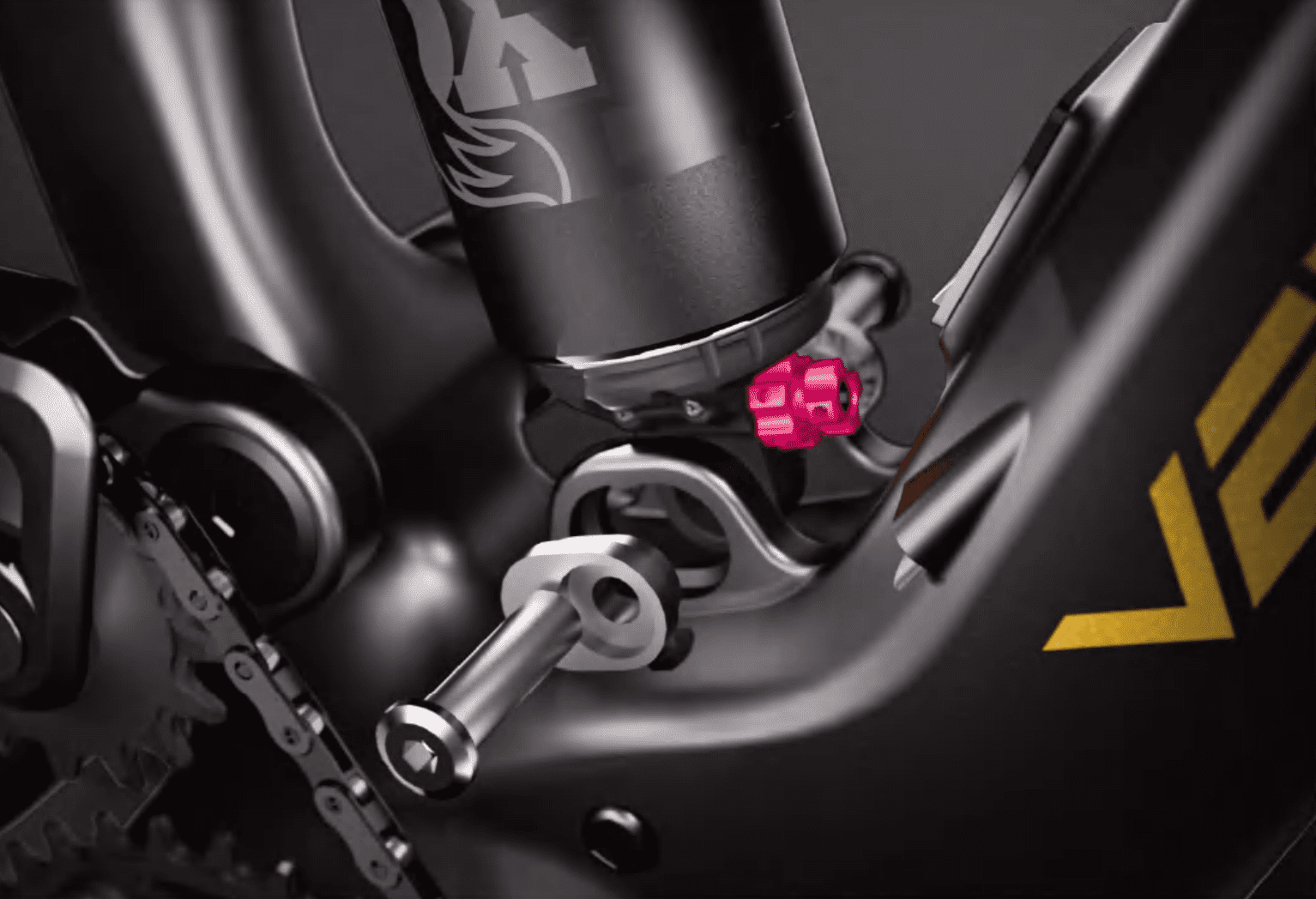

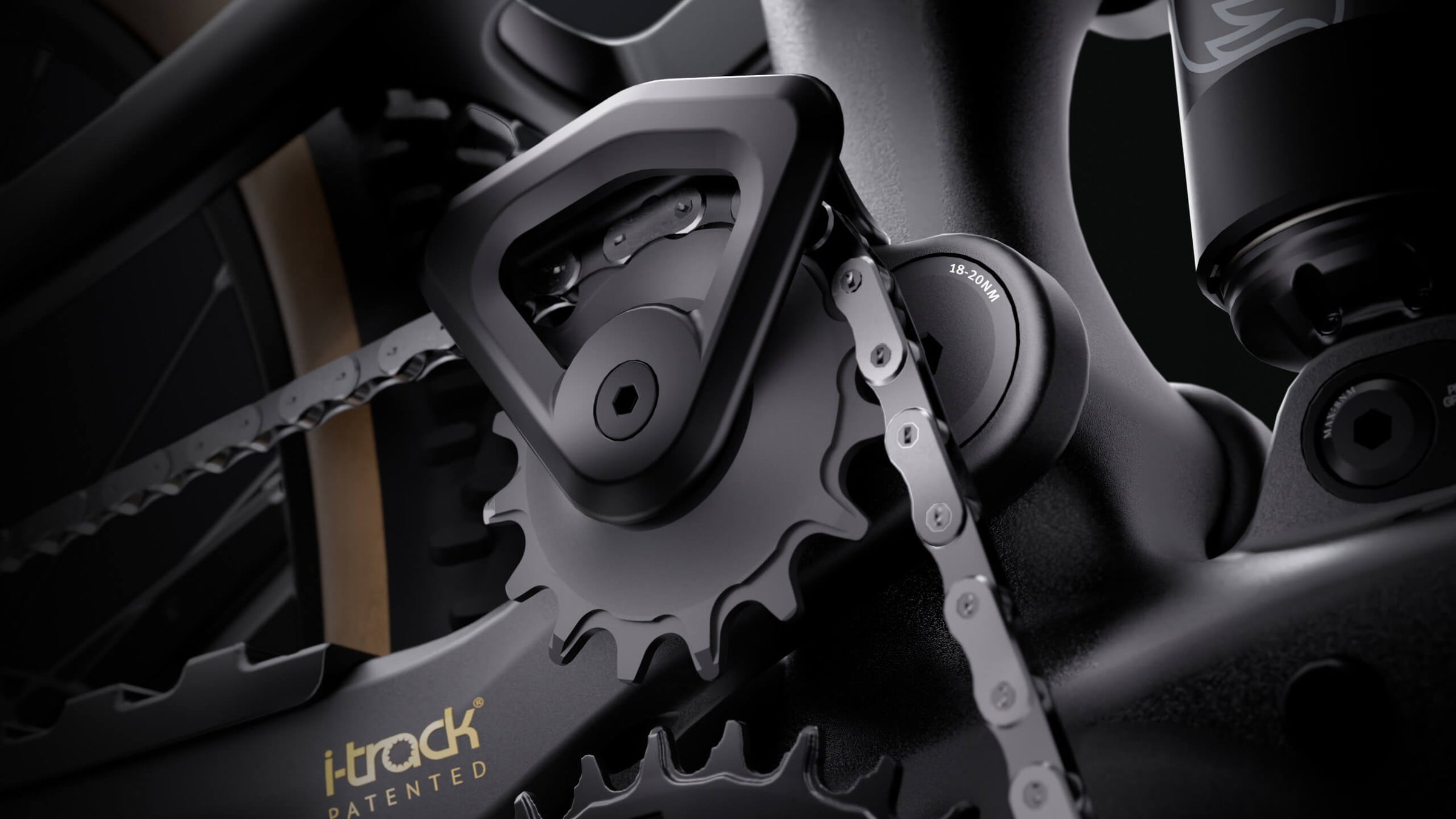

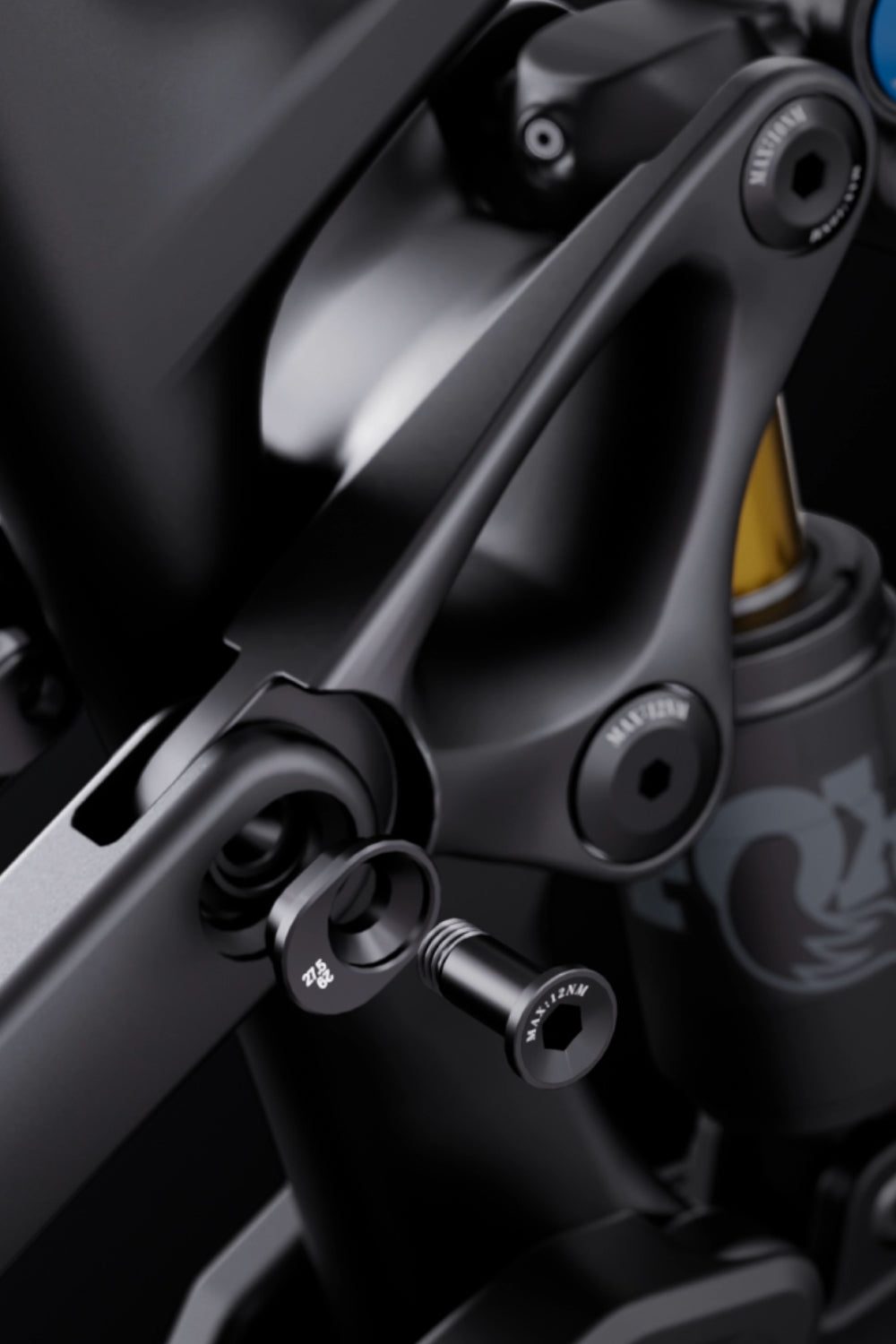

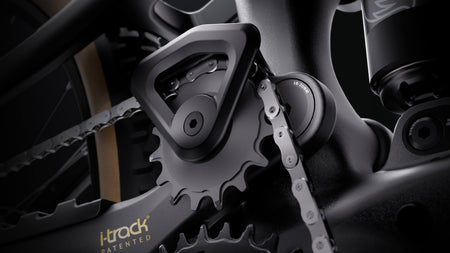

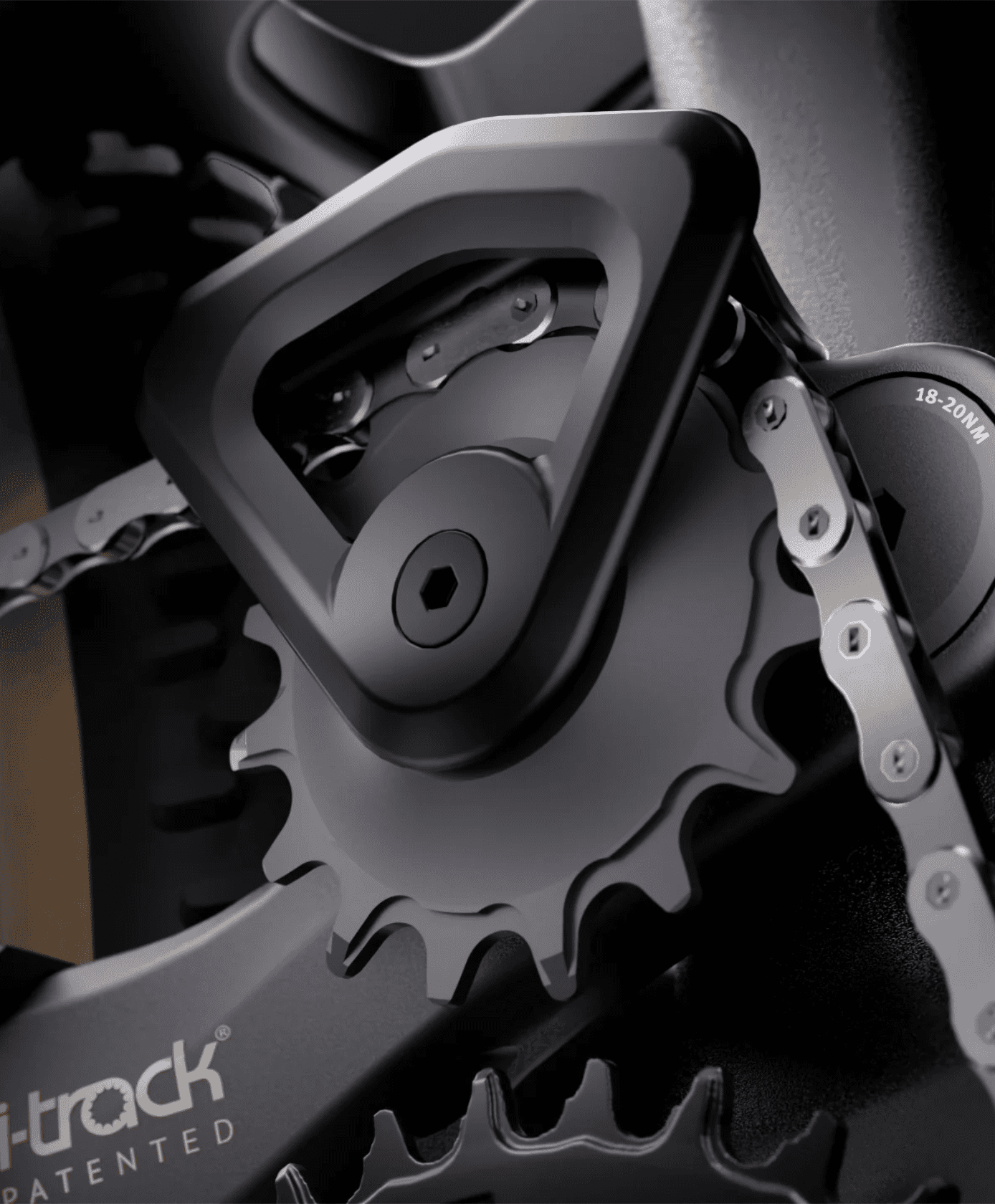

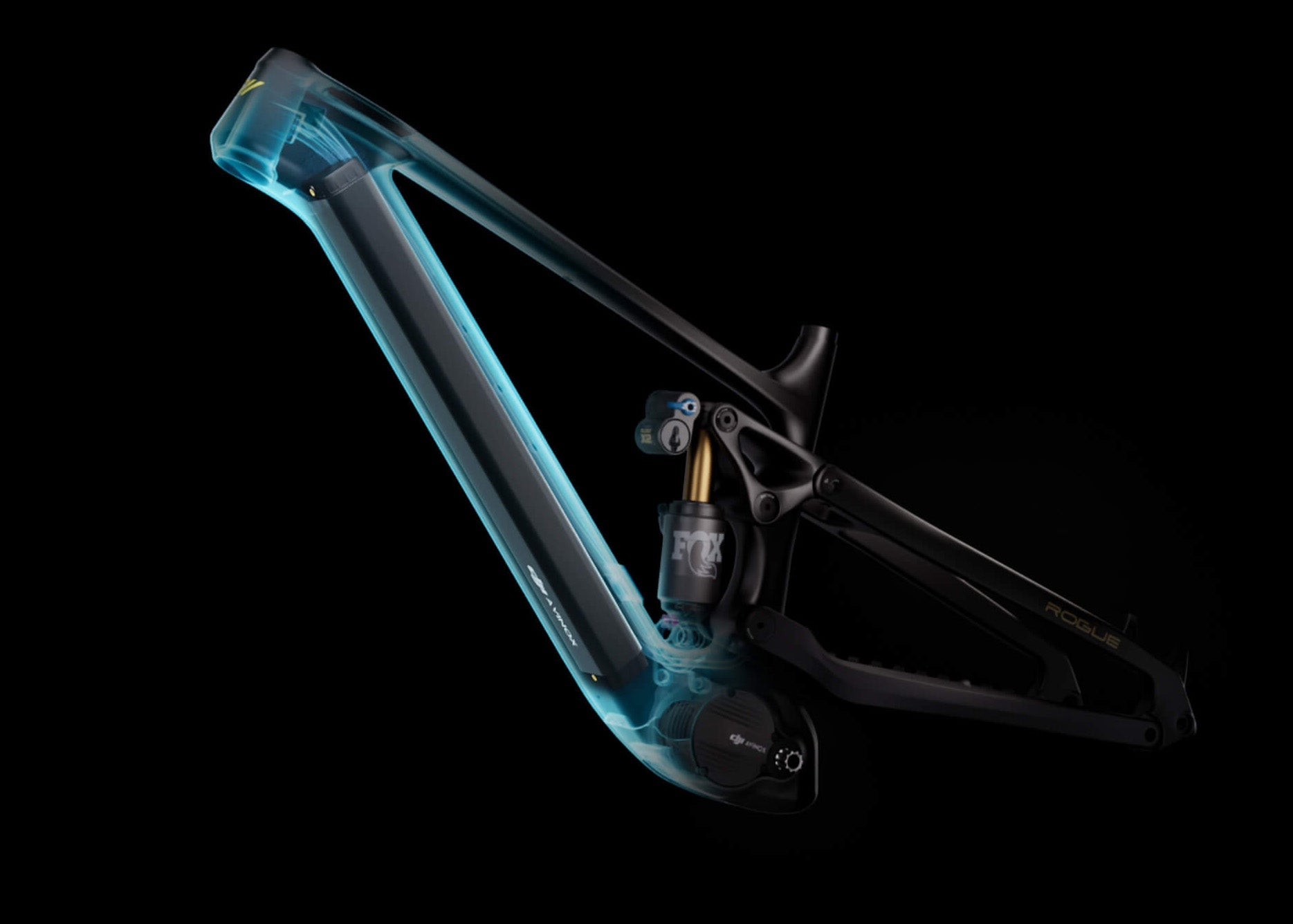

Carbon fibre enduro frame with 165 mm rear travel, extendable to 170 mm with 27.5-inch rear wheel. Mid-pivot I-Track suspension layout with integrated battery design, rear wheel flip chip, and shock progression flip chip. Internal cable routing, Boost 12x148 mm, and oversized 16T idler pulley for improved drivetrain efficiency and suspension performance.
Motor & Battery System

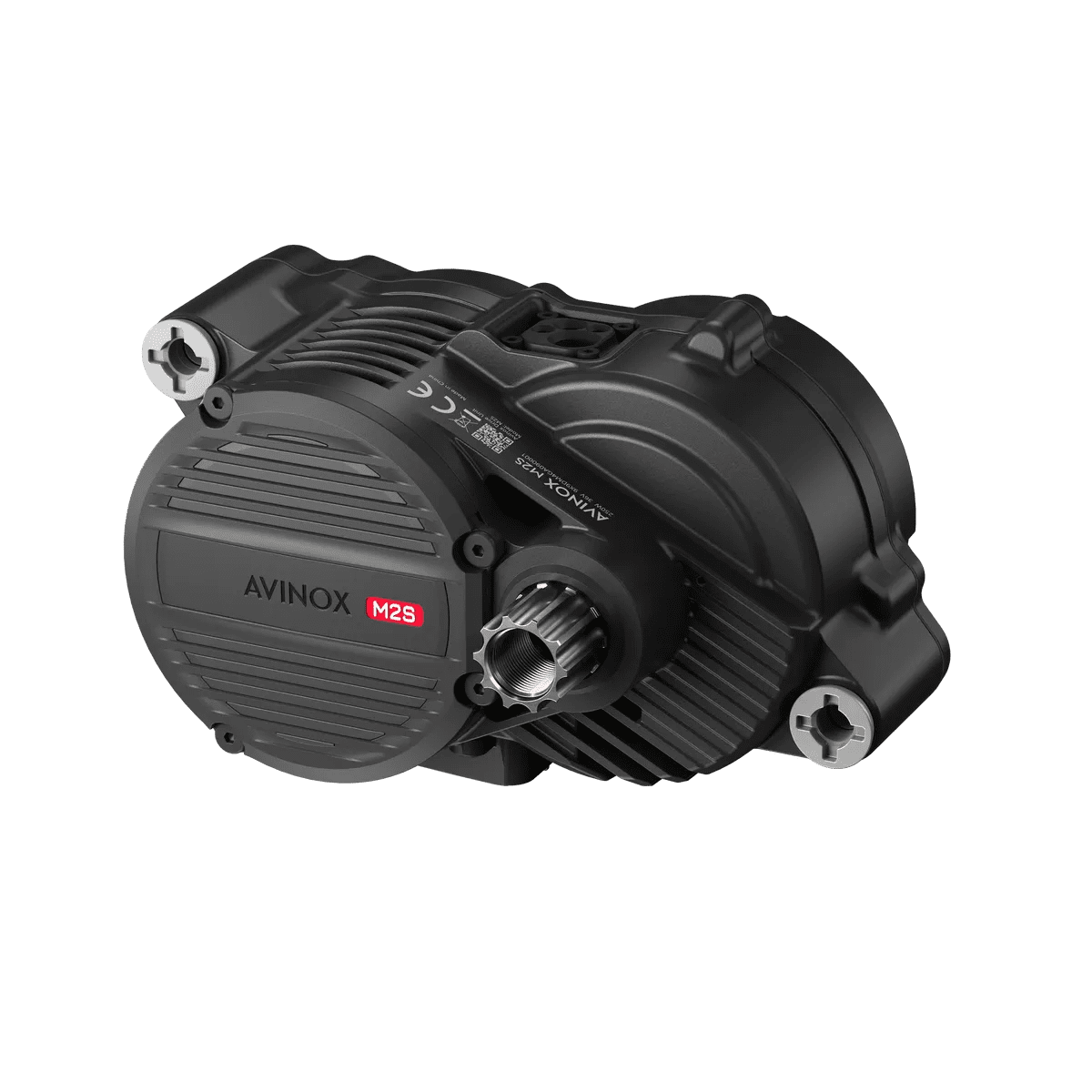

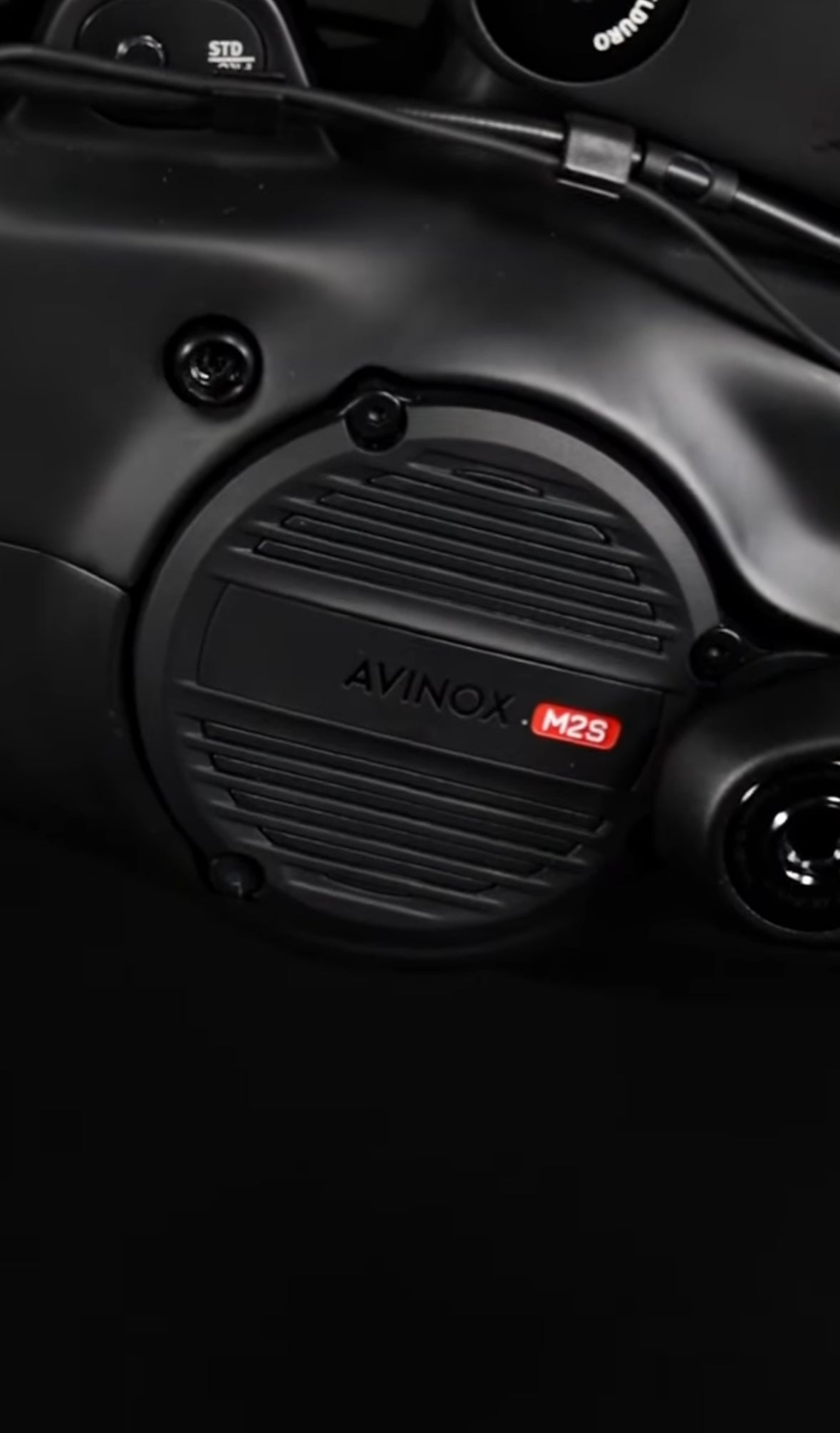

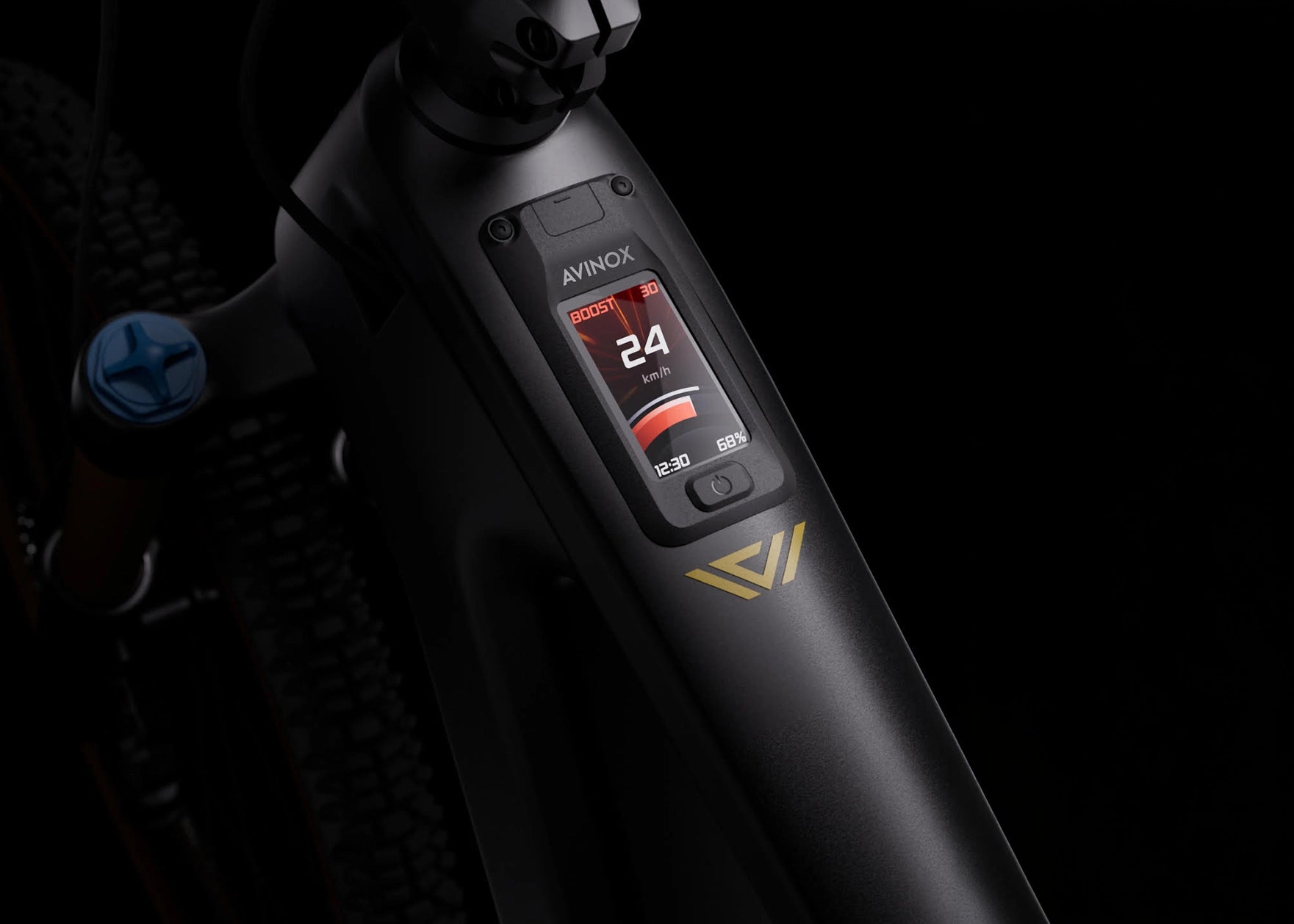

DJI Avinox M2S drive unit delivering up to 1300 W peak power and 130 Nm torque, with boost up to 150 Nm. Powered by an integrated 800 Wh battery. Includes Avinox 36V 4A charger and Avinox DP100 display for a complete, fully integrated system.
Suspension
Fox 38 Performance 2026 fork, 29”, 170 mm travel, tuned for aggressive trail and enduro riding.
Rear shock: Fox Float Performance 2026, 205x65 mm, custom tuned for the Rogue platform.
Drivetrain & Braking
Magura MT5 HC 4-piston hydraulic brakes paired with Magura MDR-C heavy-duty rotors (220 mm front / 203 mm rear) for powerful and consistent braking performance.

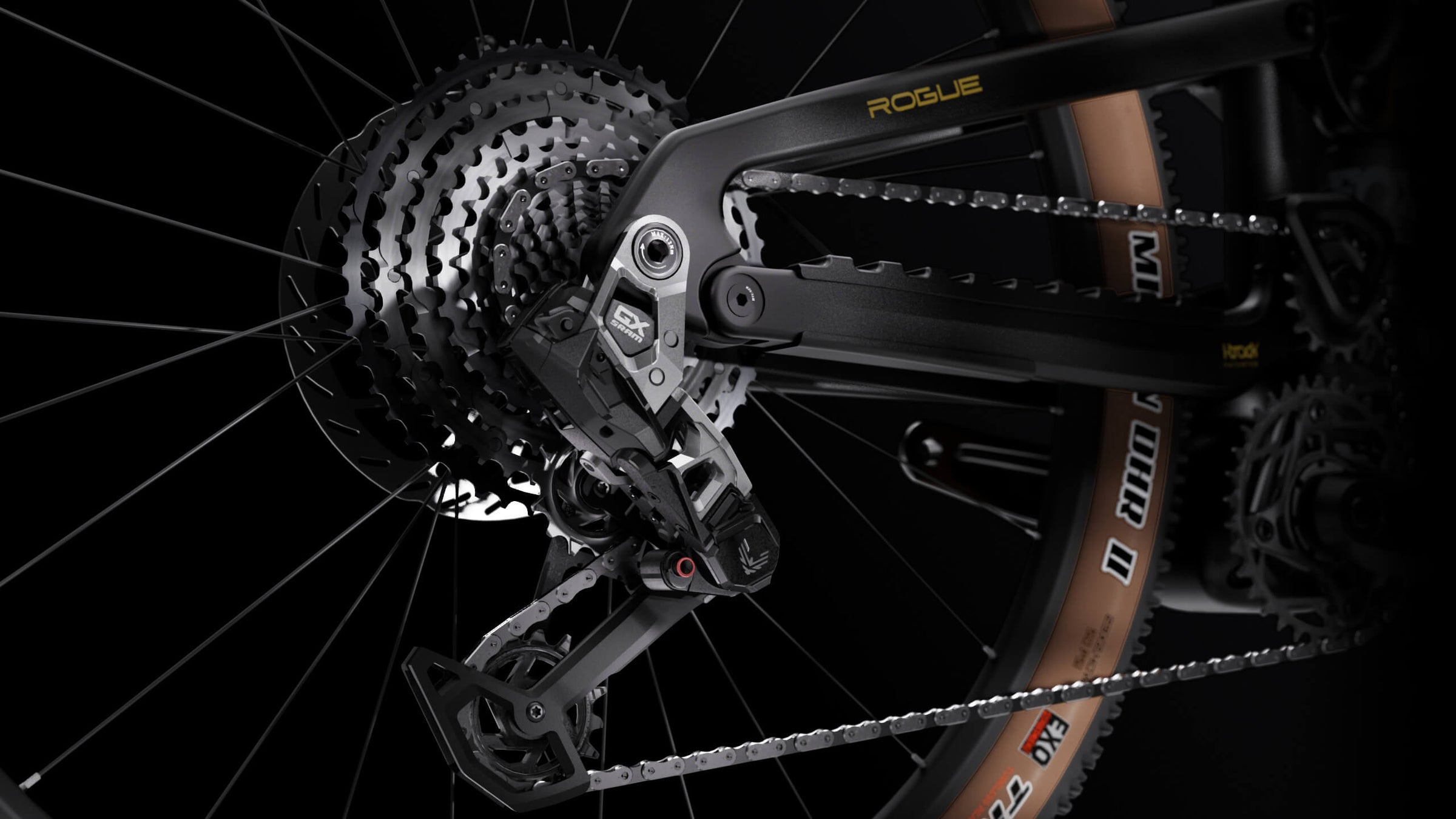

SRAM Eagle 70 mechanical transmission.
Avinox SL crankset (155 mm), SRAM XS-1270 10–52T cassette, SRAM Eagle 70 Flattop chain, and SRAM 34T Eagle Transmission chainring.
Wheelset & Tyres
Velduro e-Enduro Alloy EA-30 wheelset with alloy hubs and Sapim e-light J-bend spokes.
Alloy rims: 29” front / 27.5” rear (mullet setup), 30 mm internal width.
Maxxis Assegai 29x2.5 front tyre and Maxxis Minion DHR2 27.5x2.4 rear tyre.
Tubeless ready (delivered with tubes installed).
Cockpit & Finishing Kit
FSA No.57 Alloy MTB headset (ZS44/56).
Fizik Terra Aidon X5 saddle.
Velduro Enduro mechanical dropper post, 31.6 mm:
– S: 170 mm travel
– M–L–XL: 200 mm travel
Velduro Enduro alloy handlebar, 800 mm width with 20 mm rise.
Velduro Enduro stem, 40 mm length.
Velduro MTB grips with single lock ring.
