Lightweight down‑country e‑MTB for real trail riding

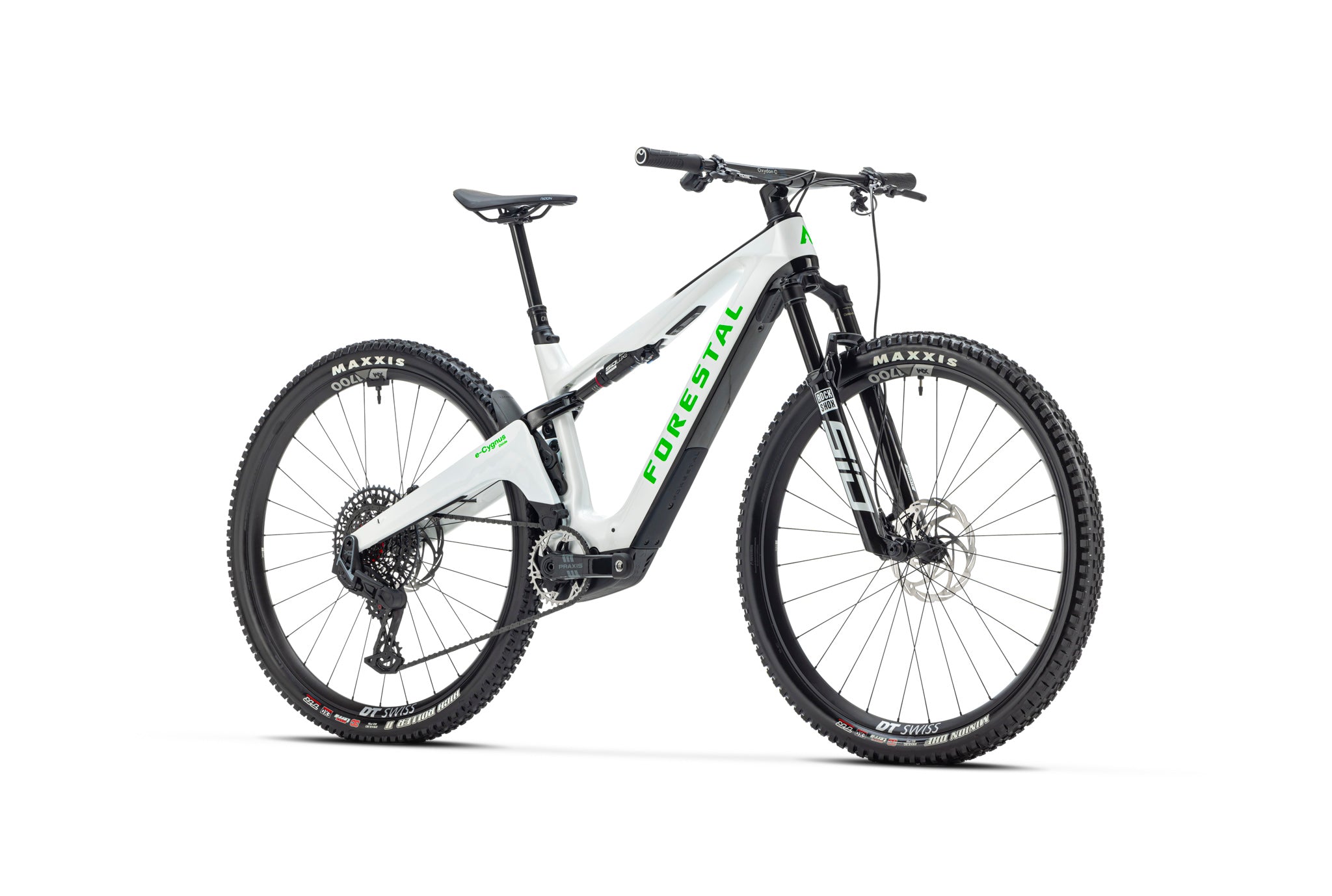

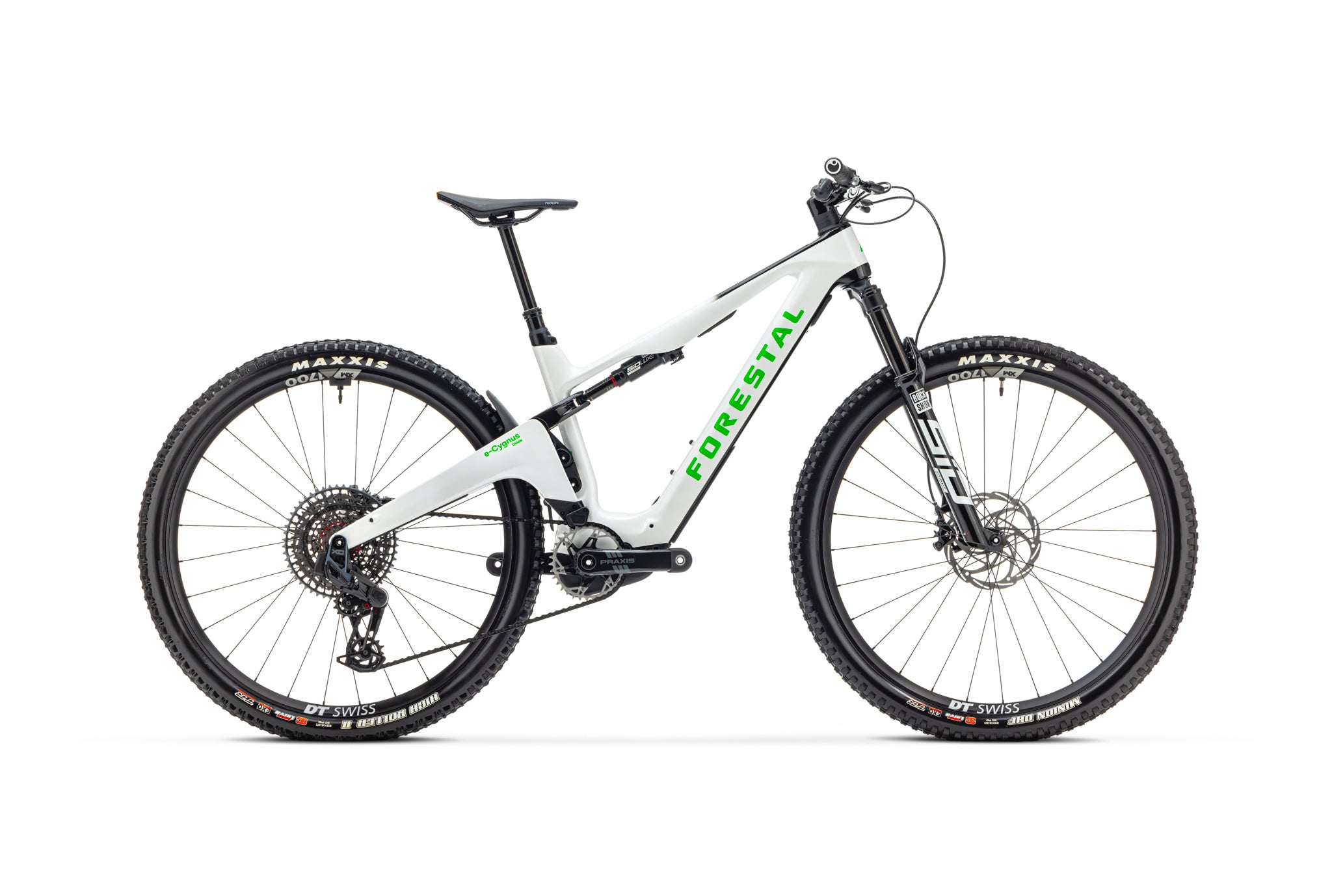

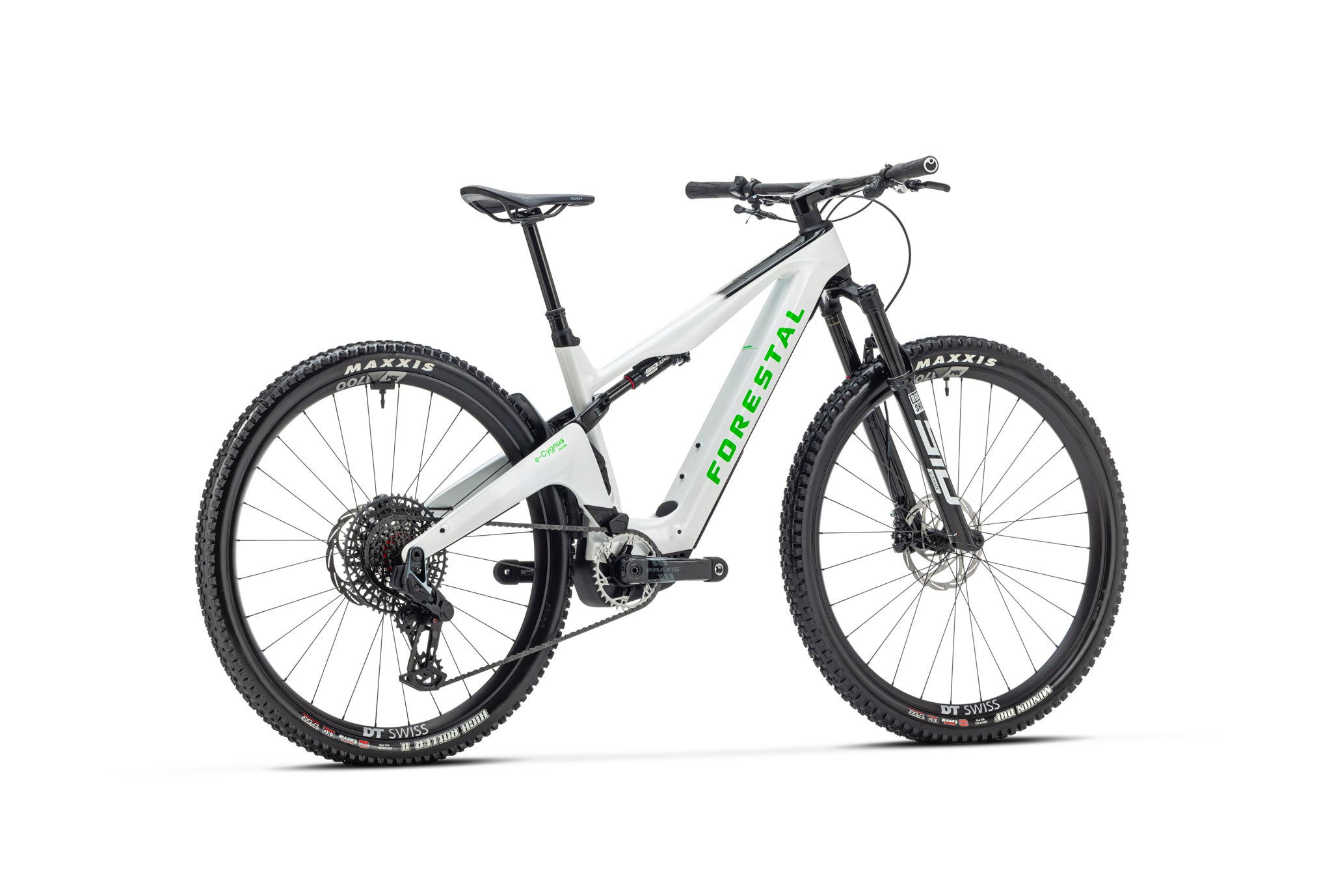

The Forestal e‑Cygnus is a 29” pedal‑assist bike built around a full carbon Alpha Box frame, Twin Levity rear suspension and the latest Bosch Performance Line SX drive unit. It combines cross‑country efficiency with genuine trail capability, so you can climb quickly, cover distance and still have fun when the trail points down.
Key highlights
- 29” carbon down‑country chassis with 120 mm rear travel and 120–130 mm front travel (build‑dependent)
- Bosch Performance Line SX motor (250 W / 55 Nm) with lightweight 400 Wh CompactTube 400 battery
- Optional PowerMore 250 Wh range extender for extra capacity on long rides
- Forestal Twin Levity suspension kinematics for efficient pedalling and confident descending
- Integrated Smart Dashboard 2.0 touch display with navigation, ride data and wireless connectivity

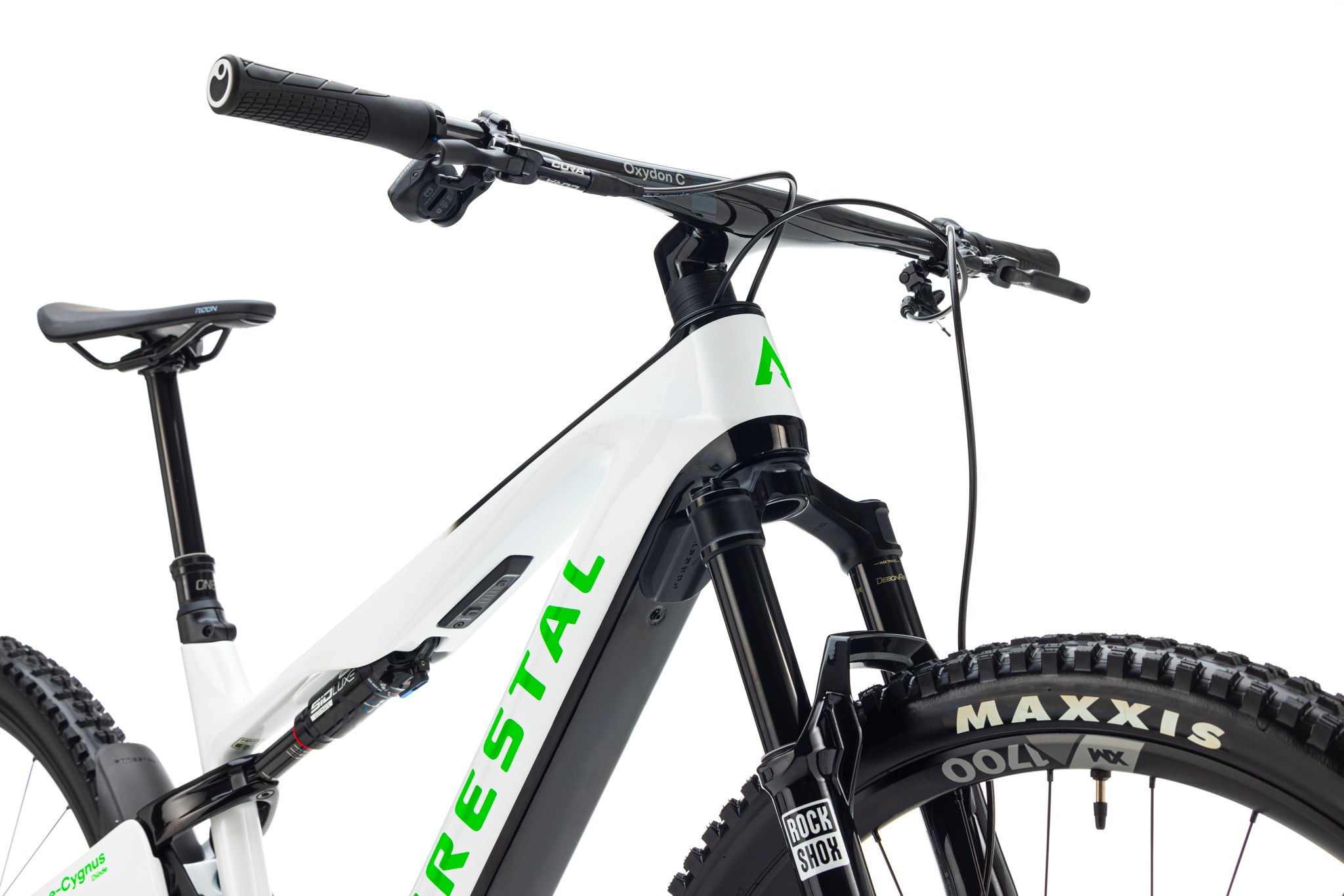

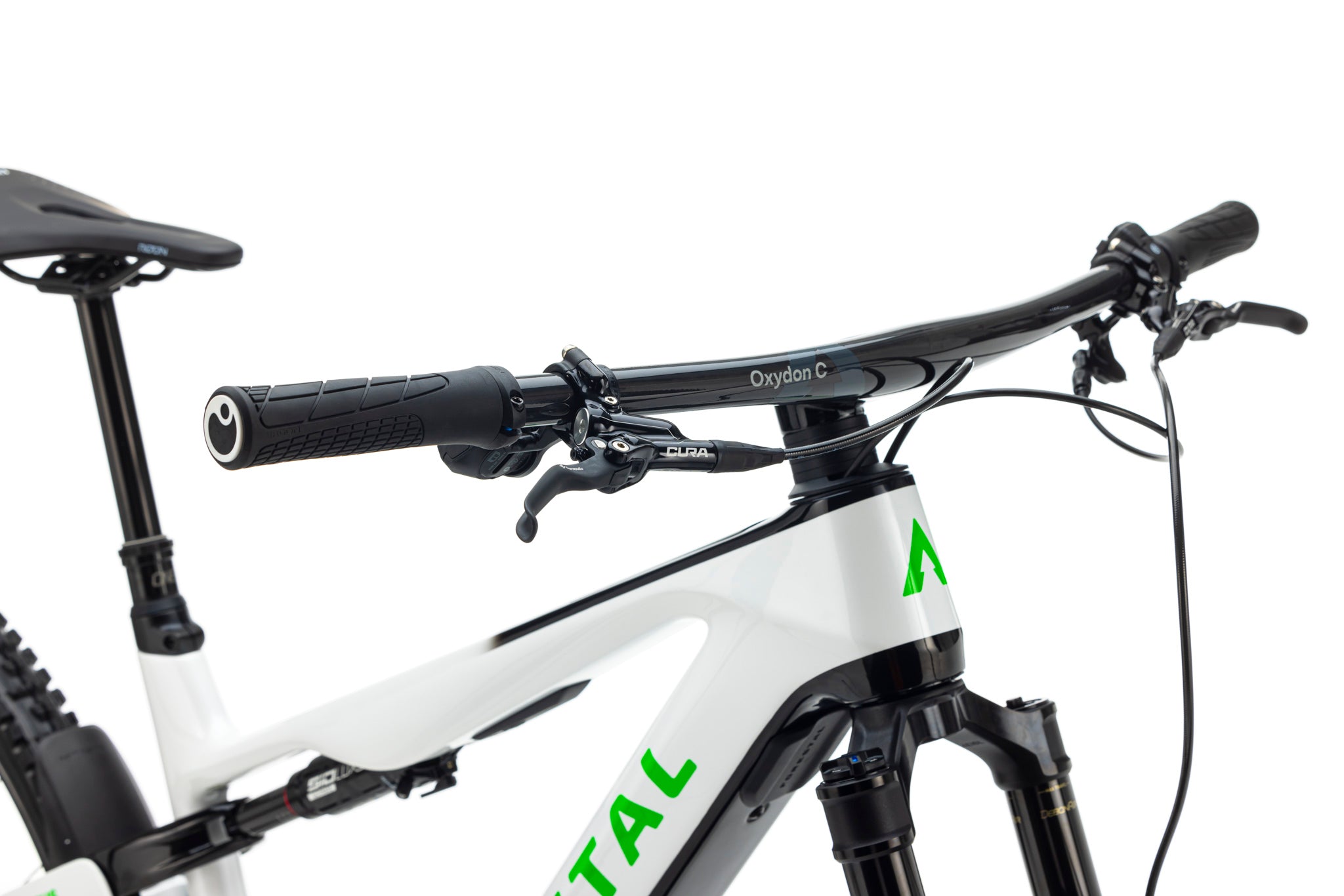

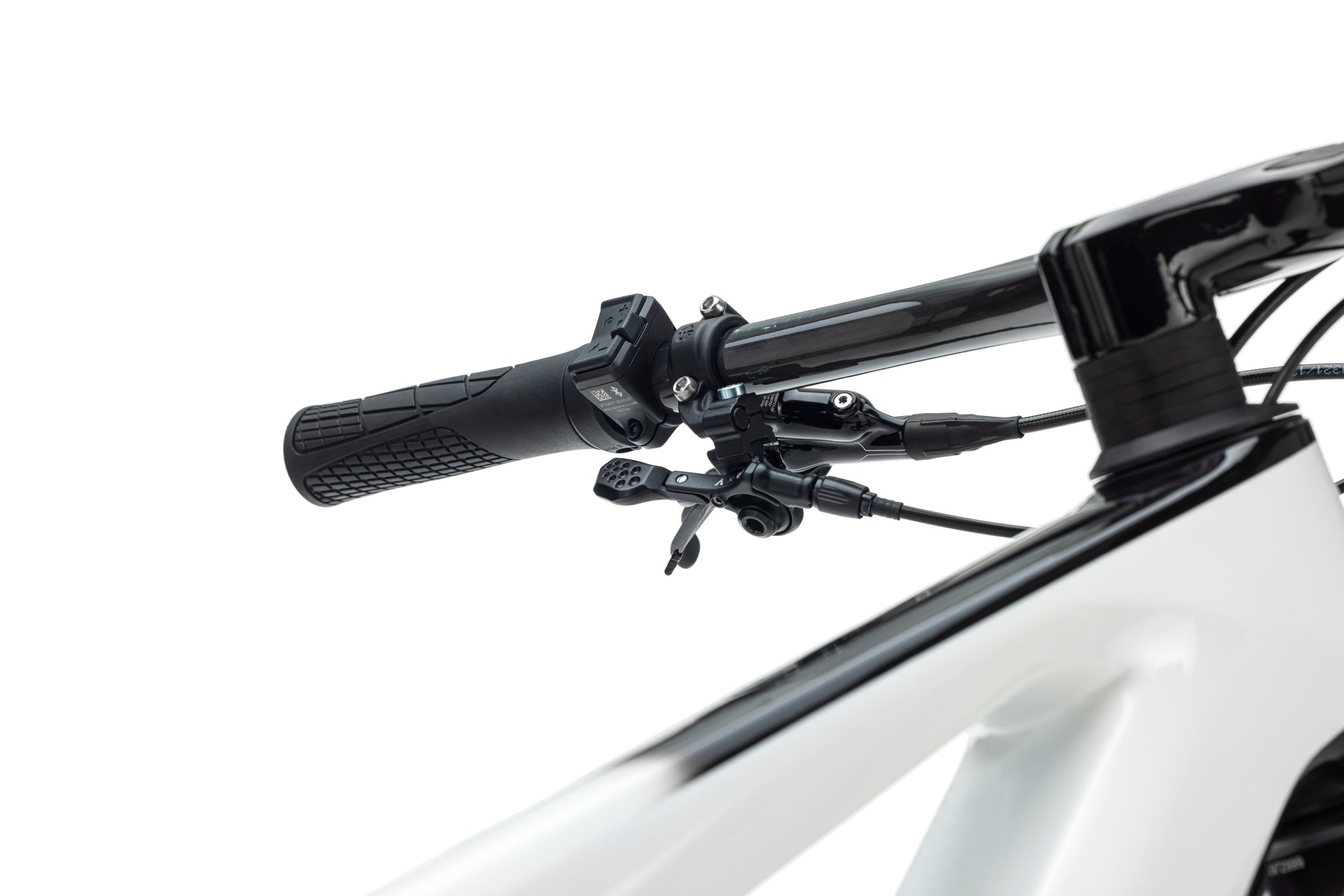

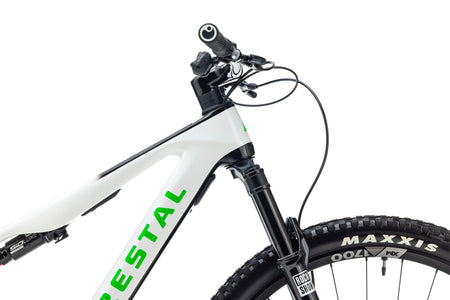

- Clean cockpit with Oxydon carbon integrated handlebar and 60 mm stem

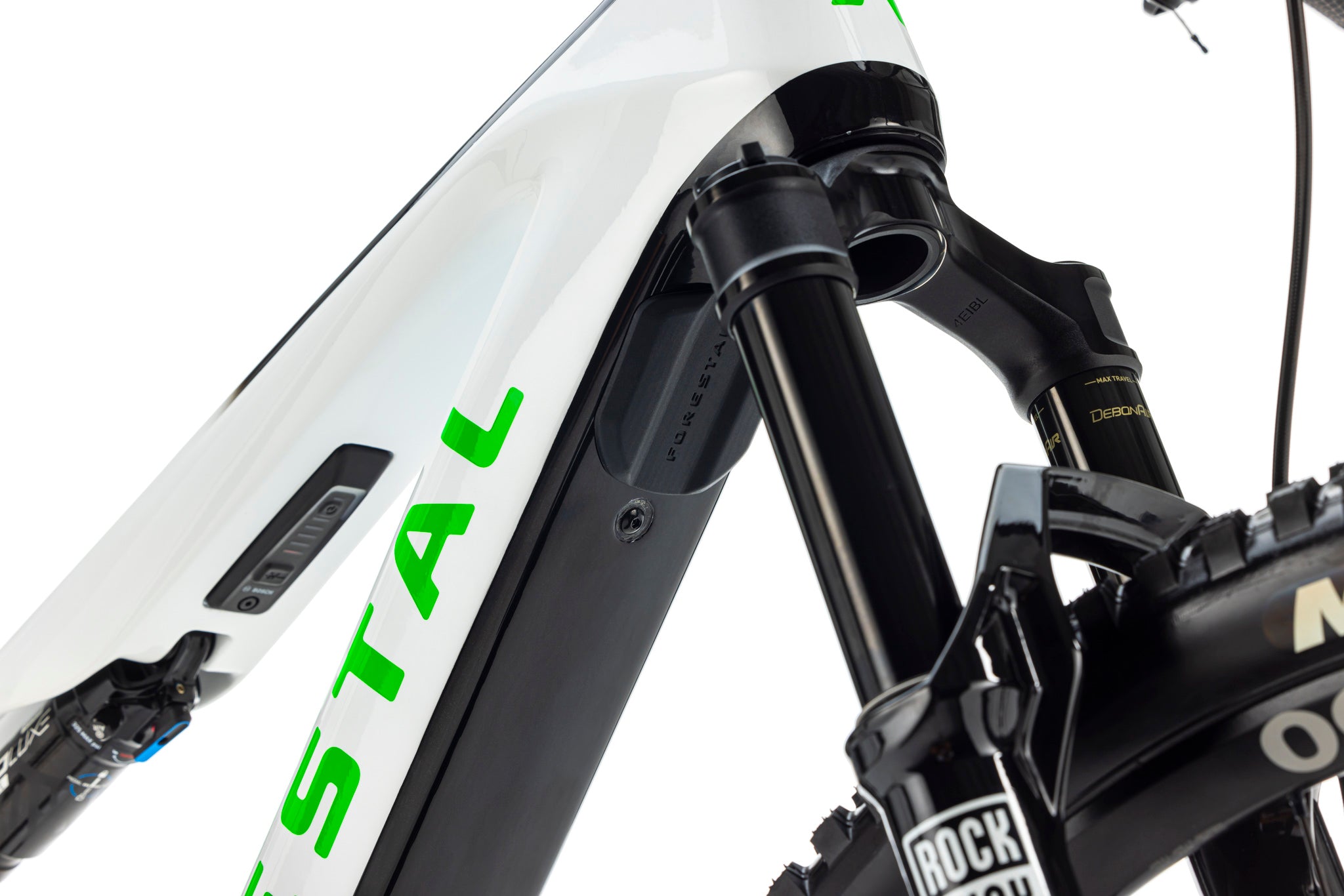

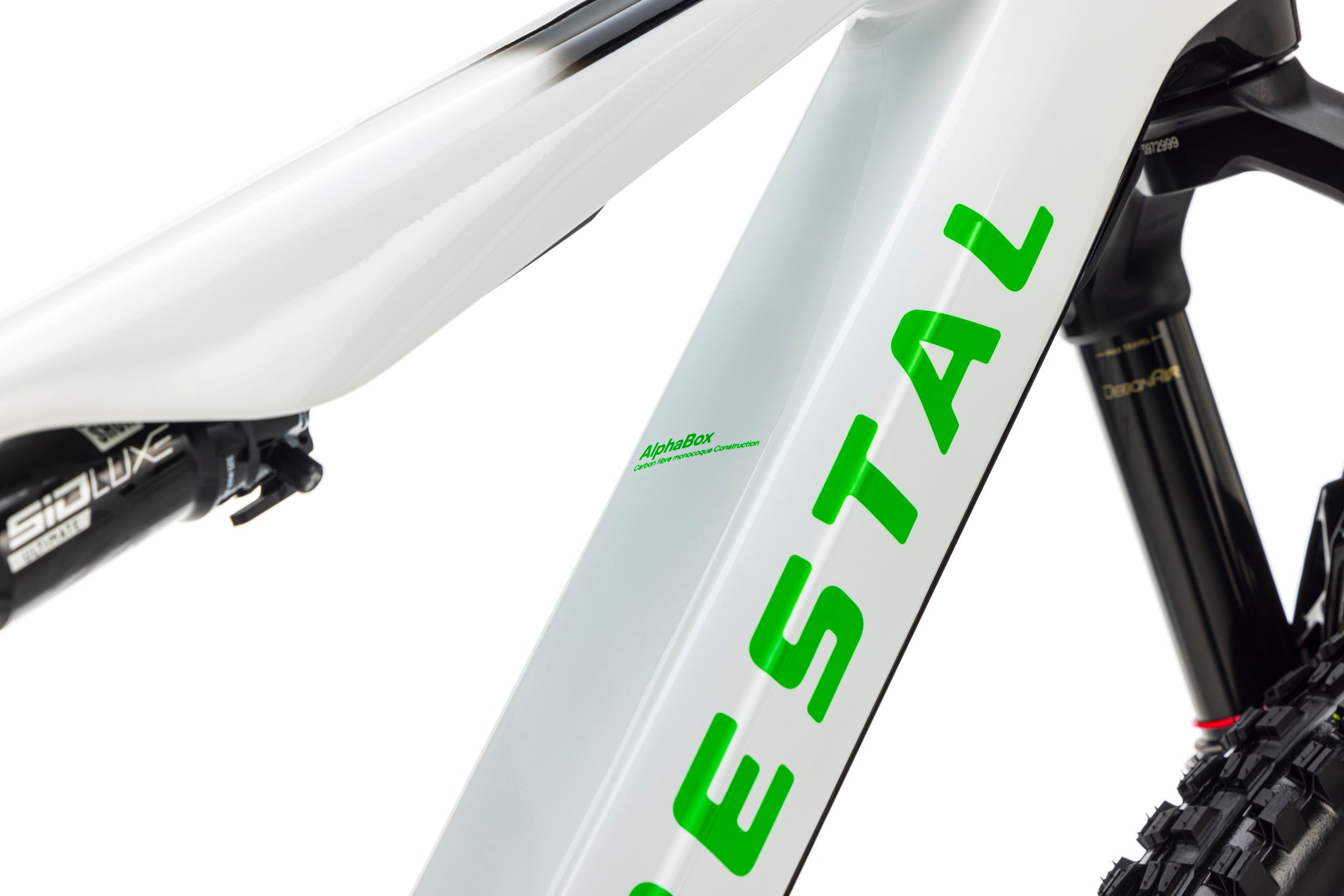

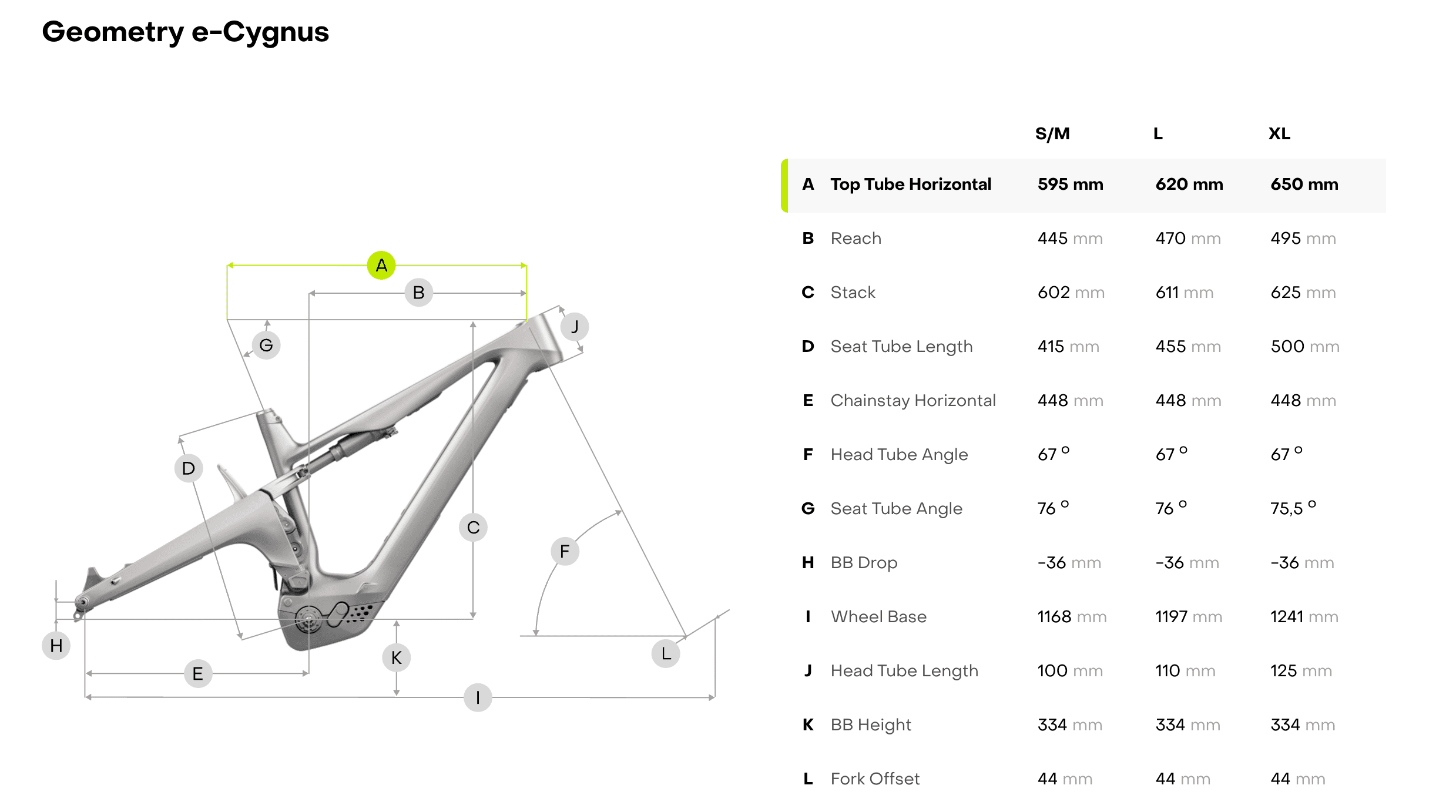

Frame & geometry
The Alpha Box carbon frame is designed specifically for the e‑Cygnus platform. The down‑country geometry uses a 67° head angle for a stable, confident feel on descents while keeping steering sharp and responsive on tight singletrack. Revised sizing and longer dropper compatibility give you more room to move on the bike.
- Alpha Box full‑carbon chassis
- Twin Levity linkage with carbon shock extension
- Head angle: 67°
- Wheel size: 29”

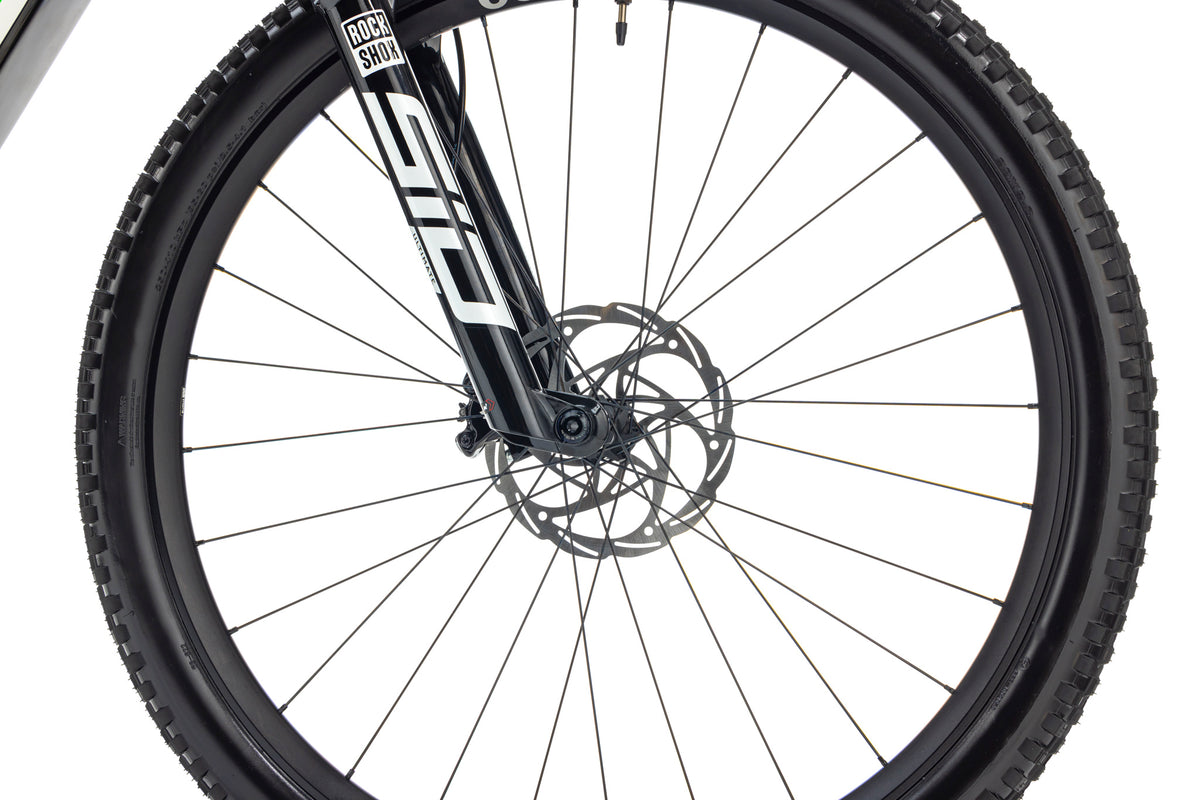

- Travel: 120 mm rear / 120–130 mm front (depending on build kit)
Size recommendations (guideline): S/M 160–177 cm, L 177–187 cm, XL 187 cm+.

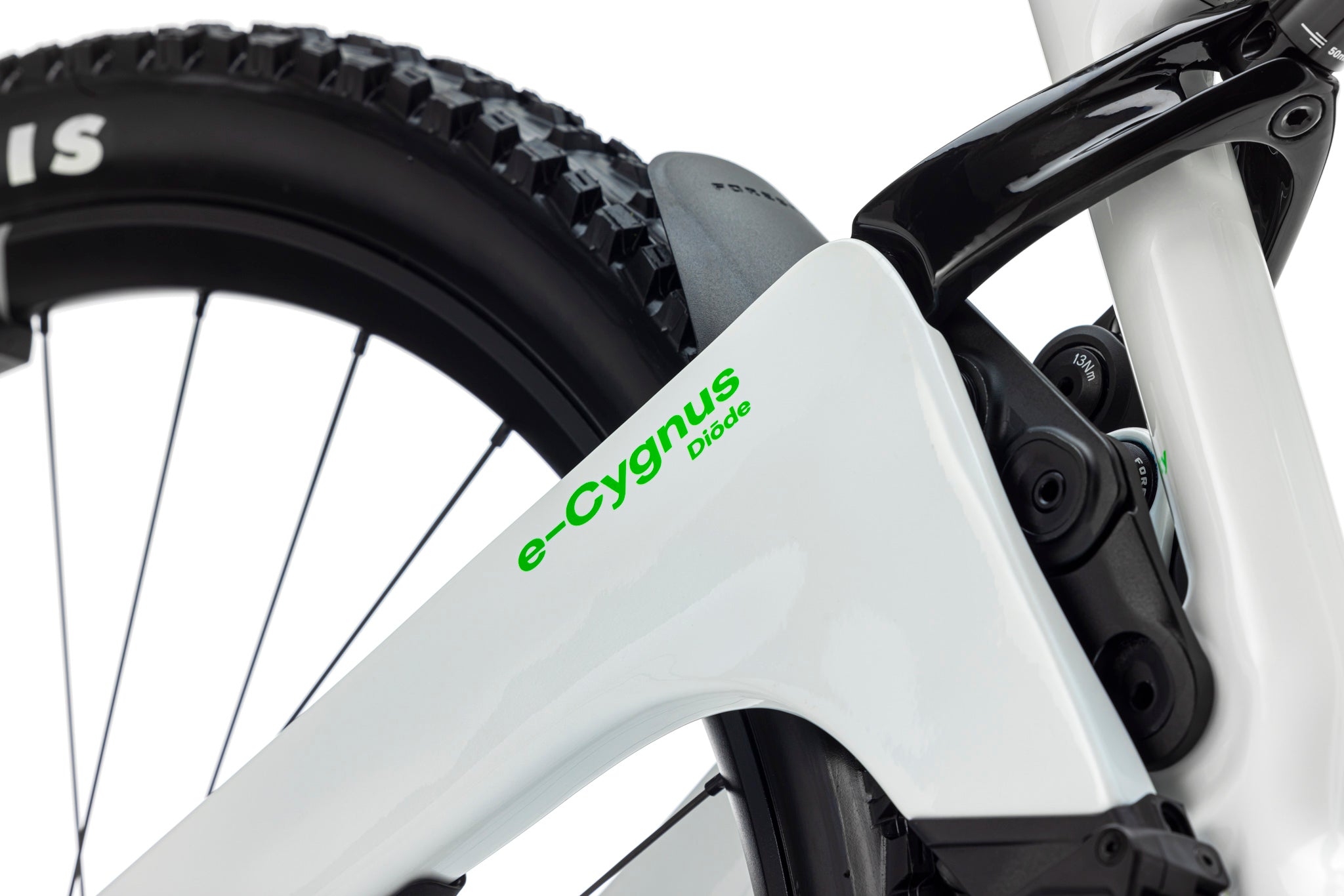

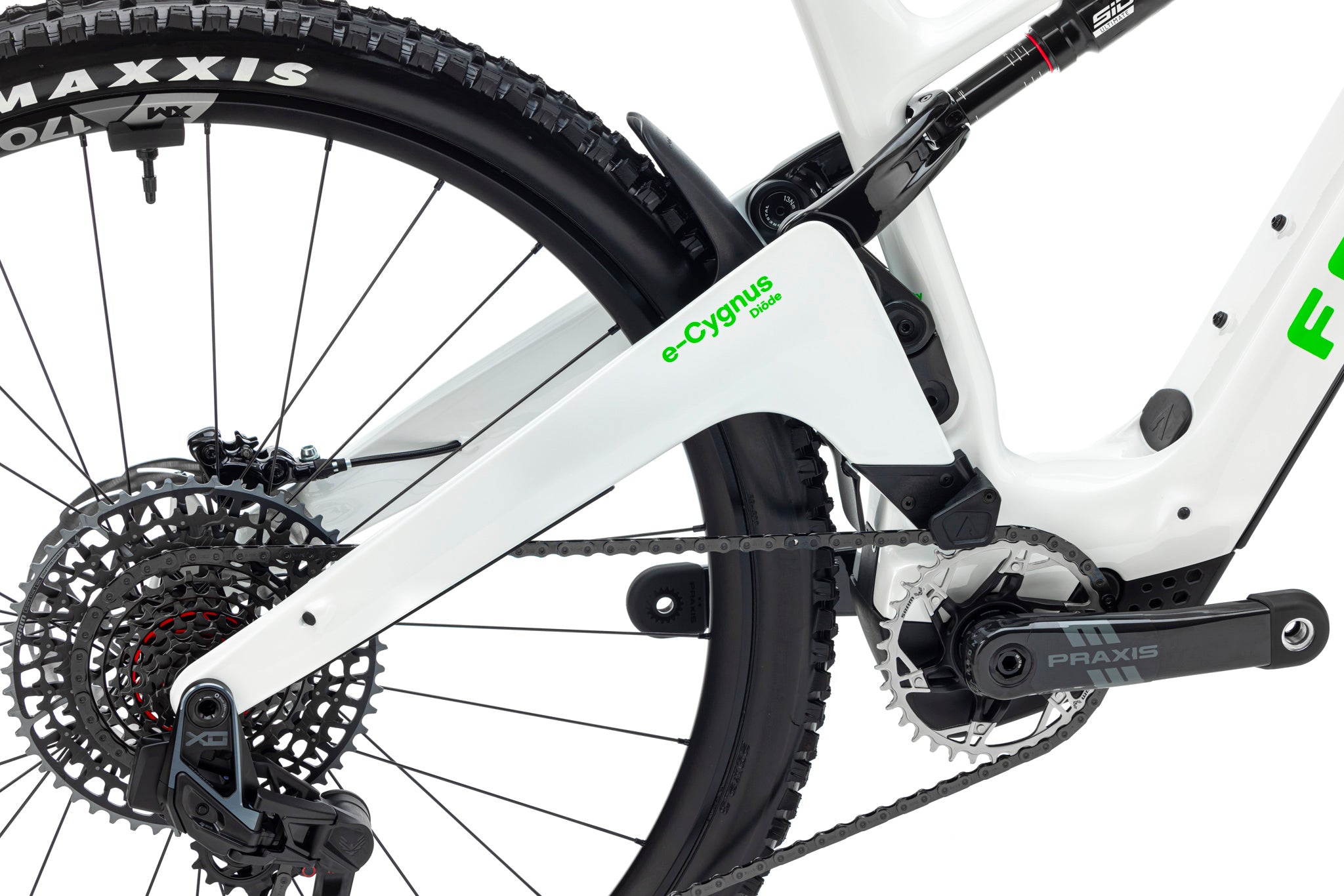

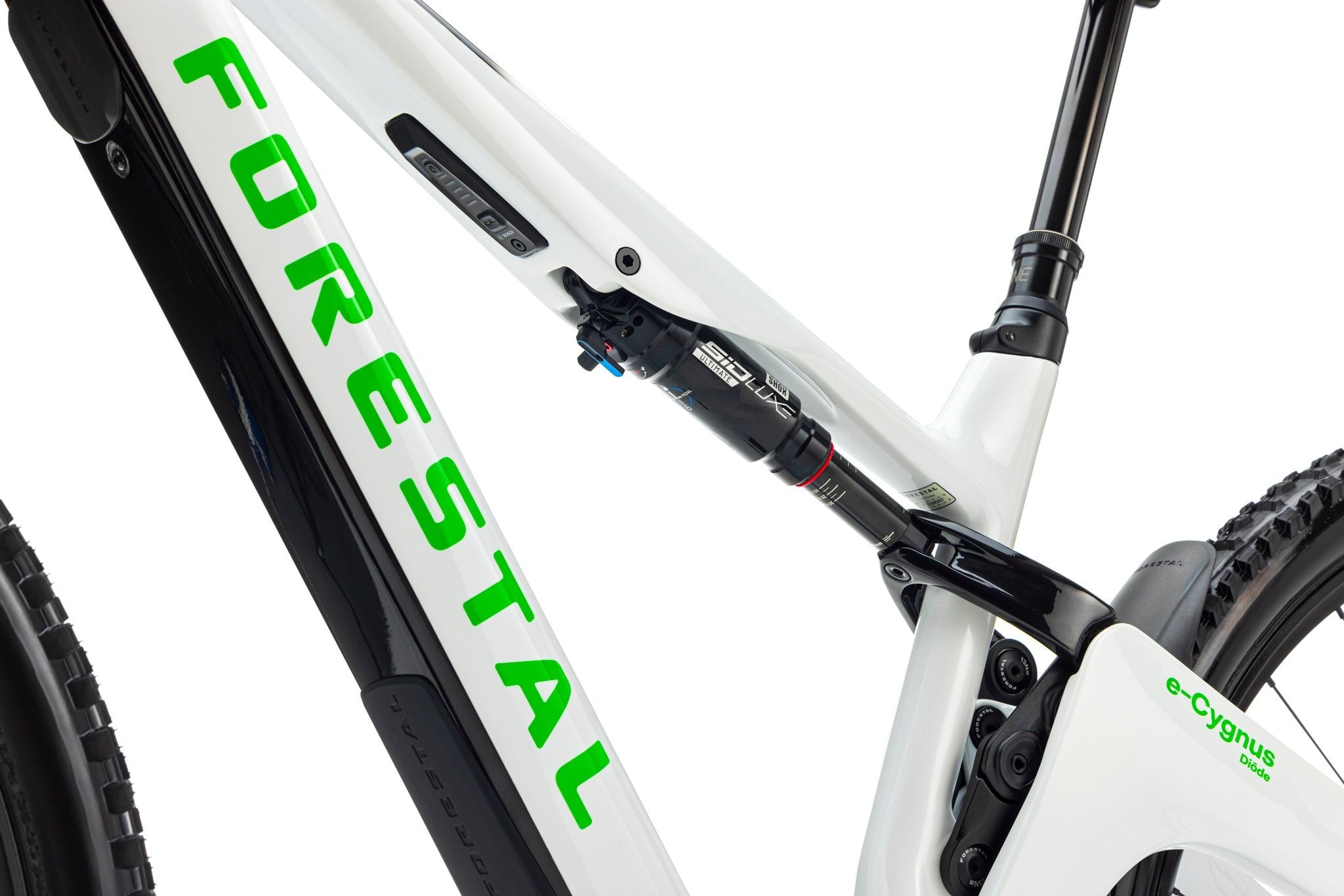

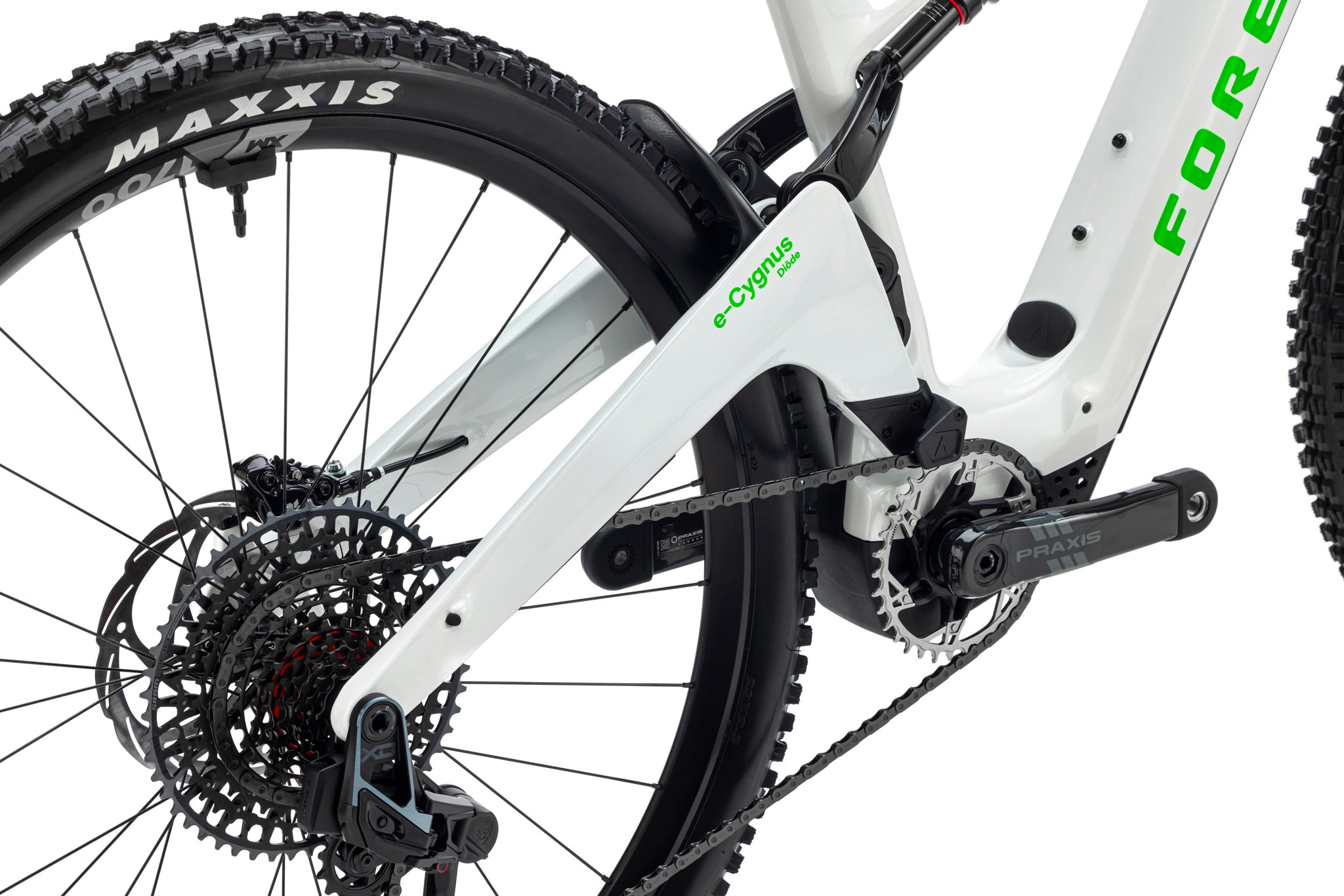

Suspension – Twin Levity

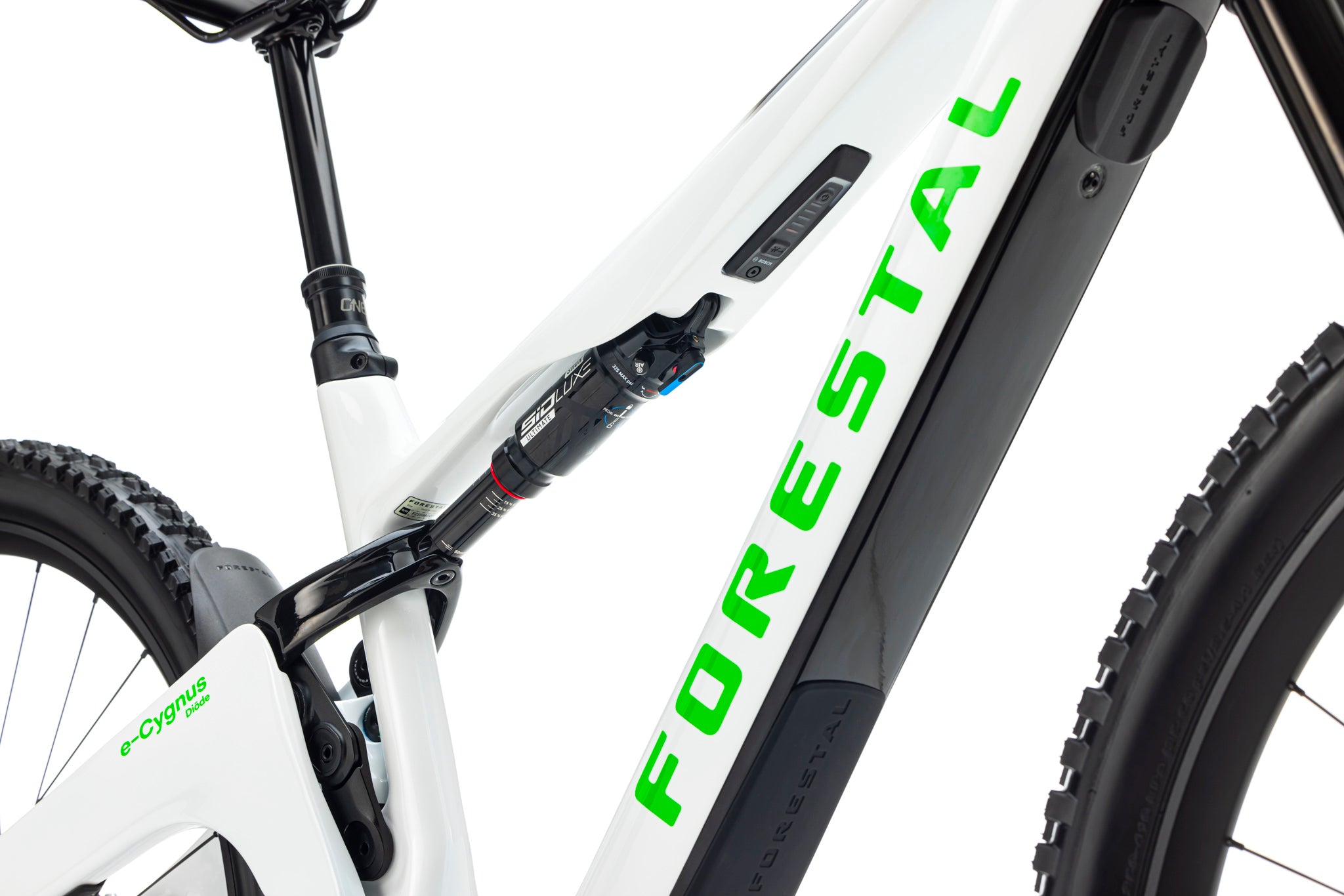

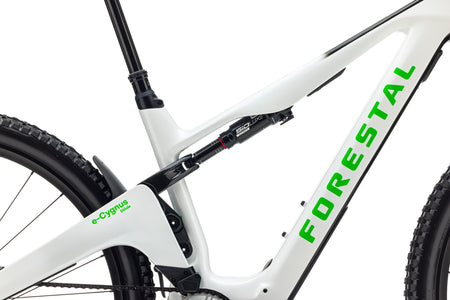

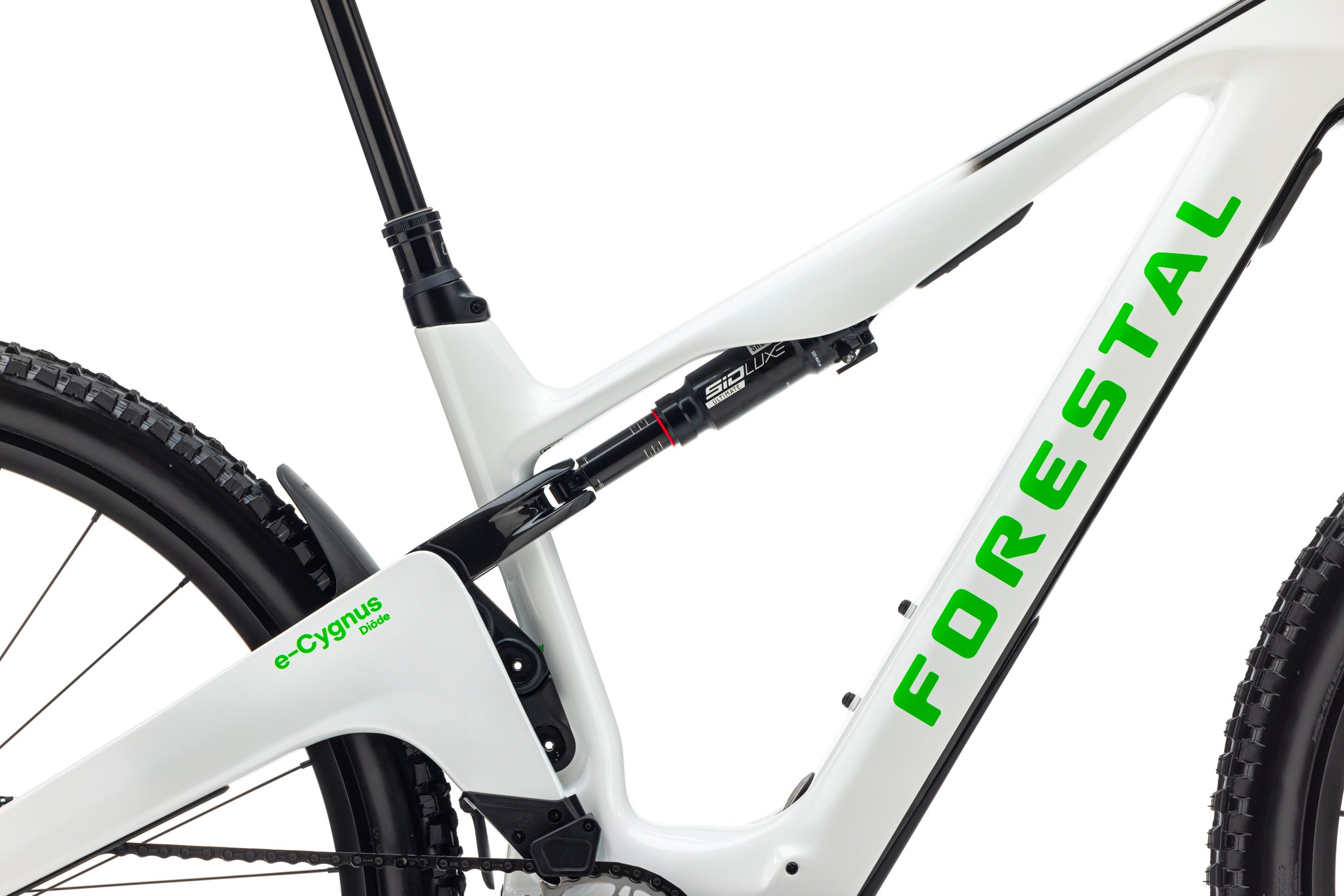

Forestal’s Twin Levity system uses a single pivot with rocker and connecting link to deliver a sensitive initial stroke, strong mid‑stroke support and a calm, controlled feel when the trail gets rough. The layout keeps hardware stress low and maintenance straightforward while still giving you plenty of adjustment to tune the shock.
- Single‑pivot, linkage‑driven suspension design
- Carbon fibre shock extension for improved stiffness and lower weight

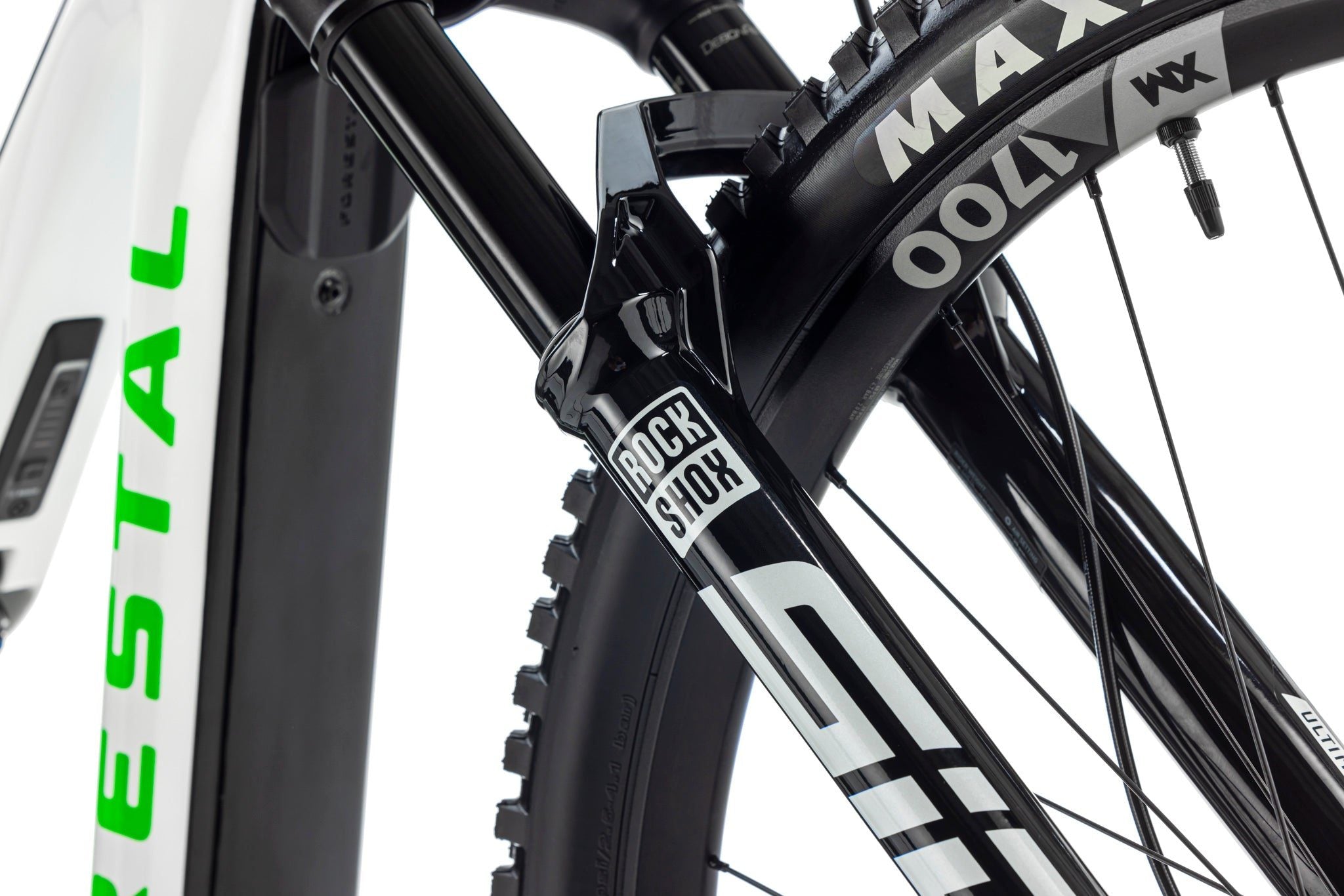

- Halo build: 130 mm fork / 120 mm rear travel
- Diode build: 120 mm fork / 120 mm rear travel

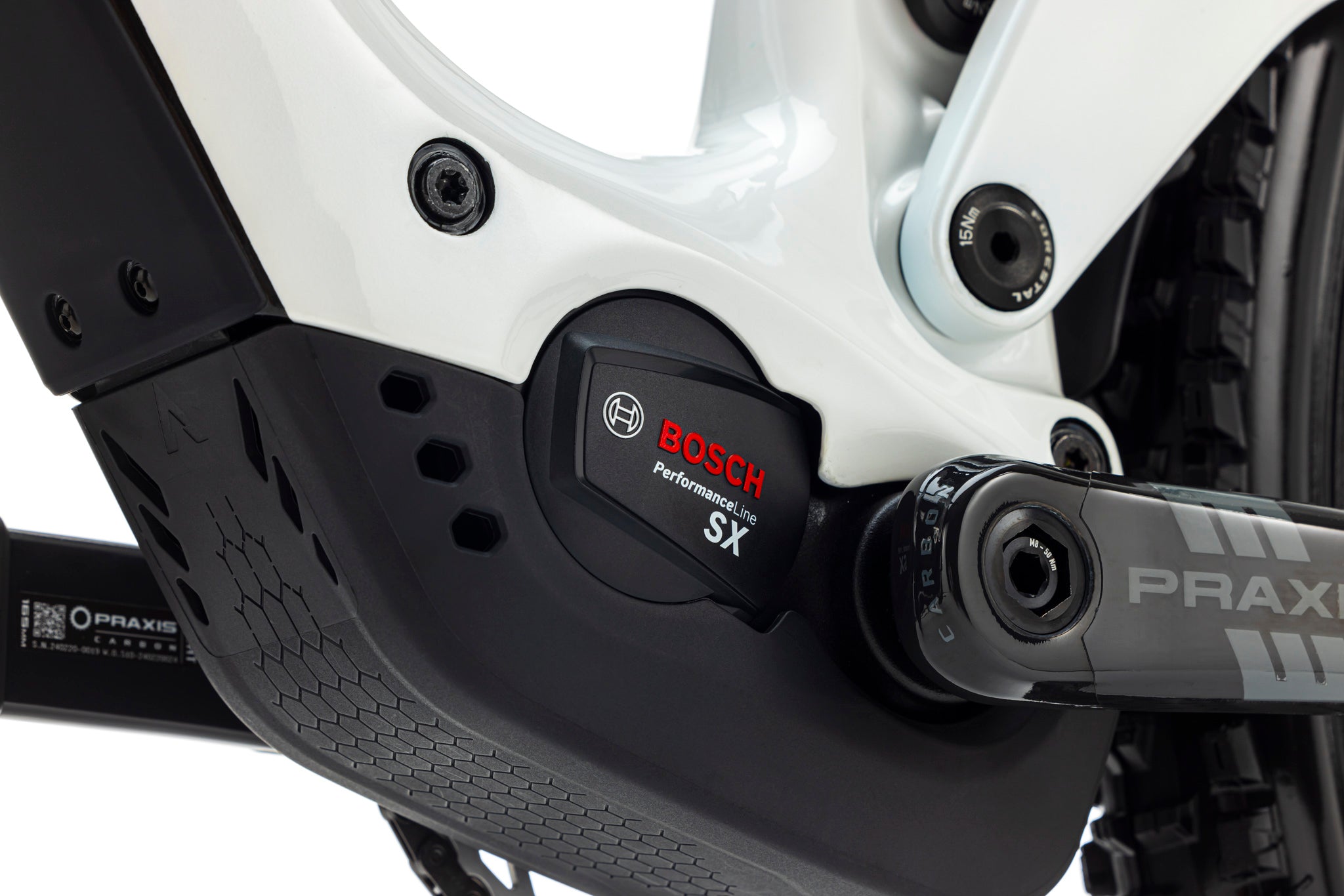

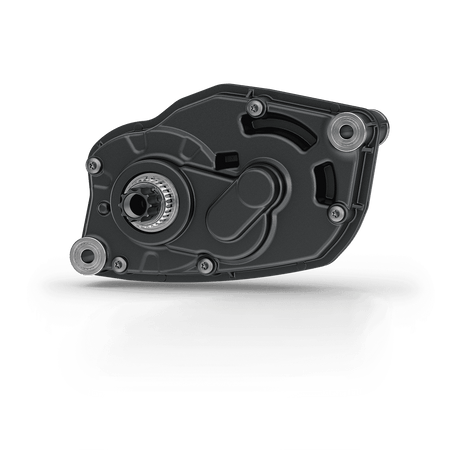

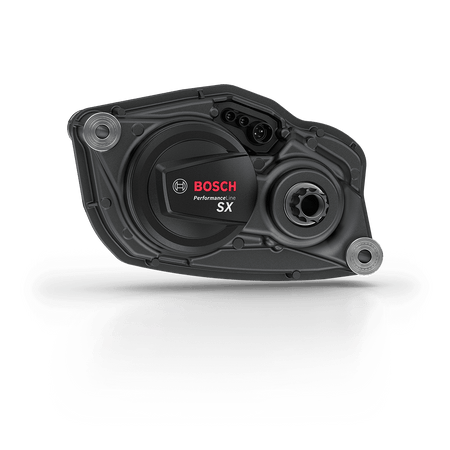

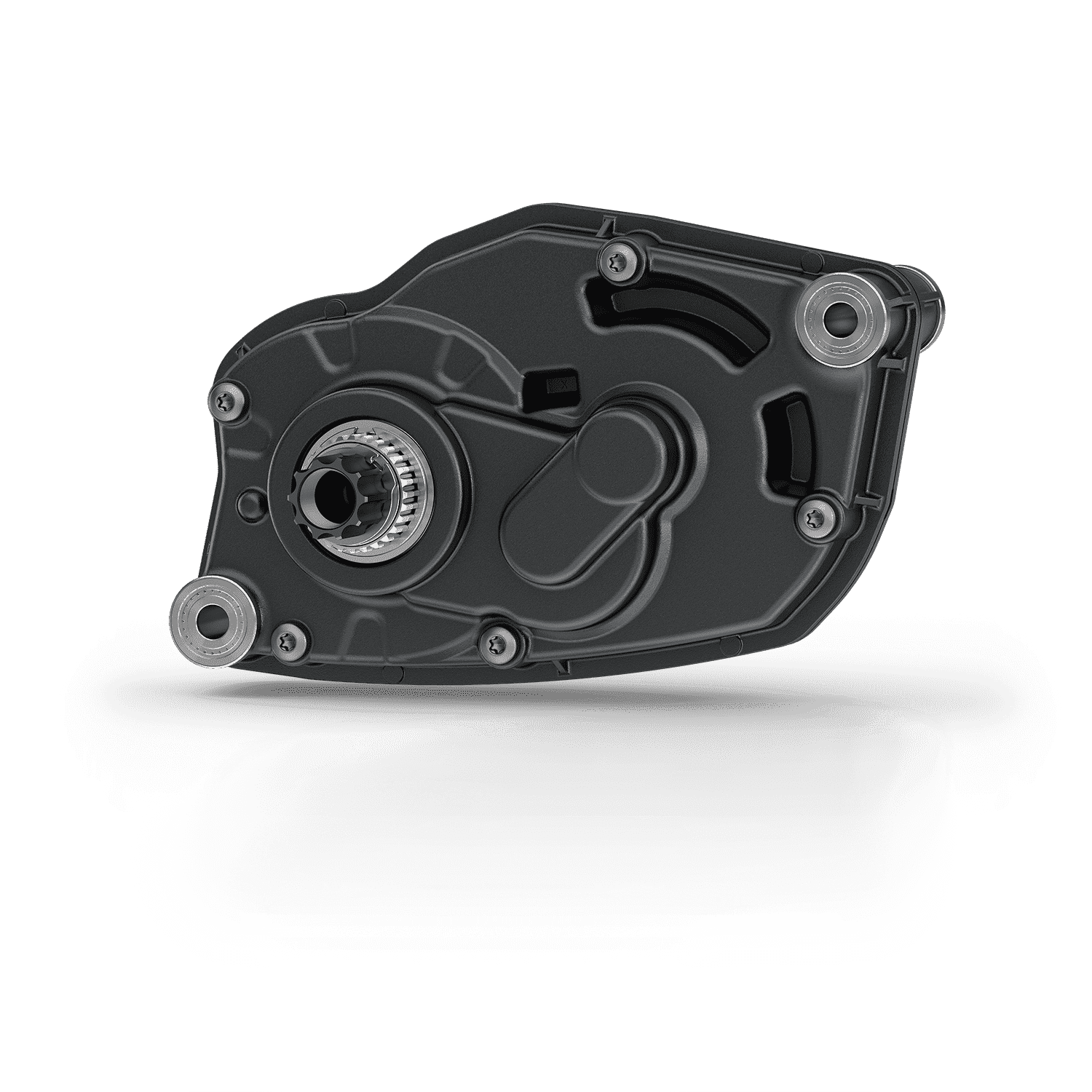

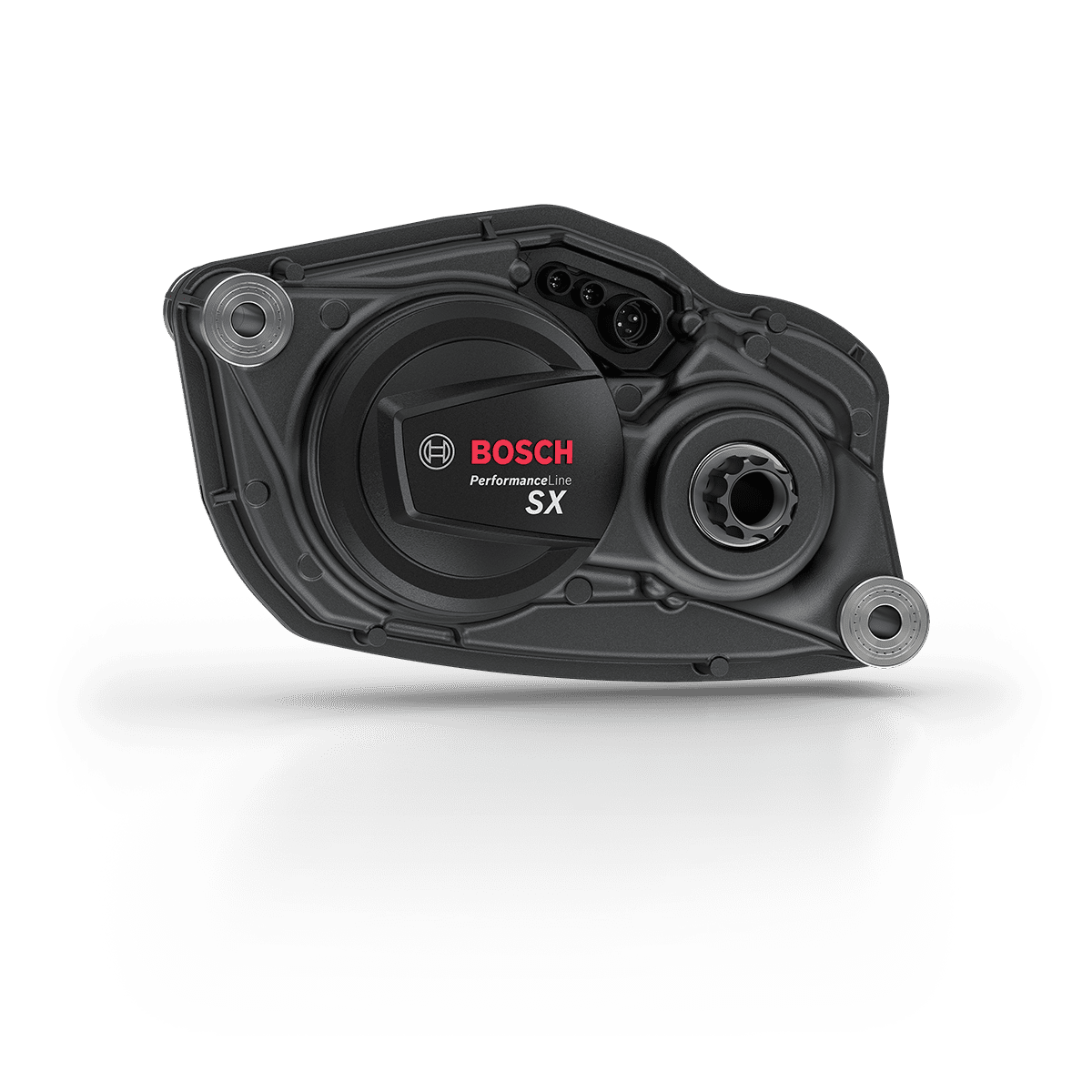

Bosch Performance Line SX drive unit

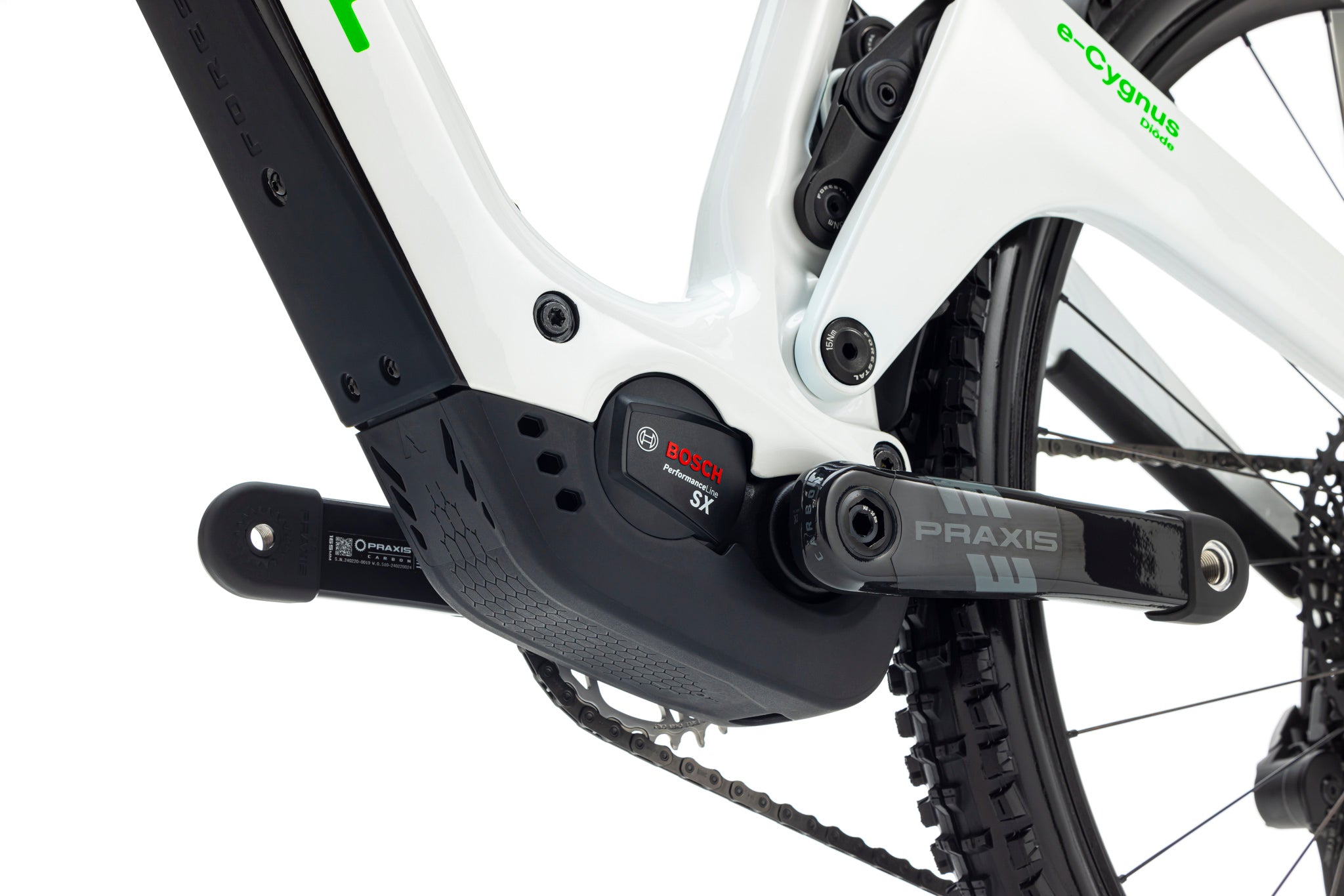

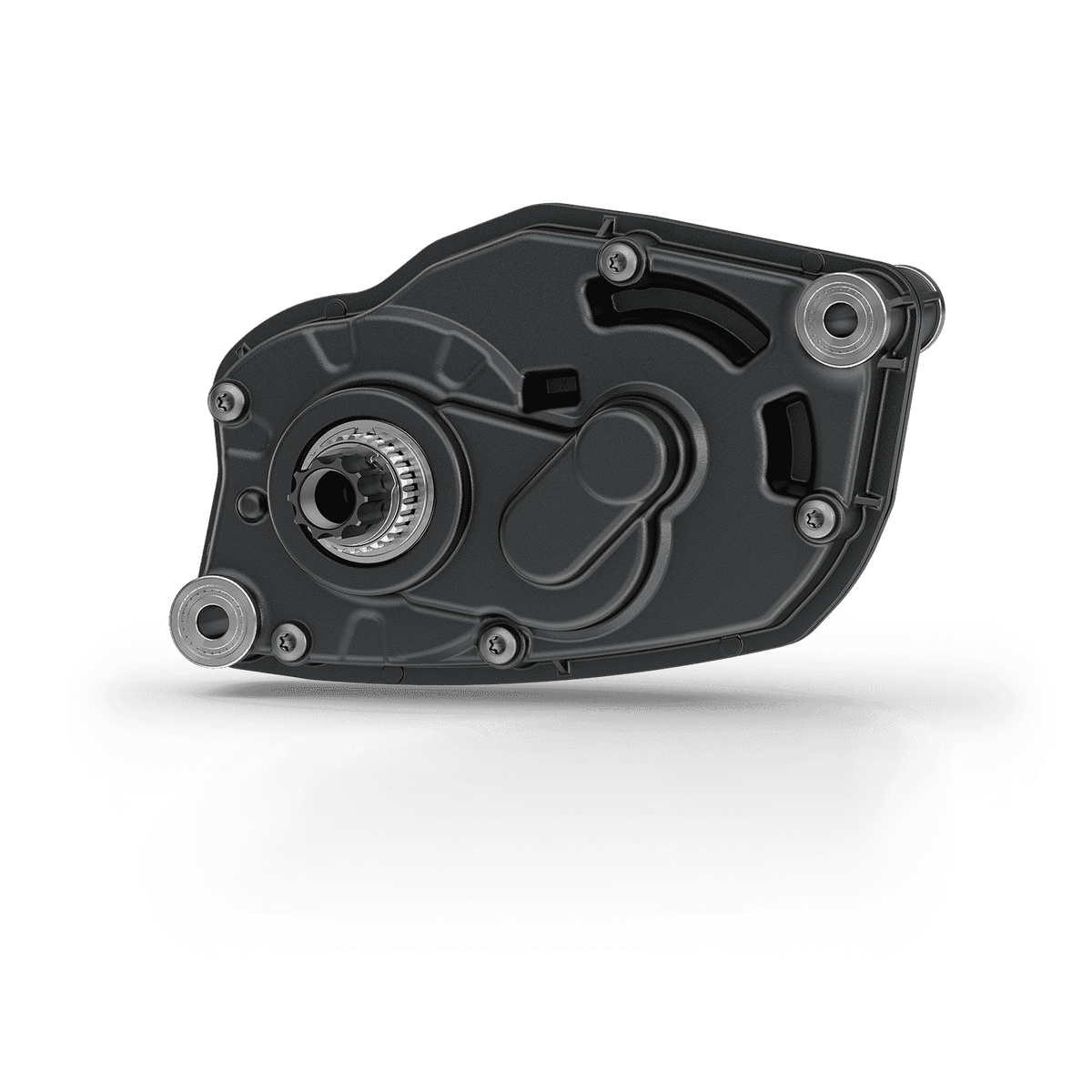

The e‑Cygnus uses Bosch’s lightweight Performance Line SX motor. It’s compact and neatly integrated into the Alpha Box frame, delivering support that feels natural rather than overpowering.
- Output: 250 W / 55 Nm
- Approx. motor weight: 2.0 kg
- 160 mm Q‑factor for a narrow, natural pedalling stance
- Very low drag when pedalling above the assist limit or with the system switched off

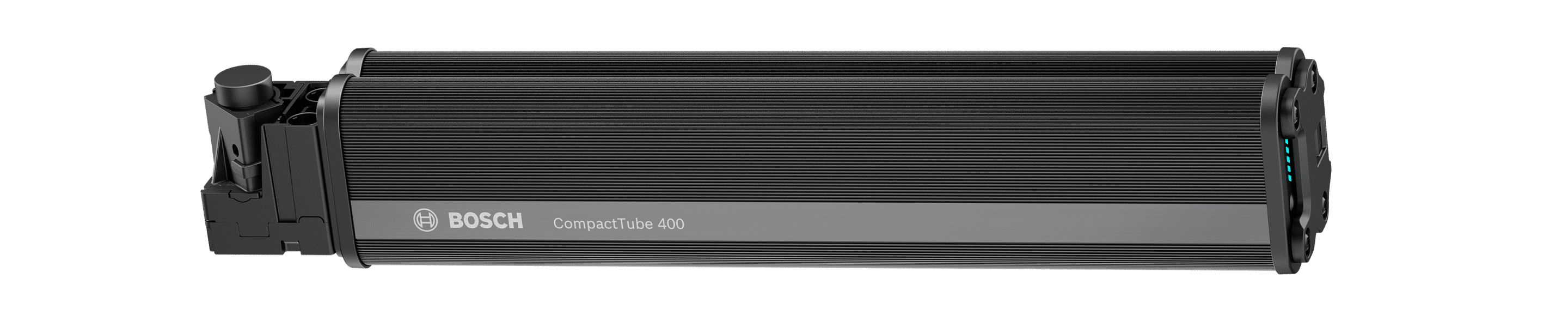

Battery & range options
The Bosch CompactTube 400 battery keeps weight low and central in the frame while offering plenty of capacity for long trail days.
- Capacity: 400 Wh, 36 V
- Approx. battery weight: 2.0 kg
- High‑density cell technology for long service life

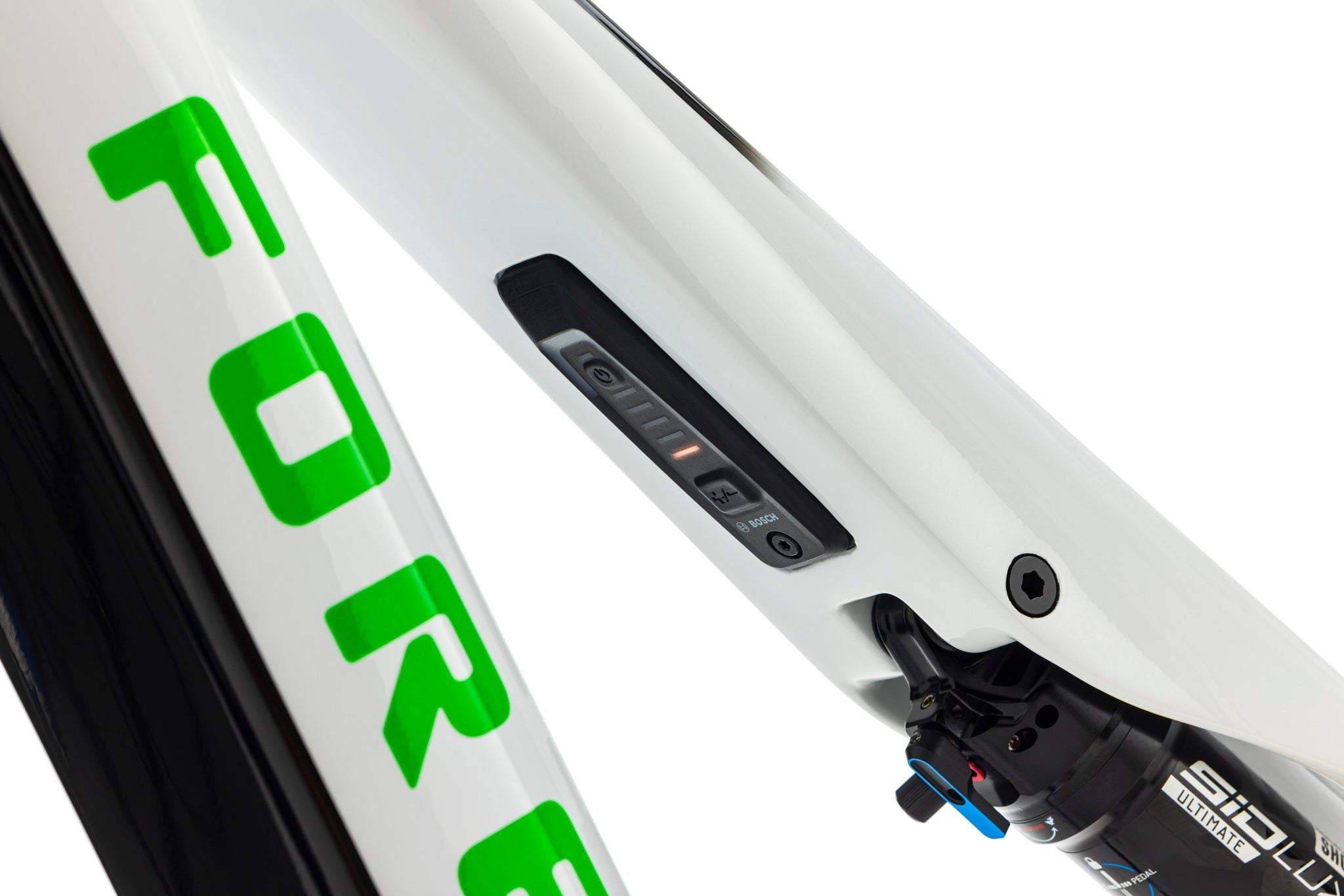

- Easy‑access charge port in the frame

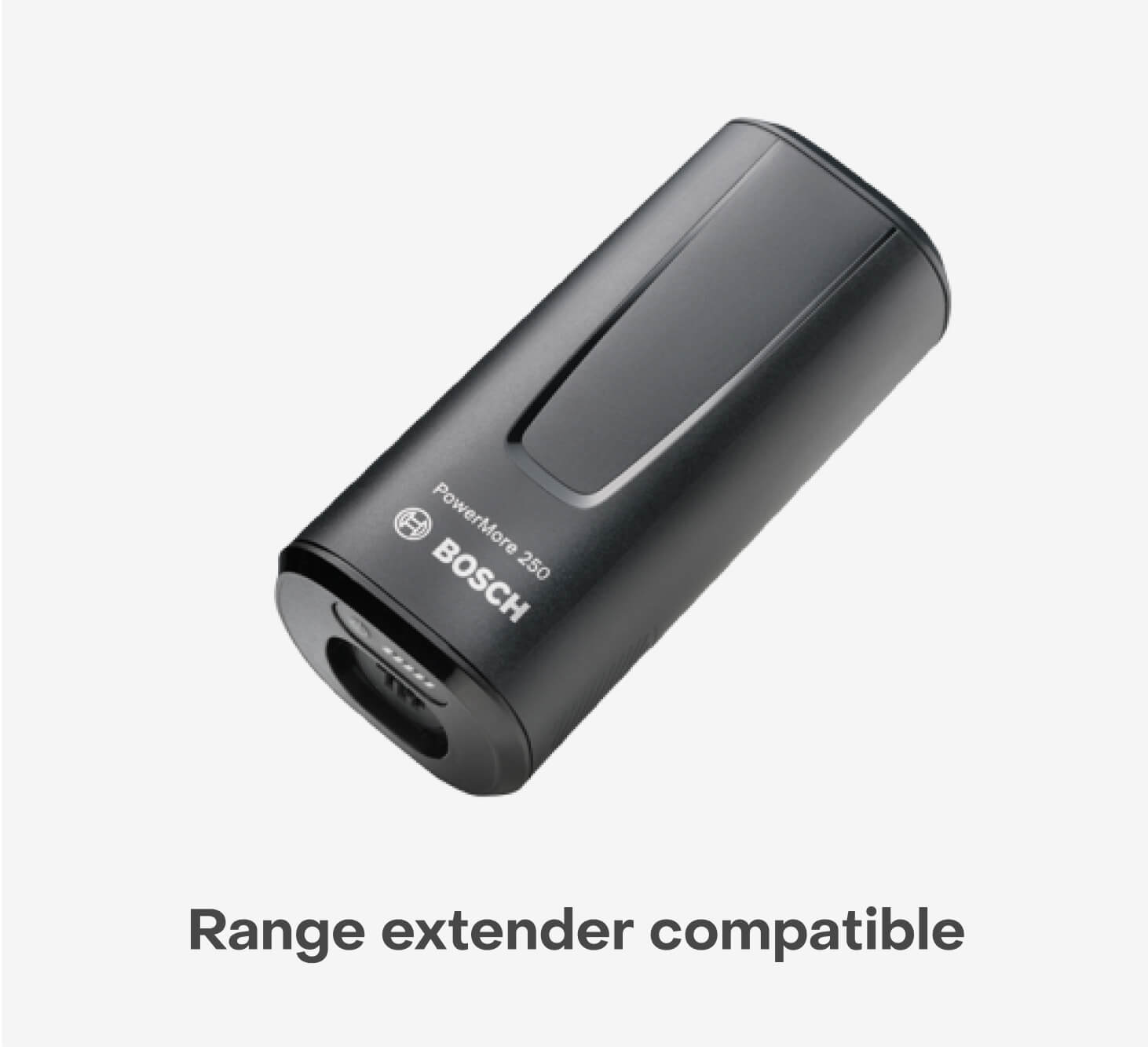

- Compatible with Bosch PowerMore 250 Wh range extender (specific cable required)

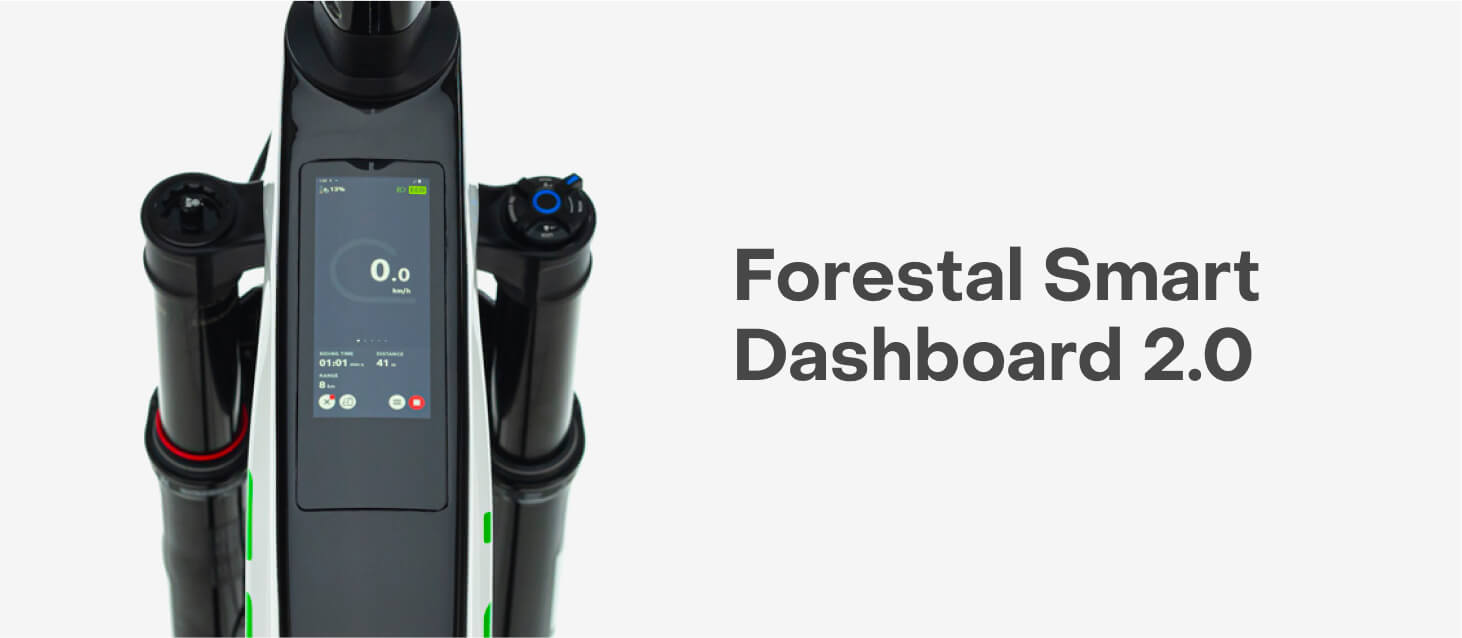

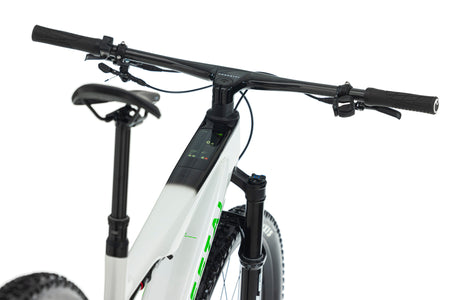

Smart Dashboard 2.0 display

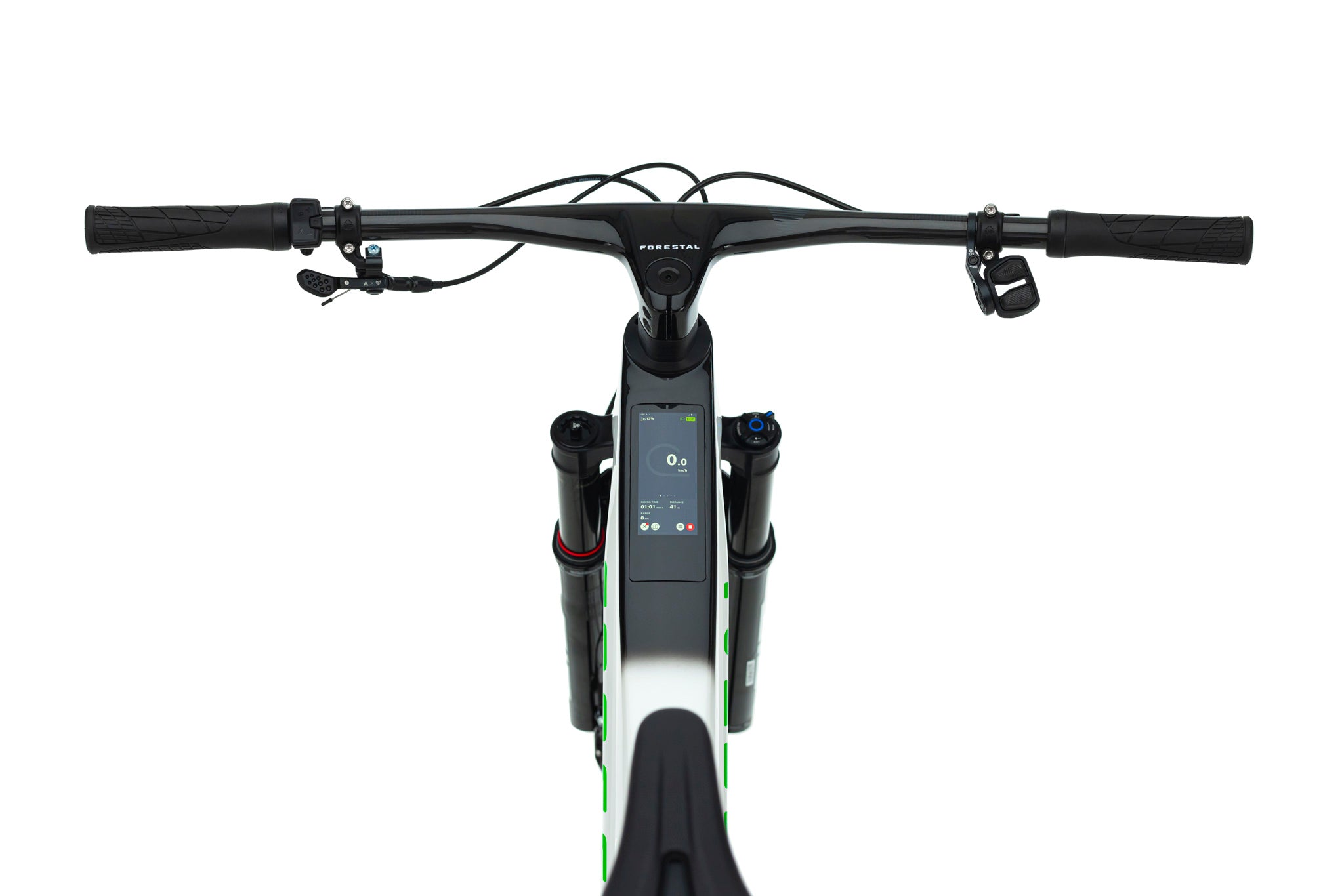

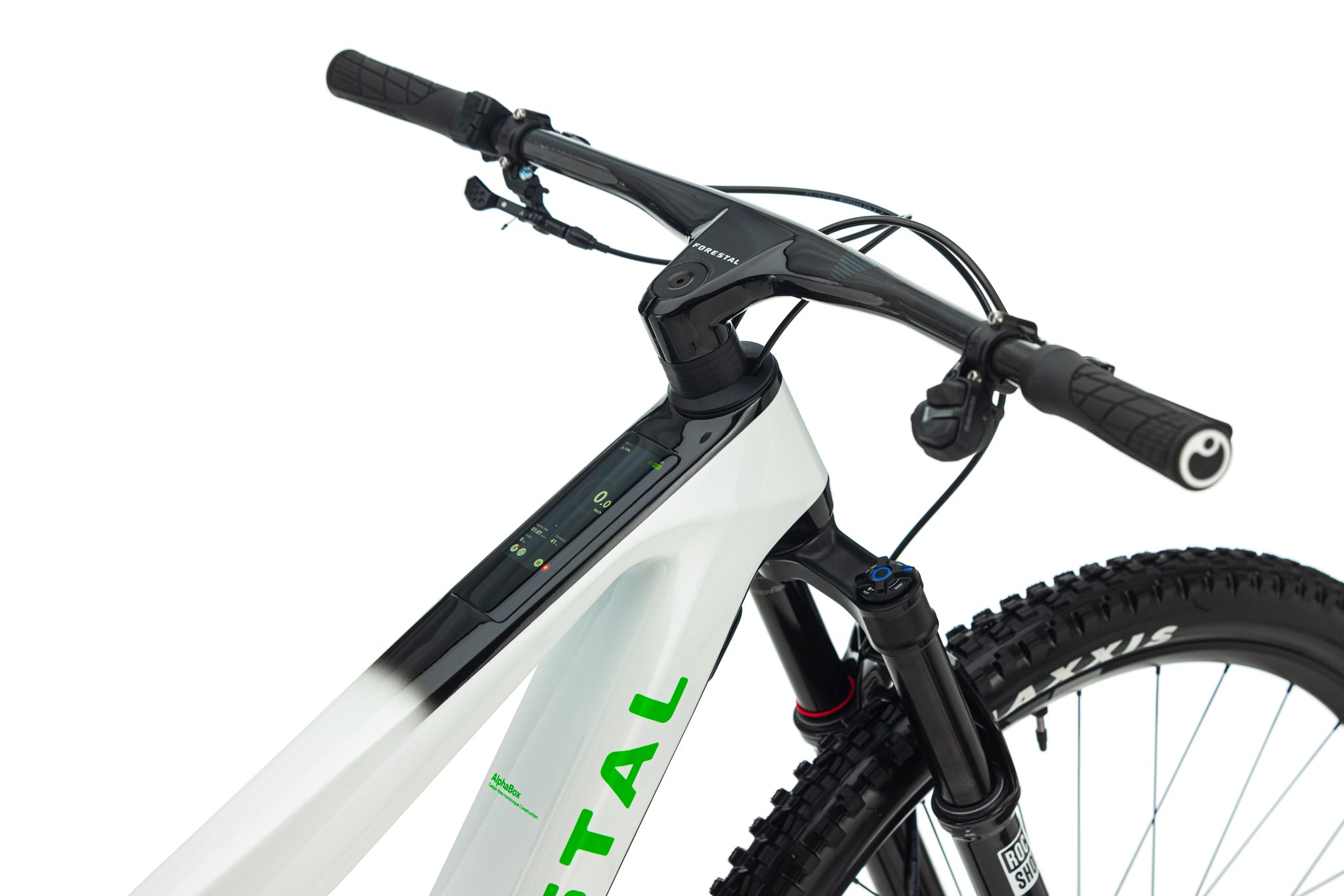

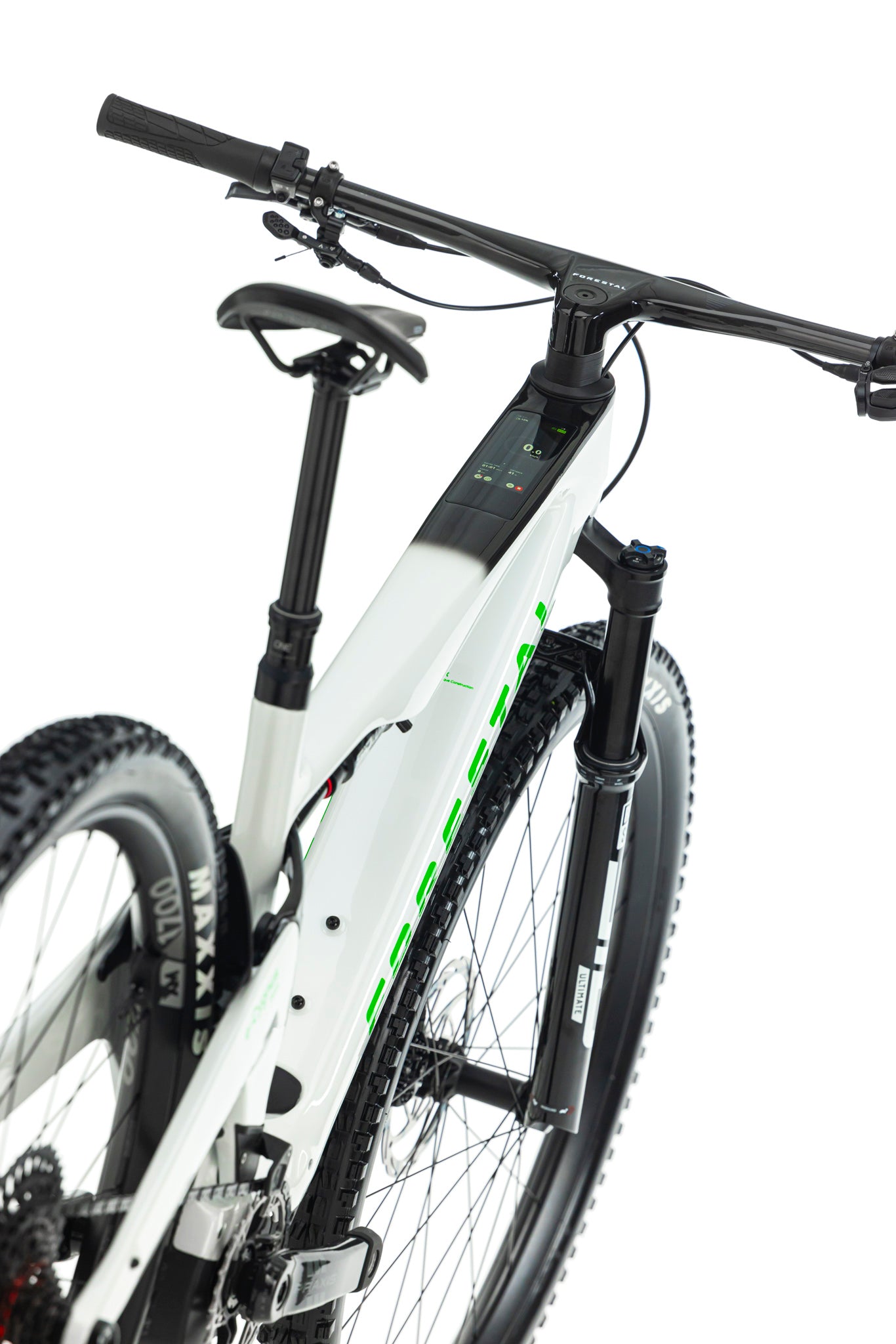

The fully integrated 3.99” Smart Dashboard 2.0 colour touchscreen turns the top tube into your control centre. It’s designed for all‑weather use and keeps ride data and navigation close at hand.
- Integrated 3.99” high‑definition colour touchscreen
- Shows speed, assist mode, range, battery level, navigation and more
- Low power consumption and weather‑resistant construction
- Water, impact and scratch‑resistant screen

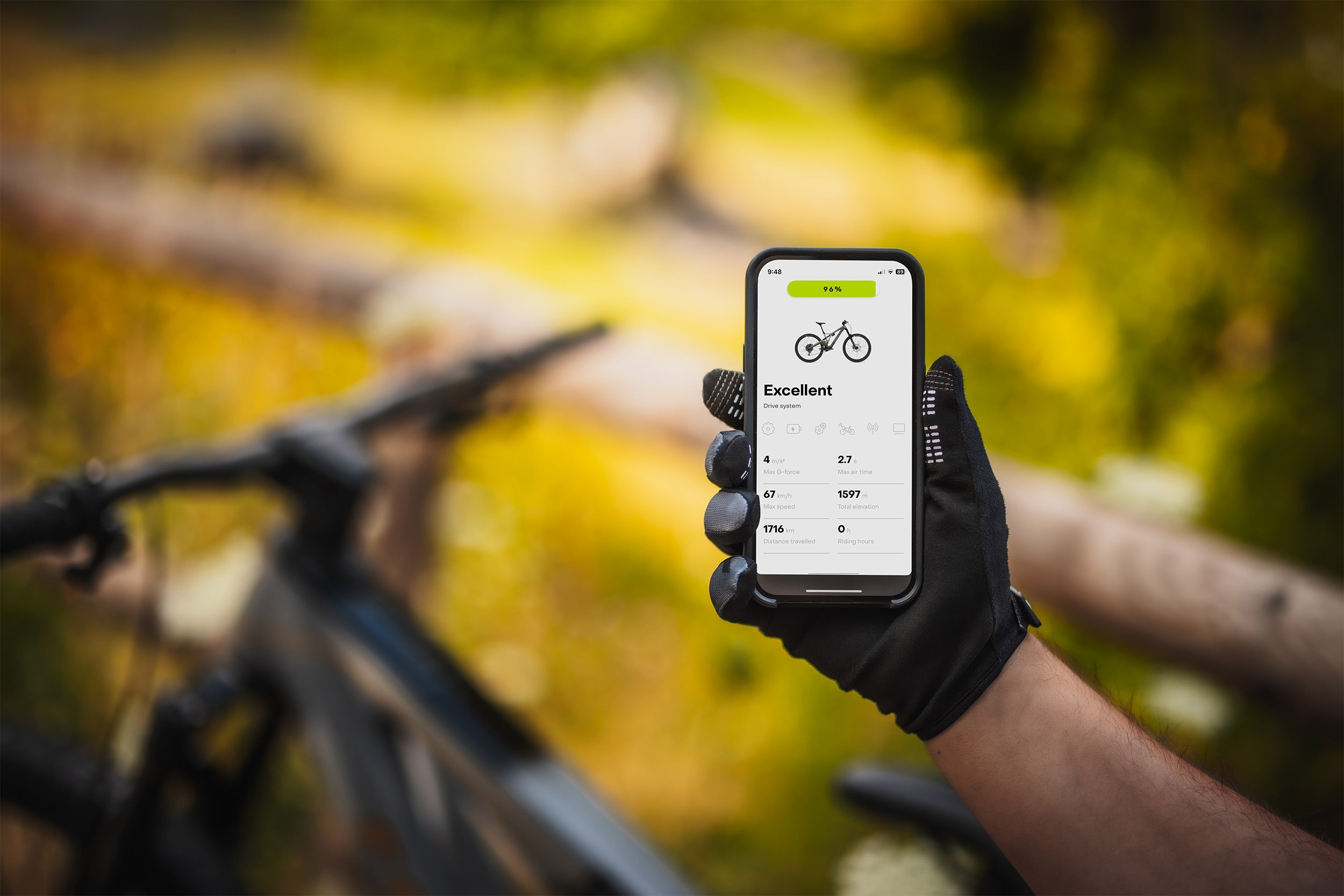

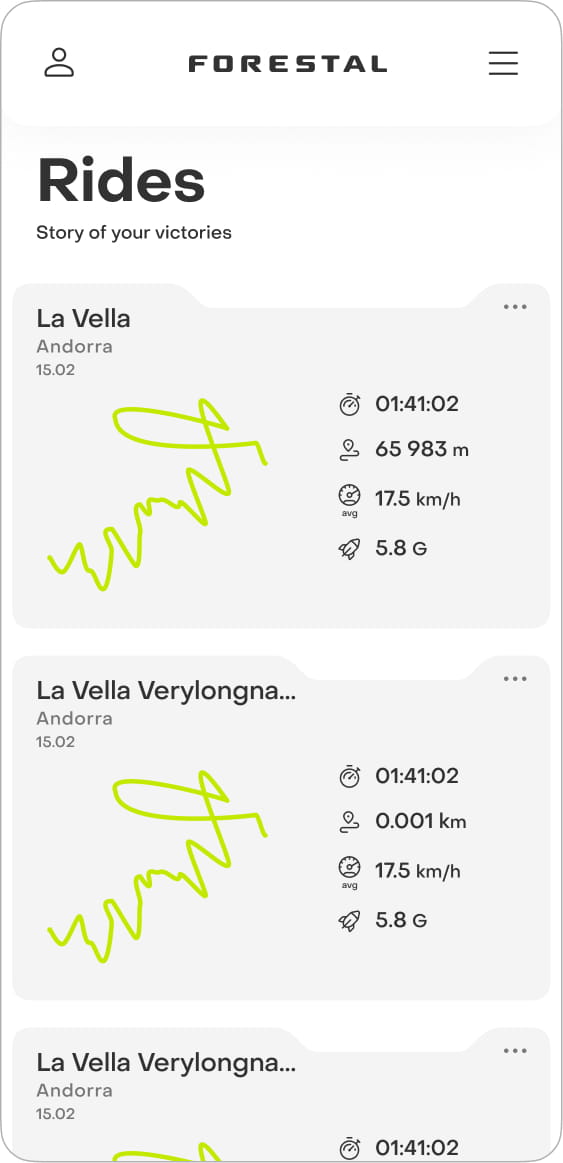

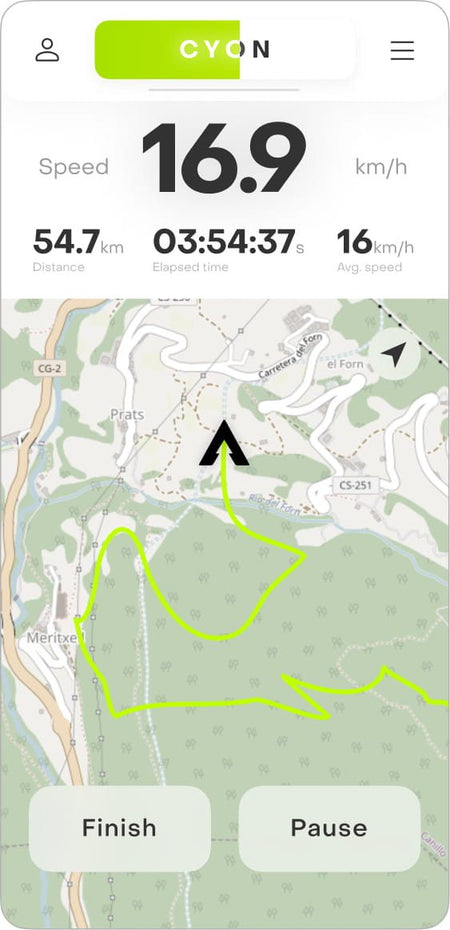

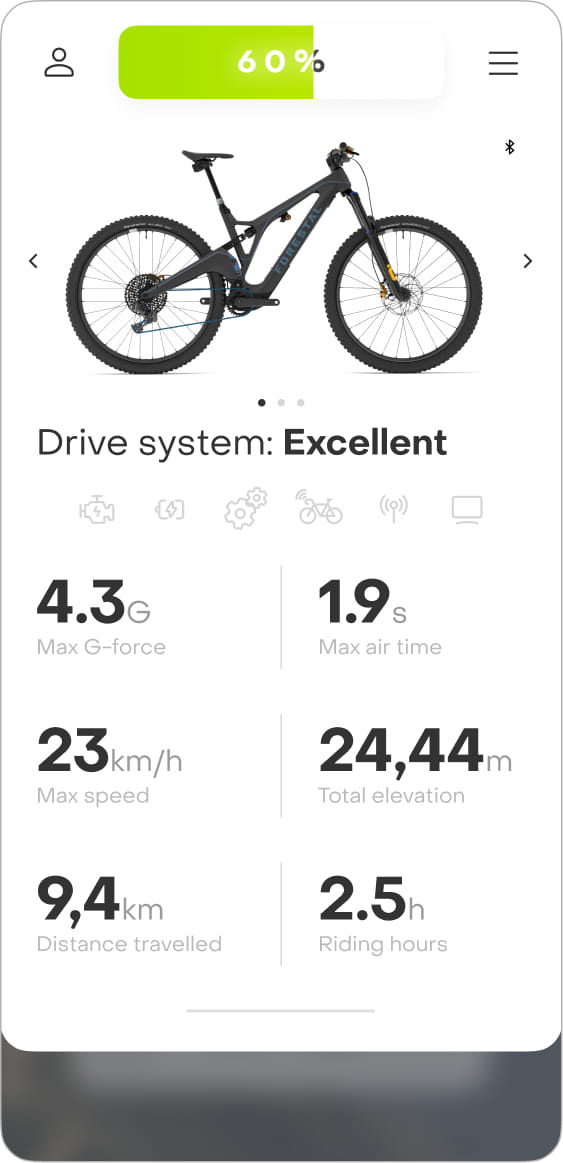

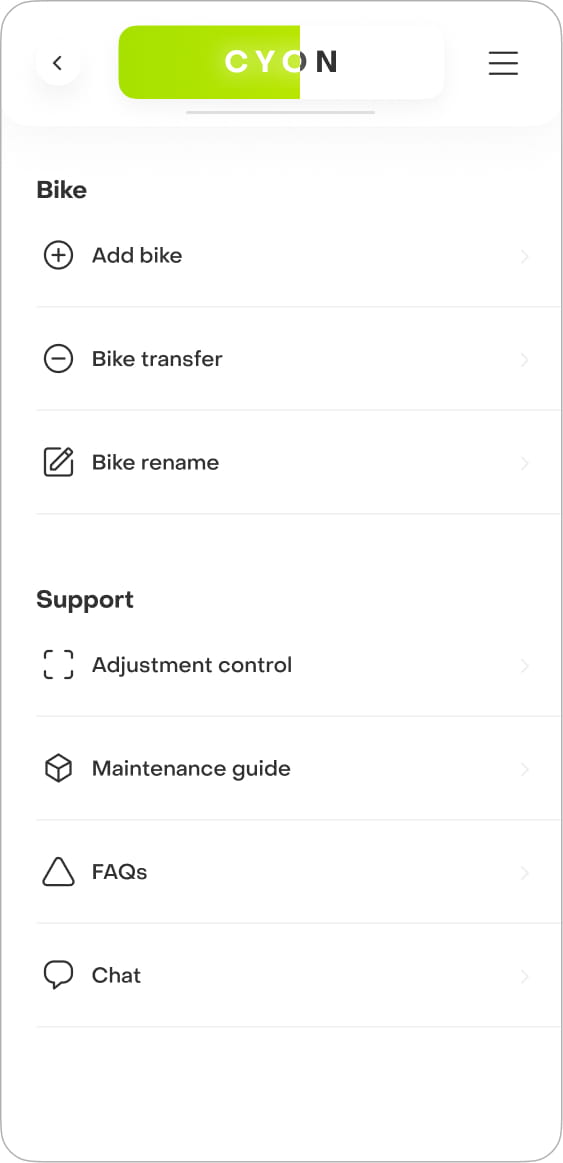

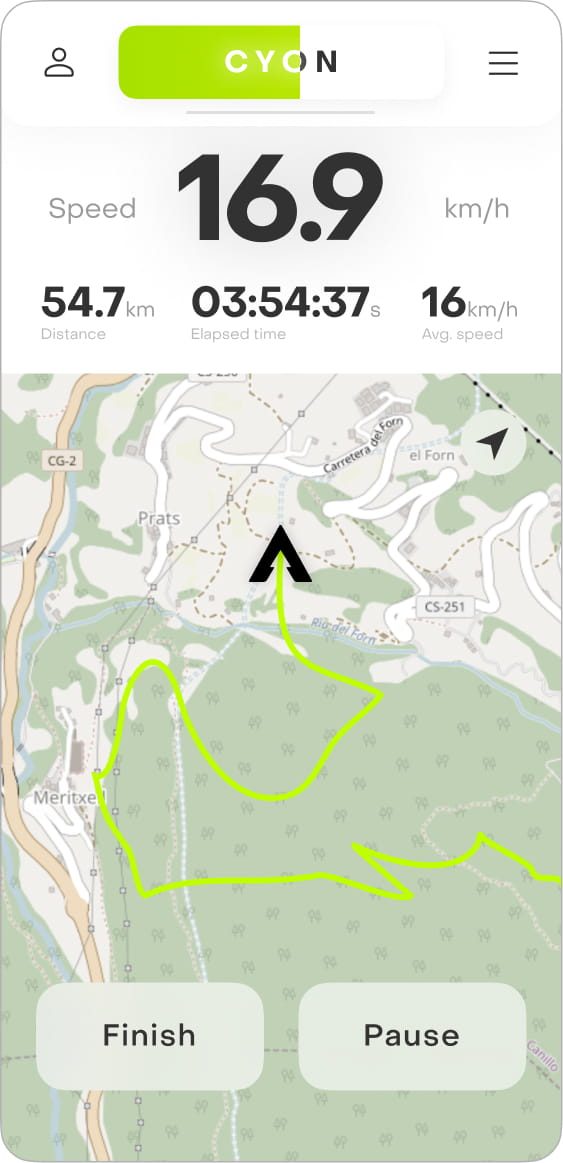

Forestal Sync app
Pair the bike with the Forestal Sync smartphone app to unlock additional features and detailed ride information.
- Ride logging, activities and statistics
- Strava synchronisation
- Bike status and basic diagnostics
- Ownership management, guest mode and bike transfer
- Support tools, warranty and service information
Who is the e‑Cygnus for?
This bike is ideal for riders who want cross‑country efficiency with enough suspension and stability to push hard on technical descents. It’s equally at home on fast local loops, big mountain days and light alpine adventures where you want support on the climbs without losing the feel of a responsive trail bike.
