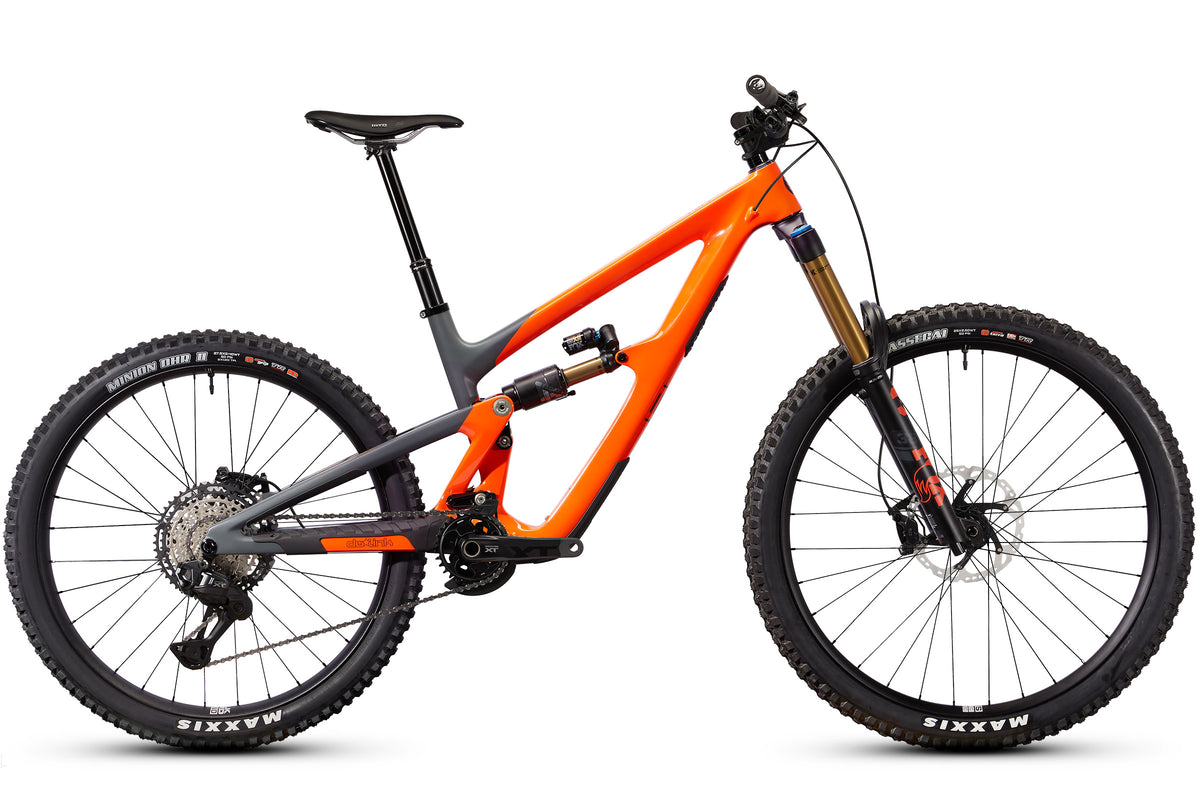

Traffic Cone Orange — Ibis HD6 XT 2027

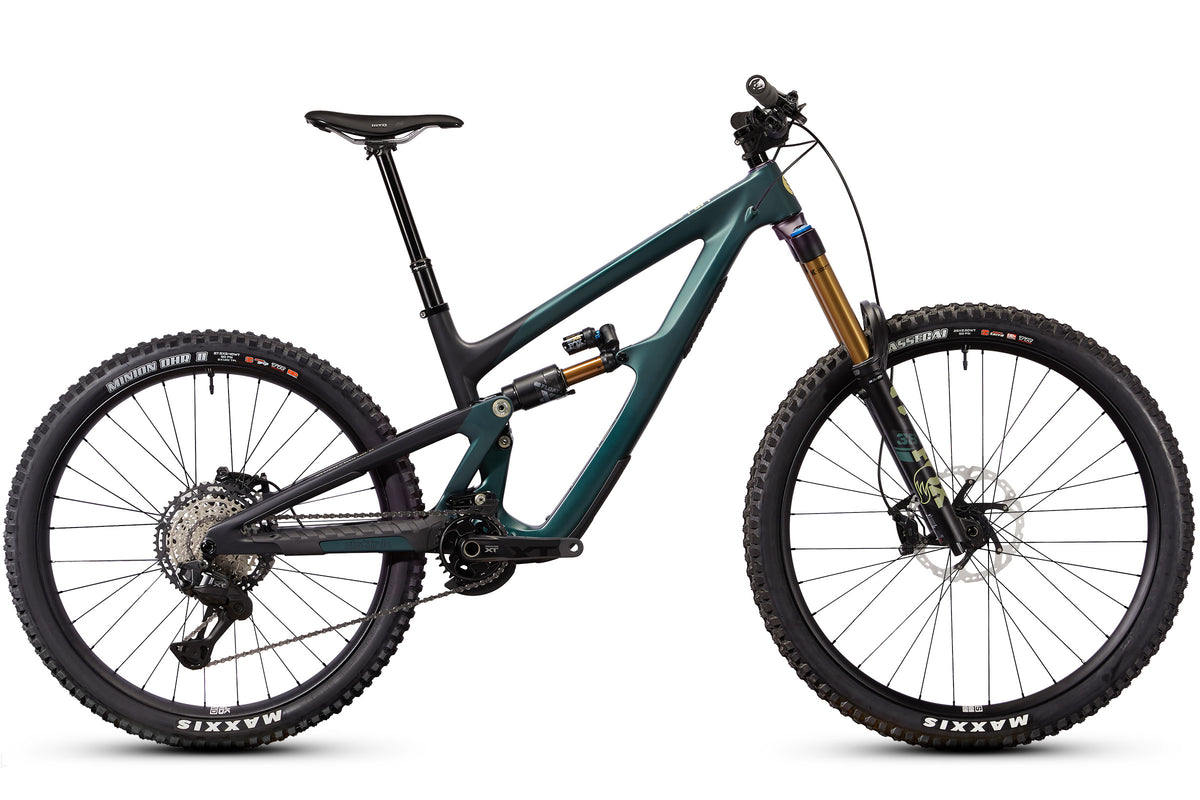

Enchanted Forest Green — Ibis HD6 XT 2027

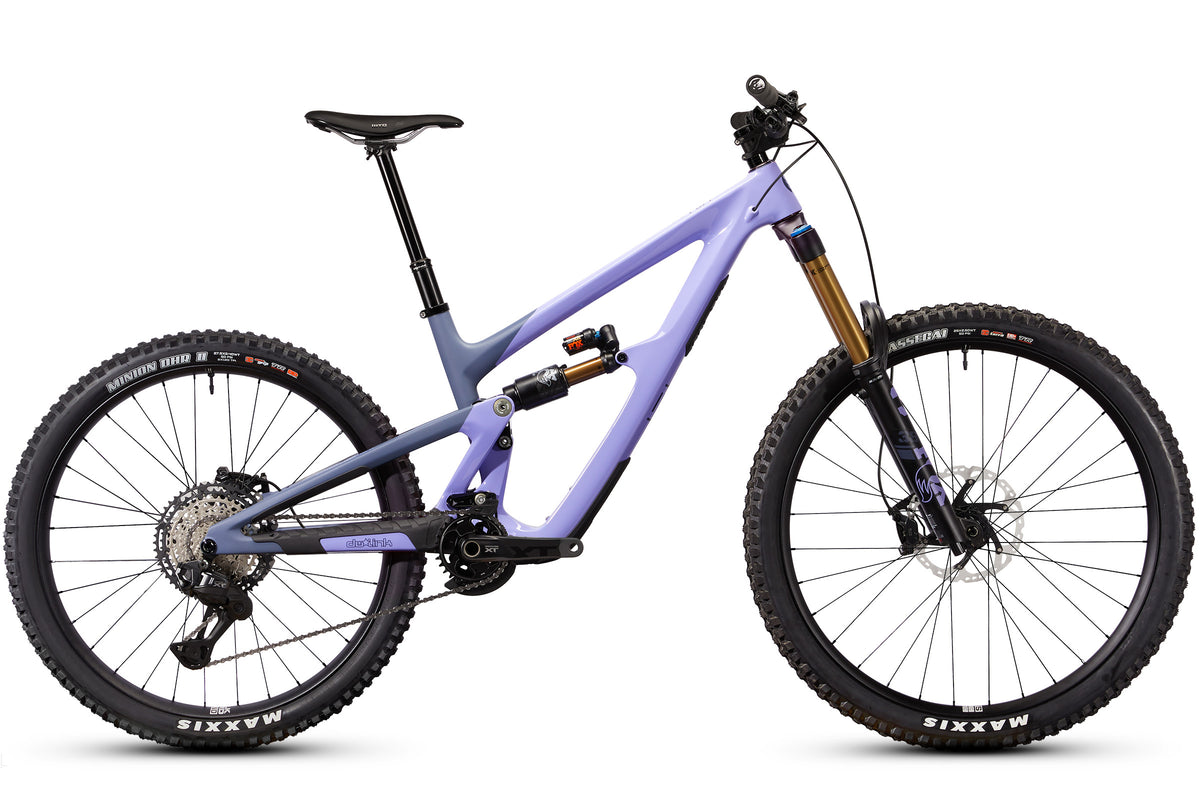

Lavender Haze — Ibis HD6 XT 2027
Traffic Cone Orange — Ibis HD6 XT 2027
Enchanted Forest Green — Ibis HD6 XT 2027
Lavender Haze — Ibis HD6 XT 2027
Ibis Cycles

Ibis HD6 XT 2027

(0)

165mm rear · 180mm front · Shimano XT Di2 SGS

91,290.00 SEK inc. VAT
FÖRBESTÄLLNING

Beräknad leverans inom 4–5 veckor.

Ring före beställning för att bekräfta exakt leveranstid: +46 70 600 54 55.

FrameCarbon front and rear triangle
Rear travel165mm
ForkFox Factory 38, Grip X2, 180mm, 29”
DrivetrainShimano XT Di2 SGS
Wheel size29/27.5” mixed wheelsize, up to 2.5" tire clearance
Colour
Size
Wheel upgrade

Ibis HD6 XT 2027

Fullständiga specifikationer

Frame & compatibility

Version
HD6
Frame Material
Carbon front and rear triangle
Frame Weight
A size large HD6 frame with an X2 weighs 7.7 lbs / 3.5kg
Wheel Size
29/27.5” mixed wheelsize, up to 2.5" tire clearance
Front Travel
180mm
Rear Travel
165mm
Shock Specs
230 x 65mm
Shock Eyelet Hardware
25mm x 8mm front / 15mm x 8mm rear
Boost Axles
148mm rear / 110mm front
Seatpost Diameter
34.9mm
Rear Brake
180mm Post mount / 220mm max rotor
Bottom Bracket
Threaded (73mm BSA)
Chainline
55mm chainline
Chainring
30T - 34T
Derailleur Hanger
SRAM UDH
ISCG 05 Compatible
ISCG 05 Tab Mount available separately
Headset
ZS44 upper / ZS56 lower
Colors
Traffic Cone Orange, Enchanted Forest Green or Lavender Haze
Sizes
SM (1) /MD (2) /XM (3) /LG (4) /XL (5)
Frame Warranty
Lifetime

Suspension

Fork
Fox Factory 38, Grip X2, 180mm, 29”
Shock
Fox Float X2 Factory Series with EVOL, 230mm x 65mm

Wheels & tyres

Wheels
Blackbird Send Alloy, 32 Hole, F: Send I 29”, R: Send II 27.5”; optional upgrade: Ibis S35 Carbon Rims / 29" & 27.5" / i9 Hubs
Front Tire
Maxxis Assegai 29x2.5 EXO+
Rear Tire
Maxxis DHR2 27.5x2.5 DD

Brakes

Brakes
Shimano XT M8220 4-Piston
Rotors (F/R)
Shimano XT RT-86 IceTech 203F/203R

Drivetrain

Crankset
Shimano XT, 24mm Spindle
Bottom Bracket
Shimano XT
Rear Derailleur
Shimano XT Di2 SGS
Shifter
Shimano XT Di2 Shift Switch
Cassette
Shimano XT 10-51T
Chain
Shimano XT
Chain Guide
MRP AMg SE

Cockpit & contact points

Headset
Cane Creek 50: ZS44/ZS56
Grips
Lizard Skins Strata Single Clamp
Handlebar
Ibis Hi Fi, 31.8mm, 800mm
Stem
Ibis 31.8mm; S–M: 40mm, XM–XL: 50mm
Seatpost
BikeYoke Revive Max, 34.9mm; S: 125mm, M: 160mm, XM: 185mm, L–XL: 213mm
Saddle
WTB Silverado Fusion CrMo 142

Specifikationer från Ibis Cycles. Komponenter kan ändras; bekräfta det slutliga utförandet före beställning.

Ibis HD6 XT 2027

Storleksguide och geometri

Storleksguide

StorlekCyklistens längd
SM158–168 cm
MD165–175 cm
XM173–183 cm
LG180–191 cm
XL188–201 cm

Mellan två storlekar? Ring oss för hjälp att välja rätt.

Storleksguide och geometri – Manufacturer standard setup; dimensions in mm and angles in degrees

SMMDXMLGXL
Seat Tube Length400400406450470
Top Tube Length585610630655685
Head Tube Length (4mm stack of lower cup not included)818691100115
Chainstay Length435435435435435
Seat Tube Angle76°76°76.5°77°77.5°
Head Tube Angle64°64°64°64°64°
Wheelbase12021228125612881328
BB Height (with 2.5WT Maxxis Assegai tires)345345345345345
BB Drop3030303030
Stack621625630638651
Reach430454480508541
Saddle height for seat tube angle650700745790830
Standover725735752765769
Trail136136136136136
Fork Offset4444444444

Geometry follows the current Ibis size-specific table. Wheel layout, rear-centre and bottom-bracket height may differ by frame size; use the configuration shown for your size.

Ibis HD6 XT 2027

Features & frame technology

Frame construction

Carbon front and rear triangle. Frame size options: SM, MD, XM, LG, XL.

dw-link suspension

The HD6 uses dw-link suspension with 165mm rear travel. Frame geometry and the supplied suspension are detailed in the other drawers.

Frame warranty

Ibis offers lifetime frame cover subject to eligibility and its warranty terms.

Ibis warranty terms

Ibis HD6 XT 2027

FAQs & compatibility

Fork and wheel compatibility

180–190 mm forks; 44 mm offset recommended. Dedicated 29-inch front / 27.5-inch rear layout: a 29-inch rear wheel is not supported.

Shock compatibility

Air or coil shocks in 230 × 65 mm. Select the tune and hardware for the HD6.

Chainring clearance

The Ibis quick-spec table lists 30–34T. Its FAQ permits up to a 36T round ring or a 34T oval ring. Confirm clearance before fitting the larger sizes.

Rear brake mounting

180mm Post mount / 220mm max rotor

Chainline

55mm chainline

Bottom bracket

Threaded (73mm BSA)

Paint and replacement parts

Consult the current Ibis support page for model and colour-specific paint codes, replacement components and all compatibility FAQs.

Complete manufacturer FAQs

Ibis HD6 technical page

Ibis HD6 XT 2027

Setup guides & dropper fit

Official setup documents

Choose the guide matching the suspension fitted to this build. Component manufacturers’ specifications also apply.

HD6 Suspension Charts MY23-MY24 .pdf

HD6 Suspension Charts MY25+ .pdf

Bottom Bracket Info .pdf

Frame insertion limits

Manufacturer reference chart in mm. Use only with the named seatpost and verify the supplied post’s insertion depth and full-compression saddle clearance.

Frame measurement12345
Maximum Seatpost Insertion (mm)250280290300300

Dropper Post Saddle Height Calculations

Manufacturer reference chart in mm. Use only with the named seatpost and verify the supplied post’s insertion depth and full-compression saddle clearance.

DropMin/Max12345
125Min567567573617637
Max685685691735755
160Min602602608652672
Max735735741785805
185Min635626632676696
Max755755761805825
213Min700670666705725
Max820820826870890

Dropper Post Saddle Height Calculations

Manufacturer reference chart in mm. Use only with the named seatpost and verify the supplied post’s insertion depth and full-compression saddle clearance.

DropMin/Max12345
125Min581581588631651
Max678678684728748
150Min606606612656676
Max718718724768788
170Min627627633677697
Max751751757801821
190Min661647653697717
Max781781787831851

Dropper Post Saddle Height Calculations

Manufacturer reference chart in mm. Use only with the named seatpost and verify the supplied post’s insertion depth and full-compression saddle clearance.

DropMin/Max12345
125Min590590596640660
Max710710716760780
150Min615615621665685
Max760760766810830
170Min635635641685705
Max800800806850870

Ibis HD6 XT 2027

Torque & maintenance

Official frame torque values

HardwareTorque Spec (Nm)Thread Treatment / Notes
Suspension
Forward Shock Mount Bolts10Loctite 243 on threads, grease on the shaft
Rear Shock to clevis bolt20Titanium Bolts: Loctite 243 on threads, Ti anti-seize on the shaft and underside of the bolt head
Linkage
Upper link to front triangle20Loctite 243 on threads (if no green threadpatch), grease on flange
Upper Link to Clevis20Loctite 243 on threads, grease under bolt head
Upper link to rear triangle35Loctite 243 on threads, grease under bolt head
Lower Link 4mm Side Preload Bolts2Loctite 243 on threads, grease under bolt head
Lower Link 5mm Pinch Bolts10Loctite 243
Misc
Rear Brake Caliper6Loctite 243
Seat Binder6Grease
Derailleur Hanger Bolt25Dry (reverse thread!)
Rear Axle10Grease

Current Ibis technical reference

Ibis HD6 XT 2027

Wheels & factory upgrades

Wheel specification

Standard wheelset: Blackbird Send Alloy, 32 Hole, F: Send I 29”, R: Send II 27.5”. Factory option: Ibis S35 Carbon Rims / 29" & 27.5" / i9 Hubs. Choose wheels before ordering; price and delivery apply to the exact configuration.

Official XT component list

Ask an expert

E-postadress +46 70 600 54 55

165mm rear · 180mm front · Shimano XT Di2 SGS. Select colour, size and wheel upgrade.

Warehouse availability: delivery in 10–15 working days. Other configurations: PRE ORDER, estimated delivery in 4–5 weeks. Call Boutique MTB before ordering to confirm the exact ETA.

Photos illustrate the frame colour and build; component specification and wheel size depend on the selected configuration. Refer to the full specifications and manufacturer guides.
