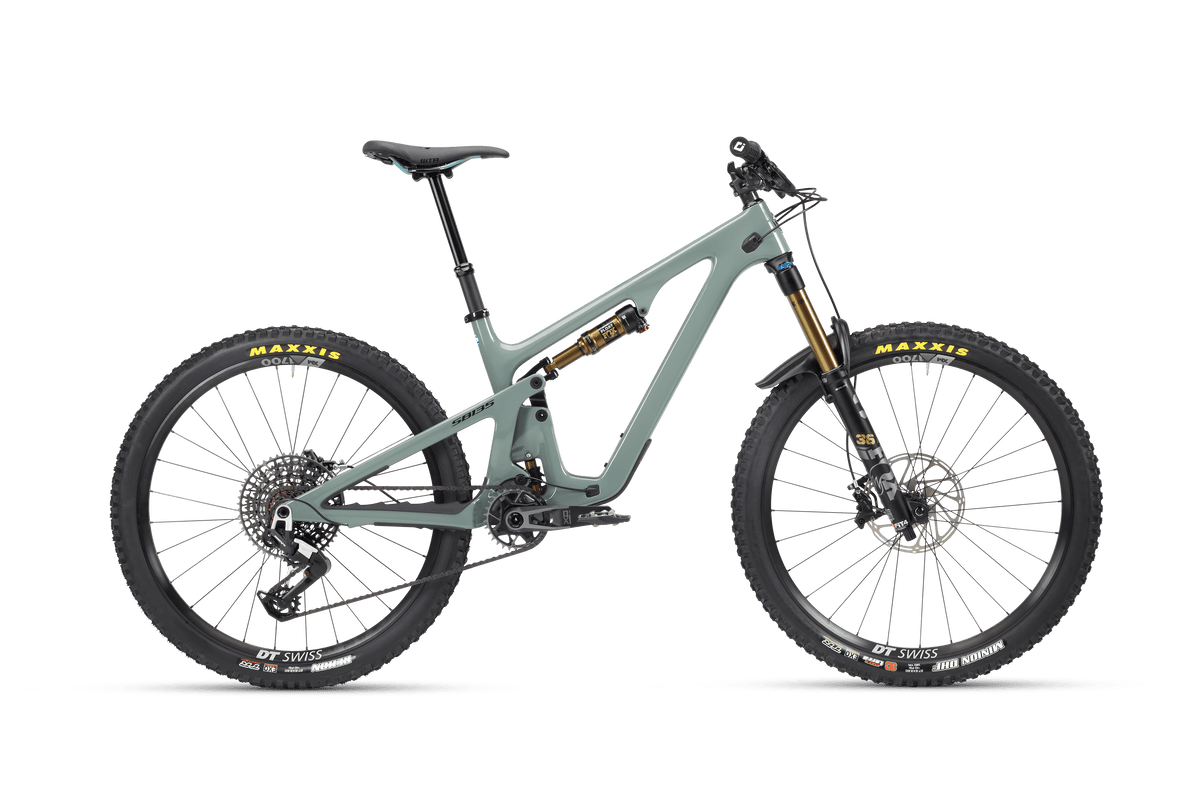

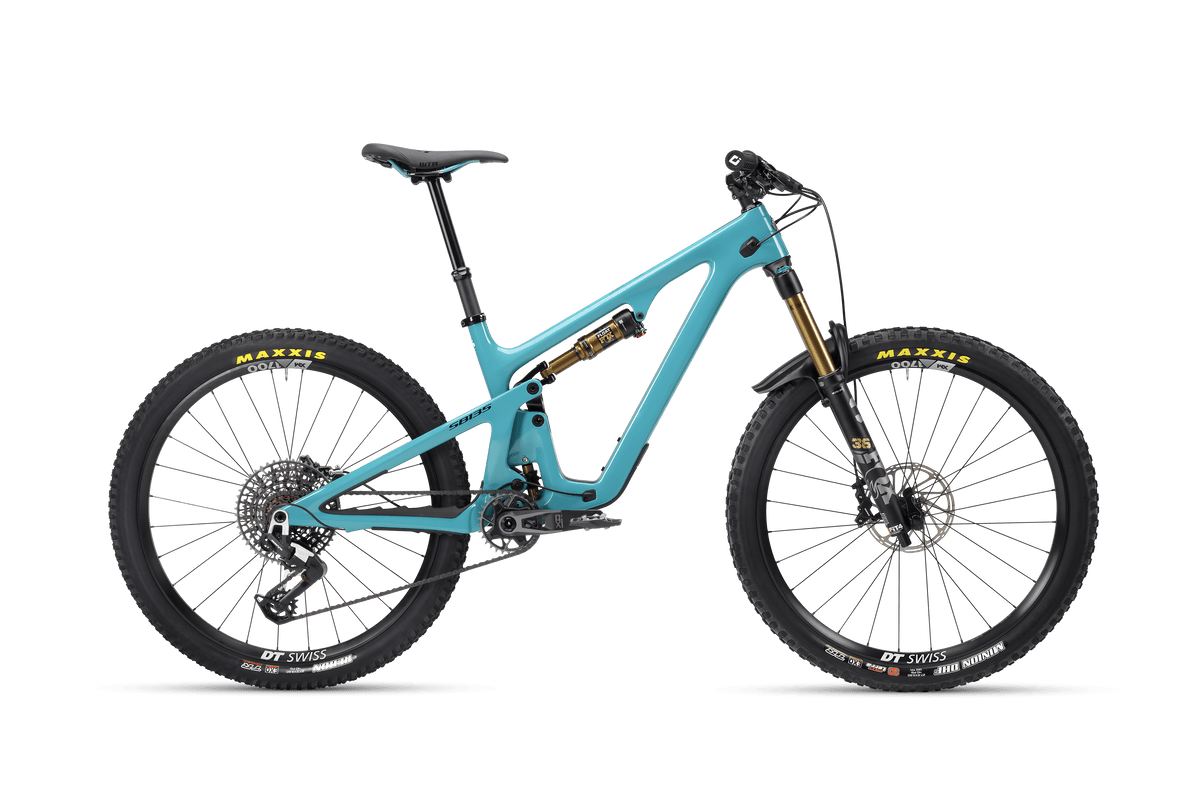

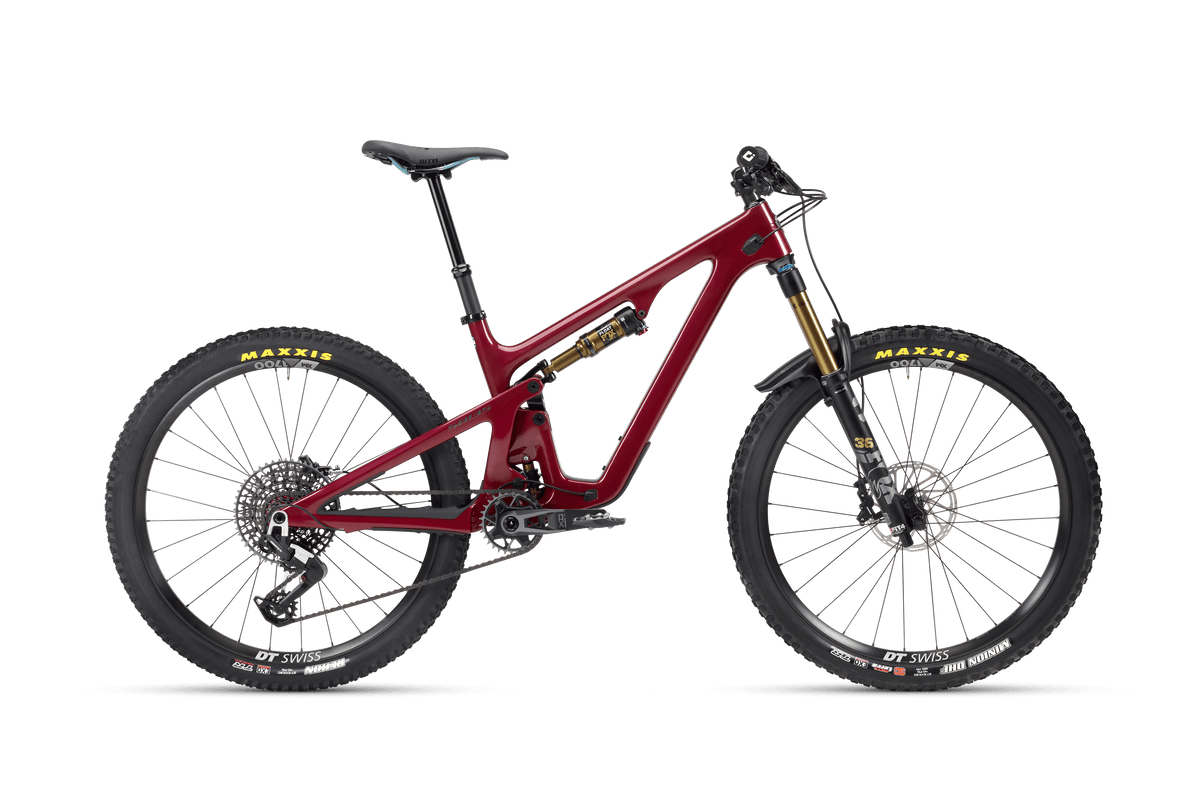

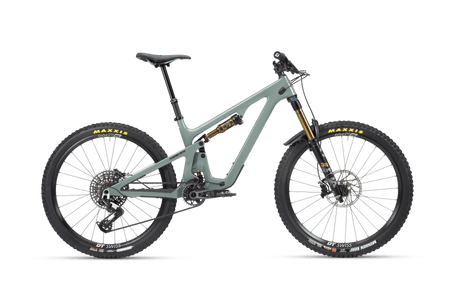

Yeti SB135 X0/90 T-Series 2027

(0)

Full-suspension mountain bike · 135 mm rear · SRAM 90

69,390.00 SEK inc. VAT
Beställningsvara

Beräknad tillgänglighet hos Yeti:

Leverans: 10–15 arbetsdagar efter att cykeln finns tillgänglig hos Yeti och betalningen har mottagits. Leverantörens datum är preliminärt.

Denna inkommande cykel kan ännu inte beställas.

Cyklar som finns i lager hos Yeti: leverans inom 10–15 arbetsdagar från betalning. För inkommande cyklar börjar leveranstiden när cykeln finns tillgänglig hos Yeti och betalningen har mottagits.

FrameTURQ SERIES
Wheels27.5
Rear travel135 mm
ForkFOX FACTORY 36 FIT4
DrivetrainSRAM 90
Weight29.53 lb (13.39 kg) (claimed)
Colour
Size

Yeti SB135 X0/90 T-Series 2027

Full specifications

Frame

Frame
TURQ Series carbon fiber frame, Factory Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Material
TURQ SERIES
Weight
29.53 lb (13.39 kg)
Rear travel
135 mm
Wheel size
27.5

Suspension

Fork
FOX FACTORY 36 FIT4
Rear shock
FOX FACTORY FLOAT

Drivetrain

Rear derailleur
SRAM 90
Shifter
SRAM 90
Crankset
SRAM X0 30T 165MM
Bottom bracket
SRAM DUB BSA 73
Cassette
SRAM X0 10-52
Chain
SRAM X0

Brakes

Brakes
SRAM MOTIVE SILVER
Rotors
SRAM HS2 200/180

Wheels & tyres

Wheelset
DT SWISS XM1700 RATCHET
Front tyre
MAXXIS MINION DHF 2.6 EXO
Rear tyre
MAXXIS REKON 2.6 EXO

Cockpit & contact points

Headset
CANE CREEK 40 INTEGRATED
Handlebar
YETI CARBON 35X760MM
Stem
BURGTEC ENDURO MK3 35X50MM
Grips
ODI REFLEX
Saddle
WTB SOLANO CHROMOLY
Seatpost
CRANK BROTHERS HIGHLINE/ XS: 125MM, SM: 150MM, MD: 170MM, LG-XL: 200MM

Specifications as published by Yeti Cycles. Yeti may change components during the model year without notice.

Yeti SB135 X0/90 T-Series 2027

Size guide & geometry

Fit guide

SizeRider height
XS145–160 cm
SM155–170 cm
MD165–180 cm
LG178–191 cm
XL185–201 cm

Between two sizes? Give us a call – we will help you choose based on your reach, riding style and terrain.

Geometry – SB135 (mm / degrees)

XSSMMDLGXL
SEAT TUBE LENGTH345365400440470
TOPTUBE LENGTH534566598620647
HEADTUBE ANGLE65.5°65.4°65.4°65.4°65.4°
EFF. SEAT TUBE ANGLE77°77°77°77°76.9°
ACTUAL SEAT TUBE ANGLE72.1°72.4°72°72.1°72.3°
REAR CENTER429431433435437
WHEELBASE11281164119912251257
ESTIMATED BB HEIGHT337337337337337
STANDOVER675678714718722
HEADTUBE LENGTH92101107118129
AXLE TO CROWN548548548548548
OFFSET3737373737
STACK583592597606616
REACH400430460479504
FRONT CENTER699733766790820
Vertical Fork Travel145145145145145

Fråga en expert

E-postadress +46 70 600 54 55

The Yeti SB135 X0/90 build uses TURQ SERIES carbon construction and 135 mm of rear travel. The suspension platform balances support and traction on technical trails.

This build pairs FOX FACTORY 36 FIT4 with a FOX FACTORY FLOAT rear shock. It uses SRAM 90 shifting, SRAM MOTIVE SILVER brakes and DT SWISS XM1700 RATCHET wheels.

Teknik //

Funktioner

CABLE MANAGEMENT

01

CABLE MANAGEMENT

Internal cable guides and secured entry points help keep routing tidy and reduce rattles.

THREADED BB

02

THREADED BB

A threaded bottom-bracket interface provides straightforward access for maintenance.

HANGERLESS INTERFACE

03

HANGERLESS INTERFACE

The derailleur interface supports SRAM UDH and compatible direct-mount Transmission systems.

PATENTED COMPACT WISHBONE

04

PATENTED COMPACT WISHBONE

A compact linkage connects the frame and shock while controlling the suspension leverage through the travel.

Geometry diagram

05

Geometry diagram

Use this manufacturer diagram alongside the geometry table to identify each measurement.
