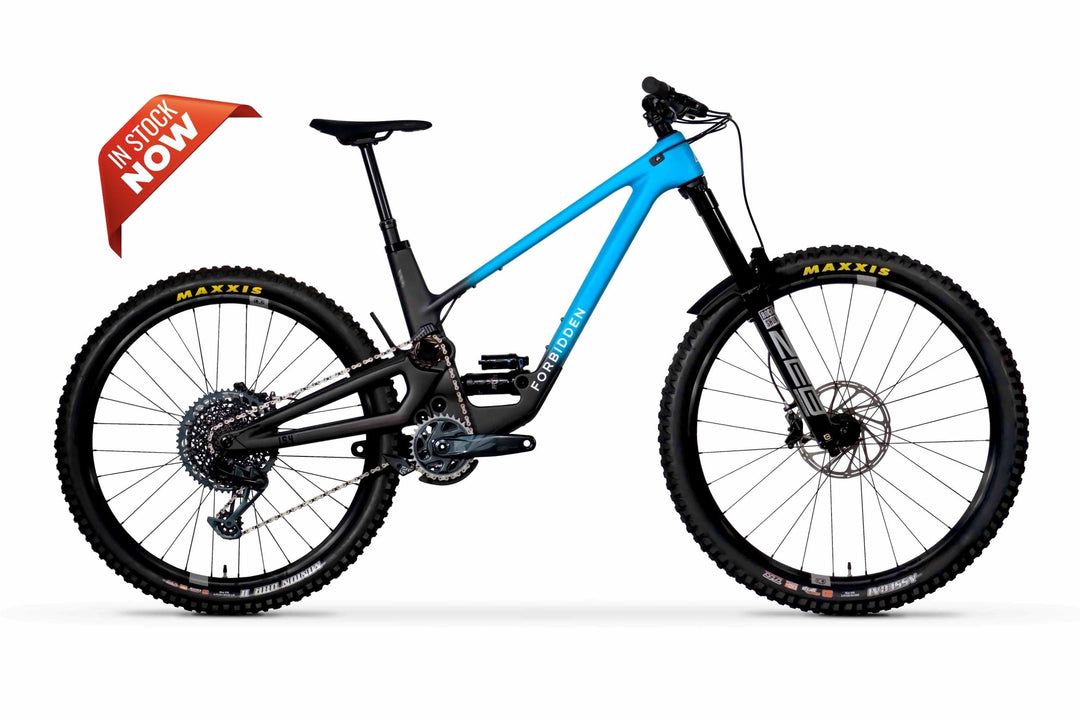

Forbidden Dreadnought GX Race Team Limited Edition XL
- Shipping to Continental Europe
- Lågt lager - 1 vara kvar
- Vi hem den på beställning åt dig
GX
The GX Race Team Limited Edition is available in either 29er front and back or MX wheels.
Build with the same part the Forbidden factory team race on, this limited edition bring exceptional "bang for bucks" to an already very desirable model
Having testing the bike extensively (we will be racing the Swecup Enduro on a Dreadnought in 2023) we recommend the following
Medium =MX wheels
Large = MX for agility or 29er for Stability
XL = 29er
Obviously, this is always a personal choice and this is based on a fairly aggressive riding mixing Enduro and bike park type trails
The most obvious feature of the Trifecta suspension system is the high pivot point and the resulting rearward axle path it produces. Unlike some other frame designs that talk of a rearward portion of their axle path, the height of our main pivot within the frame structure means our axle path takes a completely rearward trajectory throughout its travel. This rearward motion allows the rear wheel to move with, not against, any size of impact. This, in turn, allows the bike to remain composed and maintain momentum through rough terrain.
Specifications
FRAME | Dreadnought Full Carbon - 154mm TravelHigh-Modulus Carbon Fiber | Trifecta High Single Pivot Suspension | One Ride Geometry | Enduro Max Bearings | 73mm Threaded BSA Bottom Bracket | |
FORK | MY23 Rock Shox ZEB ultimate w/ buttercups and Charger 3 | |
REAR SHOCK | MY22 Rock Shox Super Deluxe 205x65mm | |
HEADSET | Cane Creek HellBender 70SHIS: ZS44/28.6|ZS56/40 | Premium Stainless Steel Bearings | Alloy Dual-Seal Crown Race | |
GRIPS | Burgtec | |
HANDLE BARS | Burgtec | |
STEM | Burgtecs | |
SEAT POST | One Up Components v2 31.6mm | Size Specific Travel :S=125mm - M=160mm - L/XL:185mm | |
SEAT POST REMOTE | BikeYoke Triggy XAdjustable Paddle Length | MatchMaker X Integrated Dropper Remote | |
SEAT POST CLAMP | Forbidden Custom7075 CNC Aluminum | 34.9mm | Black Anodized | |
SADDLE | Fizik Alpaca X5Chromoly Rails | Black Synthetic Cover | Terra 145mm Mo3ius | |
FRONT BRAKE | SRAM Code R 4-Pistons | |
REAR BRAKE | SRAM Code R 4-Pistons | |
FRONT BRAKE ROTOR | SRAM CenterLine - 200mm6-Bolt | |
REAR BRAKE ROTOR | SRAM CenterLine - 180mm6-Bolt | |
REAR SHIFTER | SRAM GX Eagle 12speedMatchMaker X | |
REAR DERAILLEUR | SRAM GX Eagle 12speedClutch | |
CASSETTE | SRAM XG-1275 Eagle 10-52T12speed | XD | 10-12-14-16-18-21-24-28-32-36-42-52T | |
CHAIN | SRAM GX Eagle 12 speeds | Links = S:130 / M:132 / L:134 XL:136 | |
CRANKSET | SRAM GX Eagle170mm | 52mm Chainline | Black | 30T Small, 32T All Other Sizes | |
PEDALS | Not included | |
CHAIN TENSIONER | Forbidden Idler Pulley with e.13 Custom Chainguide Forbidden Integrated Idler | e.13 TRS Plus | Molded Inner with Compact Outer | Black | |
BOTTOM BRACKET | SRAM DUB28.99mm Spindle | DUB | Threaded BSA | |
RIMS | Crank Brothers Synthesis Enduro Alloy | |
FRONT TIRE | Maxxis Assegai 29"x2.5"3C MaxxTerra Rubber Compound | 120tpi | Folding | Tubeless Ready | EXO+ Casing | |
REAR TIRE | Maxxis Minion DHR II 27.5"x2.4"3C MaxxTerra Rubber Compound | 2x120tpi | Folding | Tubeless Ready | Double Down Casing | |
Tubeless setup |
Tubeless Valves 41mm Presta Valve with Removable Core | Slicy Banana smoothy sealant |
|
ONE RIDE
One of Forbidden core philosophies is that everyone who rides our bikes should experience a similar ride characteristic, regardless of their size or stature. To this end, we have put extra effort into our geometry and sizing, and one of the major contributing factors behind a bike’s overall ride feel is its weight balance. The term ‘weight balance’ refers to the relationship between the rear centre and the front centre, and the resultant position of the rider’s centre of gravity between the tire contact patches. How each tire is weighted, directly affects the grip characteristics of the bike.
This weight distribution will also have a profound effect on both the [bike’s] agility and its stability. Many brands talk about their bikes having “balanced geometry”, yet they only use a single rear centre (chainstay) measurement across all frame sizes. If the rear-centre remains constant with each size while front-centre change, then it stands to reason that each size [of bike] will see a different weight distribution and therefore a different ride characteristic. At Forbidden, in an effort to ensure a consistent ride experience across all sizes, we employ a scaled rear-centre measurement for each individual frame size.
A BETTER FIT
Their commitment to geometry and the dynamic ride characteristics of our bikes doesn’t end with scaled rear-centre lengths. A challenge for all modern bikes, especially those with 29” wheels, is the relationship between effective and actual seat angle. We are extremely proud of the fact that our actual seat angles change with each size getting progressively steeper as frame size increases, thus, ensuring taller riders have a better-seated position than that of our competitors.
Their commitment to a better fit for all riders also led them to larger than normal increases in head tube lengths that better suit each end of the size range. They feel that these small but extremely important details ensure that you, the rider, will feel instantly at home on their bikes.
DREADNOUGHT ZIGGY LINK GEOMETRY
170mm Fork | S | M | L | XL | |
---|---|---|---|---|---|
A | Reach | 435 | 457 | 479 | 501 |
B | Stack | 615 | 625 | 634 | 643 |
C | Hori. Top Tube Length | 594 | 618 | 642 | 666 |
D | Seat Tube Length | 400 | 420 | 450 | 490 |
E | Seat Tube Angle (Effective) | 75.5 | 75.6 | 75.6 | 75.6 |
F | Seat Tube Angle (Actual) | 72.6 | 74.3 | 75.7 | 76.7 |
G | Head Tube Length | 90 | 100 | 110 | 120 |
H | Head Tube Angle | 63.0 | 63.1 | 63.1 | 63.1 |
I | Front Center | 781 | 808 | 834 | 861 |
J | Rear Center | 418 | 432 | 446 | 460 |
K | Wheel base | 1200 | 1240 | 1281 | 1321 |
L | BB Drop | -19.9 | -19.9 | -19.9 | -19.9 |
M | BB Height | 340.7 | 340.7 | 340.7 | 340.7 |
N | Stand Over | 721 | 721 | 727 | 733 |
O | Fork Length | 583.71 | 583.71 | 583.71 | 583.71 |
P | Fork Offset | 44 | 44 | 44 | 44 |
