OneUp Components Direct Mount 35mm Stem

1,389.00 kr
/
Skatt ingår. Frakt beräknas i kassan.
Storlek
  • Shipping to Continental Europe
  • Lågt lager - 1 vara kvar
  • Vi hem den på beställning åt dig

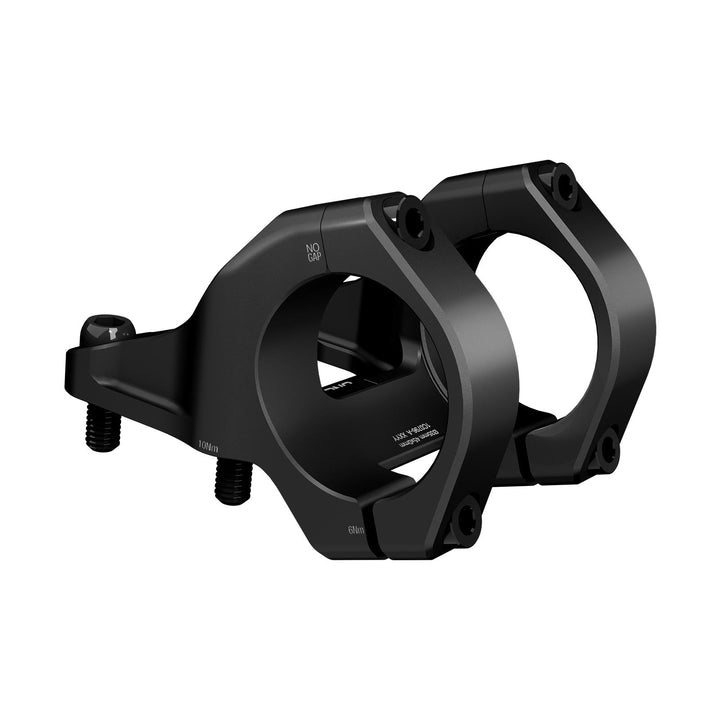

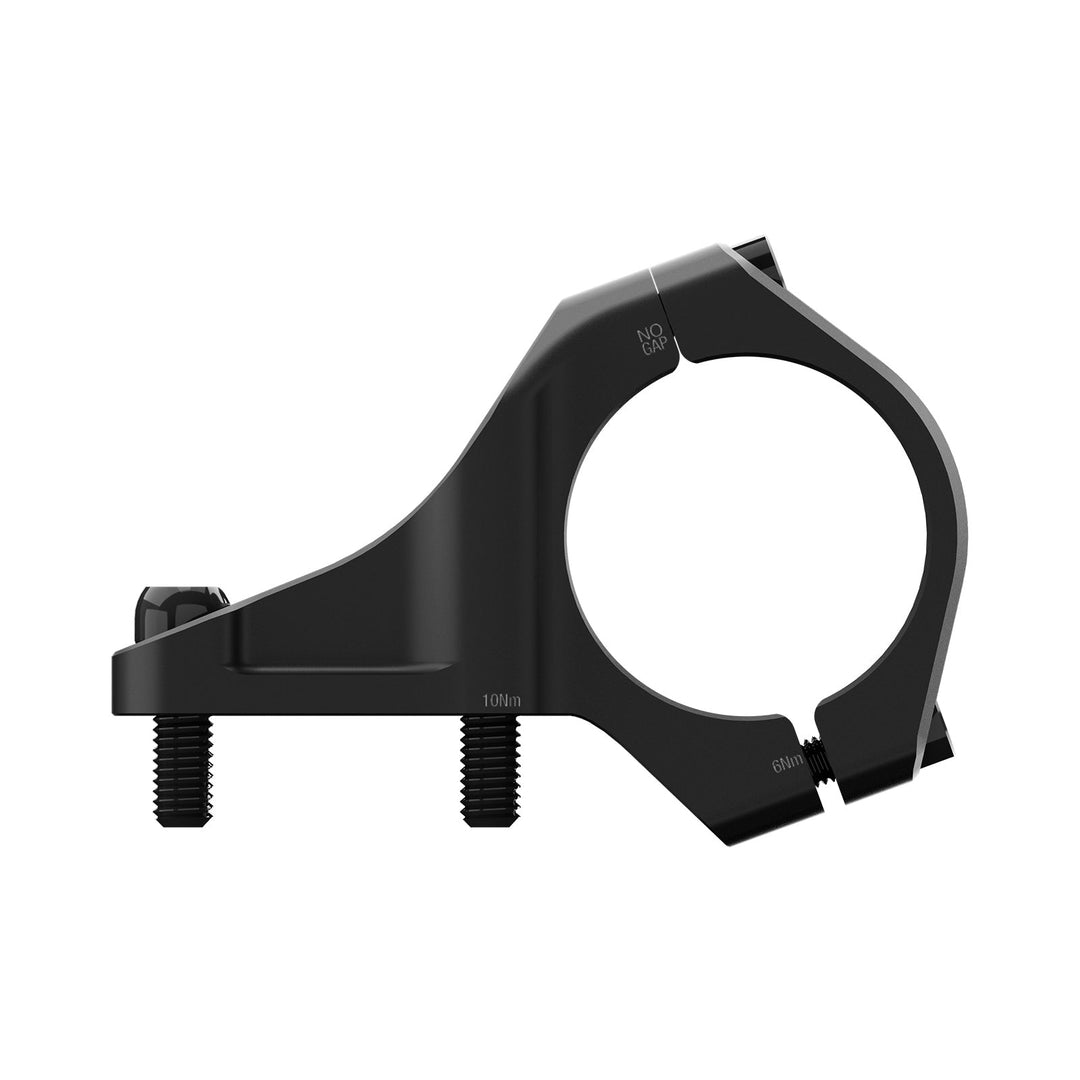

OneUp Components DH Stem was explicitly developed for the needs of our World Cup DH athletes. It’s a simple design with a 0mm stack that can be adjusted up to a 10mm rise with the Spacer Kit. Only available in one length, 45mm, and one speed: fast.



SPECS

Clamp Diameter: 35mm

Clamp Width: 60mm

Length: 45mm

Weight: 155g

Material: 6000-series Aluminum Alloy

Finish: CNC-machined, black anodized

Stack: 0mm-10mm



This stem is designed to be the perfect companion to the OneUp Carbon E-bar, the OneUp Carbon Handlebar, and the OneUp Aluminum Bar.
However, this stem will also fit other 35mm diameter bars, if you really really have to...

What's in the Box
  • 1x Direct Mount Stem
  • 4x Pre-Installed Bar Clamp Bolts
  • 4x Direct Mount Bolts

Note: Spacer Kit sold separately (available late 2023).

Basic Stem & Handlebar Install Instructions


Things You Will Need

  • 4mm Hex key
  • Torque wrench

Assembly time, is approximately 10 minutes. Difficulty: Easy.

SPECS

Geometry: 800mm Wide / 35mm Dia. / Sweep 8° Back 5° Up
Weight: 20mm Rise (220g) 35mm Rise (225g)
Max Stem Clamp Width: 65mm
Max Stem Clamp Torque: 6Nm
Max Lever Clamp Torque: 5Nm
Minimum Trim width: 740mm

Our Carbon bars have degrees etched into the stem clamp profile. These are designed to correspond with the head angle of your bike to create a neutral starting point for bar roll & to optimize the vertical compliance of the bar.


INSTALLATION

NOTE: These instructions are in reference to OneUp Components Bar & Stem. If you are using a different stem please check the installation instructions for that stem. Not all stems clamp with no gap on the top clamp. Failing to install stem faceplates correctly can result in failure.

STEP 1:

With the Stem face plate removed, install the bar.

STEP 2:

Install the Top bar clamp and bolts, and tighten the bolts to the stem body until there is no gap between the stem body and face clamps.

STEP 3:

Thread lower bolts until the bar is held in place, but can still roll easily.

STEP 4:

Find the corresponding marking to your frame's headangle and line it up with the edge of the stem face plate.

If you are using a non-OneUp stem, you can also line up the markings with the edge of the stem face plate.

STEP 5:

Torque all stem bolts to 6Nm.



Note: It is highly recommended to check the torque spec twice before shredding!
